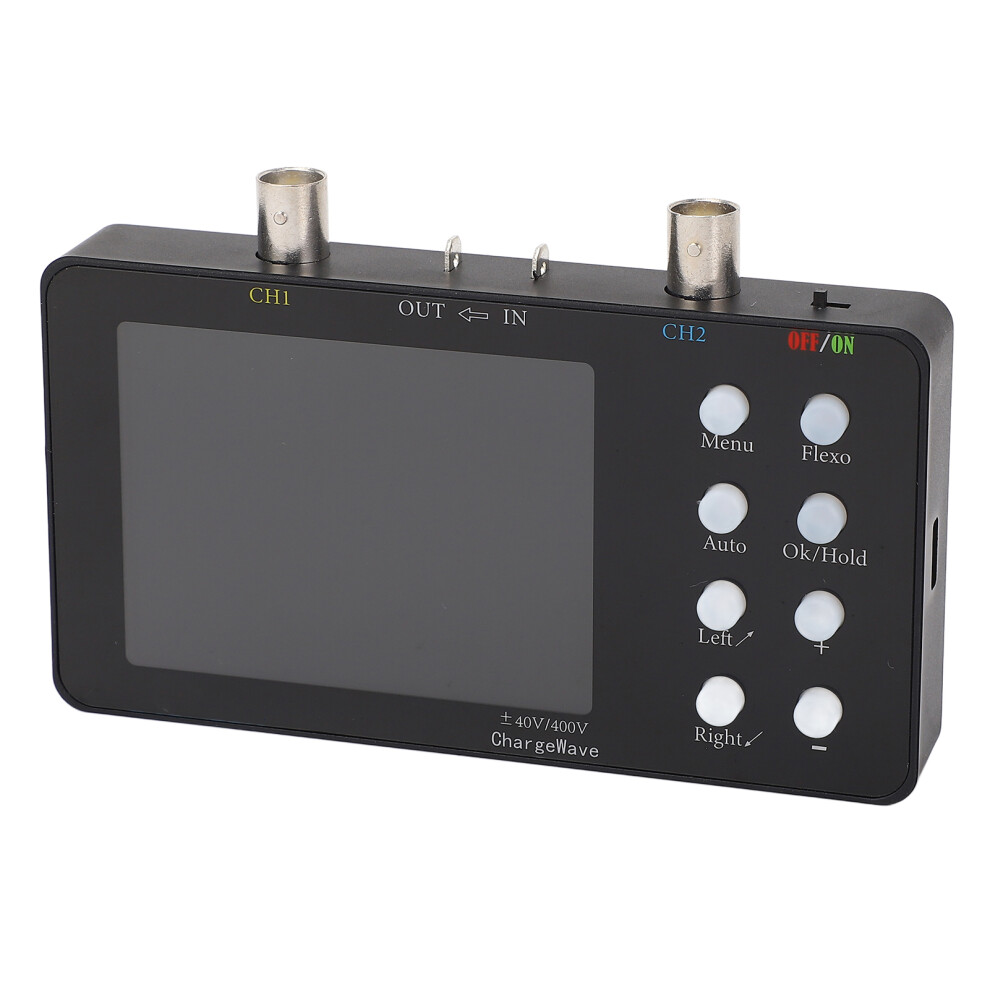

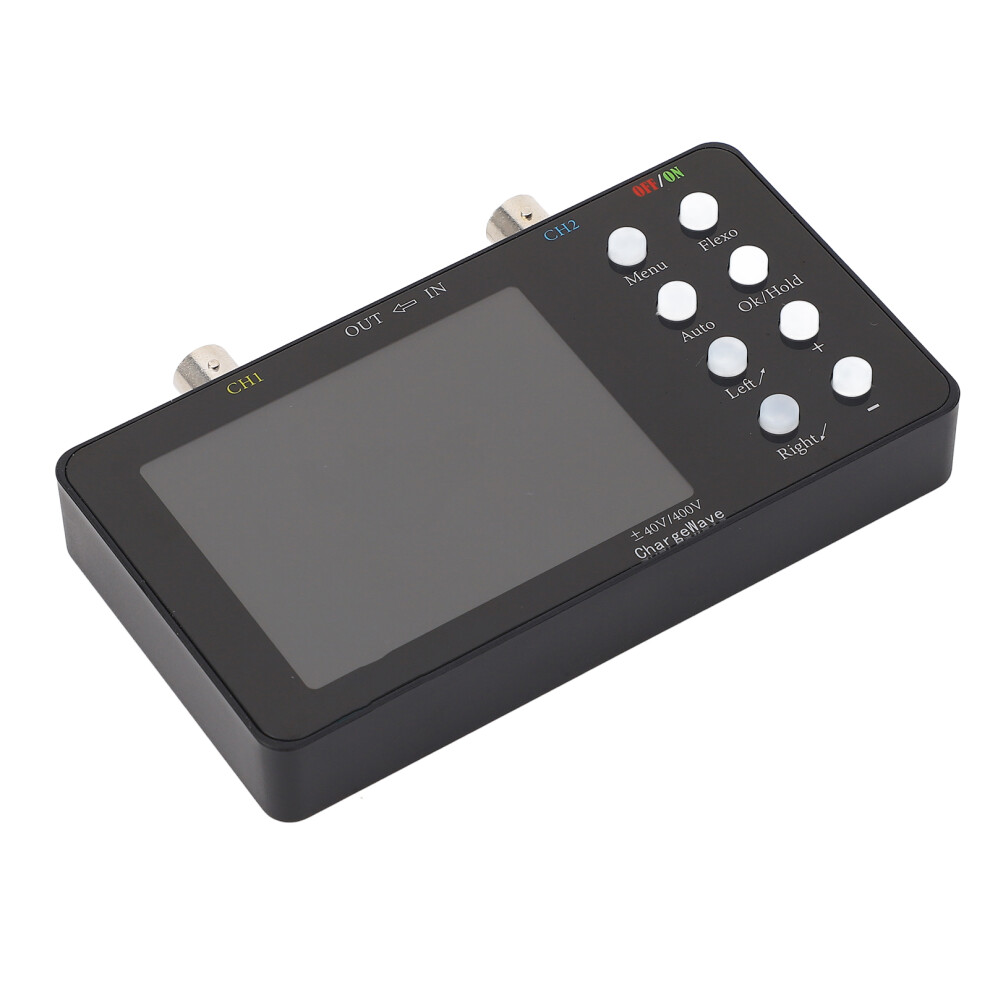

Handheld Oscilloscope 3.2 Inch LCD 2 Channel Digital with Probe Clips

Handheld Oscilloscope 3.2 Inch LCD 2 Channel Digital with Probe Clips Description

1、Storage and Sampling Rate: This oscilloscope features 20K storage depth with waveform compression and expansion capabilities; Dual channels design, 50M per channel sampling rate 2、Current Waveform Compression: Offers stepless compression of current waveform up to 165 times, allowing for detailed examination of current variation curves at any compression level 3、LCD Display: This digital oscilloscope features a 3.2 inch LCD display screen with a resolution of 320x240, ensuring clear and intuitive display of waveforms, improving your work efficiency 4、Long Endurance: Equipped with a built in 2500mAh battery, this oscilloscope provides continuous working time up to 4.5-6 hours, ensuring stable use throughout your various projects 5、Versatile Usage: This 2 channel oscilloscope is suitable for home appliance repair, mobile phone maintenance, car troubleshooting, electronic hobbyist projects, and power supply repair
Item Type: Handheld Oscilloscope
Model: SCO-2-10M
Sampling Rate: 50M/Channel
Channels: 2
Analog Bandwidth: 10MSa/s (per channel)
Voltage Measurement: X1/40V x10/400V
Input Impedance: 1MΩ
Storage Depth: 20Kb
Parameter Display: 12 Types
Current Measurement: 0-6A
Minimum Accuracy: 2mA
Current Sampling Rate: 2.5KSa/s
Display: 3.2 inch LCD Resolution 320x240
Charging Voltage: 5V
Battery Capacity: 1 x 2500mAh Li Battery (built in)
Continuous Working Time: 4.5-6h
Firmware Upgrade: Support

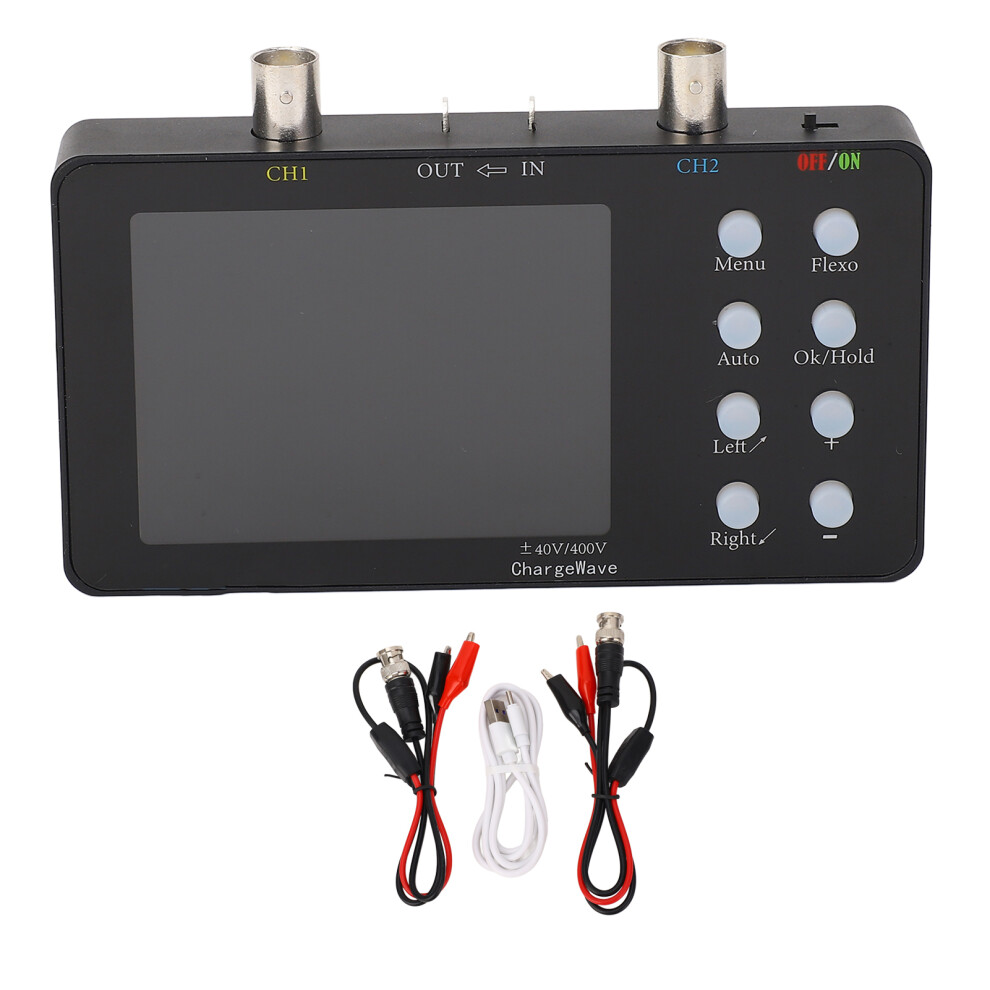

1 x Oscilloscope
2 x Red Black Probe Clips
1 x Charging Cable
1 x User Manual
