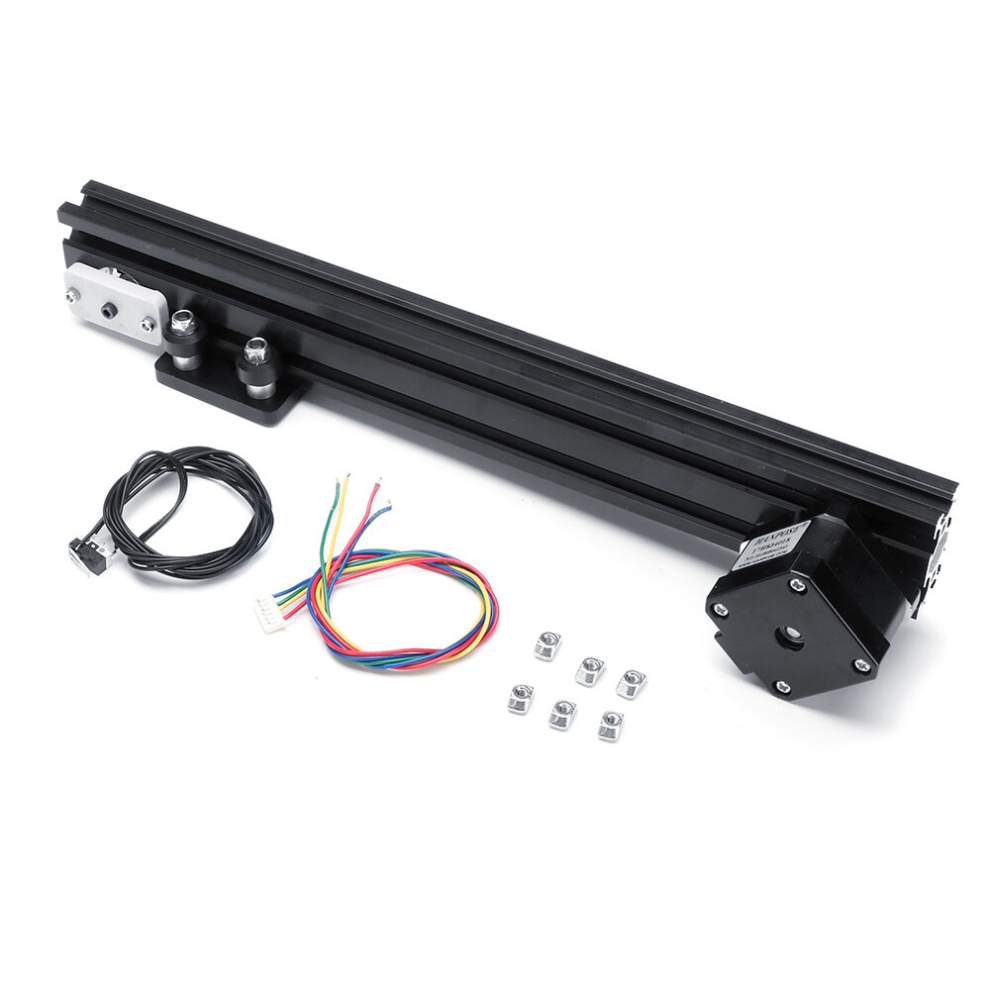

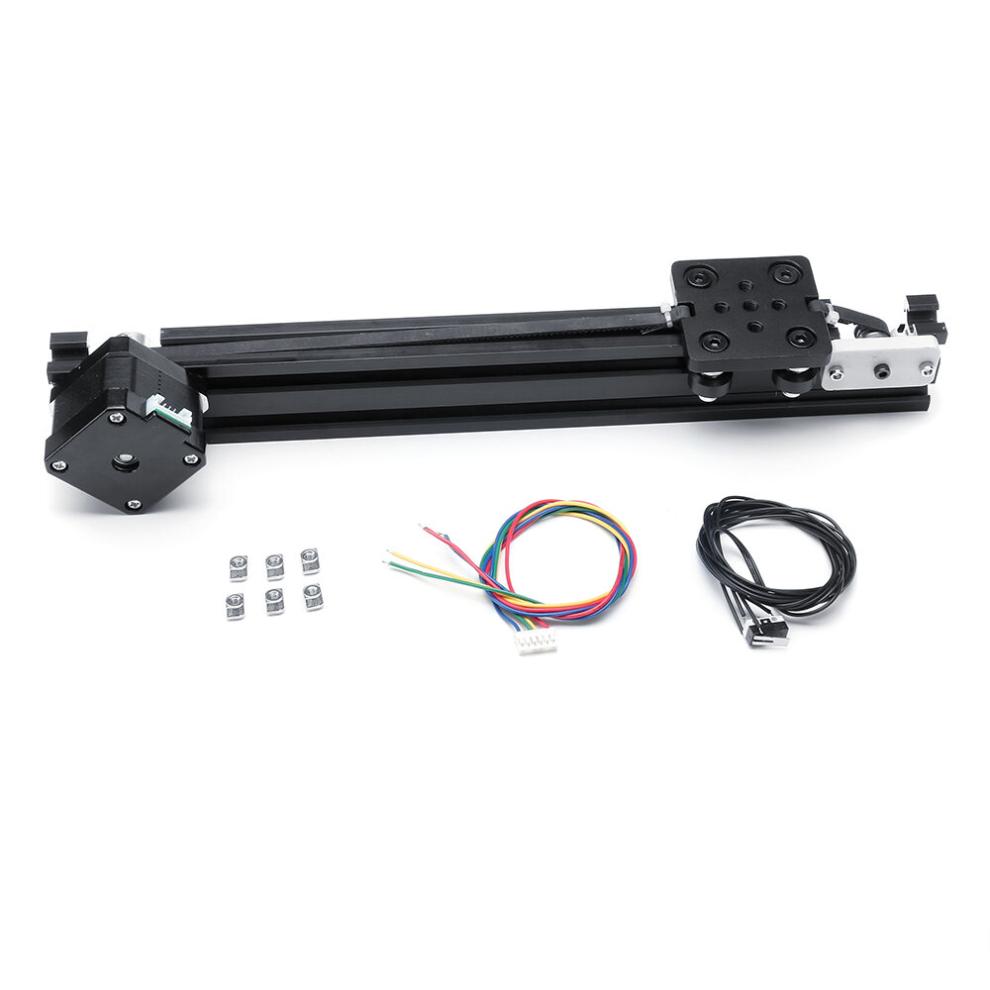

HANPOSE HPV2 Linear Guide Set Openbuilds V Linear Actuator Effective Travel 100-400mm Linear Module with 17HS3401S Stepper Motor

HANPOSE HPV2 Linear Guide Set Openbuilds V Linear Actuator Effective Travel 100-400mm Linear Module with 17HS3401S Stepper Motor Description

Description: HANPOSE HPV2 Linear Guide Set Openbuilds V Linear Actuator Effective Travel 100-400mm Linear Module with 17HS3401S Stepper Motor Specification: Model: HPV2 Width or Diameter of Guide: 2040 Effective Travel: 100/150/200/250/300/350/400mm Motor: 17HS3401S Stepper Motor Motor leads: 30cm Total lenght= Effective Stroke+160mm Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. 17HS3401-S Motor: Model 17HS3401-S Type Hybrid Phase 2 Step Angle 1.8° Motor Size 42 x 34mm Shaft D shaft 21 x Ð5mm Outlet way 4 plug line Motor leads Dupont line(1M) Adapter drive Two-phase step drive Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. Electrical Specifications: Model No. Step Angle Motor Length Rated Current Resistance /Phase Inductance /Phase Holding Torque Detent Torque Inertia Of Rotor Lead ( °) (L)mm (A) (Ω) (mH) (N.cm) (N.cm) (G. cm²) (No.) 17HS3401-S 1.8 34 1.3 2.4 2.8 28 1.6 34 4 General Specification: Precision angle step ±5% (full step, no charge) Resistance accuracy ±10% Precision inductance ±20% Temperature rise 80deg Max (rated current, 2 phase on) Ambient temperature ( - 20°)-(+ 50°) Insulation resistance 100MΩ Min, 500VDC Insultion Force 500VAC for a minute Package Included: 1 X HPV2 MINI V Linear Actuator Set 1 X Motor leads(30cm) 1 X Limit switch 6 X Screws More Details:
