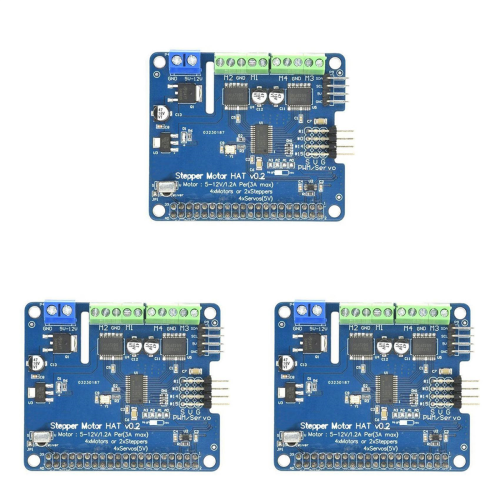

HAT V0.2+Robot Expansion Board Stepper/Servo for 3B/3B+

HAT V0.2+Robot Expansion Board Stepper/Servo for 3B/3B+ Description

Product introduction:This expansion board is a full-featured robot expansion version on market that can support multiple motors/stepper motors/servos (Stepper/Motor/Servo) at the same time,and can be stacked to expand more control interfaces.It's especially fit for applications such as DIY robots,smart cars,robotic arms, /tilts,etc.The control interface simply adopts the I2C interface and is compatible with 3.3/5V levels,so it's also fit for other development boards on market.
note: Due to different batches, the appearance, color, and printed words of the product , which does not affect its use.

Features:
1. Single power supply, the normal working power supply voltage range is 5V~12V; (Please select the correct input power supply voltage and current according to the motor control voltage you control)
2. Complete data input/output through the I2C bus of for the ,
3. One I2C interface, compatible with 5V level, can be controlled by for or other development boards
4. One I2C interface can be connected to sensors to expand applications
5. The address of the expansion board is determined by 4 address pins, and a maximum of 16 expansion boards can be used at the same time.
6. Supports 16 PWM channel outputs and can control 16 servos or LED lights.
7. 12-bit resolution, adjustable PWM frequency up to 1.6KHz, configurable push-pull or open-drain output
8. Supports 4-way servo interface and 3P standard interface to facilitate connection of servo and LED lights.
9. Supports 2-channel 6V~12V stepper motors, Supports 4-channel 6V~12V reduction motors
spec:
Working voltage: 5V~12V
Interface: I2C
interface description:
1. 4-way servo interface (#0, #1, #14, #15)
2. 4-way motor interface (M1, M2, M3, )
3. 2-way stepper motor interface (M1+M2, M3+)
4. I2C interface
size: 65 x 56 x 21mm
Material: PCB
colour: blue

Package Contents:
3 x Expansion Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
