HDMI EDID Emulator Support 4K CEC Ready Compact Durable Plastic Build

HDMI EDID Emulator Support 4K CEC Ready Compact Durable Plastic Build Description

HDMI EDID Feeader EDID Manager Emulator Support 4K CEC
The HDMI EDID Manager easily resolves compatibility issues between source and display through 16 EDID modes. Make your audio and video equipment easier and more comfortable e.
Features:
1. One channel HDMI signal input, one channel HDMI signal output.
2. 16 kinds of EDID mode, adjust the signal source EDID, compatible with the back-end display device.
3. Supports up to 4K resolution, allowing you to enjoy ultra high definition quality.
4. Support CEC.
5. HDMI output distance up to 10M, standard 26AWG, 1.4V HDMI cable.
6. Easy to install, no extra power required.
16 EDID modes:
A. 4K 2CH
B. 4K 5.1CH
C. 4K HD
D. 1080P 2CH
E. 1080P 5.1CH
F. 1080P HD
G. 1080P 3D 2CH
H. 1080P 3D 5.1CH
I. 1080P 3D HD
J.  1080i  2CH
K. 1080I  5.1CH
L. 1080i  HD
M. 720P  2CH
N. 720P 5.1CH
O. 720P  HD
P. sink EDID

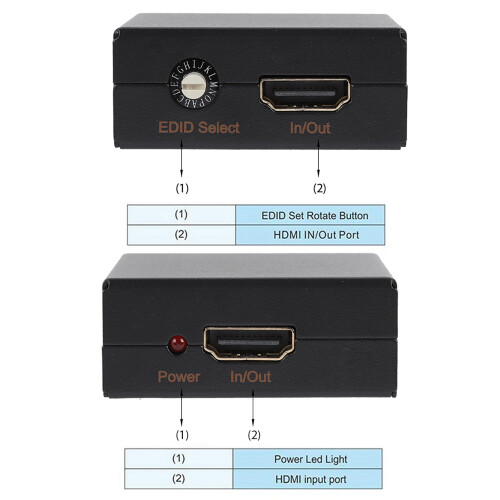

Connection and operation:
1. Connect a signal source (such as a Blu-ray player, computer, etc.) to the HDMI input of the EDID via the HDMI cable.
2. Connect to an input device (such as a TV, etc.) via an HDMI cable.
3. Manually adjust the EDID Manager 16 modes according to the resolution supported by the backend display device.
Specification:
Product Name: EDID Manager
Model: HDSW0006M1
HDMI input audio format: LPCM2.0/DTS/Dolby-AC3
HDMI output cable length: 10m, 1.4V 26AWG
Maximum operating current: 300mA/5V DC
Operating temperature range: 0 to +40C
Operating humidity range: 5 to 85% RH (no condensation)
Storage temperature range: -10 to +55 C
Storage humidity range: 0 to 90% RH (no condensation)
Size: approx. 5.2 * 4.8 * 2 / 2.0 * 1.9 * 0.8in
Weight: approx. 81g
Package List:
1 * EDID Manager
