Heating Controller 10A Central Heating Controller Gas Boiler Geothermal Water System Pump Valve Actuator 5 Loops

Heating Controller 10A Central Heating Controller Gas Boiler Geothermal Water System Pump Valve Actuator 5 Loops Description

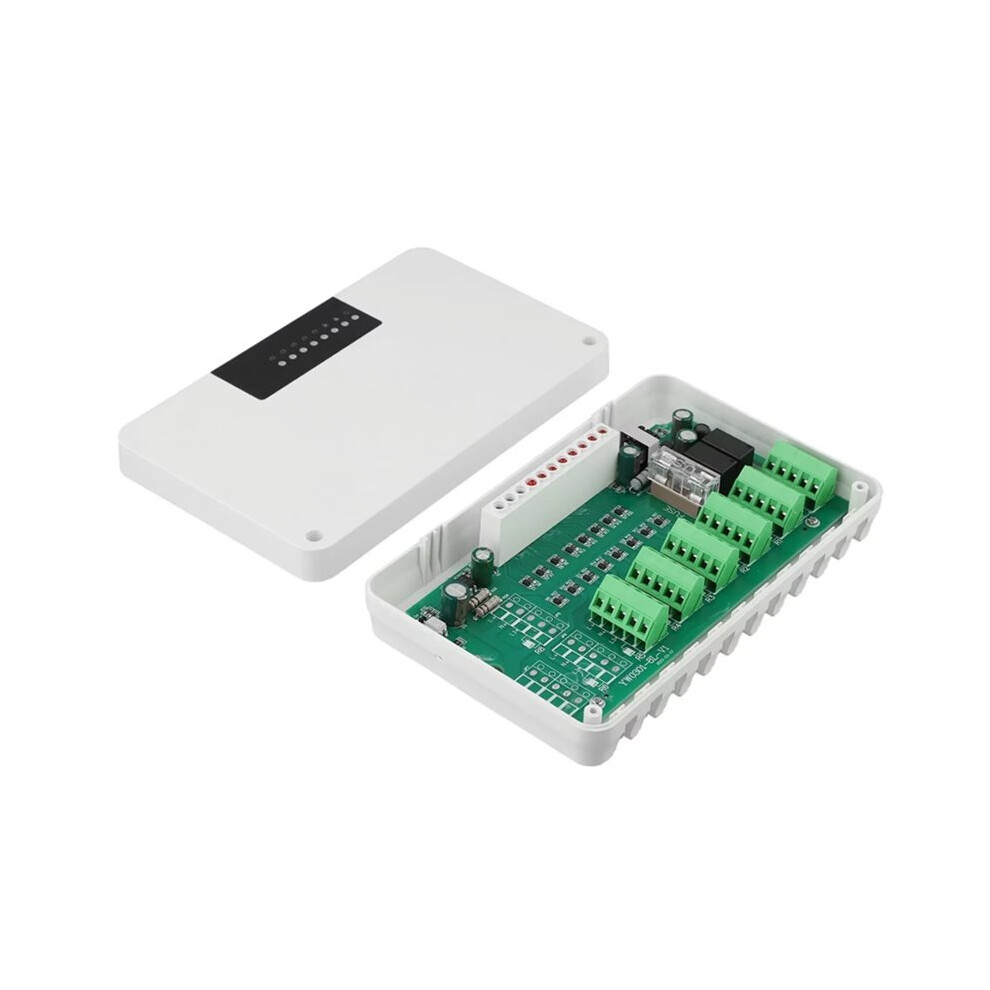

CCT-25 is a multi-zone central heating system intelligent hub controller 5 channel concentrator with indicator.
The thermostat corresponds to the zone valve, which is indirectly connected to the actuator. to 3NC actuators can be connected to 1 zone.
In the zone heating system, the actuator opens and closes the valve according to the thermostat setting of the zone.
Each thermostat controls the heating independently to heat different areas of the house.
The intelligent multi-zone central heating system controller is a 5 channel thermostat controller with indicator light.

Specifications:
Part name: Heating controller
Material: ABS
Color: White
Size: 177*110mm
Power supply: 100-240VAC, 50/60Hz 10A
Passive output (boiler): 8A
Circulation pump output: 250VAC, 8 (5) A
No electrical connection: 1 normally open (common terminal)
Number of circuits: 5 loops. Maximum number of actuators in a loop: 3. Exit delay: 200S.
Thermostats correspond to zone valves, which are indirectly connected to actuators. to 3NC actuators can be connected to 1 zone.

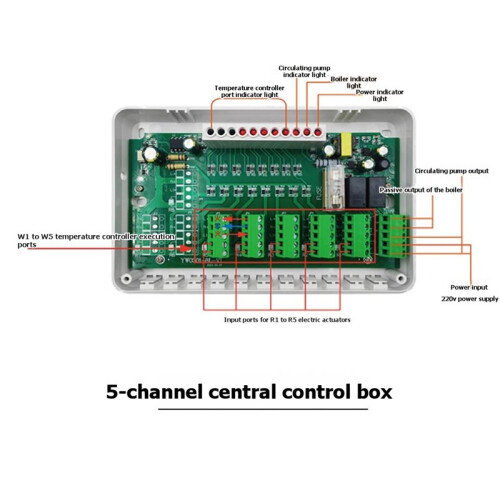

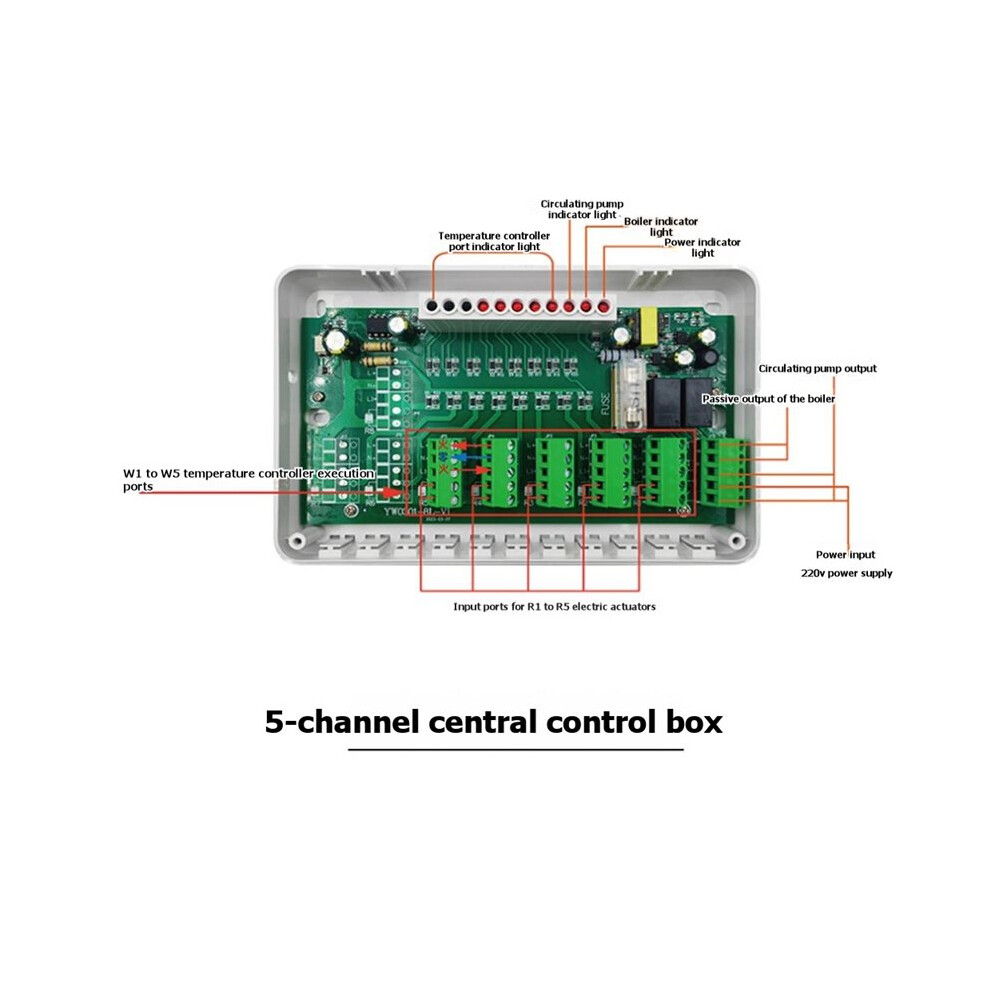

CCT-25: 5 temperature controllers can be connected. 1 thermostat corresponds to 1 zone valve, and to 3NC actuators can be connected to 1 zone.
Specification: 5-way

Package Contents:
1*Heating Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
