HGLRC M100_MINI GPS INAV FOR Model Aircraft Racing Drone Return Flight FPV

HGLRC M100_MINI GPS INAV FOR Model Aircraft Racing Drone Return Flight FPV Description

Features:

Using the new 10th generation UBLOX chip design,fast and accurate positioning

Small size,compatible with 2-7 inch traversal Drone on the market

Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals

Support GPS,Galileo,BDS three-mode positioning,fast positioning in any area

Onboard POWER and PPS indicator lights,the working status is clear at a glance

Compatible power supply,support 3.3V-5V DC power input

Using UBLOX output protocol and 10Hz output frequency

Specification:

Chip:M10(10th Generation Chip)

Antenna:Ceramic Antenna

Frequency:GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1

Receive Channel:72ch

Baud Rate:115200bps

Output Protocol:UBLOX

Output Frequency:10Hz

Input:3.3V-5V

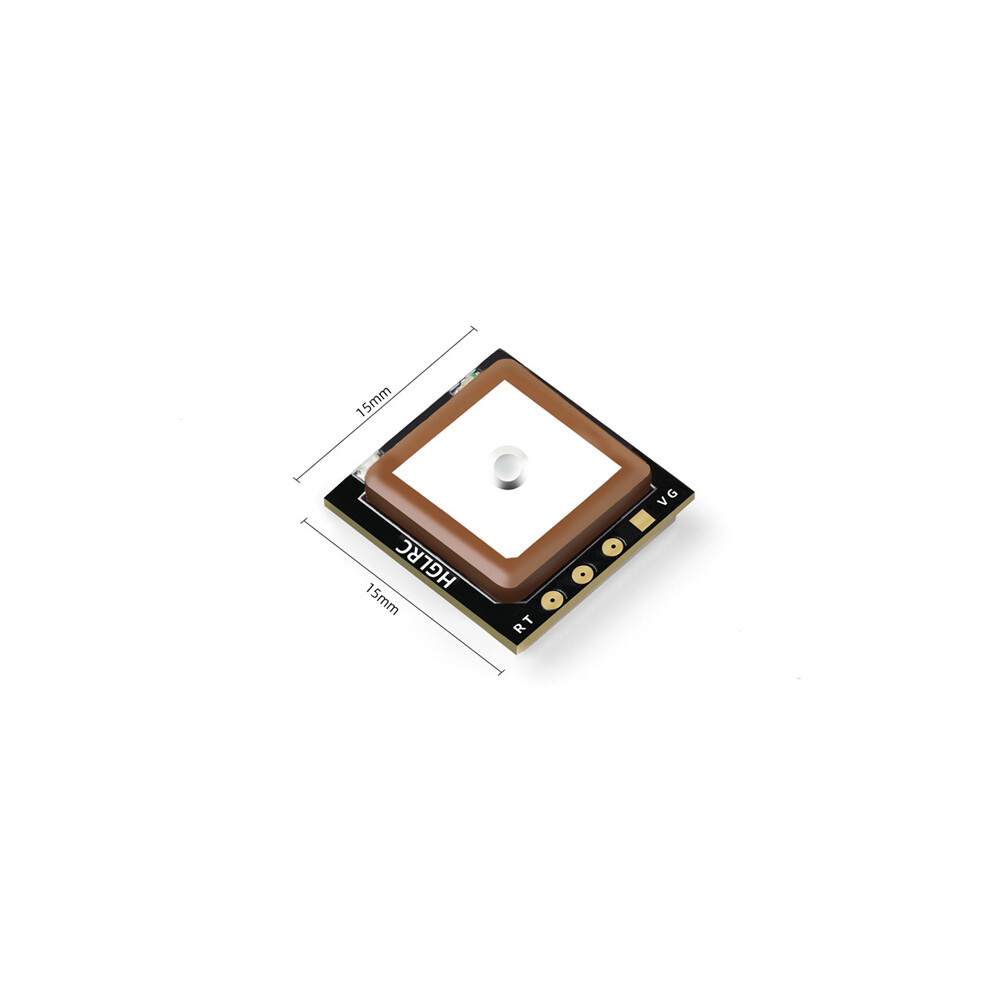

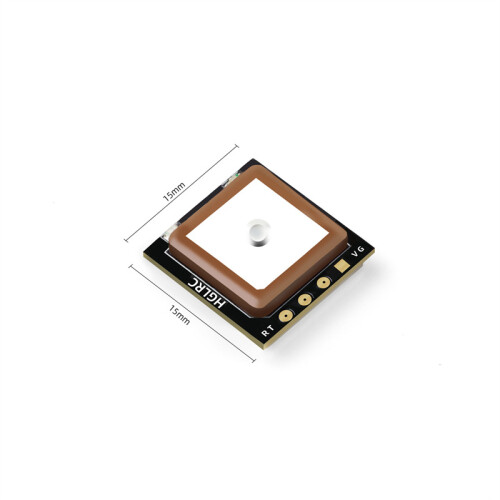

Size:15*15*5.2mm

Weight:2.7g

Speed Accuracy:0.05m/s

Horizontal positioning accuracy:2D ACC2.0m(Outdoor)

Receiver Sensitivity:Trace -166dBm

Capture-160dBm

Characteristics:High:50000m

Speed:500m/s

Acceleration 4G

Operating temperature:-40??C-+85??C

Storage temperature:-40??C-+105??C

Package includes:

1*HGLRC M100_MINI GPS

1*Heat Shrink Tube(??12mm*20mm)

1*HGLRC sticker

1*HGLRC Manual

1*SH1.0-4Pin Cable

Note:

The specification parameters are measured manually,and there may be some errors

For reference only,the actual situation prevails
