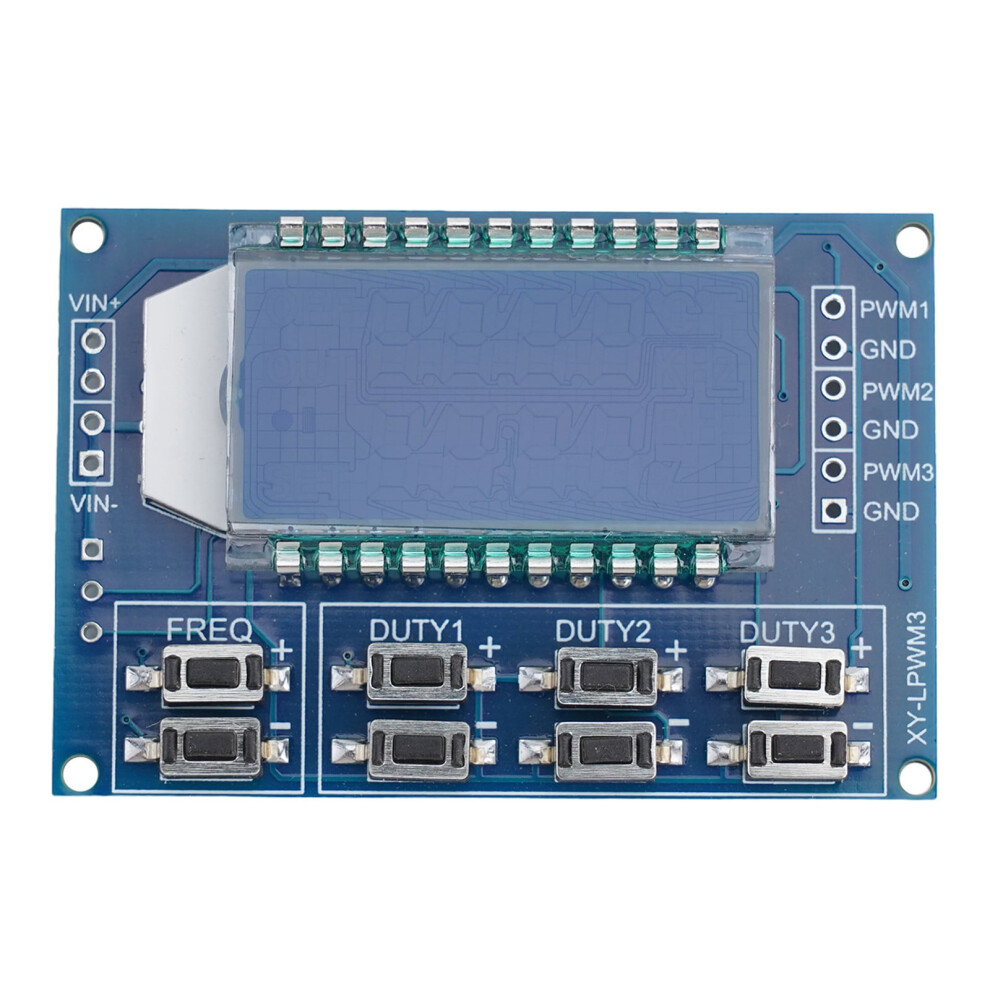

High Accuracy Square Wave Signal Generator Adjustable PWM Output LCD Display

High Accuracy Square Wave Signal Generator Adjustable PWM Output LCD Display Description

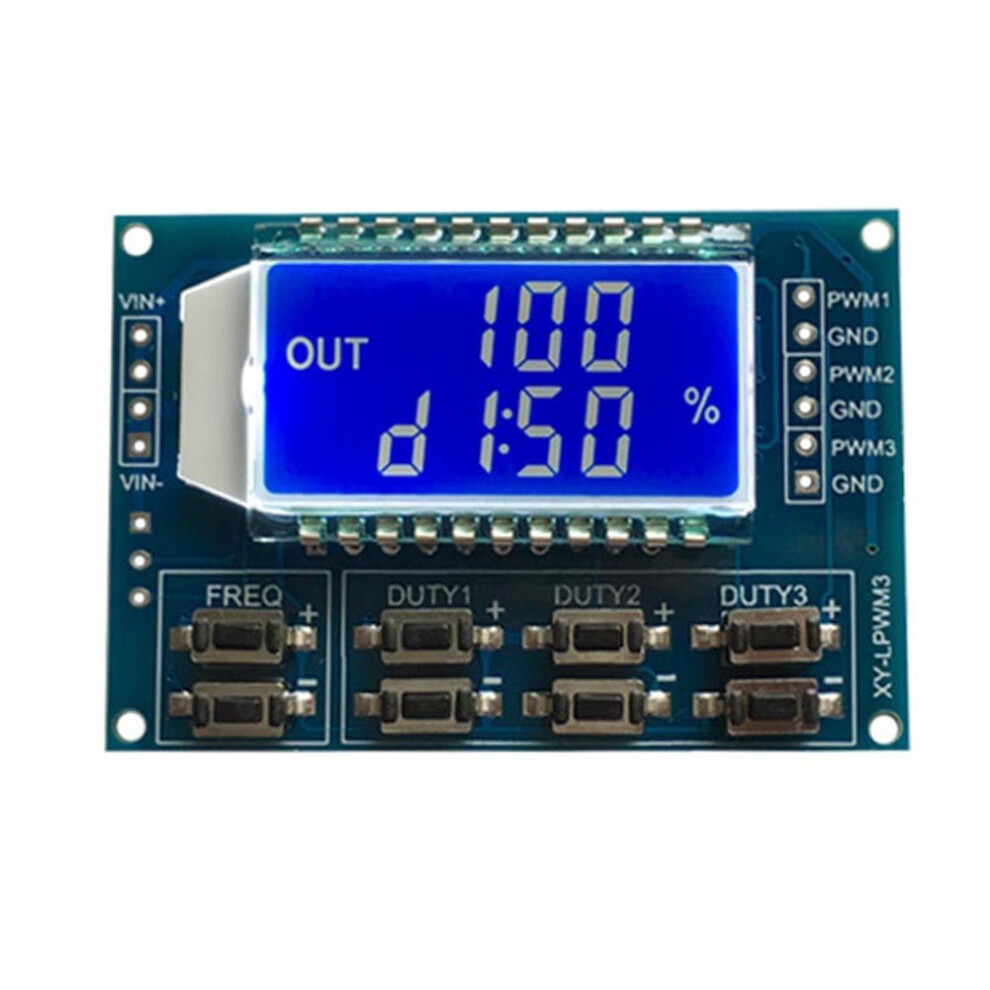

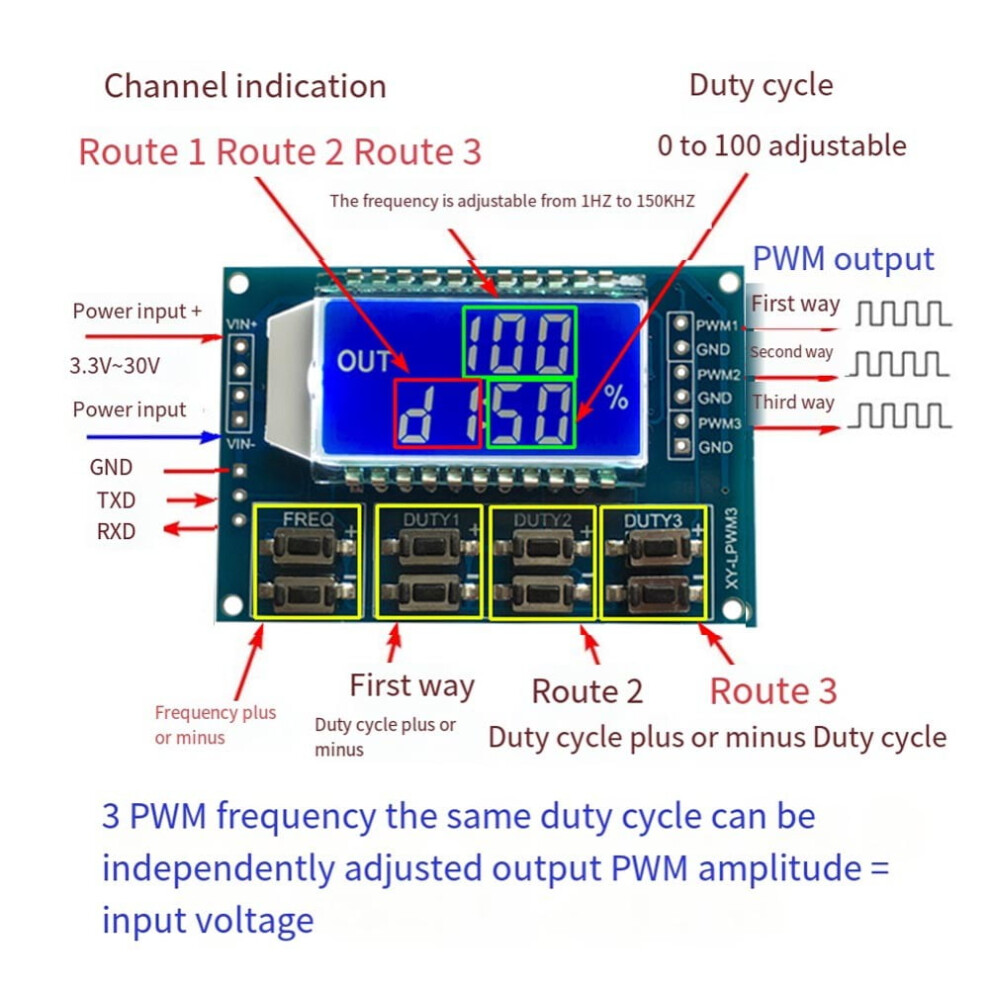

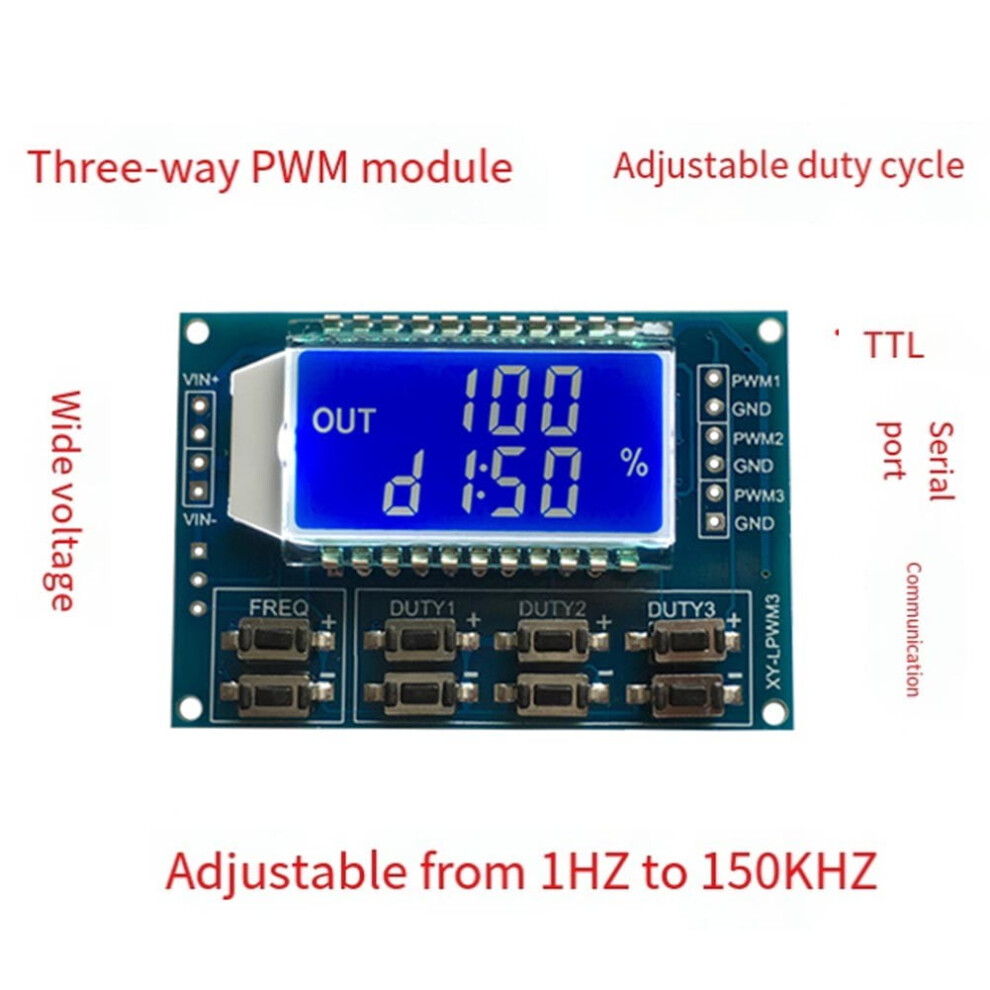

Feature: *LCD display frequency and duty cycle, very clear, for PWM output can set the frequency and duty cycle respectively; *Wide frequency range and high accuracy; *Serial communication available *3 channels of for PWM output, frequency adjustable, 3 channels of frequency output are consistent, duty cycle can be adjusted independently, suitable for most occasions; *Scope of application: Used as a square wave signal generator to generate square wave signals for experimental development; used to generate square wave signals to control motor drivers; generate adjustable pulses for MCU use; generate adjustable pulses to control related circuits (Applications such as for PWM dimming and speed regulation) Specification: Part name: Signal generator Model: XY-LPWM3 Material: plastic Color: As shown in the picture Size: 55*38mm Weight: 14g Working voltage: 3.3~30V; Frequency range: 1Hz~150KHz; Frequency accuracy: The accuracy in each range is about 2%; Signal load capacity: the output current can be around 5~30ma; Output amplitude: for PWM amplitude is equal to the supply voltage; Ambient temperature: -20~+70 Package Contents: *signal generator Notes: . Due to various factors such as monitor brightness and light brightness, the actual color of the item may be slightly different from the image displayed on the website. 2. Manual measurement data may have slight deviations. 【LCD Display】The module features an LCD display that shows the frequency and duty cycle with great. This allows for easy monitoring and adjustment of the for PWM output, enabling precise control over the waveform signals produced. 【Wide Frequency Range and High Accuracy】With a frequency range of 1Hz to 150KHz, this for PWM signal generator offers functionality. It provides accurate frequency output, reliable and consistent performance in various applications. 【Serial Communication】The signal generator supports serial communication, allowing for seamless integration with other devices and systems. This enables convenient control and coordination of the for PWM output, enhancing the flexibility and usability of the module. 【3 Channels of for PWM Output】Featuring three channels of for PWM output, this module provides enhanced versatility. frequency of each can be adjusted individually, while the duty cycle can be for customized independently. This makes it suitable for various scenarios and applications that require precise waveform generation. 【Wide Application】Designed as a square wave signal generator, this module serves diverse purposes. It can be used for signal development, motor driver control, adjustable pulse generation, and controlling related circuits (such as for PWM dimming and speed regulation). Its wide range of applications makes it a valuable tool in various electronic projects.
