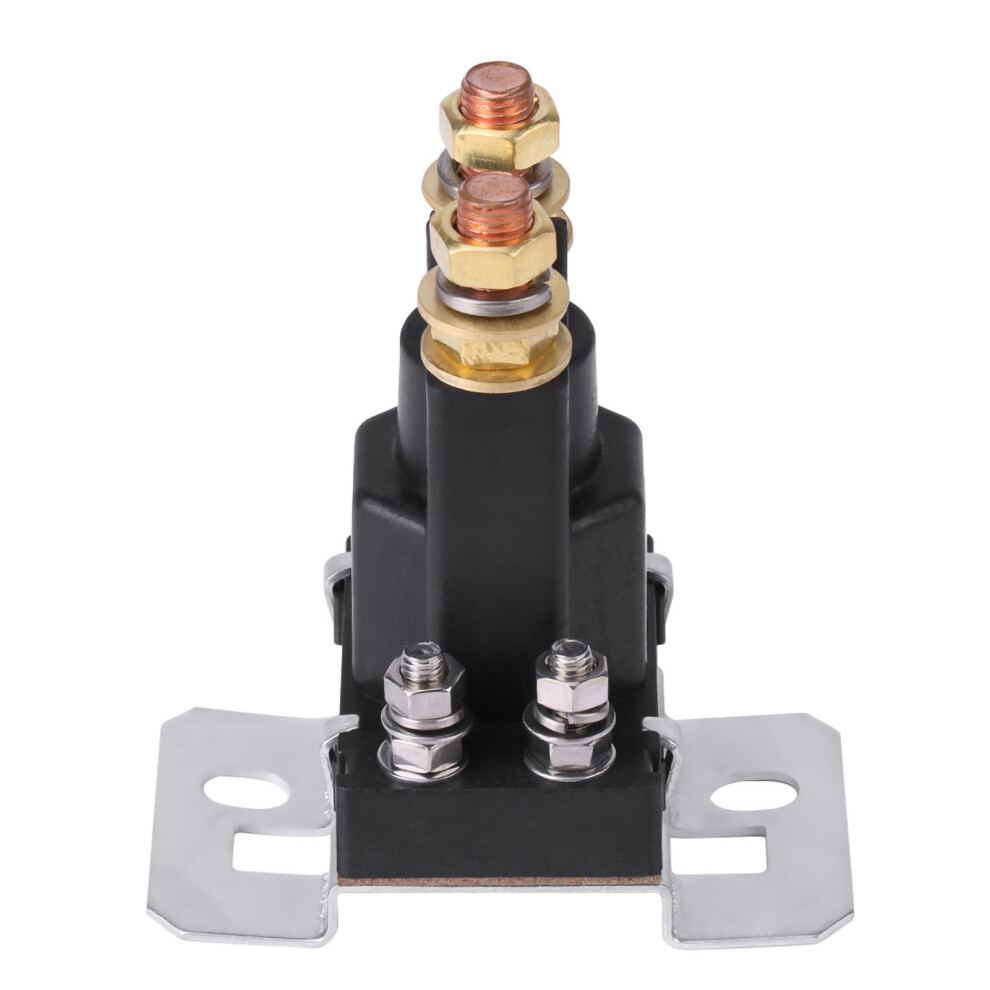

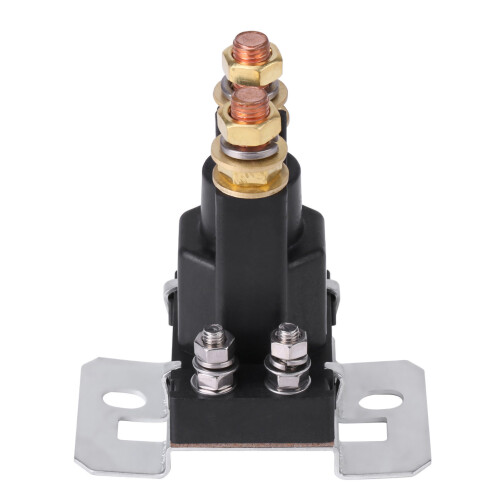

High Current Starter Relay 500A DC 12V SPST Auto Start Contactor

High Current Starter Relay 500A DC 12V SPST Auto Start Contactor Description

1、It help extend battery life 2、Universal 12V applications 3、Prevents primary battery discharge 4、Made of water resistant black phenolic plastic 5、The main function of this product is to switch on, it can be used alone, it can be also connected to control to use
Features:
It help extend battery life.
Universal 12V applications.
Prevents primary battery discharge.
Made of water resistant black phenolic plastic.
The main function of this product is to switch on, it can be used alone, it can be also connected to control to use, but this product does not include additional control relay, and if the controller is connected, it mainly used in the dual battery.
Specifications:
Product series: auto relay
Contact load: high power
Contact switching current: 500A
Contact form: transformation type
Rated current: 500A
Protective features: sealing type
Coil power: 12V DC
Weight: 235g
CONTACT DATA
Contact material
AgSn0_27In_20_33
Contact form
1H(1A)
Contact Ratings
500A
Contact Resistance
100mMax at 6VDC 1 A
Max Switching Current
500A
14VDC
Max Switching Power
500A
Life Expectancy Electrical
100,000 Operations(at 30 Operations/minute)
Life Expectancy Mechanic
10,000,000 Operations
COIL SPECIFICATION
Nominal Voltage (VDC)
Coil Resistance
12
16
8
1.2
14
9
CHARACTERISTICS:
Temperature Range
-30~80
Vibration Resistance
10-55Hz,1.5mm
Shock Resistance Operations Extremes
Damage Limits
50g
100g
Humidity
40-85%
Insulation Resistance
100mΩ min at 500vdc
Safety Standard
Dielectric Strength Between Open Contacts
2000VAC(for 1 minuter/s)
Between Contacts and coil
1500VAC(for 1 minuter/s)
Operate Time
50ms
Release Time
50ms
Package Included:
1 x Heavy current relay
