High Efficiency Output DC-DC 6-24V to Buck Converter Step-Down Board Module Voltage Regulator PCB Bo

High Efficiency Output DC-DC 6-24V to Buck Converter Step-Down Board Module Voltage Regulator PCB Bo Description

1. Wide voltage input DC6-24V, suitable for various power supply environments
2. Efficient conversion, with an efficiency of up to 97%, reducing energy loss
3. Mini design, compact size, easy to integrate into various devices
4. Stable output, 12V 12A / 5V 16A , stable performance
5. High reliability, built-in multiple protection circuits to ensure long-term stable operation
Specification:5V 16A
Input voltage: DC6-24V
Output voltage: DC5.1V 1%
Rated output current: 16A
Output ripple noise:Less than 20mV (under 1-16A load)

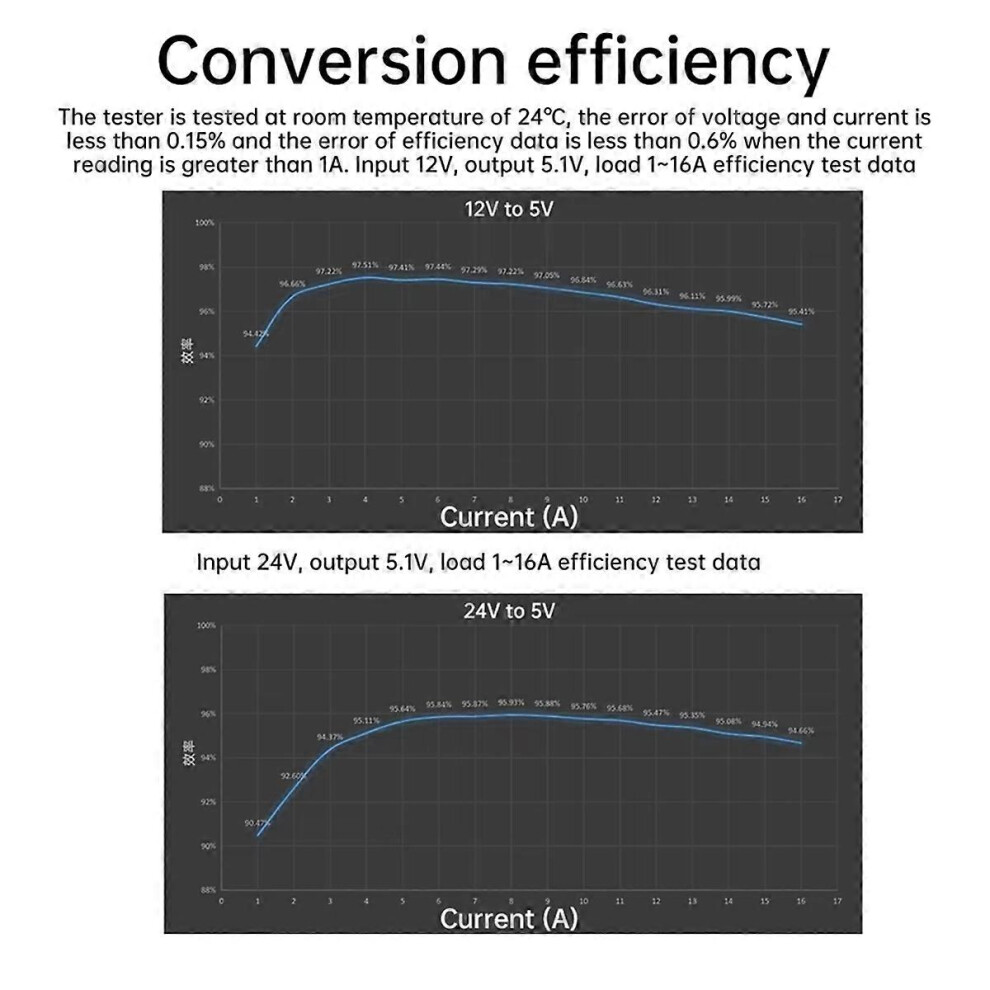

Conversion efficiency:Greater than 95% (input 12V, load current 1-16A)
Static current (EN floating):Less than 2mA
Static current (EN grounded):Less than 3uA
Work environment:- 25-+70
Output short circuit protection
Whole machine over temperature protection
/
12V 12A
Input voltage: DC15-24V
Output voltage: DC12.1V 1%
Rated output current: 12A

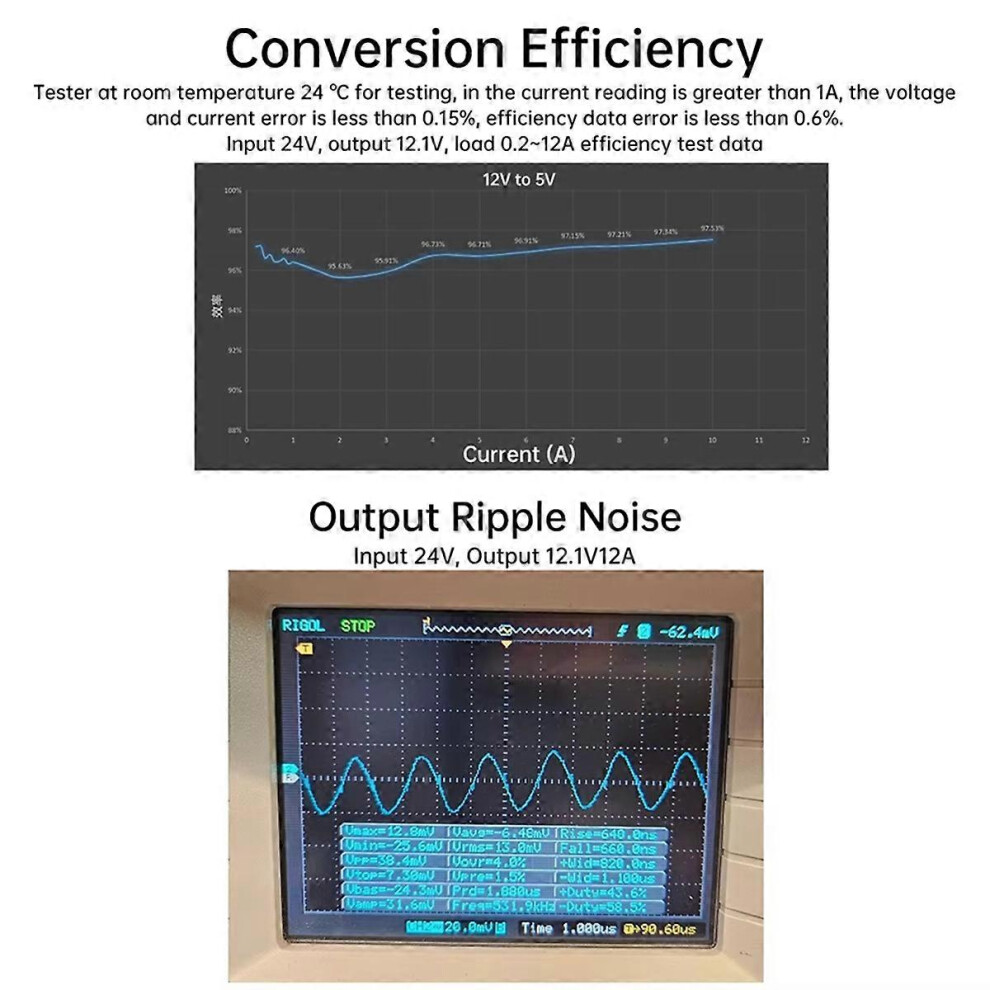

Output ripple noise:Less than 50mV (under 1-12A load)
Conversion efficiency:Greater than 96% (input 24V, load current 1-12A)
Static current (EN floating):Less than 3mA
Static current (EN grounded):Less than 3uA
Work environment:- 25-+70
Output short circuit protection
Whole machine over temperature protection
Tips:

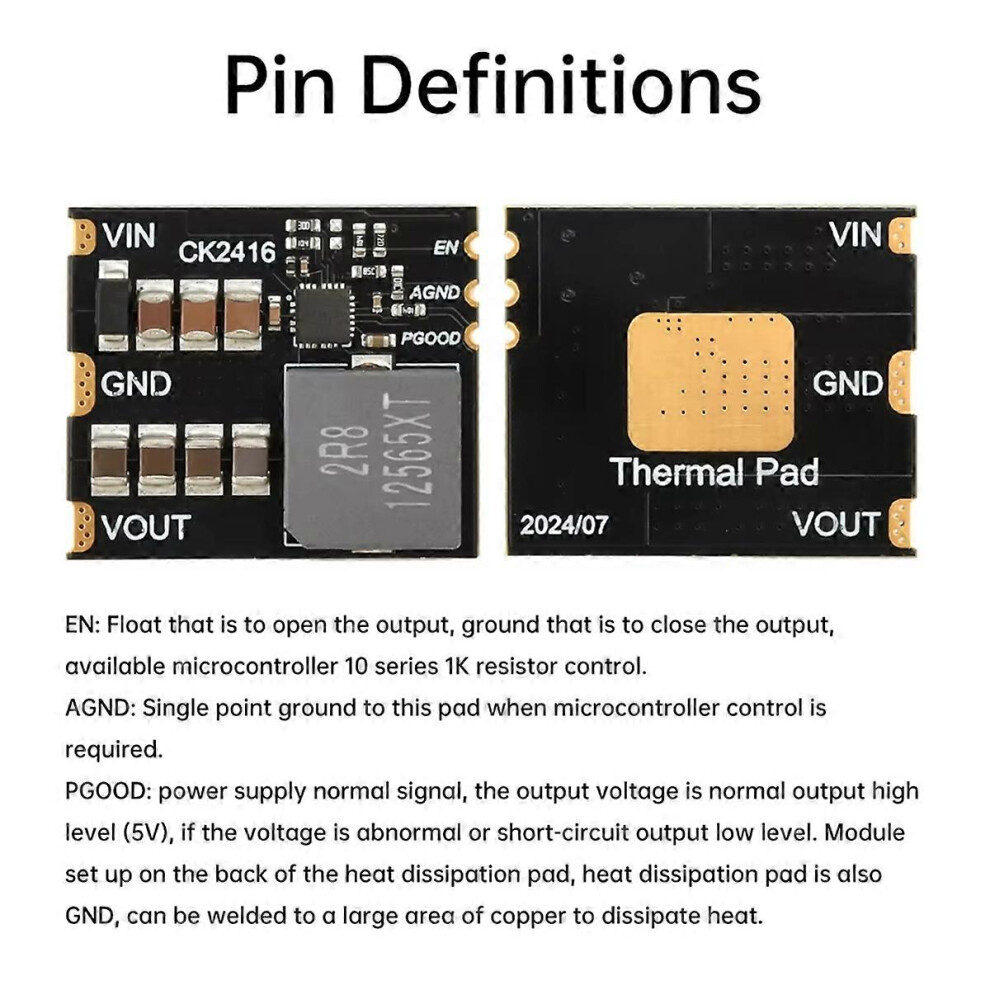

1. The back of the module is equipped with a heat dissipation pad, which is also GND and can be soldered to a large copper plated area for heat dissipation
2. A TVS tube is placed at the input end of the module, with a breakdown voltage of about 26V. This voltage is not the limit voltage of the chip and is mainly used to absorb abnormal voltage spikes at the input end. It can be input using a 6S lithium battery (25.2V)
3. The chip has short-circuit protection and peak current protection of about 25A
Colour:As Shown
Material:Metal+Plastic
Package Contents:
1 x Buck Converter Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from t
