High Performances DIN Rail Terminals Block With PA66-20P

High Performances DIN Rail Terminals Block With PA66-20P Description

Features:

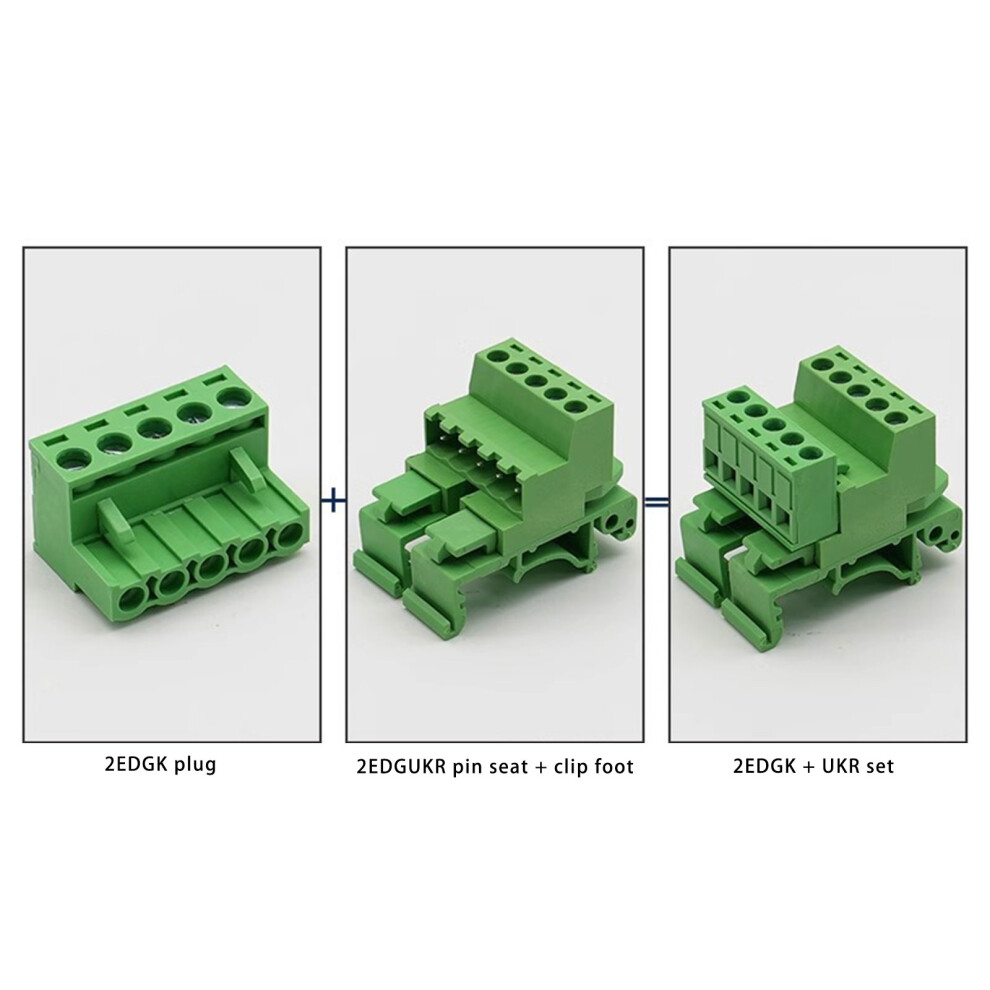

Efficient Wire Connection: Our rod mounted terminals blocks feature easy pluggable design for quick installation and disconnection. With 300Volt/10Amp rating and 2P to 24P option, these screw terminals provide electrical connection without soldering.
Superior Electrical Performances: Designed with nickel plated copper clamping frames and tin plated copper contacts for optimal conductivity. The 5.08mm pitches spacing ensures safe voltages isolation between circuits.
Safety Construction: Flame retardant PA66 plastic housing and zn plated steel screws for secure wire retention. Clear covers protect against accidental contact while maintaining visibility.

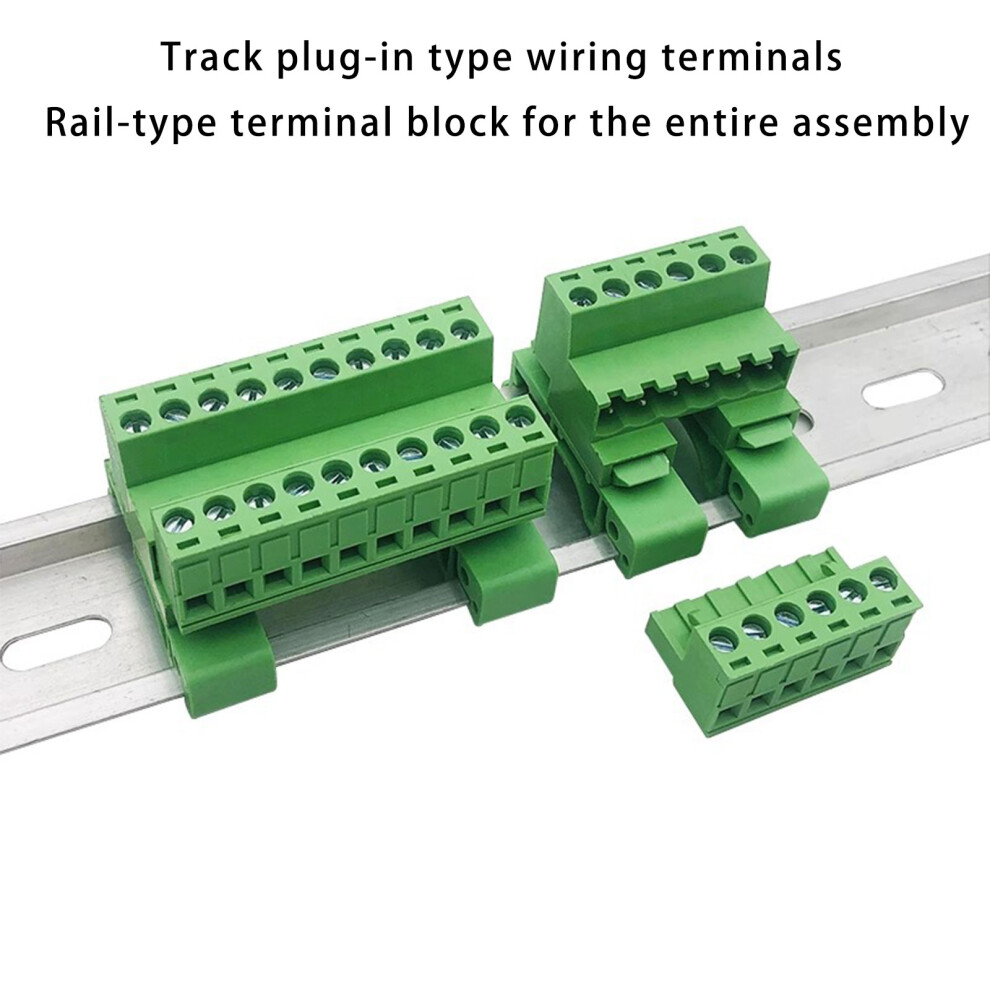

Wide Application Ranges: Compatible for 35mm DIN rails for industrial control panels, distribution boxes, and electrical systems. Operates reliably in extreme temperatures from 40 to 105.

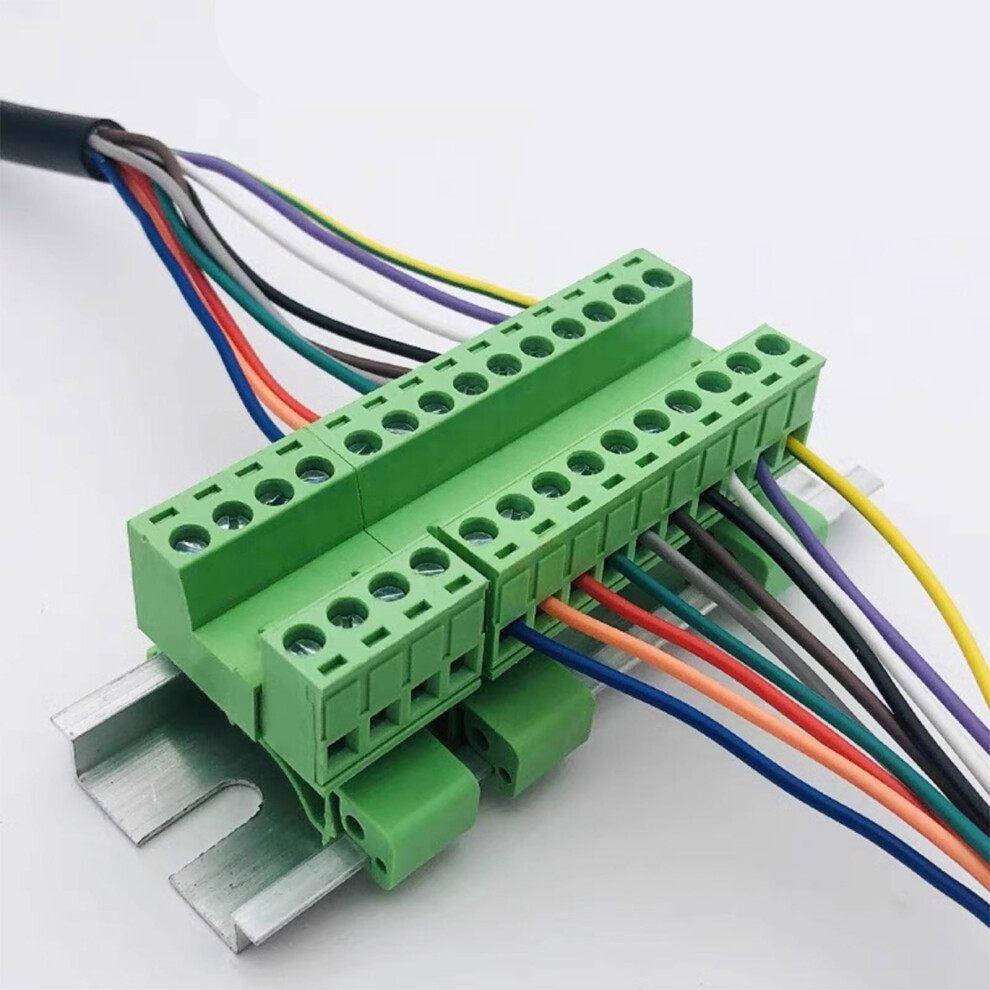

Flexible Wiring Solution: Accommodates 0.2-2.5mm² wires with 5-8mm stripping length requirements. The design allows creating circuit configurations for various electrical projects.

Specifications:
Component: plastic
Pitches: 5.08mm
Voltages: 300Volt

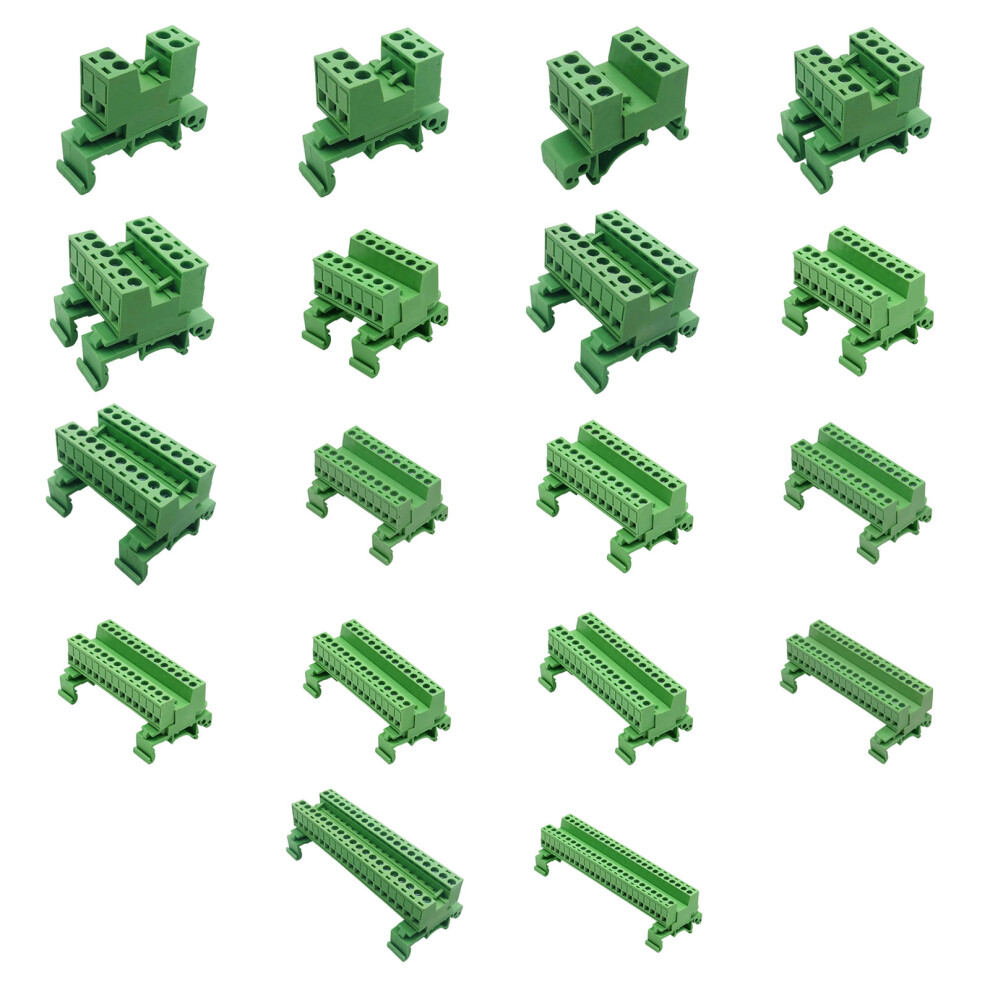

Number of digits: 2P-24P optional
Current: 10Amp
Wire diameter used: 0.2-2.5mm2
Stripping length: 5-8mm
Screws: Steel galvanized
Plastic parts: PA66 flame retardant
Crimping frame: nickel-plated copper
Temperature: -40~+105
Contacts: Tinned copper

Package Includes:
1Pc DIN rod Terminals Block

note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.
