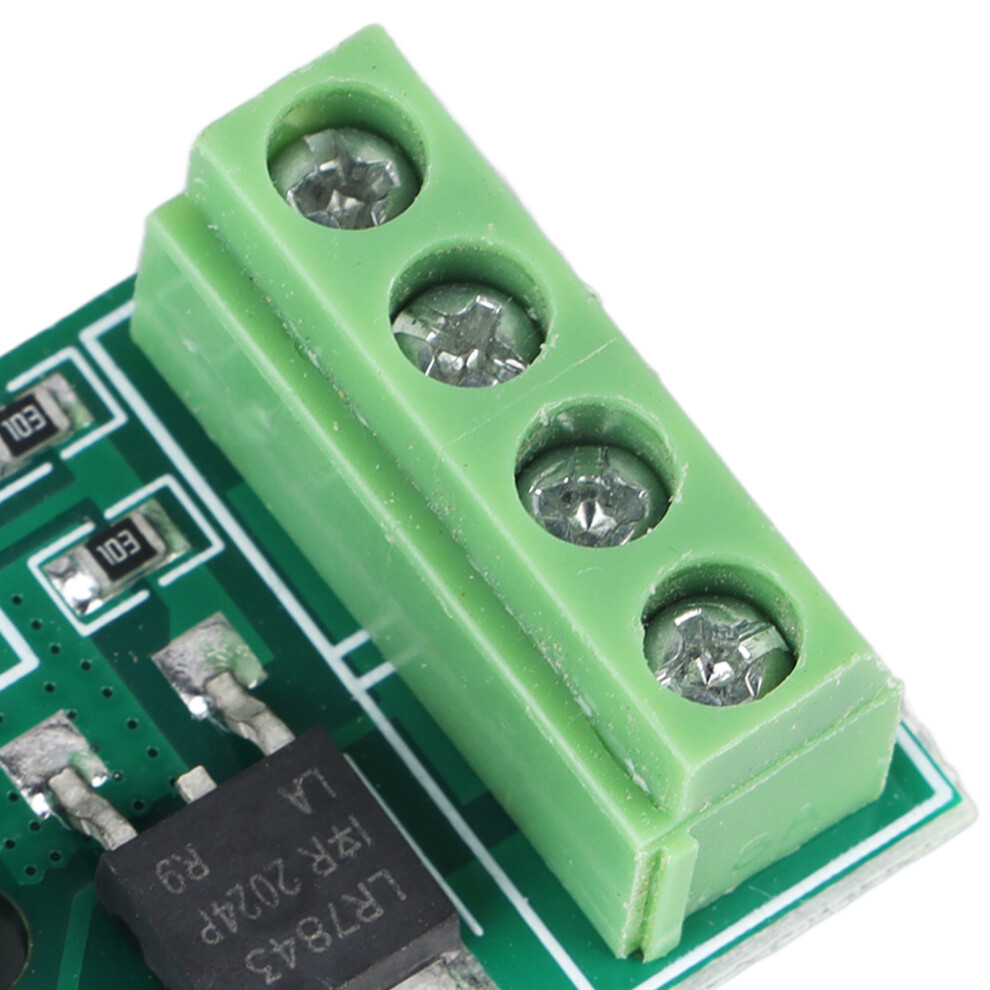

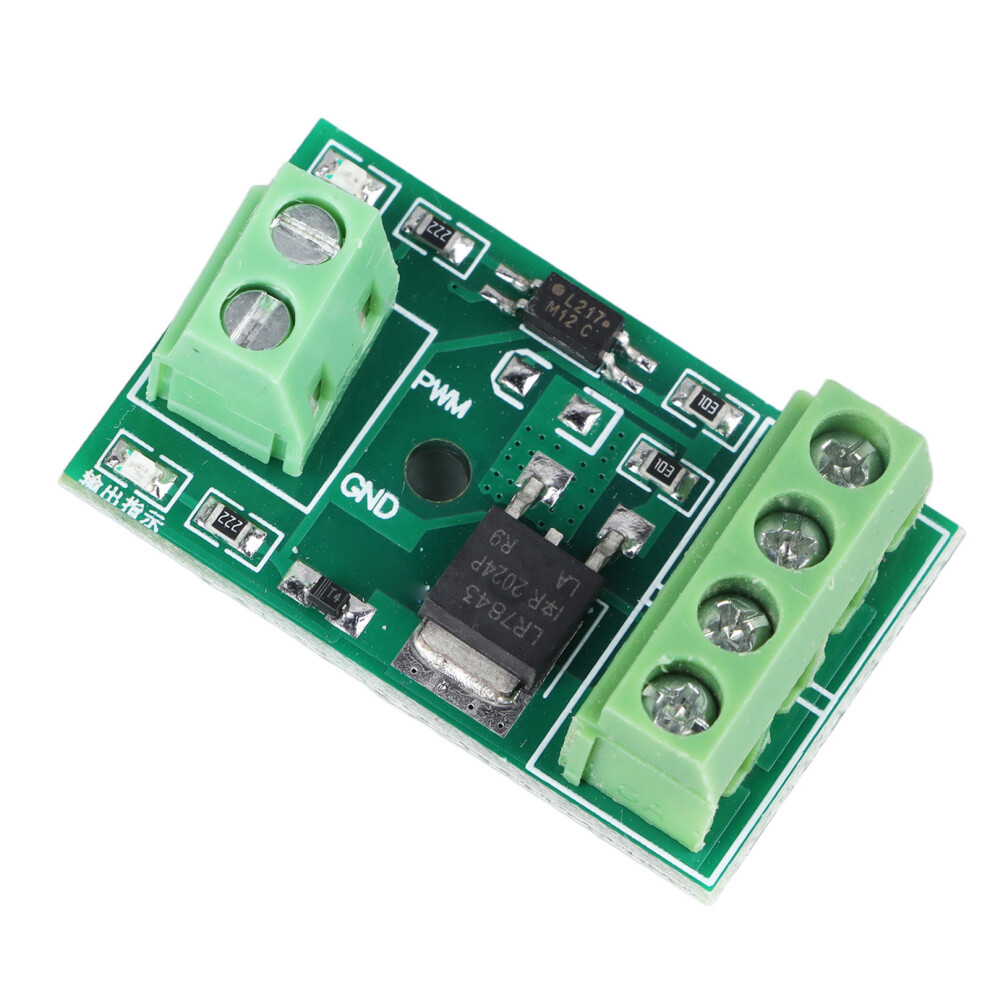

High Power MOSFET Trigger Drive Module for PWM Control, 10A, 3-20V
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£7.51
£11.21
33% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Opto-Electronics
Description & Details
Summary

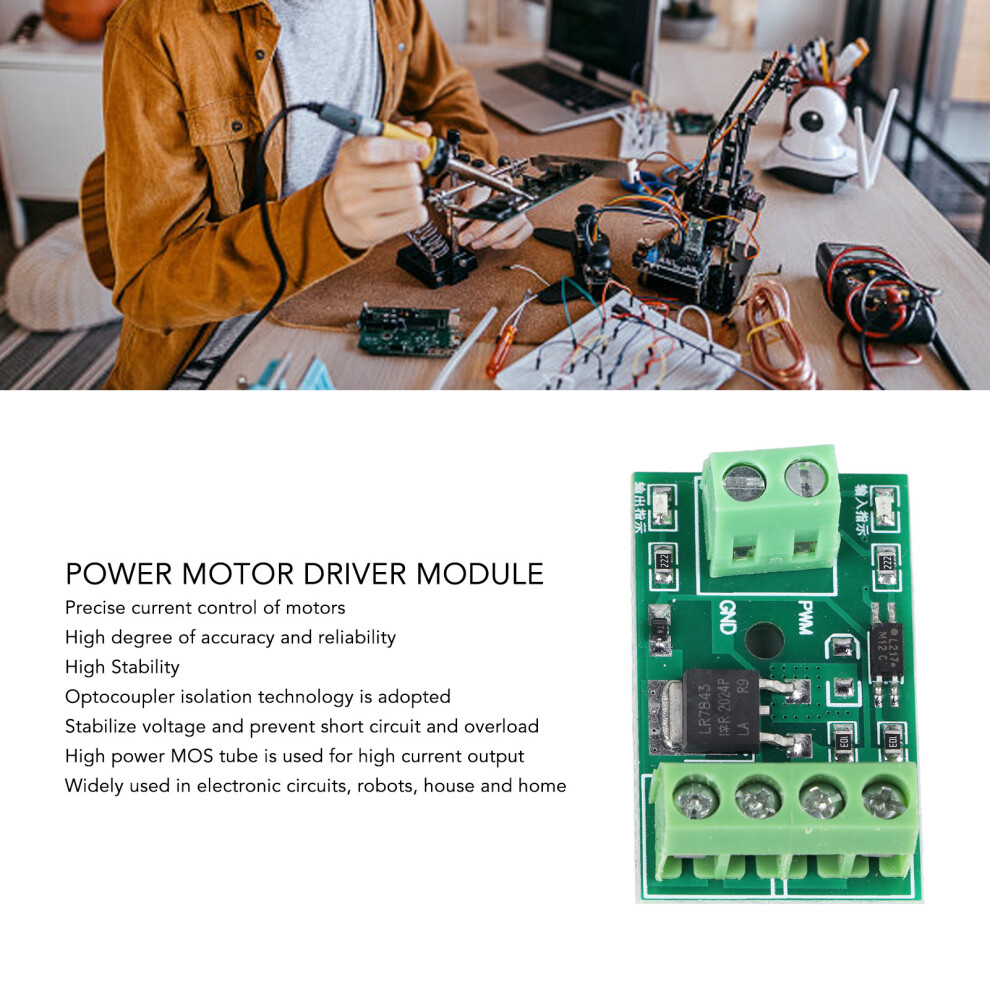

- Precise Control: This PWM electronic switch control board enables precise current control of motors, with a high degree of accuracy and reliability.
- High Stability: Optocoupler isolation technology is adopted to stabilize voltage and prevent problems such as short circuit and overload.
- Power Output: High power MOS tube is adopted, which is used for high current output, makes it easy to meet various needs.
- Wide Application: The MOS tube FET trigger drive module can be widely used in electronic circuits, robots, house and home and other fields.
- Easy Installation: The PWM electronic switch control board adopts modular design, convenient and fast installation and commissioning.
High Power MOSFET Trigger Drive Module for PWM Control, 10A, 3-20V Description

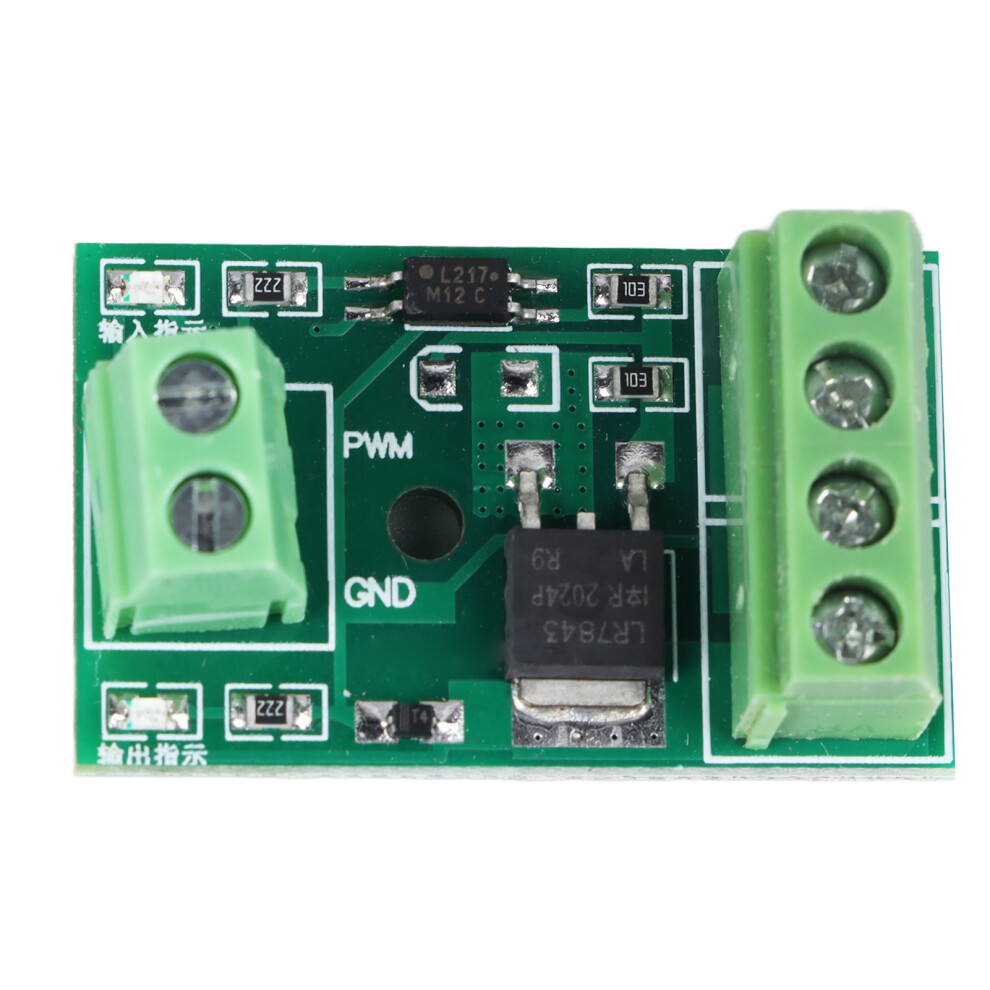

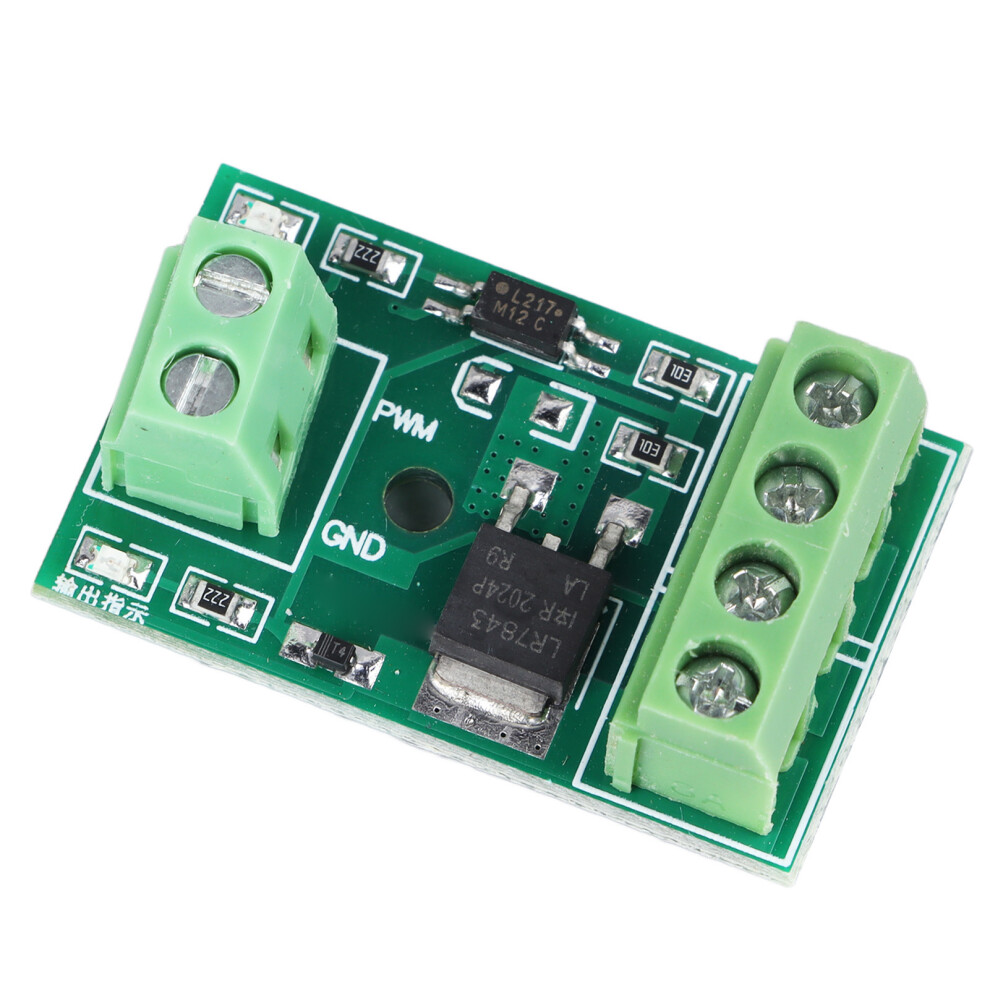

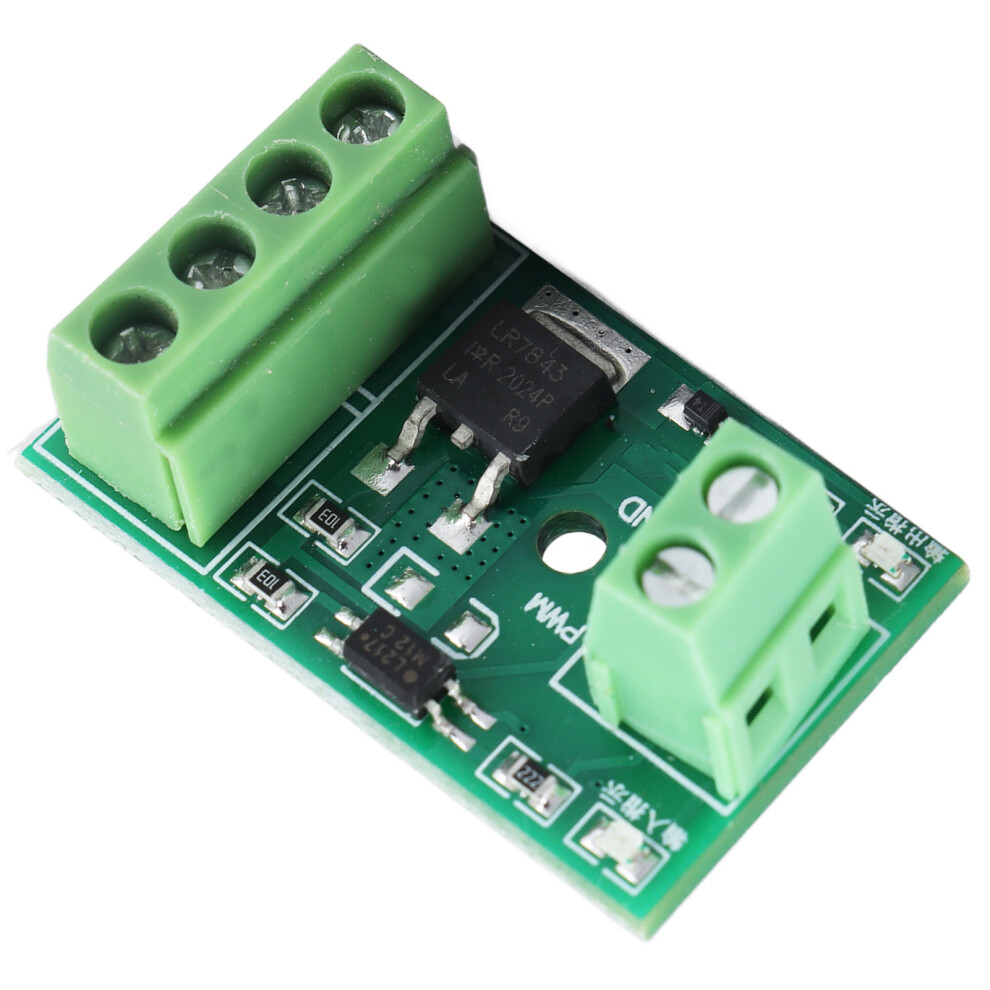

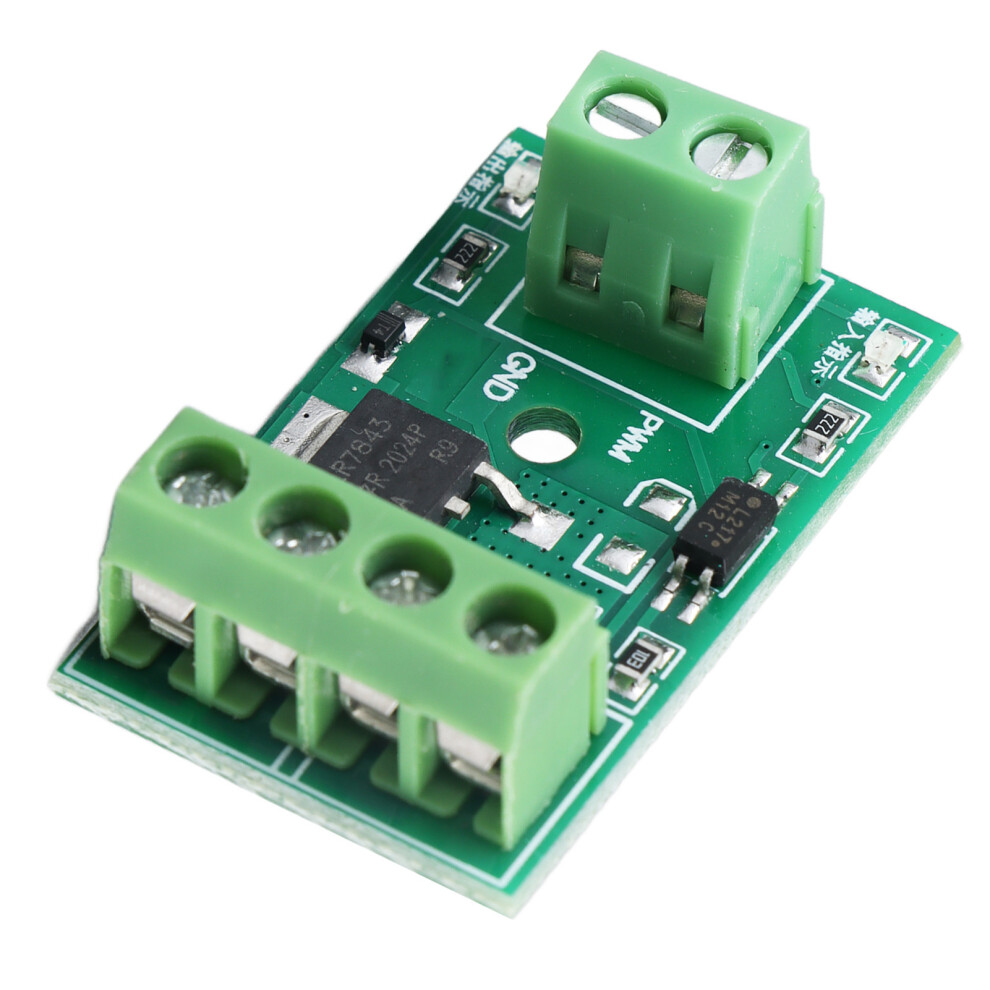

High Power MOS Tube FET Trigger Drive Module Optocoupler Isolation PWM Electronic Switch Control Board
Item Type: Power Motor Driver ModuleMaterial: ABSModel: YYNMOS-1
Input Signal: PWM signal between 3-20V
Output Capacity: DC 3.7V-27V, current within 10A
PWM Frequency: 0-20KHZ
Application Note: PWM can be input, control motor speed, lamp brightness, etc.

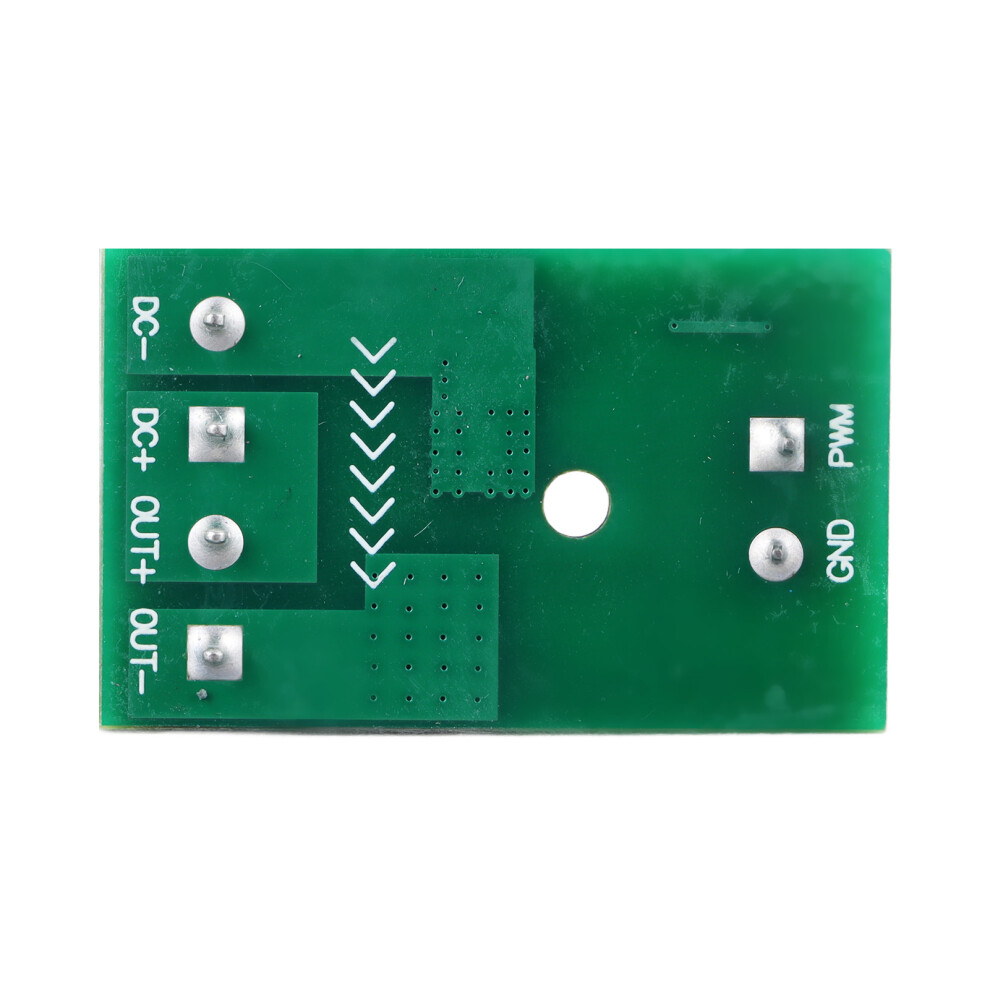

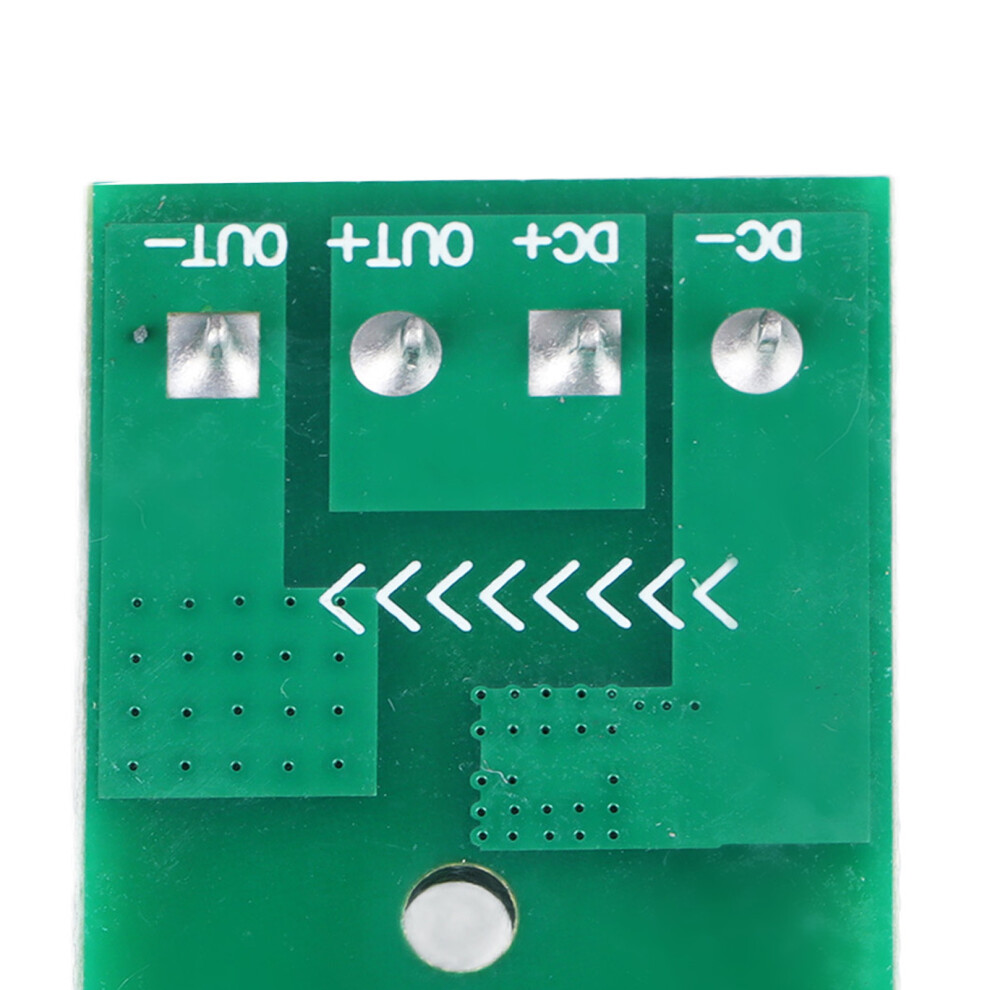

Module Interface:
DC+: The positive terminal of the DC power supply of the device
DC-: The negative terminal of the DC power supply of the device
PWM: Signal input (10 ports for single-chip microcomputer, PLC interface, DC power supply, etc.)
GND: Negative signal
OUT+: Positive terminal at the output (positive terminal of the connected device)
OUT-: Negative pole of output (negative pole of connecting device)
Details
| OPC | PSHJX8J |
|---|---|
| Codes | 6931388764380 (EAN) |
