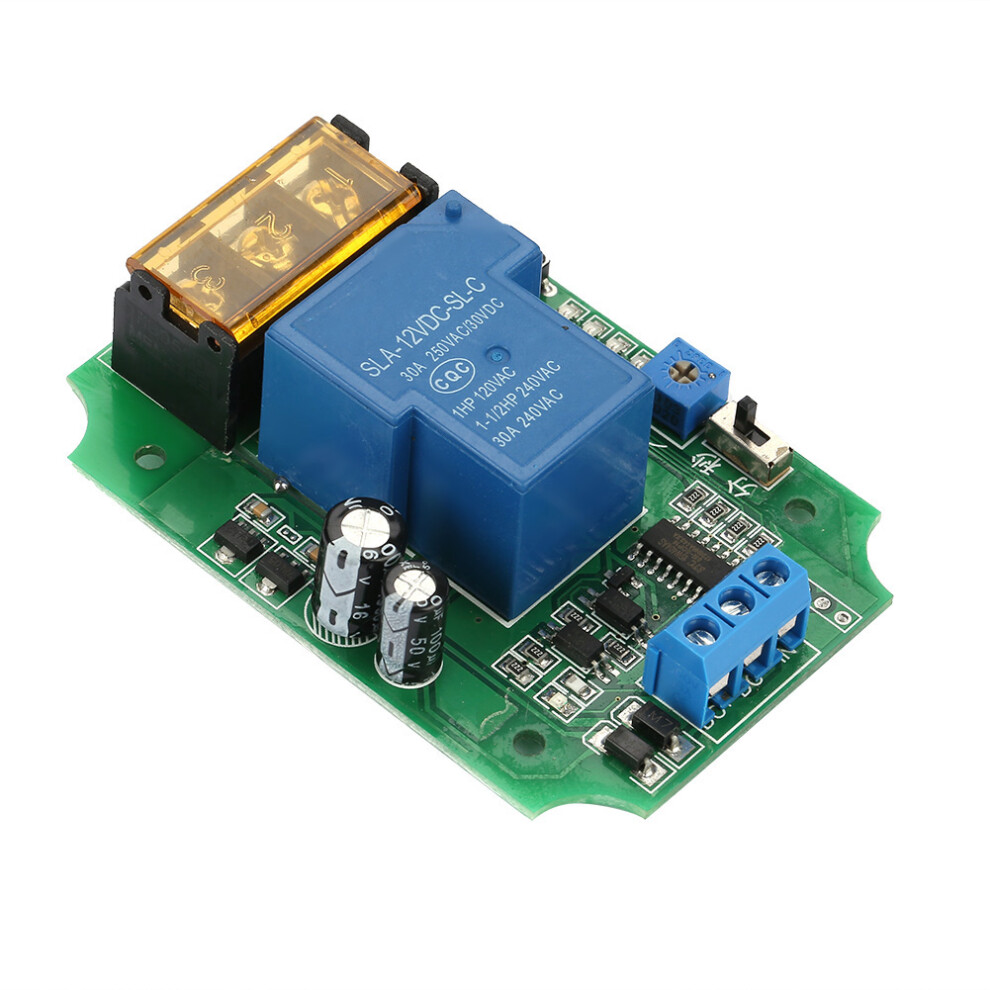

High Power Relay Module Self Locking Delay ON OFF Pulse 12V

High Power Relay Module Self Locking Delay ON OFF Pulse 12V Description

1、Output capacity: AC / 30A, DC 30V / 30A or less 2、Using the industry's top quality ultra-small optocoupler, anti-interference ability, stable performance 3、Adopt 9.5mm black fence type connection terminal, standard 30A terminal, stable and firm, reliable quality 4、Delay time range: 0 seconds, ~100 minutes can be adjusted, the minimum 1 second adjustable 5、With the function of permanent memory mode when power failure
Features:
Using the industry's top quality ultra-small optocoupler, anti-interference ability, stable performance
Adopt 9.5mm black fence type connection terminal, standard 30A terminal, stable and firm, reliable quality
Delay time range: 0 seconds, ~100 minutes can be adjusted, the minimum 1 second adjustable
With the function of permanent memory mode when power failure
It can control dc or ac load up within 30A
Specification:
Model:YYLOCK-2
Delay time: 0 s~100min
Weight: Approx.55g/1.9oz
Function List Description:
P - 1: self - locking
To a signal relay pull (work), give a signal relay to stop (stop)
P
- 2: signal, relay pull, input signal is disconnected, after a period
of time after the output power; in the delay period to keep the signal
output again, time to stop, the equivalent of power delay
P
- 3: to signal, the output work for a period of time automatically
stop; in the delay period to the signal is invalid,If the signal is
shorted directly can be achieved: power output work delay for a period
of time off until the power
P
- 4: signal for more than a certain time, the output work; signal
disappears, timing is cleared, the output stops,If the signal is
directly shorted to achieve: power delay for a period of time
automatically pull the relay until the power
Module Interface Description:
DC +: External DC power supply positive
DC-: External DC power supply negative
IN: signal input (positive trigger, high level, connectable button, PNP sensor, etc.)
NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted
COM: relay common interface
NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension
Package list:
1 x Relay switch Module
