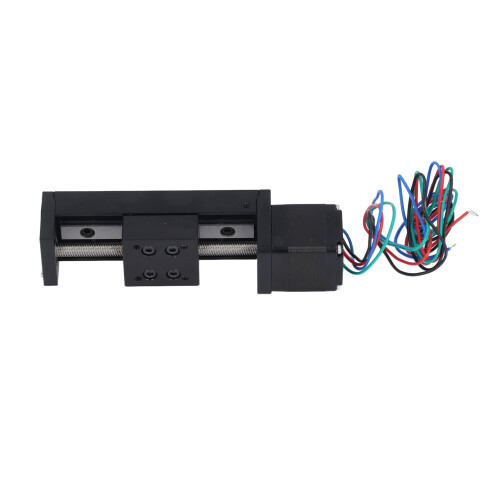

High Precision 28 Stepper Mini Linear Actuator for CNC Router 50mm
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£43.19
£69.66
38% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 9th - Sat 11th Jul
There is 1 other seller
Returns: 30 days
180-day payment protection
Most Popular in Power Tool Routers
Description & Details
Summary

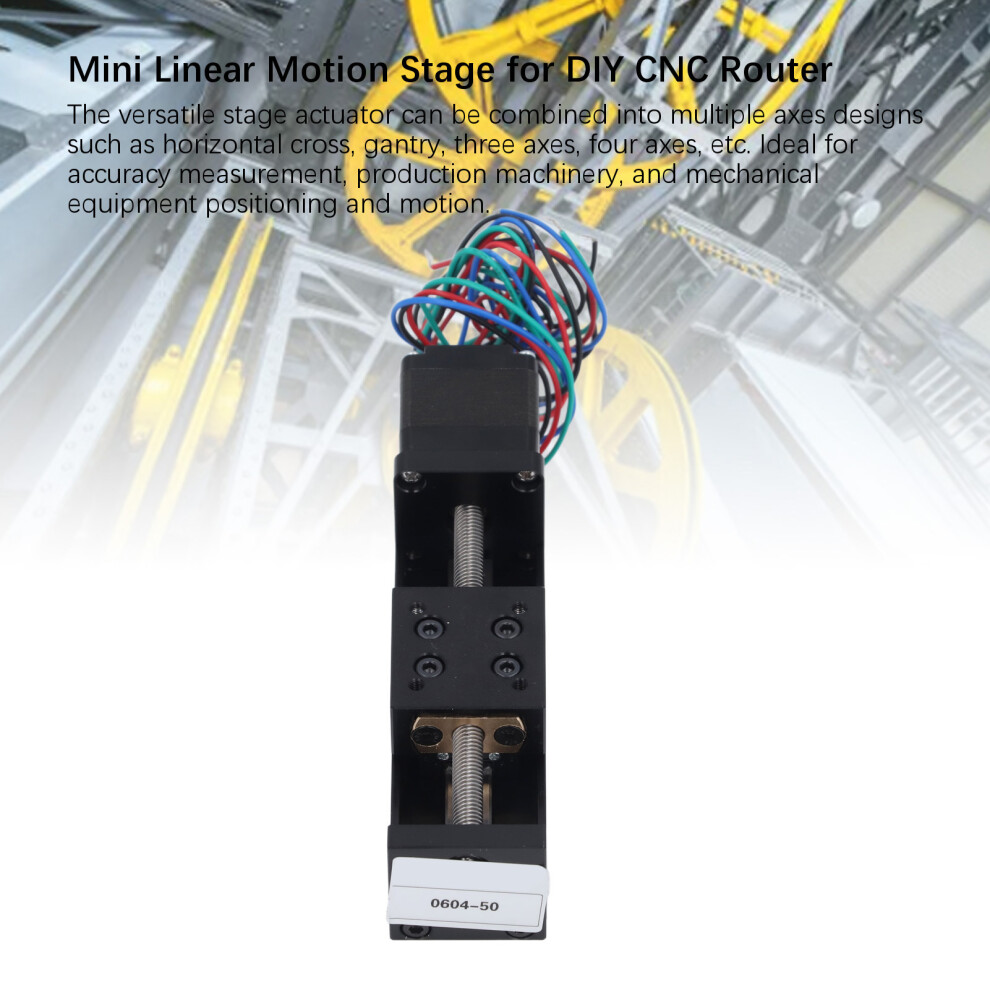

- Mini Linear Motion Stage for DIY CNC Router: The versatile stage actuator can be combined into multiple axes designs such as horizontal cross, gantry, three axes, four axes, etc. Ideal for accuracy measurement, production machinery, and mechanical equipment positioning and motion.

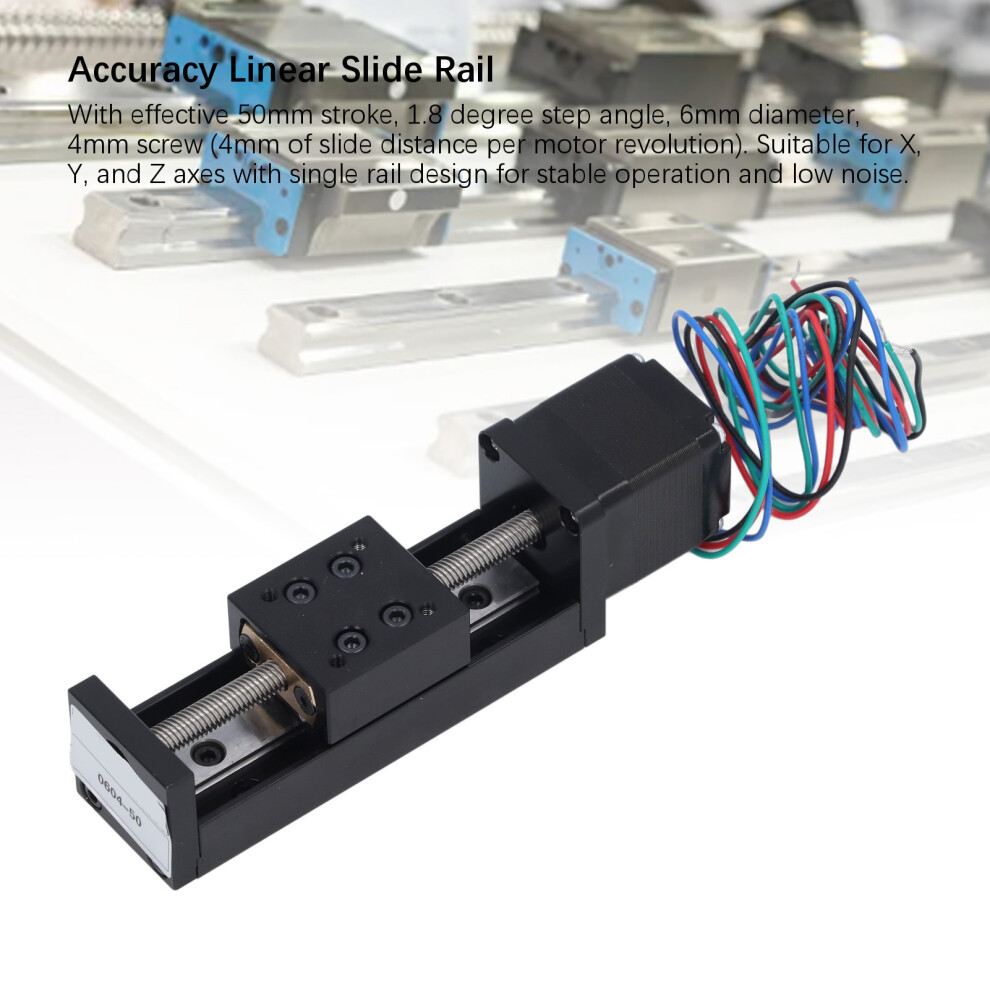

- Accuracy Linear Slide Rail: With effective 50mm stroke, 1.8 degree step angle, 6mm diameter, 4mm screw (4mm of slide distance per motor revolution). Suitable for X, Y, and Z axes with single rail design for stable operation and low noise.

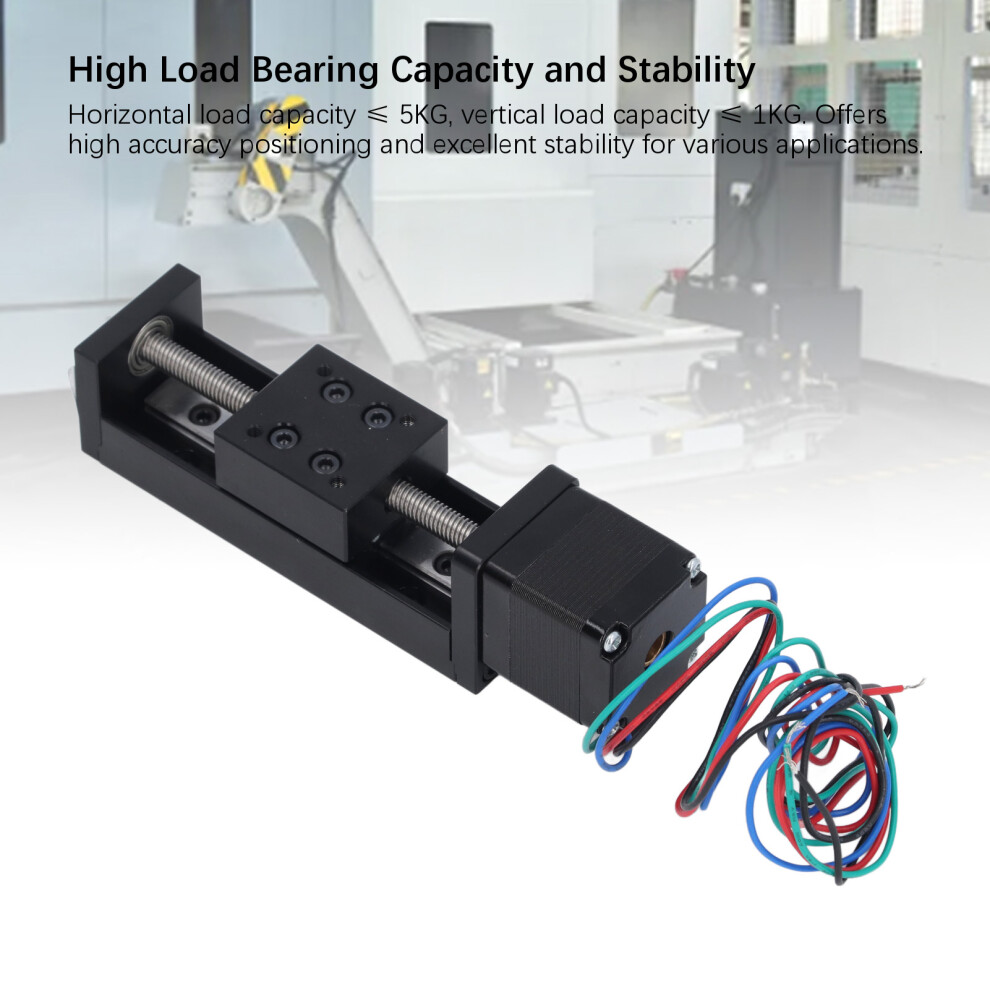

- High Load Bearing Capacity and Stability: Horizontal load capacity ≤ 5KG, vertical load capacity ≤ 1KG. Offers high accuracy positioning and excellent stability for various applications.
- Wide Applications: Widely used in DIY CNC milling parts, testing equipment, optical accuracy measurement, fine adjustment, and mechanical and equipment positioning. Supports accuracy movements with high efficiency and stability.

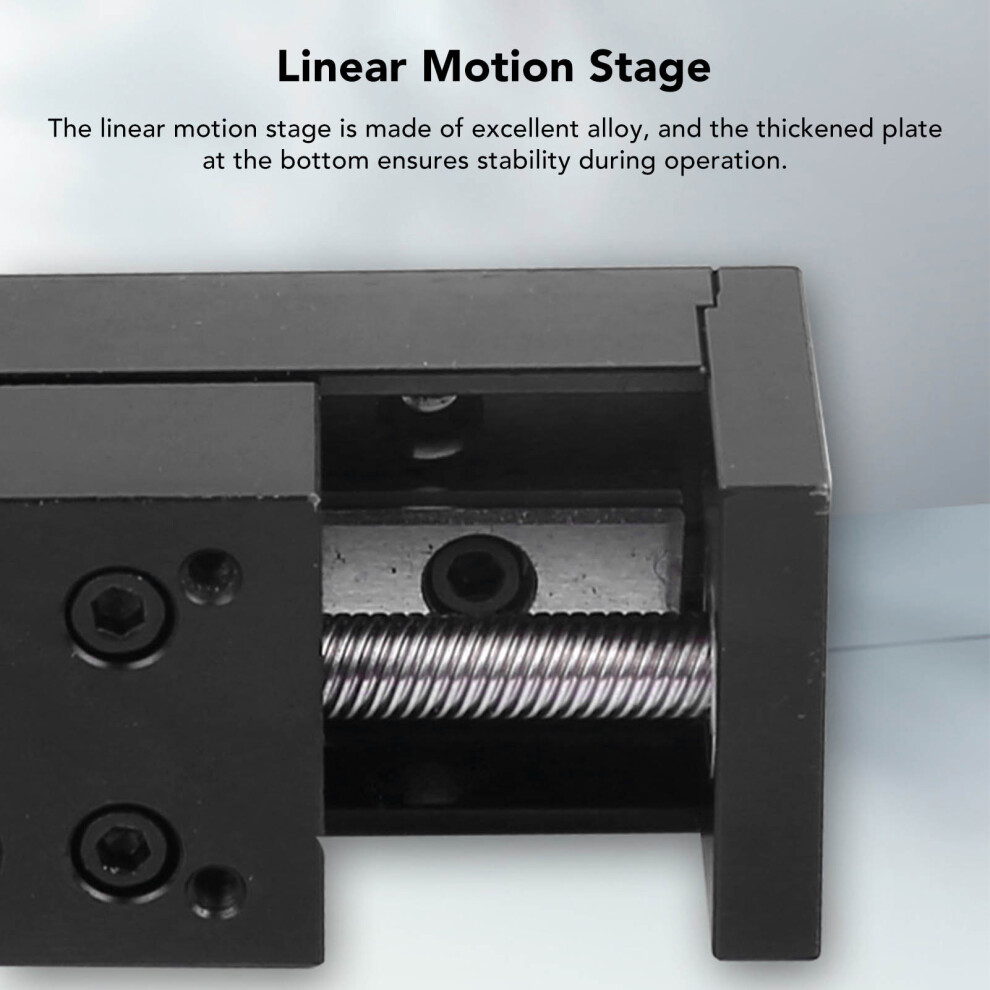

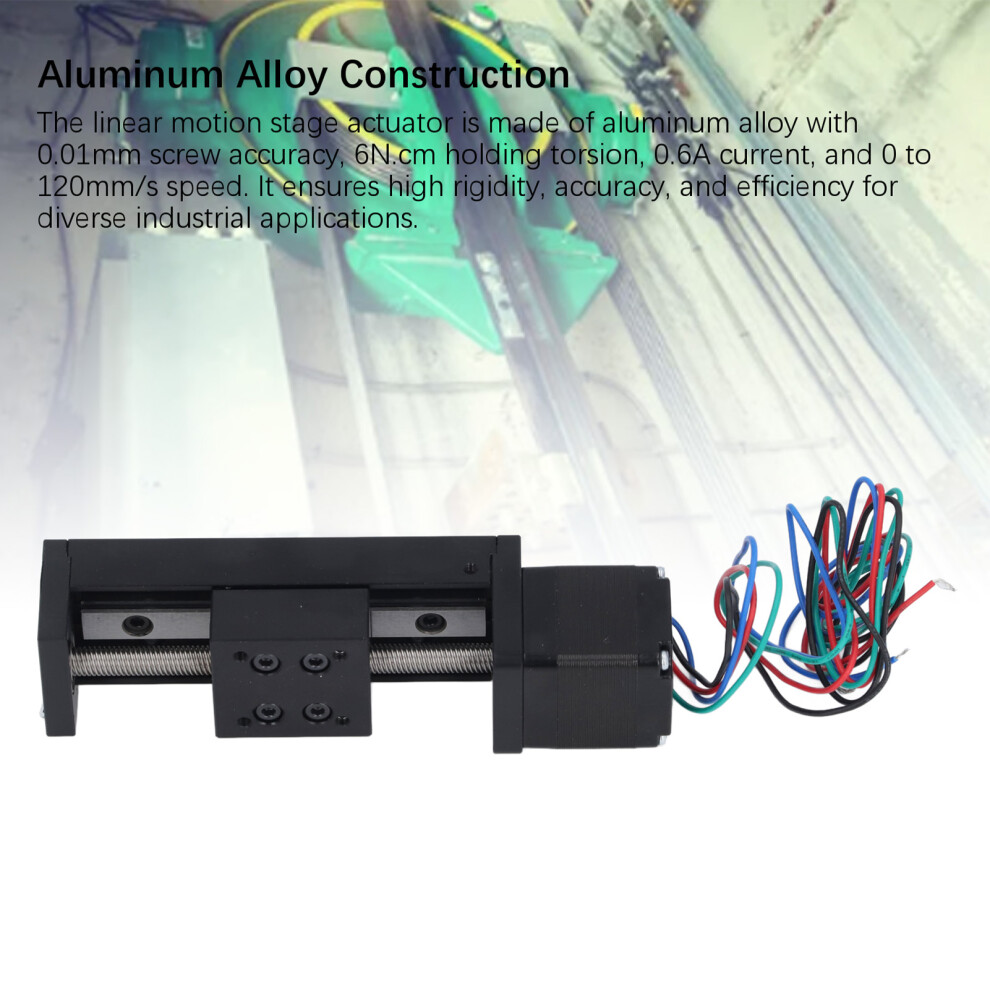

- Aluminum Alloy Construction: The linear motion stage actuator is made of aluminum alloy with 0.01mm screw accuracy, 6N.cm holding torsion, 0.6A current, and 0 to 120mm/s speed. It ensures high rigidity, accuracy, and efficiency for diverse industrial applications.
High Precision 28 Stepper Mini Linear Actuator for CNC Router 50mm Description
Mini Linear Rail Guide Slide Actuator 28 Stepper Motor 50mm Stroke Linear Motion Slide Actuator DIY CNC Router
Item Type: Mini Linear Rail Guide Slide Actuator
Material: Aluminum Alloy
Effective Stroke: Approx. 50mm / 1.97in
Screw Rod: T6
Helical Pitch: Approx. 4mm / 0.16in (The distance the slider moves on the screw per revolution of the motor is Approx. 4mm / 0.16in)
Screw Accuracy: 0.01mm
Load: Horizontal Approx. 5kg / 11 lb Vertical Approx. 1kg / 2.2 lb
Positioning Accuracy: 0.1mm
Holding Torsion: 6N.cm
Current: 0.6A
Resistance: 5.5Ω
Inductance: 3.2MH
Speed: 0 to 120mm/s
Step Angle: 1.8 degrees
Diameter: Approx. 6mm / 0.24in
Details
| OPC | PJGCRKH |
|---|---|
| Codes | 9331337585832 (EAN) |
