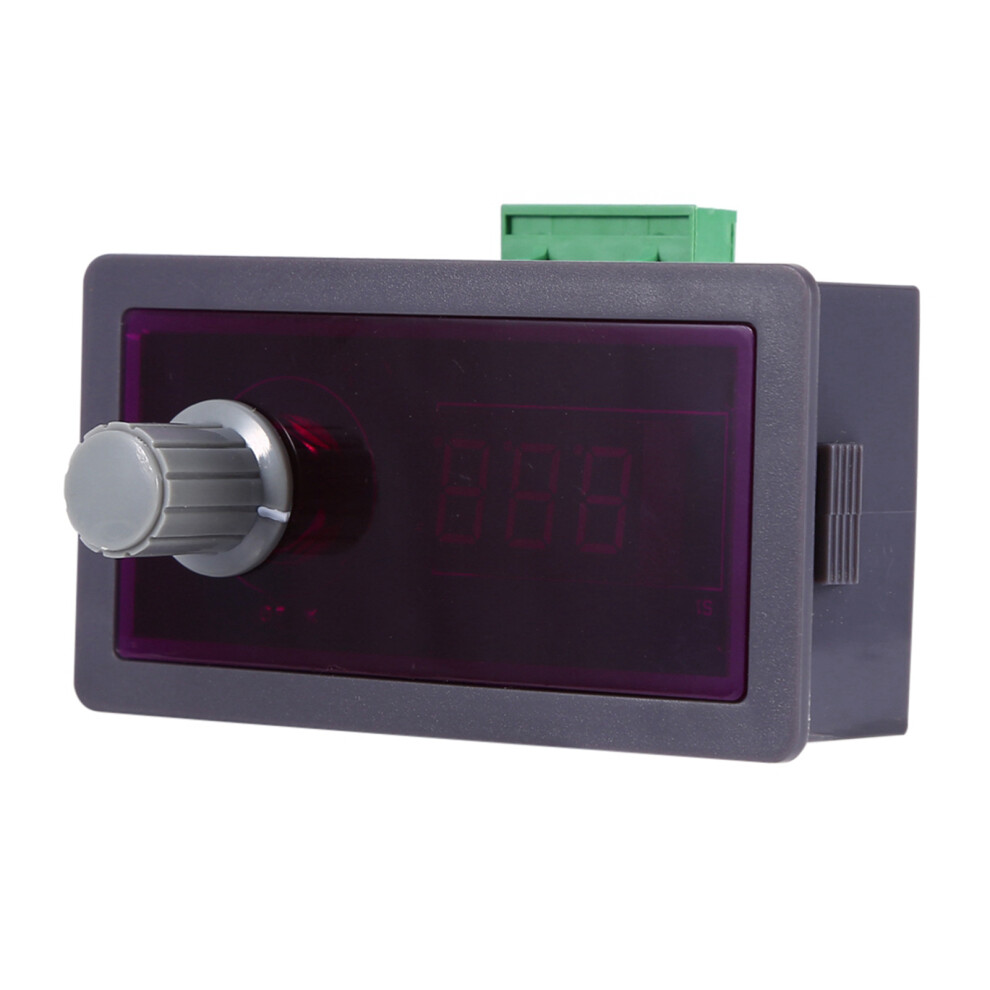

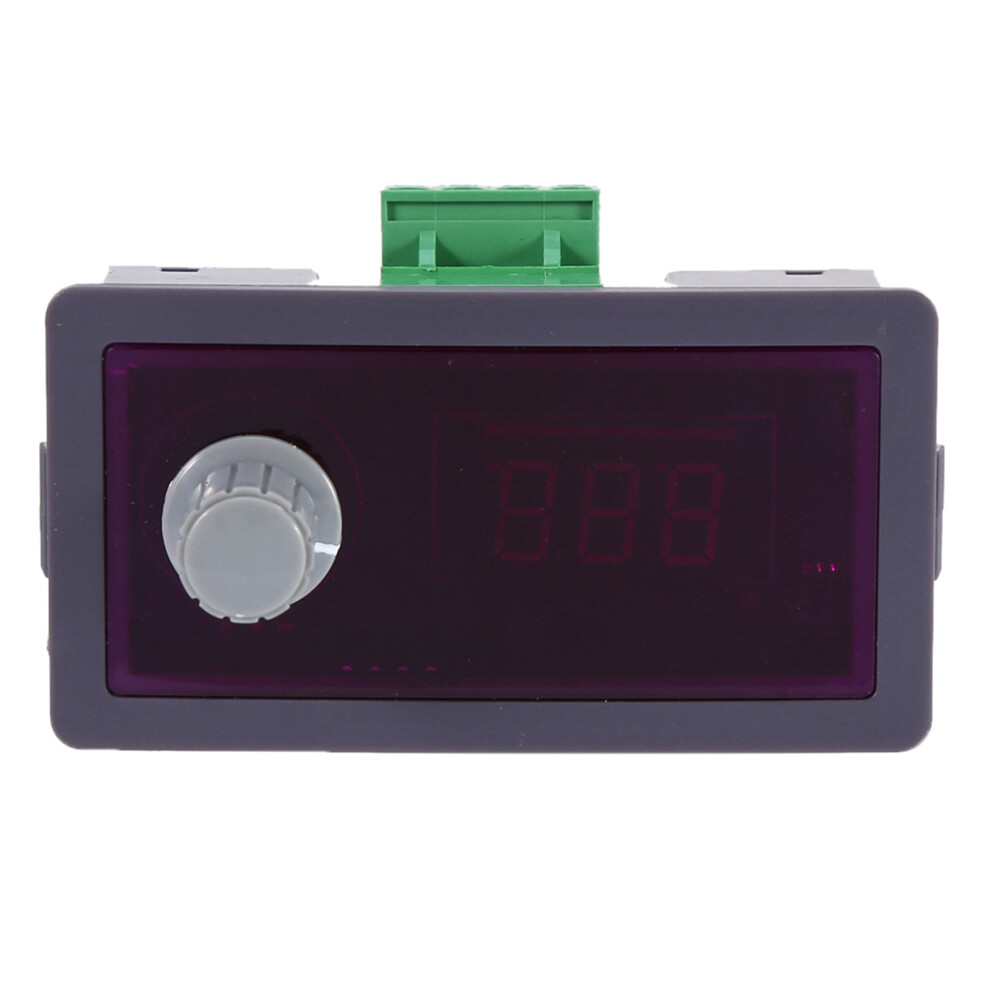

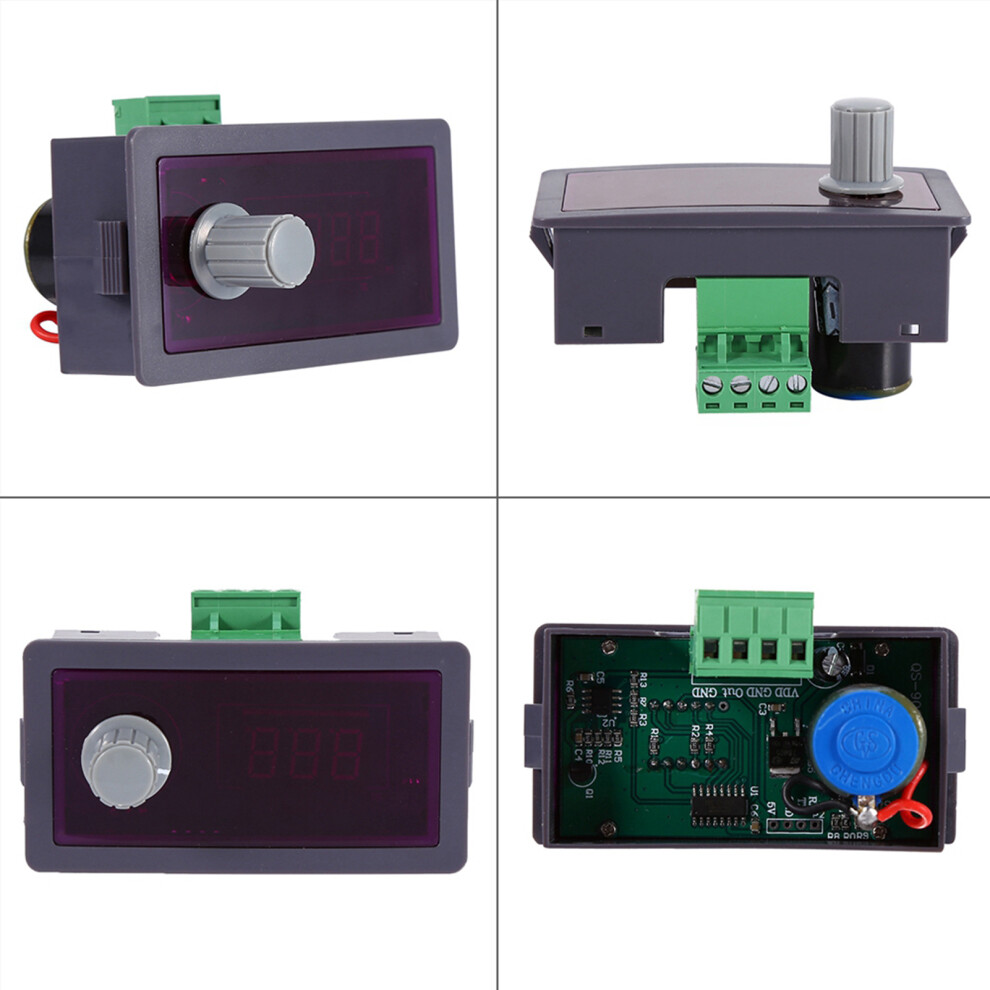

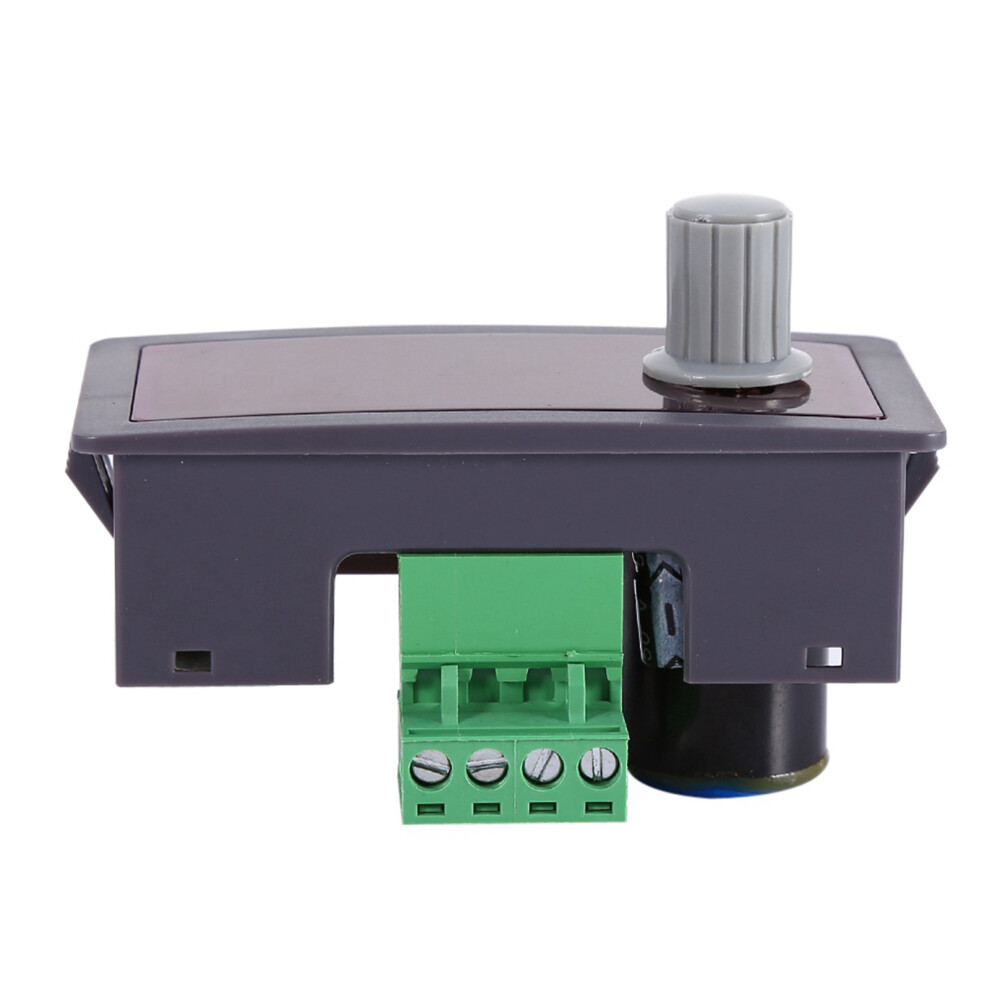

High Precision Multi-ring Potentiometer with Polarity Protection 12V/24V

High Precision Multi-ring Potentiometer with Polarity Protection 12V/24V Description

Digital 12-24V DC 4-20mA Signal Source Generator Constant Current Source General

Features:
1, easy e, easy to wire, knob operation, in response to the output immediately after adjustment, no delay
2,
in order to achieve stepless fine adjustment, particularly multi-ring
(5 * 360) potentiometer to adjust the actual fineness of up to 0.01mA,
operate freely
3, power port has a polarity protection, power reverse does not work, do not burn components
5,
12V DC power supply, output load impedance range between 0-350 ohms;
between 0-800 Ohm 24V DC power supply, output load impedance range
6,
the test output is normal, you can use a multimeter (DC current file)
short "4-20mA output" terminal value and the comparison shows that the
multimeter readings are the same
7,
the product can be used: signal sources, regulating valves, control,
test instrumentation, light emitting diode test, the inverter output
analog transmitter

8, the header housing, easy to install, hole size: 76mm * 40mm. The overall size of 80mm * 42mm





Packing include:1 x DC 12V 24V 4-20mA Signal Source Signal Generator Constant Current Source 0.01mA

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
