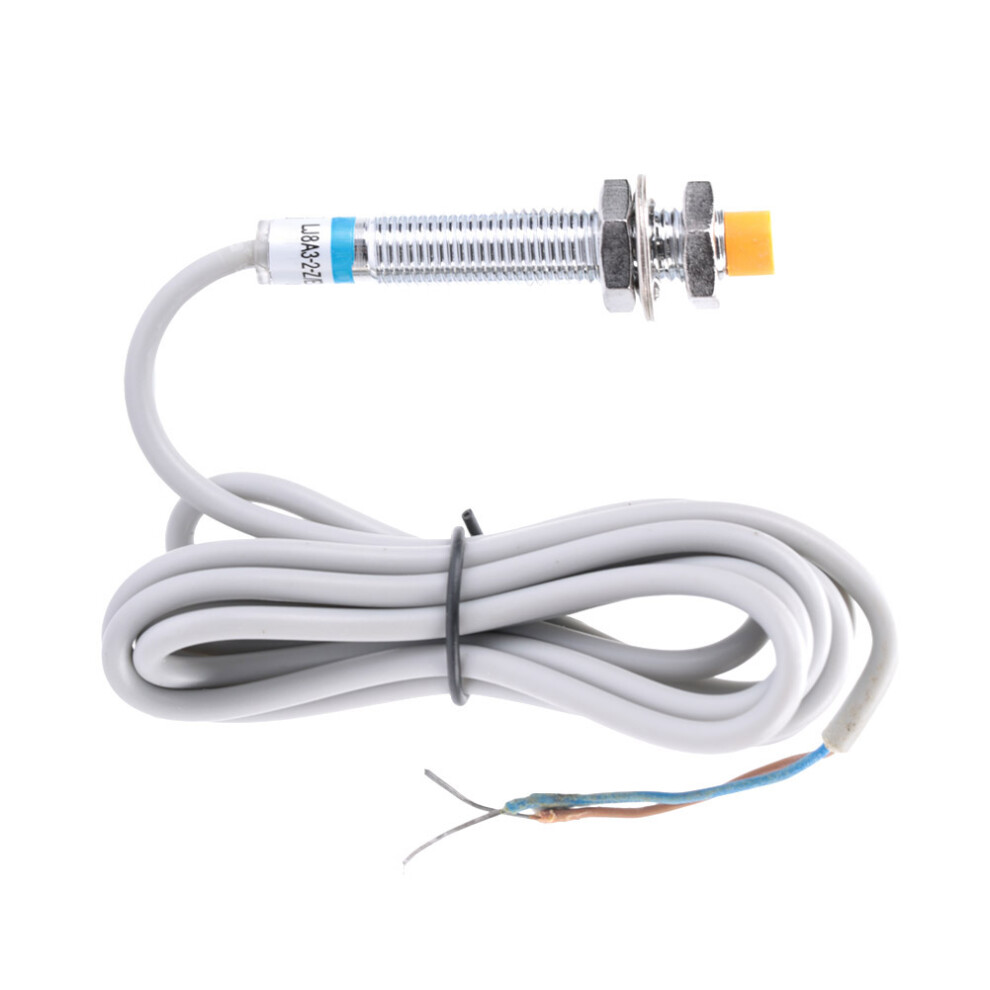

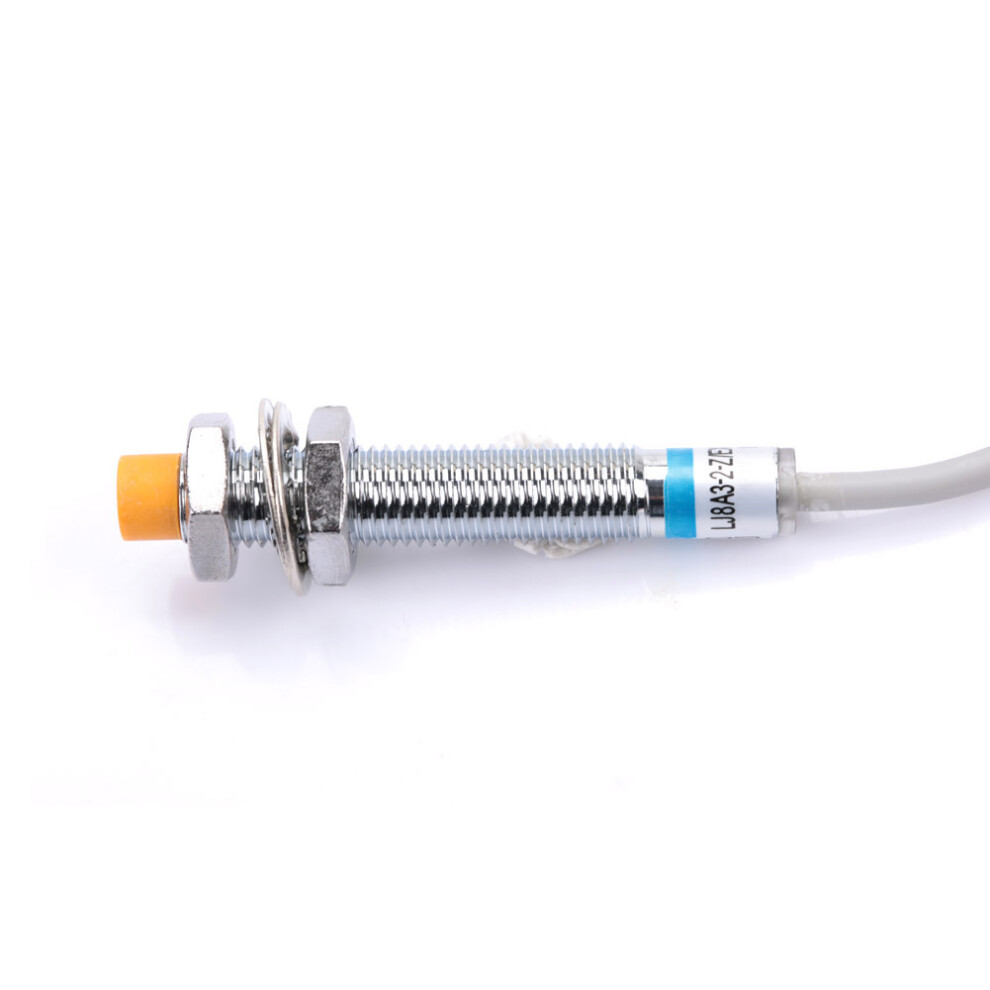

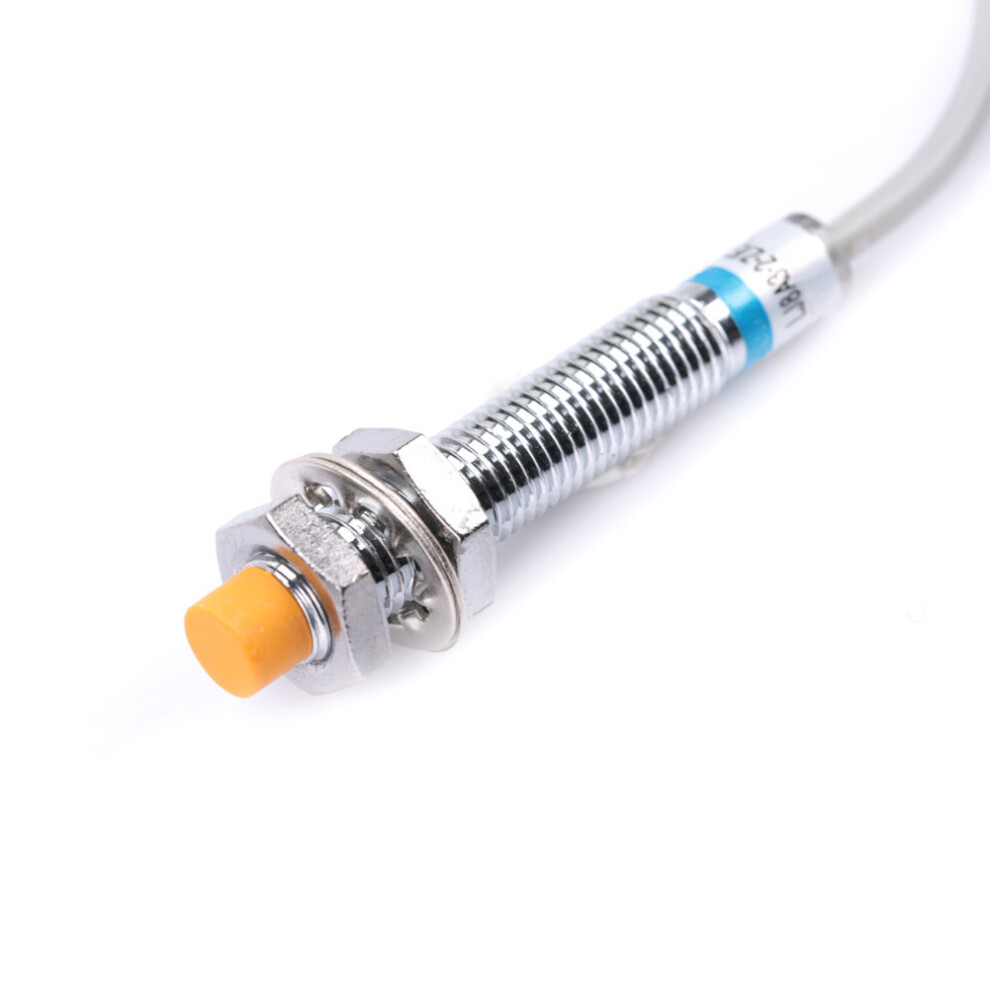

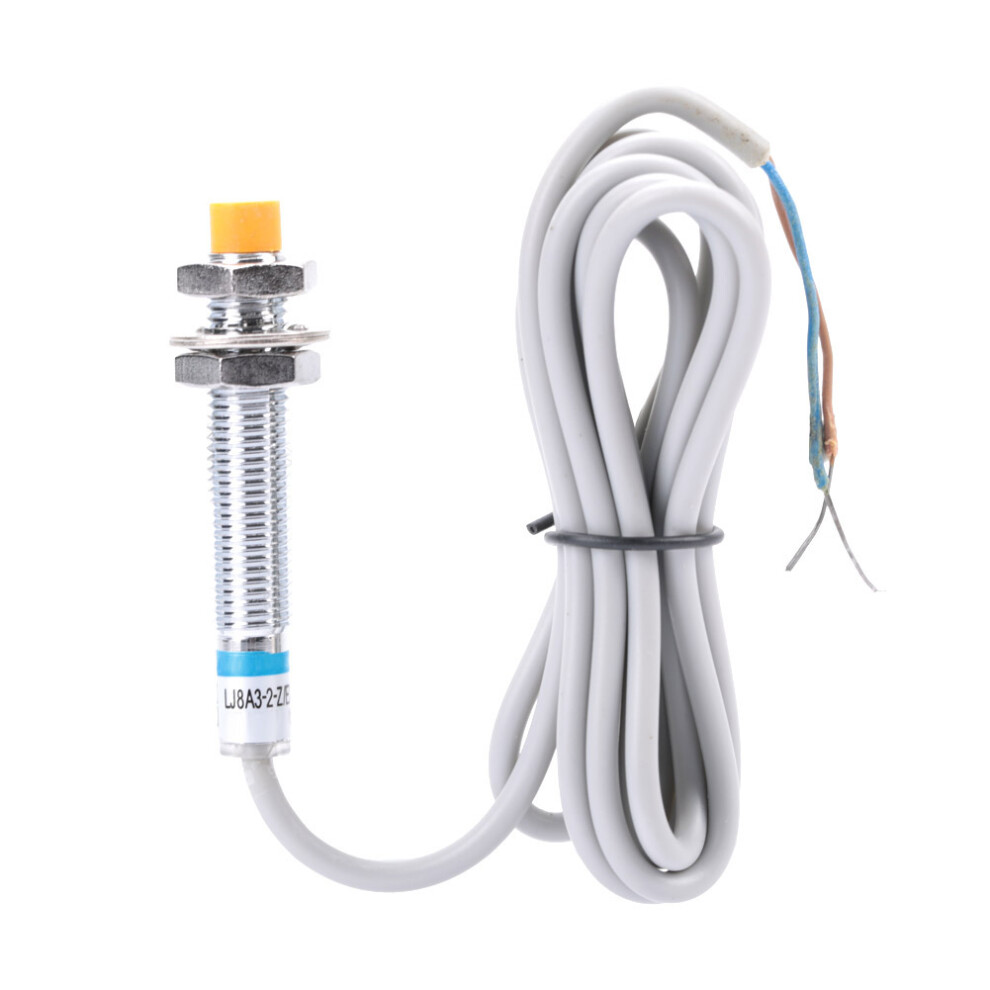

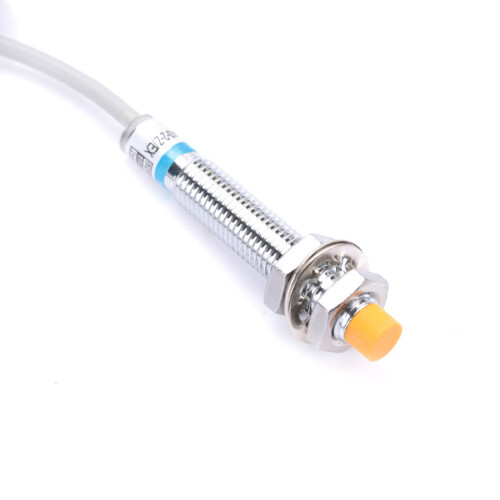

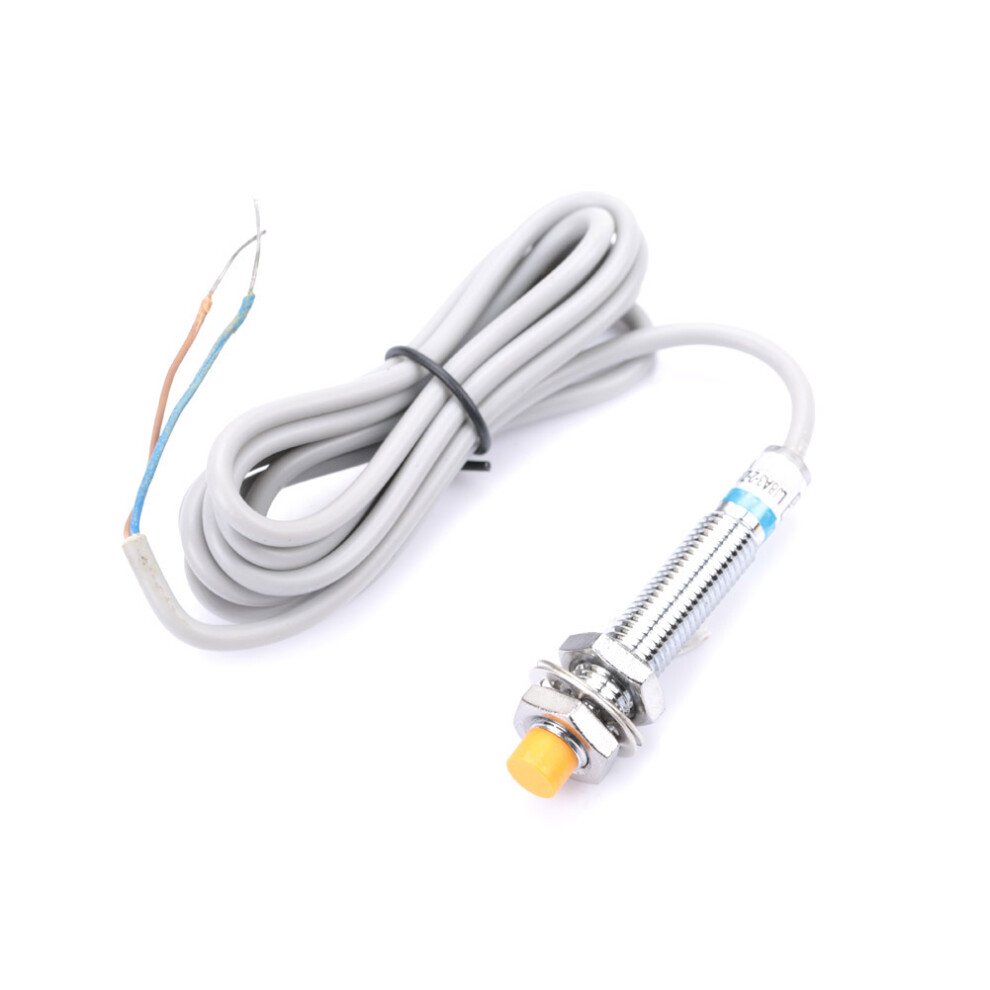

High Sensitivity 2mm Proximity Switch LJ8A3-2-Z/EX DC 2-Wire

High Sensitivity 2mm Proximity Switch LJ8A3-2-Z/EX DC 2-Wire Description

2mm LJ8A3-2-Z/EX DC 2-Wire Normally Open Inductive Sensor Proximity Switch
Features:



This is a normally close proximity switch sensor with 2mm detection distance.

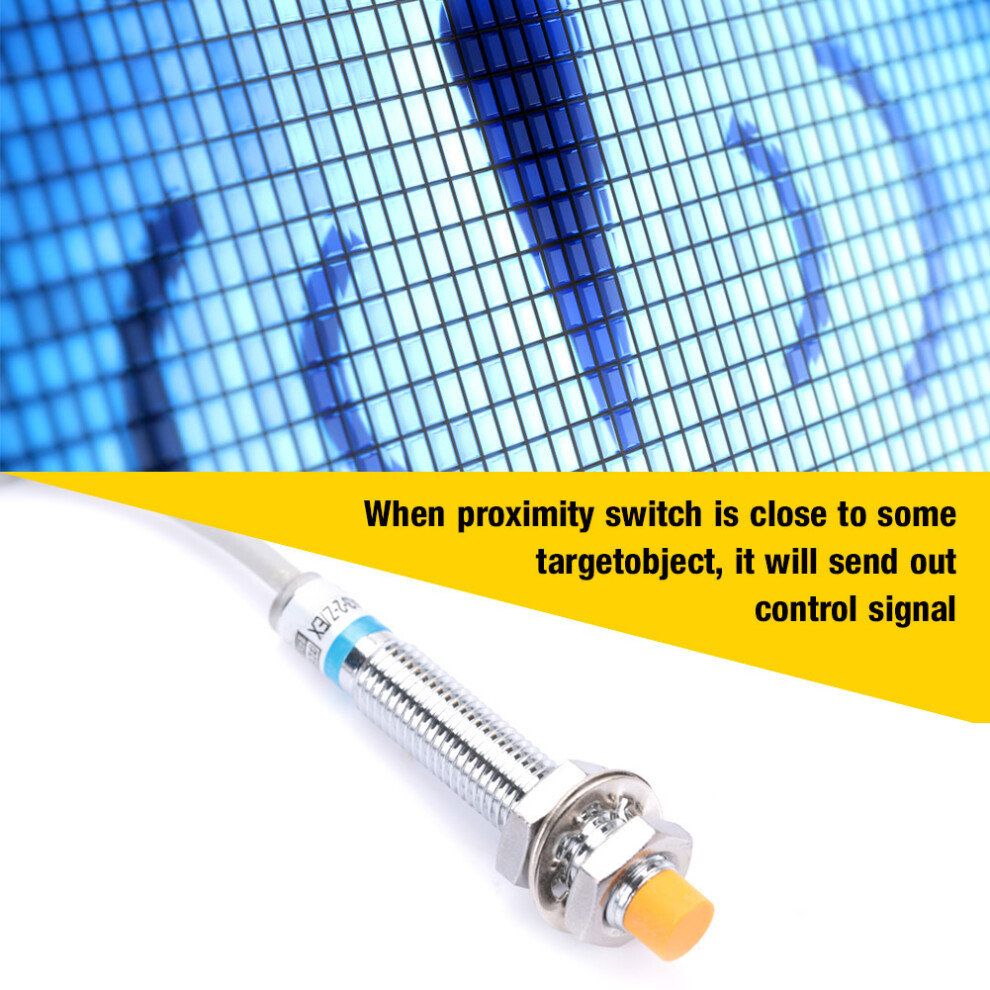

When proximity switch is close to some target object, it will send out control signal.

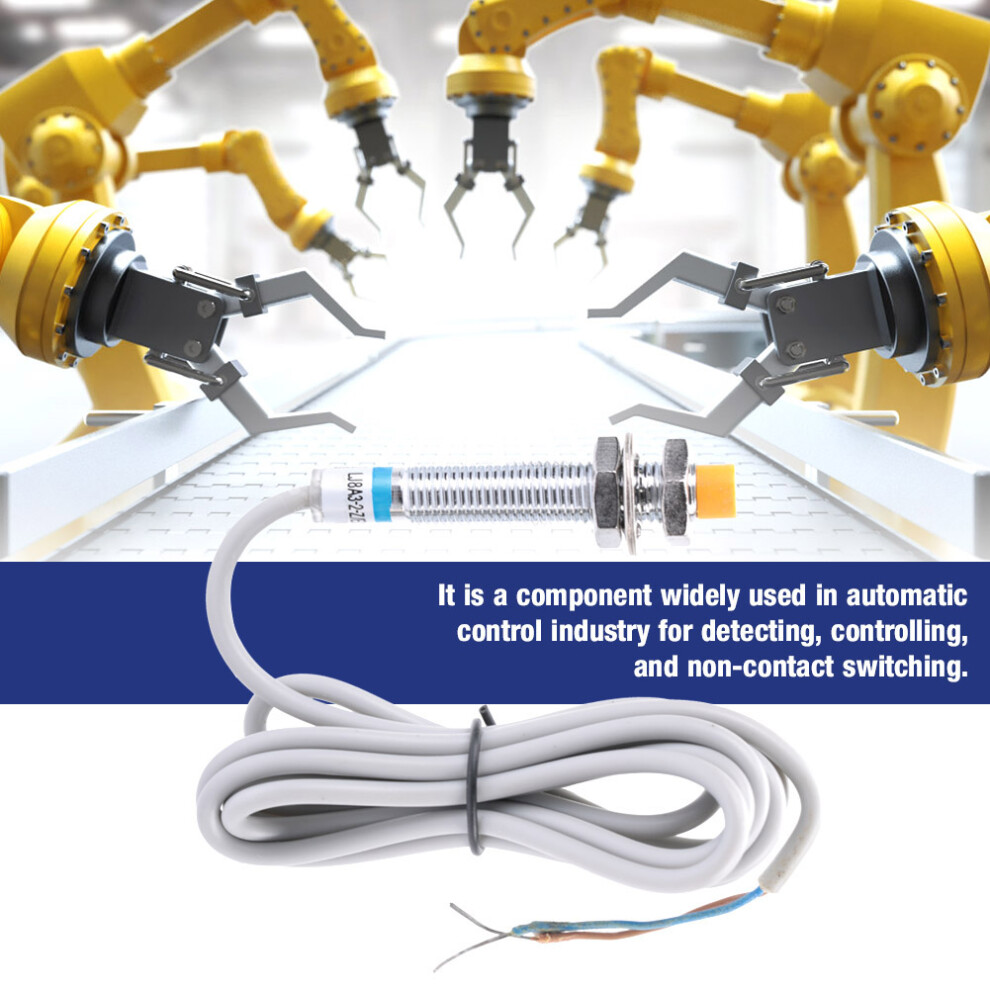

It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching.


High sensitivity, quick response, stable performance.


Non-contact detection avoids the sensor and the target object from damages.




Specification:

Model: LJ8A3-2-Z/EX

Detection distance: 2mm10%

Setting distance: 0-1.6mm

Delay distance: <10% of detection distance

Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal)

Standard detection object: Iron 12*12*1mm

Response frequency: DC:0.5kHz   AC:25Hz

Supply voltage: DC12-24V (6-36V) impulse (P-P) below 10%

AC110-220V(36-250V) 50/60hz

Withstand voltage: AC1000V 50/60Hz 1min

Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA

Control output: N.P type: <300mA, D type: <200mA, A type: <400mA

Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption

Ambient temperature and humidity: -30~65(No ice, no frost), 35-95%RH

Temperature influence: Temperature range -30~65, at 23, 15% detection distance

Temperature range: -25~60, at 23, 10% 0detection distance

Insulation impedance: >50MΩ

Housing material: Nickel plated brass

Detection surface: ABS

Weight: Approx. 25g



Package list:

1 * Inductive Proximity Switch
