High Torque Clock Movement Mechanism Quartz Clock Walnut Wood 31mm

High Torque Clock Movement Mechanism Quartz Clock Walnut Wood 31mm Description

1. Good quartz movement work well, Simple design, easy to use,Energy efficient, Accurate timing.Great for repairing, replacing or making a clock.
2. Long spindle clock: good handwork DIY clock replacement movement parts with metal hook, which meet your installation needs
3. This kit is good size replacement both in terms of the shaft and the size of the hands. It can be a replacement for your broken clock.
4. Wide application: You are enable to use it to repair, replace or make a home clock; Applicable to -, three-dimensional embroidery, craft home clock, frame-less draw clock, clockwork, etc. Perfect DIY clock kit, , and specially suitable for DIY quartz wall clock replacement movement parts, etc.
5. Quality: the movement shell is made of high quality material which is sturdy and for a long time, and the clock hands are made of quality wood, which is light in weight and - to provide you with nice use and decorative effect

Instruction:
1. Attach the clockwork to the product to be installed.
2, is installed in accordance with the standard 12 points,when you install it, please keep the hour hand and minute hand parallel
3. Pull out the positioning pin from behind the clockwork and insert the battery.
(Do not insert the battery and then pull out the locking pin.)
Note: Please refer to the pointer installation diagram for the installation method of the pointer. After the three pins are installed, the three pins should be parallel when viewed from the side, and it is better not to touch the pins.
Type:Long Shaft Clock Movements
Function Type: High Torque Clock Movement
Rated voltage: 1.5V
Battery life (specification): . 12 Months (UM-3)
Use Battery: .5V AA Carbon battery (not included)

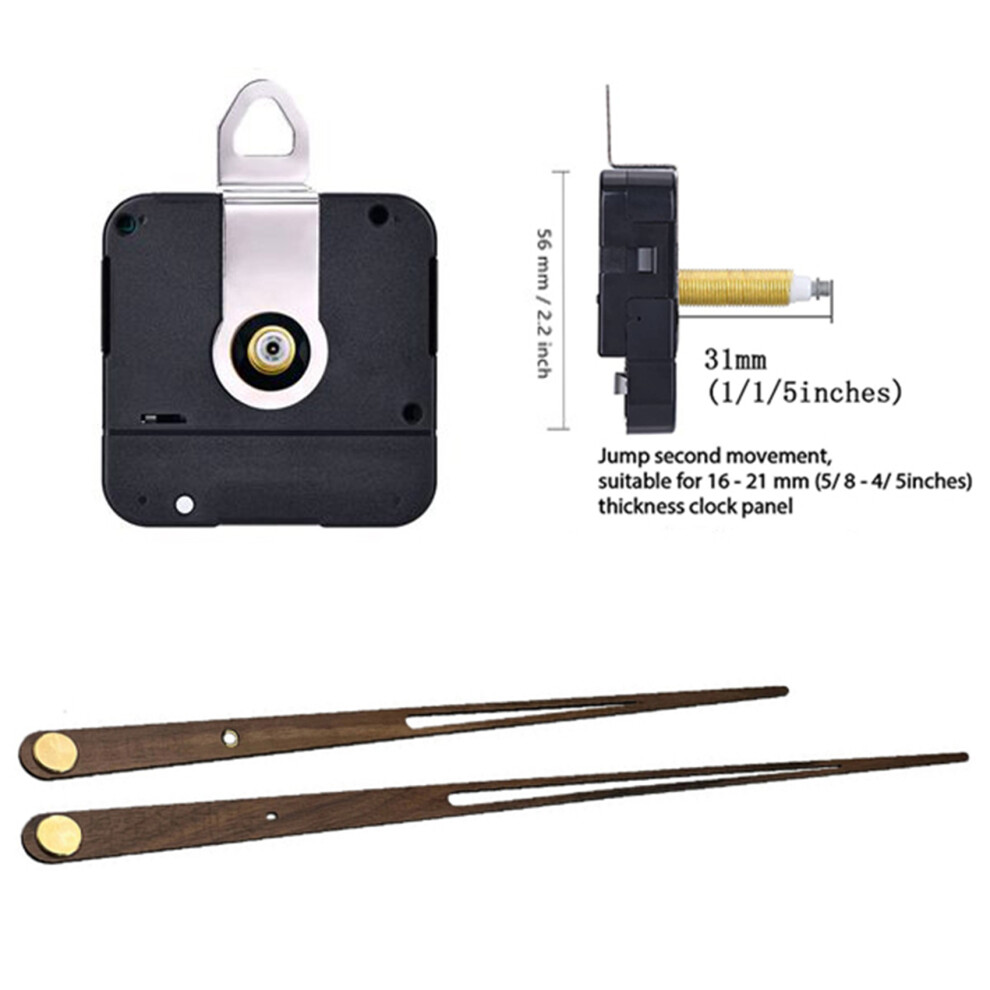

Movement specification: 56 x 56 x 16mm
Clock hand specifications: hour and minute 223, 285mm (from the center of the circle), thickness 3mm
Applicable panel diameter: 60-70cm
color:As shown
Material:plastic + walnut
size:

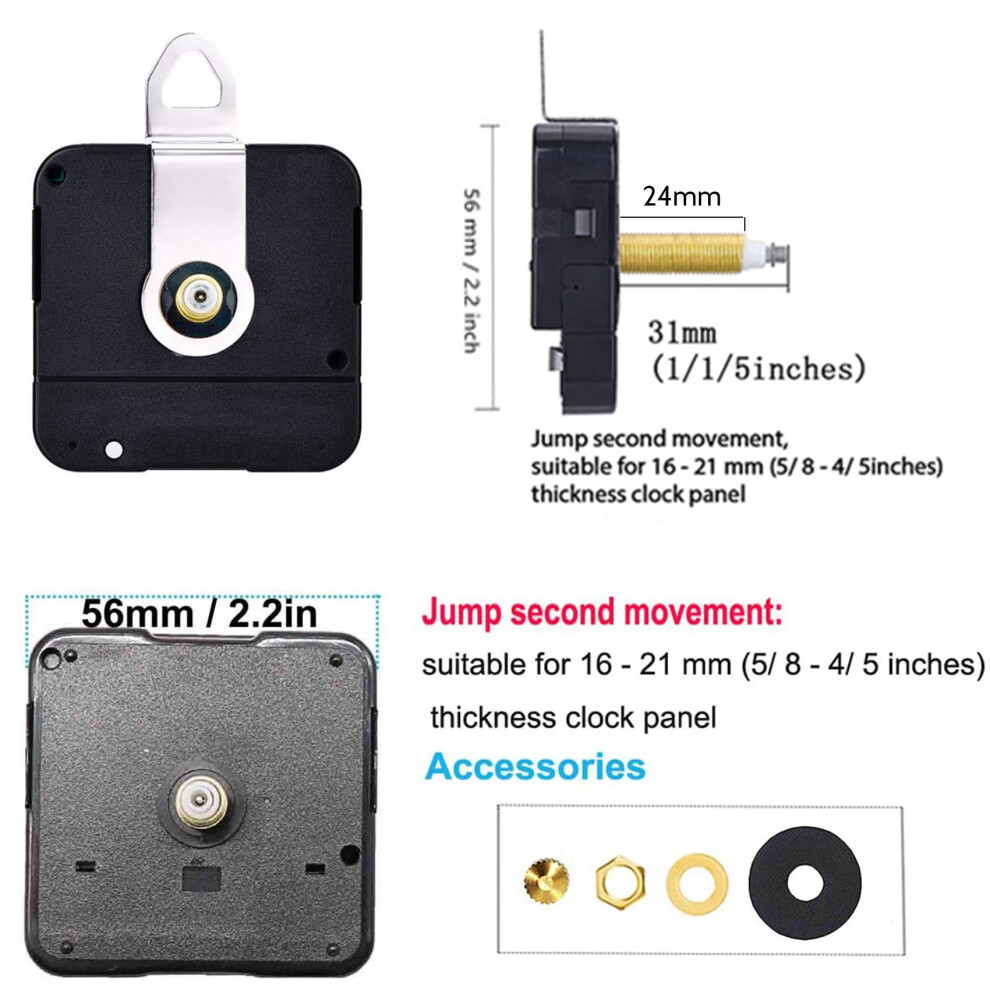

The total shaft length is 31mm,Thread:24mm, which is suitable for clock panels with a thickness of 19-21mm

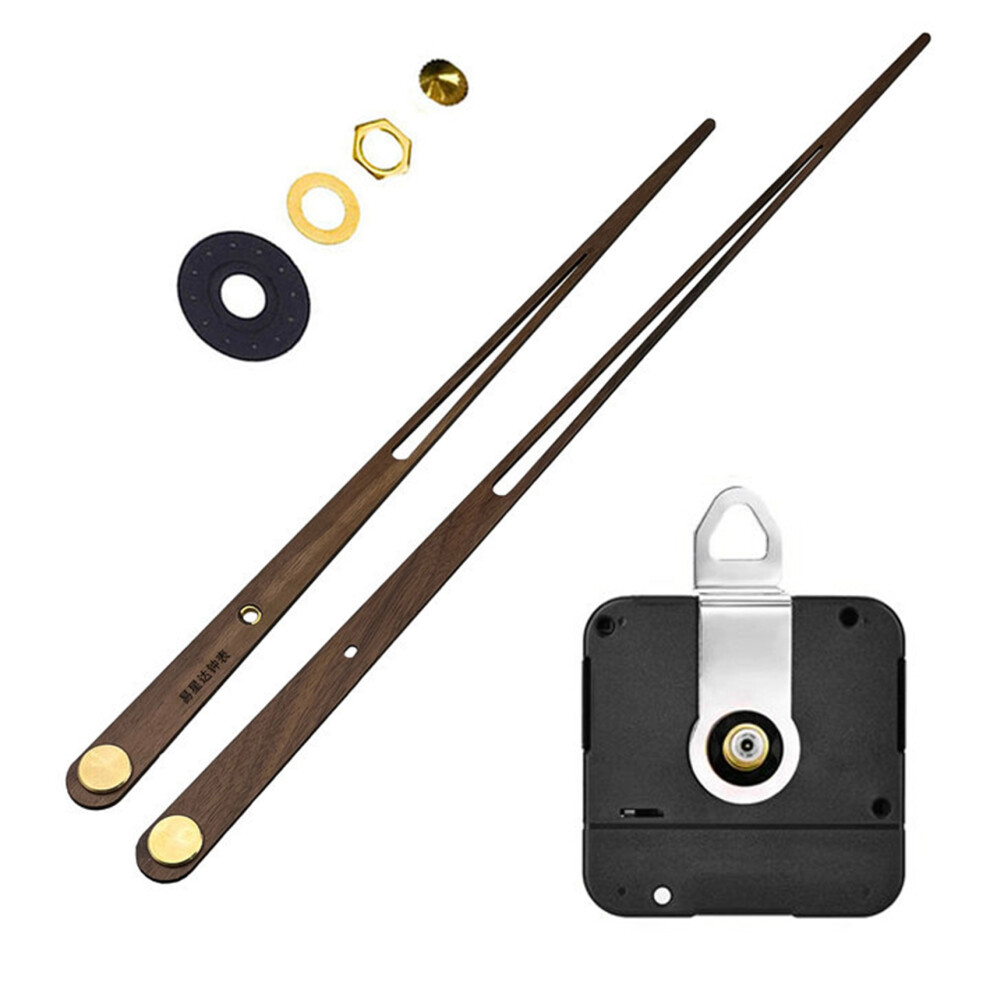

Package Contents:
1 x Quartz clock movements
2 x clock hands
1 set x Accessories

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
