HMC213 Passive Double Balanced Mixer Diode Frequency Conversion Module

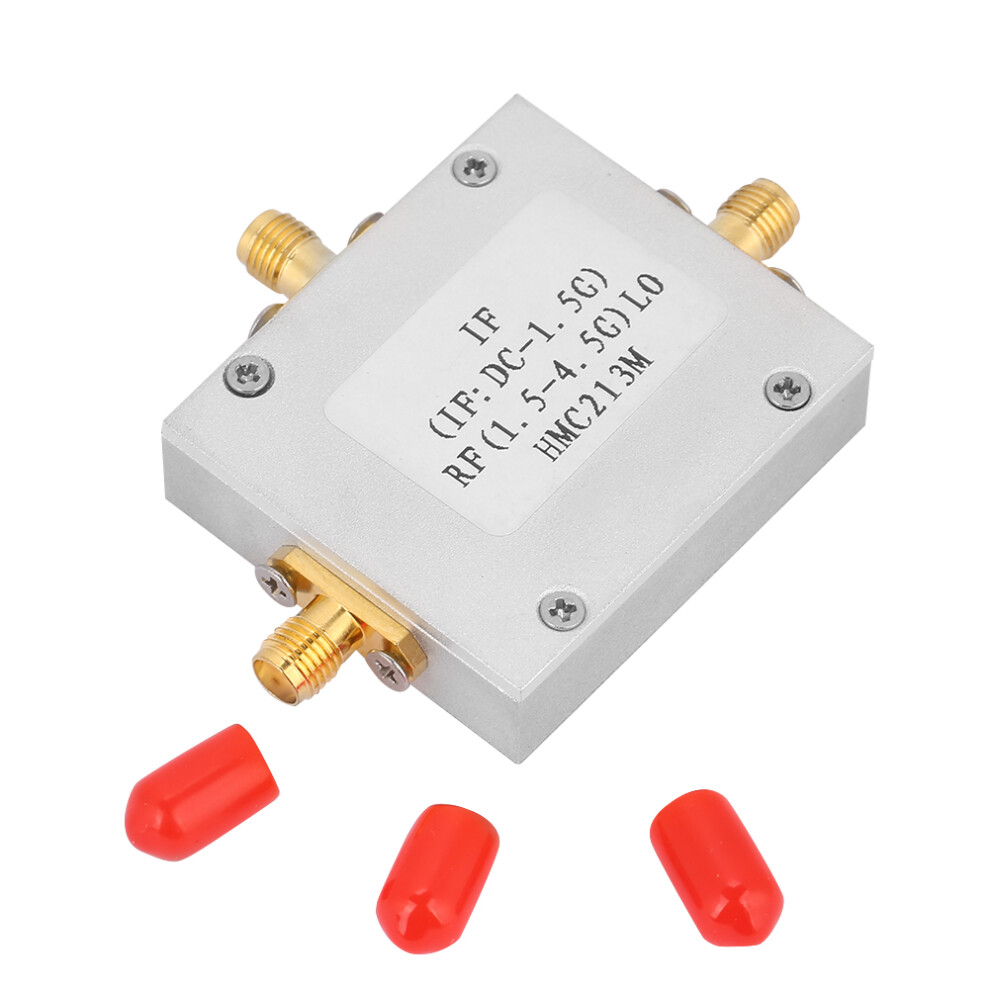

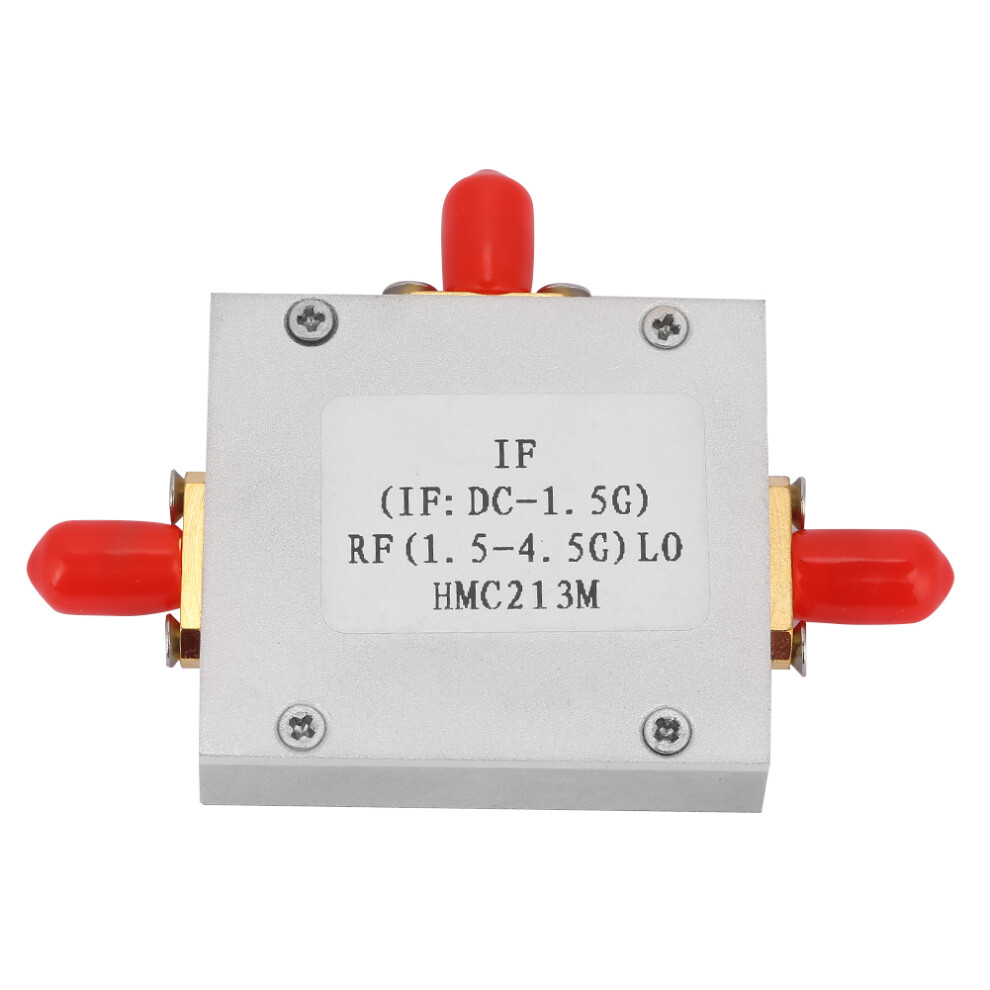

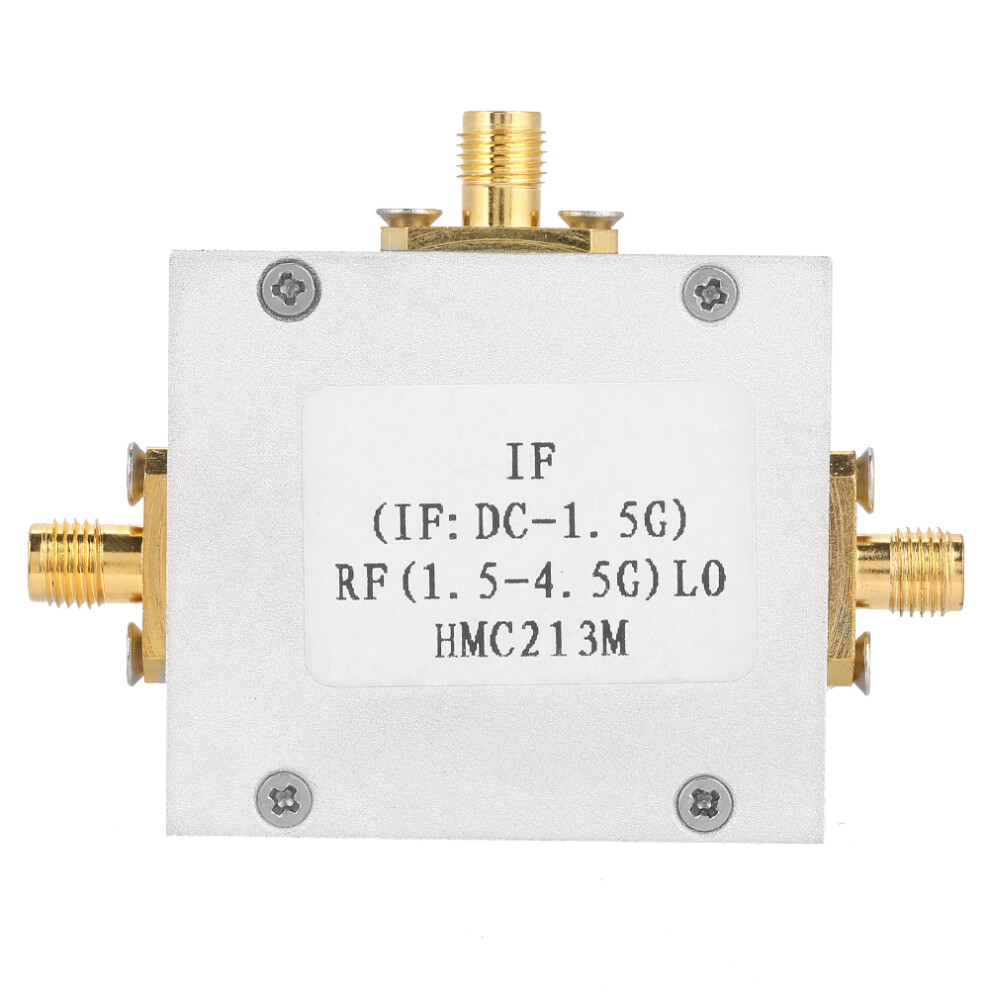

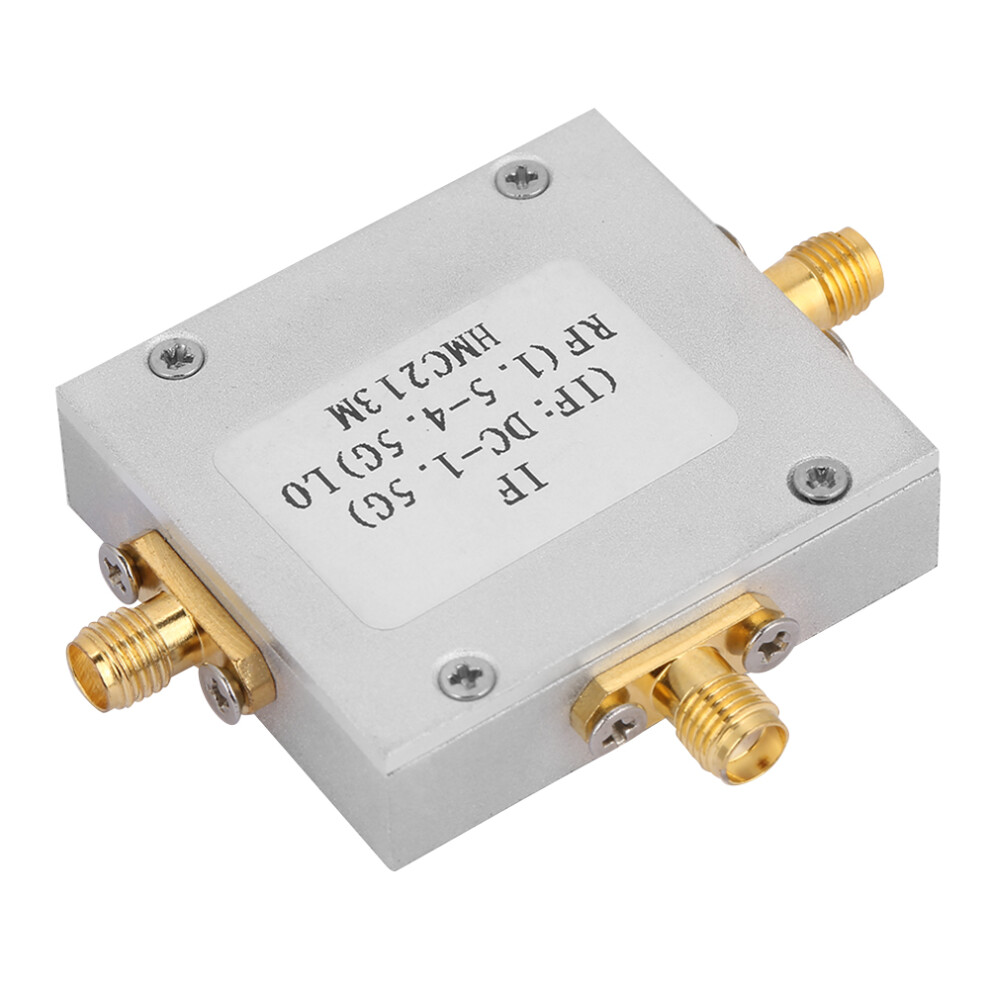

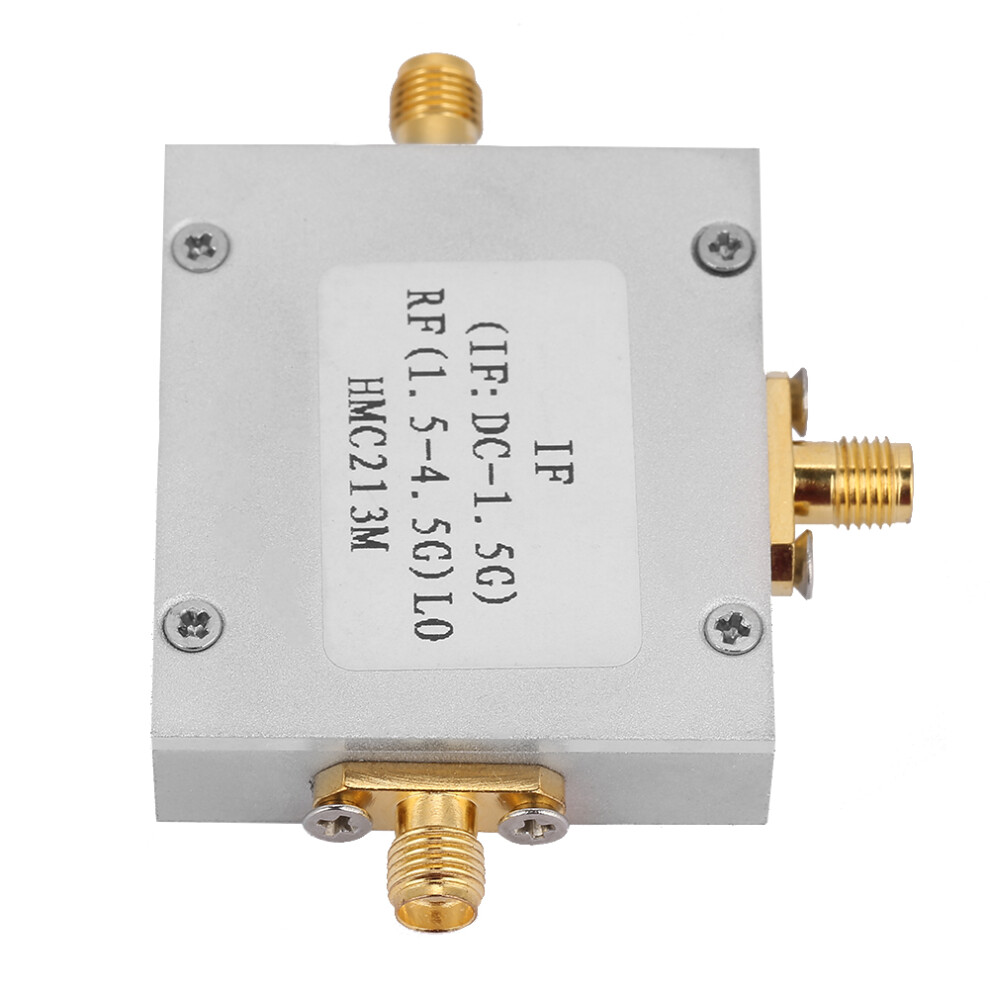

HMC213 Passive Double Balanced Mixer Diode Frequency Conversion Module Description

1、Passive double-balanced mixer, 8-pin surface-mount plastic package (MsOP). 2、Passive mixers use GaAs Schottky diodes and novel planar transformer on-chip balun structures. 3、It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator. 4、The mixer has the advantage of high isolation 5、The passive mixers adopt mini components design,compact and light weight
Features:
Passive double-balanced mixer, 8-pin surface-mount plastic package (MsOP).
Passive mixers use GaAs Schottky diodes and novel planar transformer on-chip balun structures.
It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator.
The mixer has the advantage of high isolation
The passive mixers adopt mini components design,compact and light weight
Passive Mixer has low conversion loss of 8.5dB
Specification:
Shell material: CNC aluminum alloy
Model: HMC213 module
Conversion loss: 8.5db
LO to RF isolation: 40dB
LO to IF isolation: 35dB
Frequency range, RF and LO: 1.5-4.5G
Frequency range, IF: DC-1.5G
1dB gain compression (input) : 8dBm
IP3 (input) : 18dBm
Weight: Approx.46g/1.7oz
Package list:
1 x Passive Mixer
