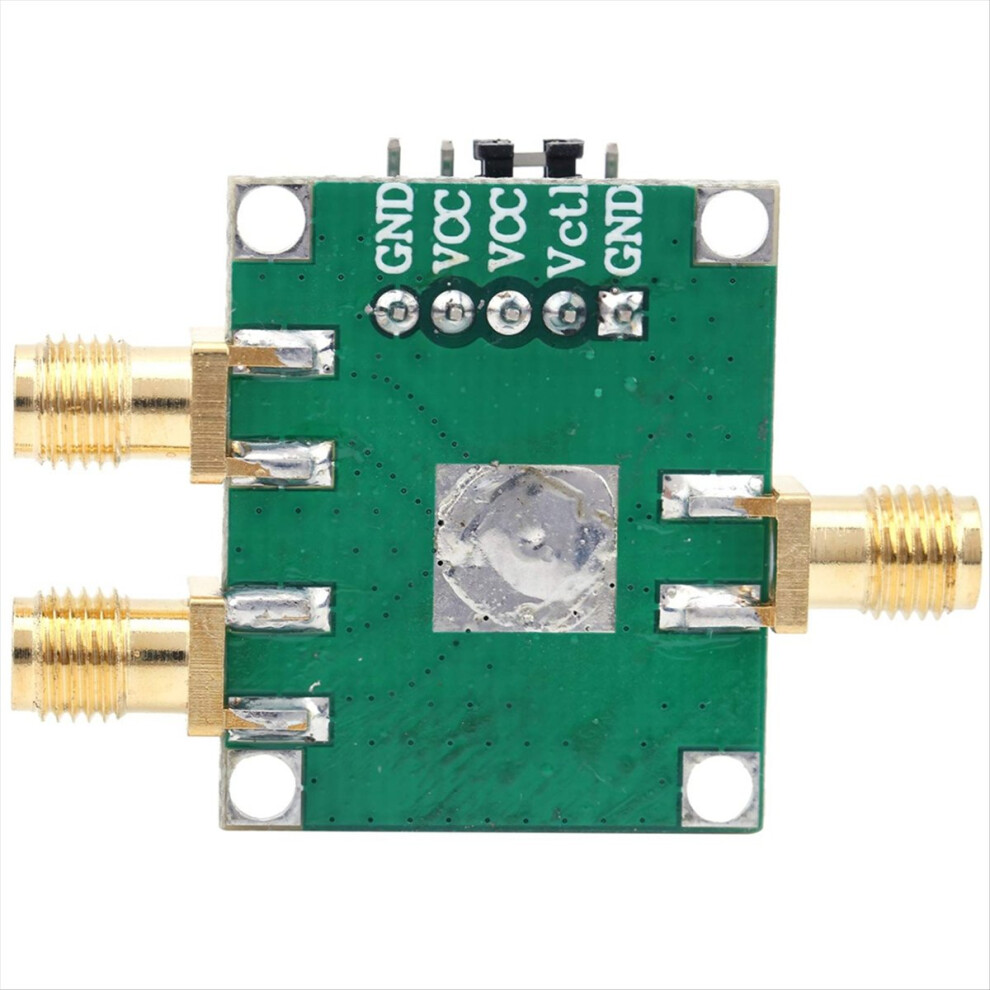

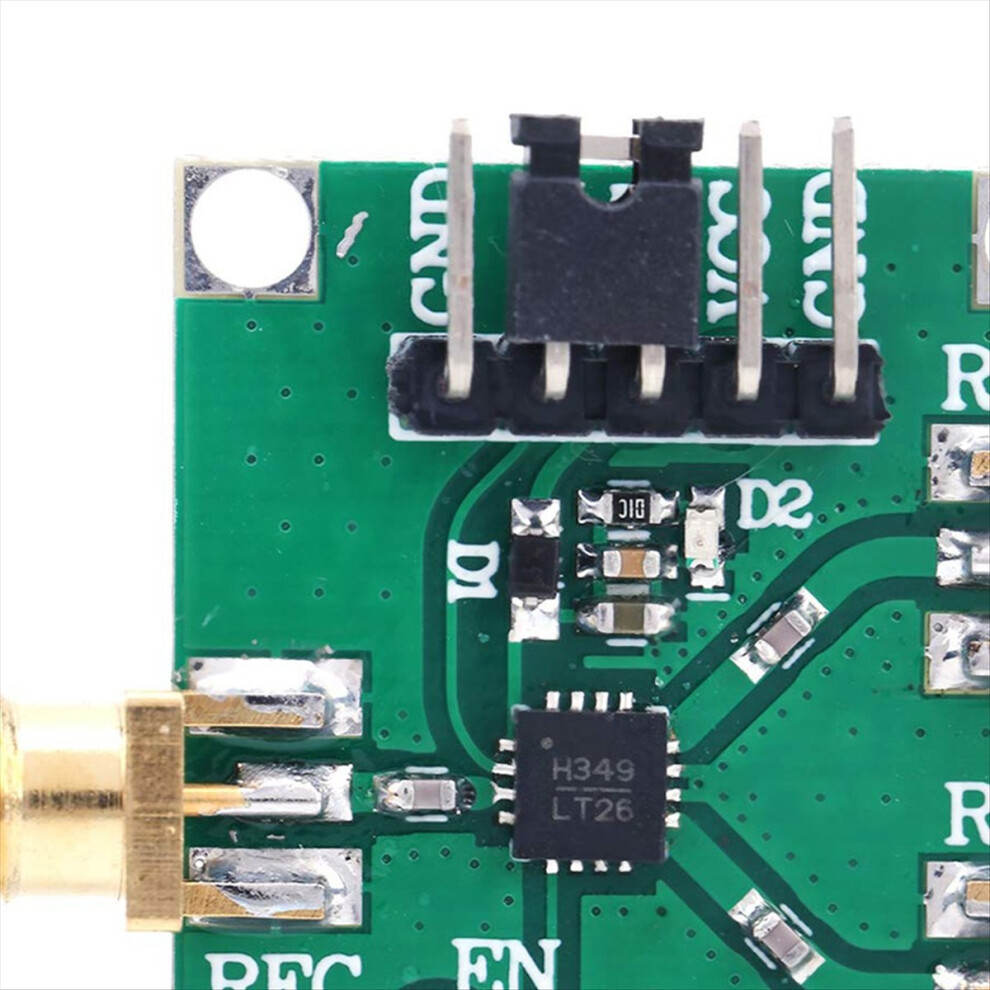

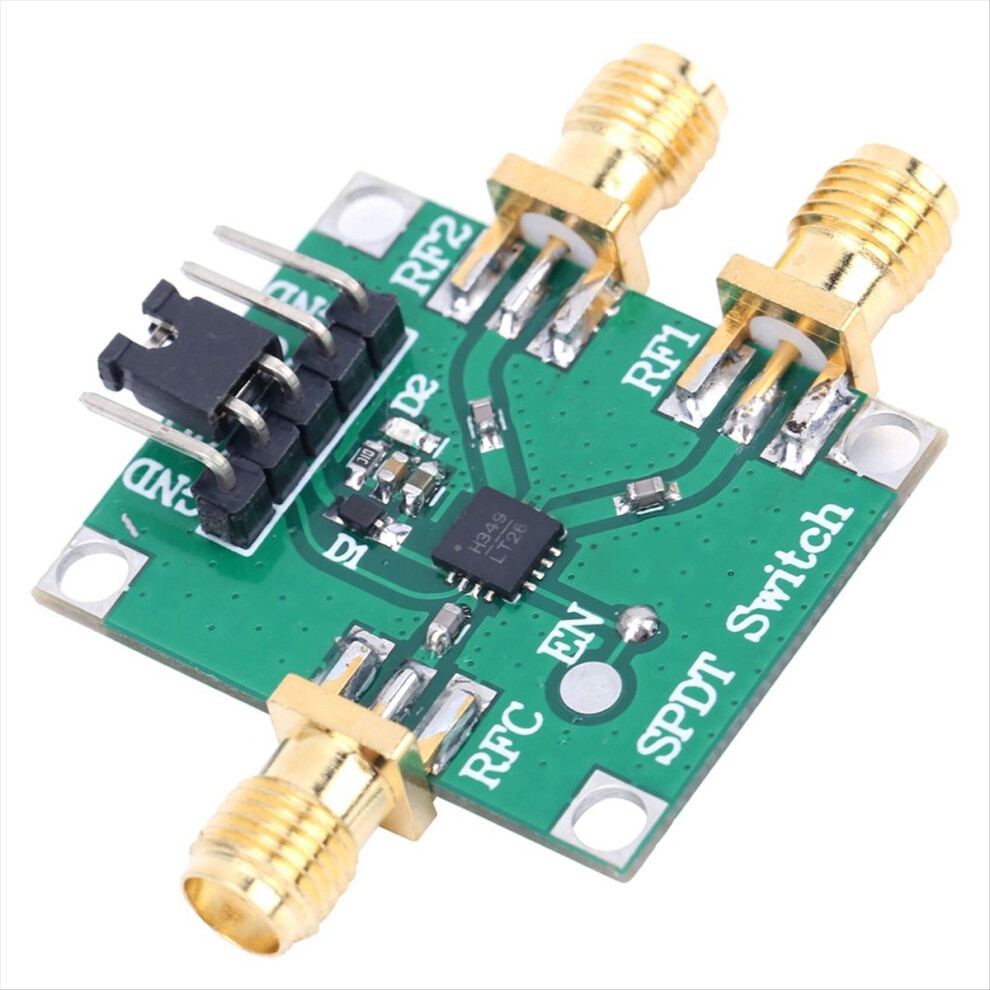

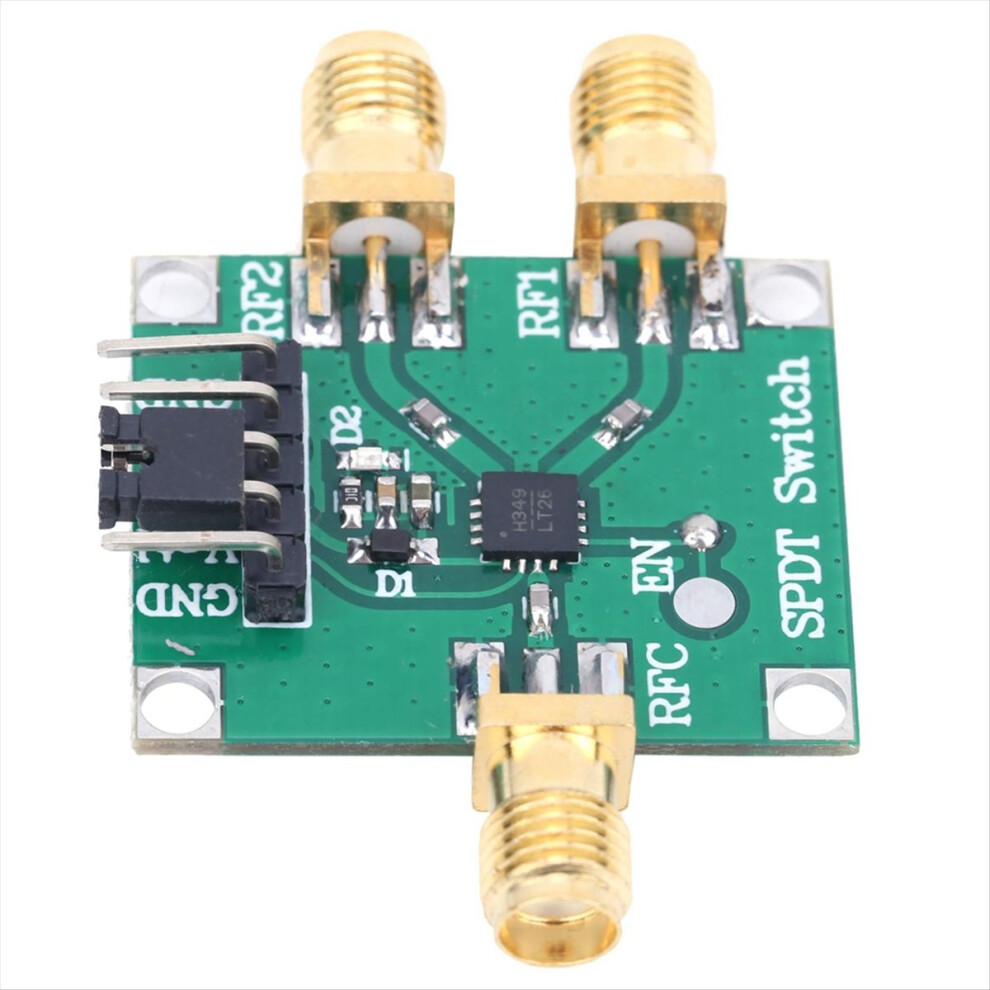

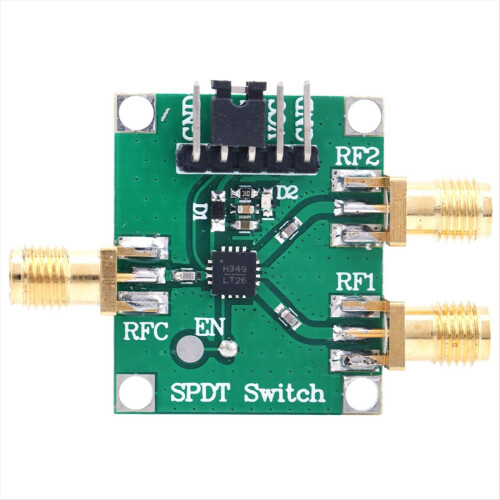

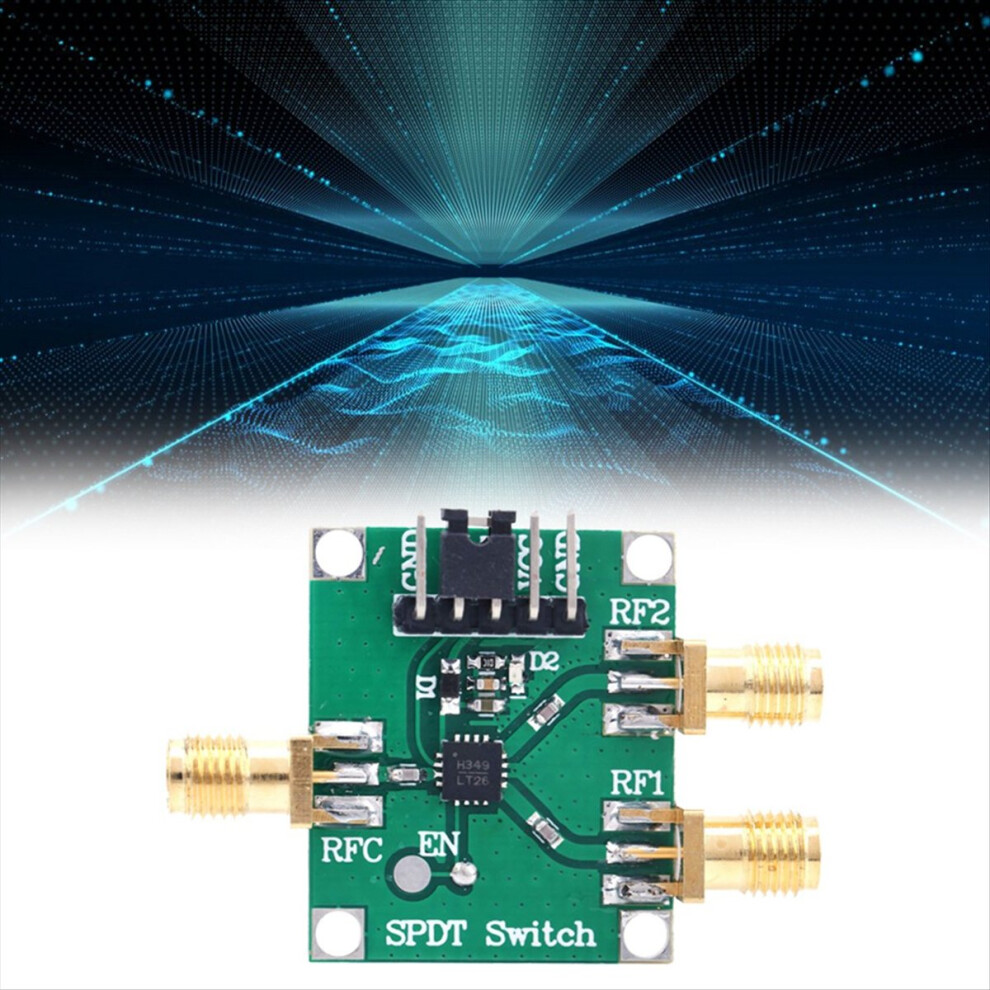

HMC349 Switch Module Single-Pole Double-Throw 4Ghz

HMC349 Switch Module Single-Pole Double-Throw 4Ghz Description

1. It Is A Single Pole Double Throw 4Ghz Broadband Module
2. Fixed Frequency Range Is 100 Mhz To 4 Ghz.
3. With High Isolation Of 62 DB, Low Insertion Loss Of 1.0 DB, High Input IP3 Of 53 DBM And High Input P1DB Of 34 DBM,
4. Perfect For Wireless Infrastructure Applications.
5. Convenient To Carry And Easy To Use

Power Supply Voltage: 3-5V
Working Frequency Range: 4Ghz
Module Size: About 2.5x3cm (Excluding Protruding Sma Part)
Input And Output Impedance: 50Ω
Input And Output SMA Interface (External Spiral Inner Hole)
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:PCB

Package Contents:
1 x Switch Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
