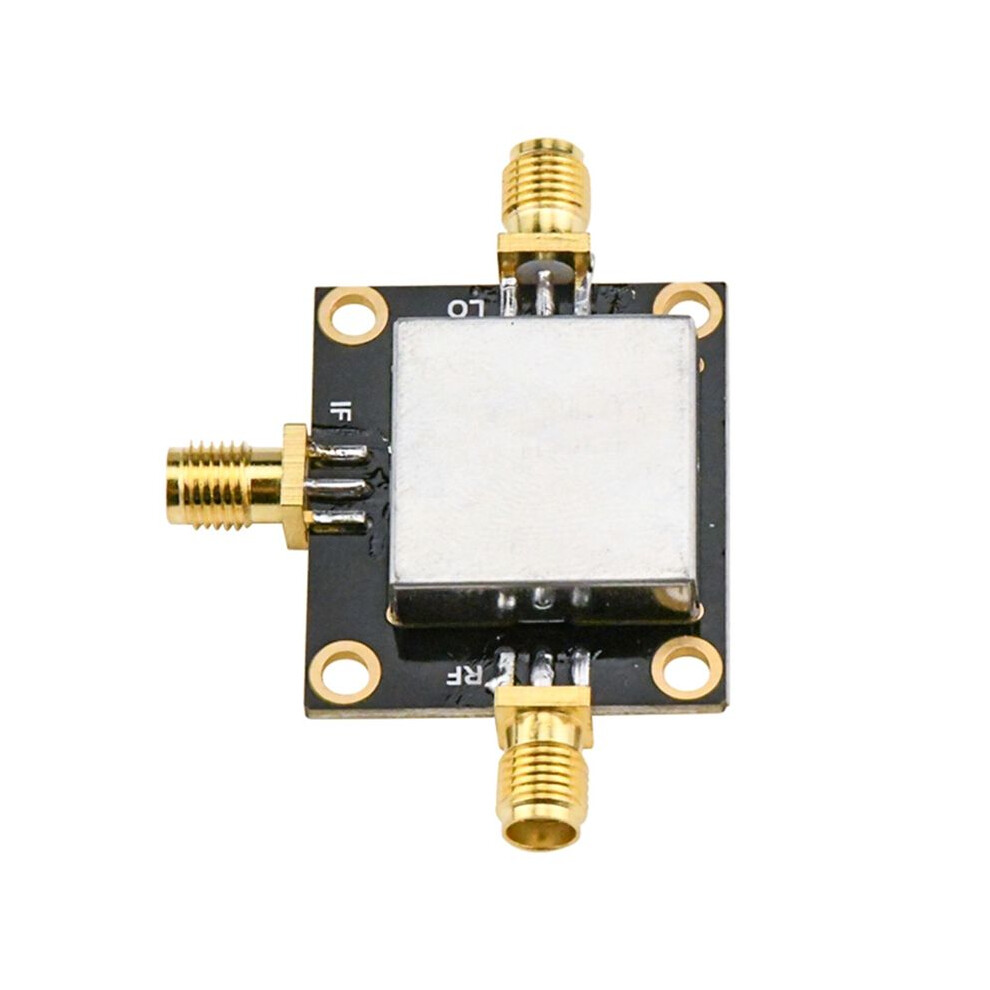

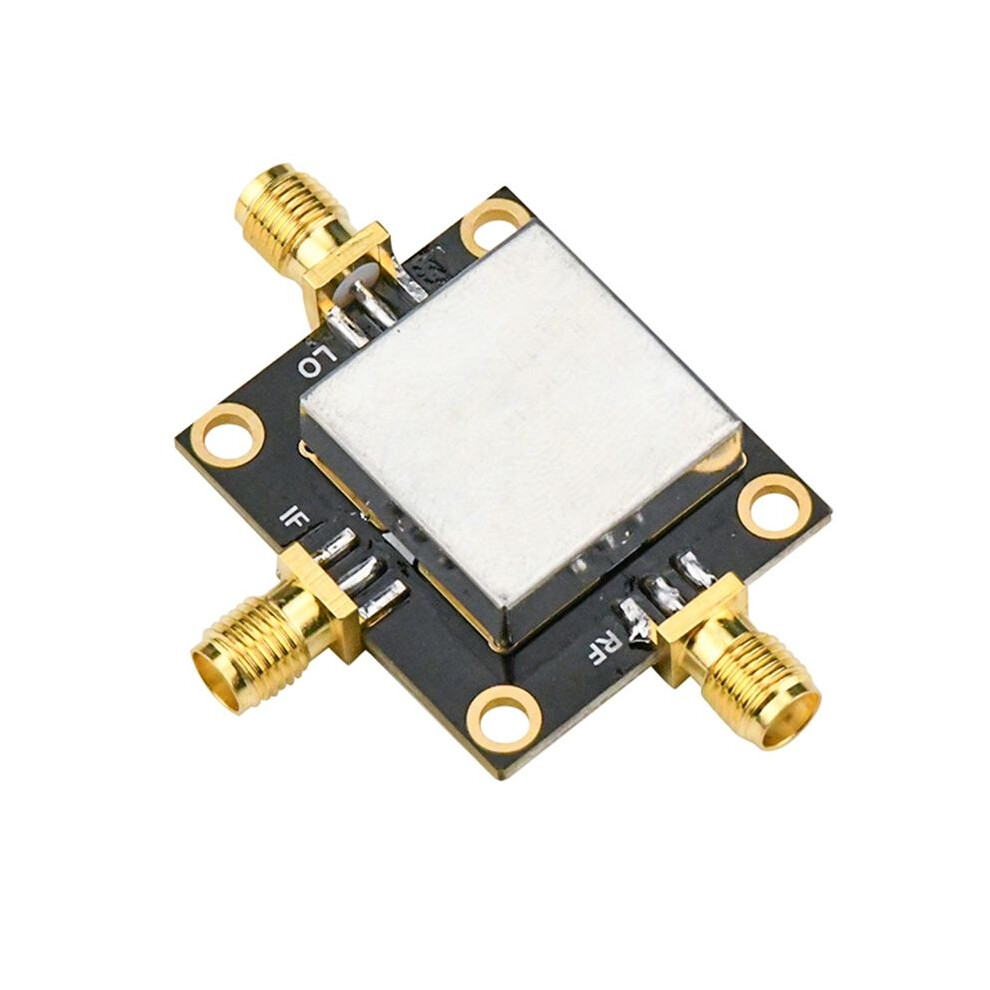

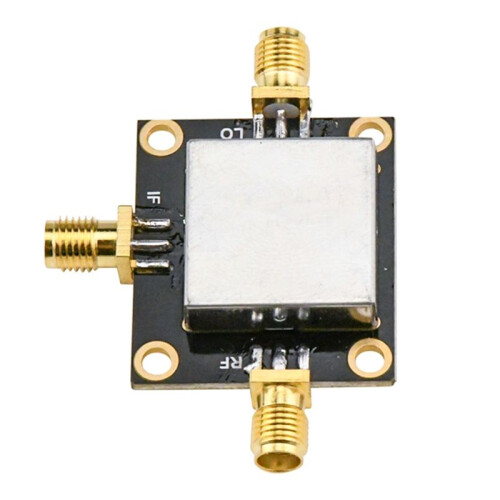

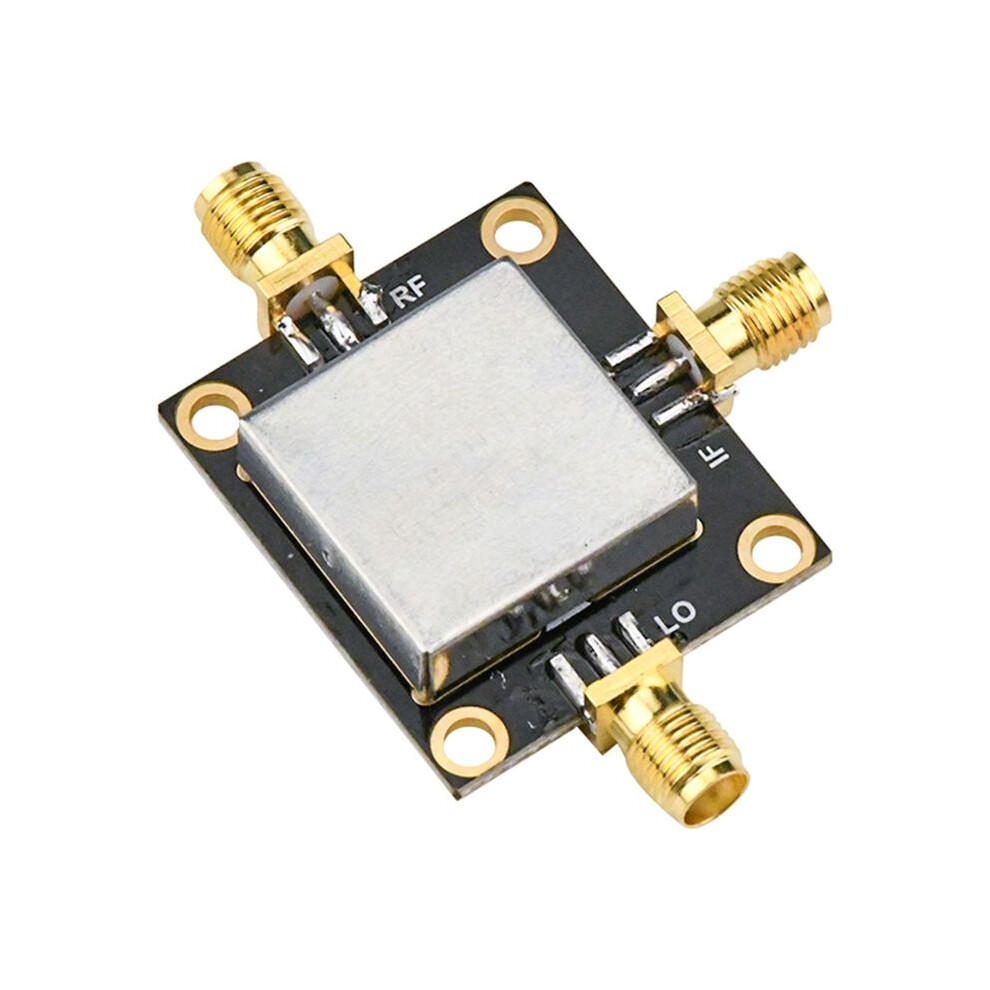

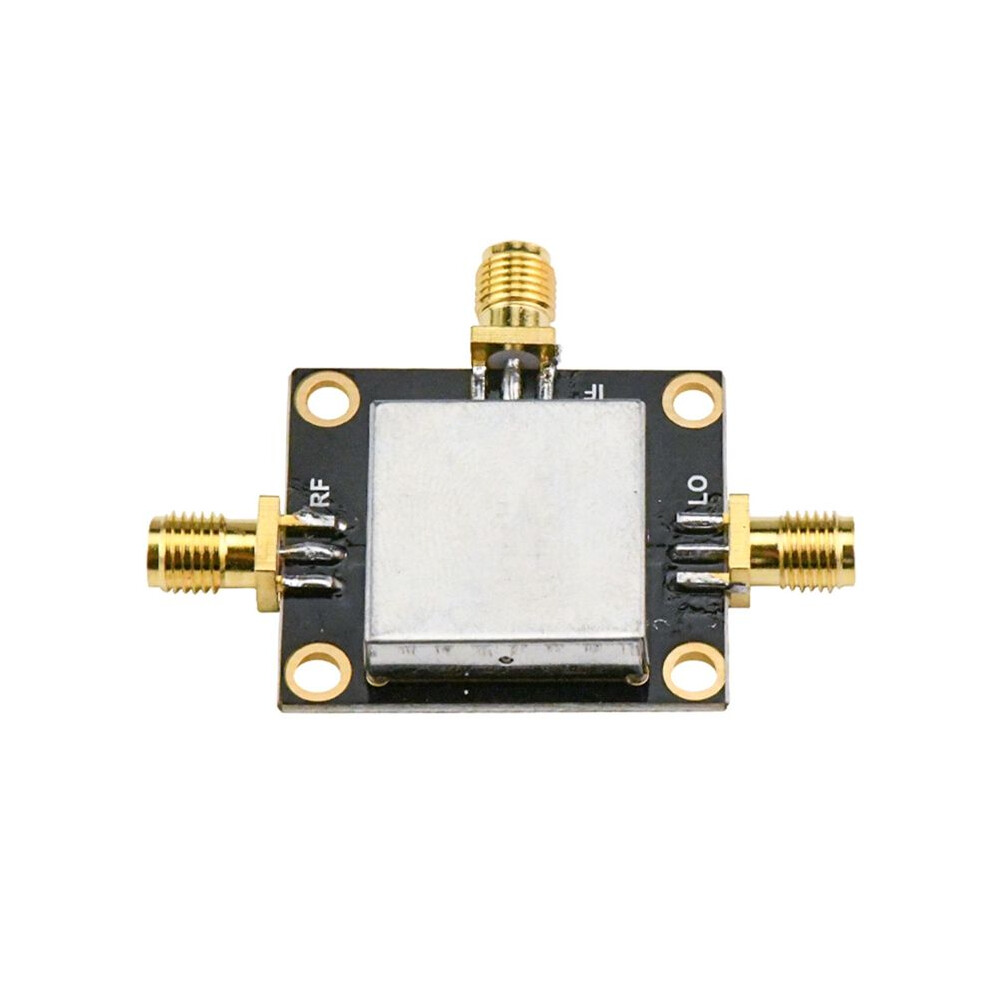

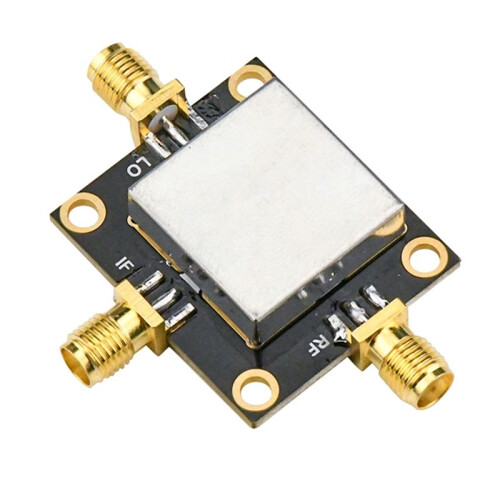

HMC412 Module 9-15G Low Noise Double Balanced Mixer and Down RF Conversion Passive Mixer Module
Brand Torribaly
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
£17.42
£22.02
21% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Mon 12th - Fri 16th Oct
Sold by: JJBRDZ
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- assive double-balanced mixer in 8-pin surface mount plastic package (MsOP). The passive MMiC mixer uses GaAs Schottky diodes and a novel planar transformer on-chip balun structure.
- This type of device can be used as an up-converter, down-converter, two-phase modulator and demodulator or phase comparator.
- Down RF conversion Passive Mixer Module
- Passive Mixer Module
- Module
HMC412 Module 9-15G Low Noise Double Balanced Mixer and Down RF Conversion Passive Mixer Module Description
assive double-balanced mixer in 8-pin surface mount plastic package (MsOP). The passive MMiC mixer uses GaAs Schottky diodes and a novel transformer -chip balun structure.
This type of device can be used as an -converter, down-converter, two-phase modulator and demodulator or phase comparator.
Module features:
1. Conversion Loss: 8 dB
2. LO to RF Isolation: 25 dB
LO to IF Isolation: 25dB.
3. Frequency Range, RF & LO: 9-15G
Frequency Range, IF:-2.5G
4. Noise Figure (SSB): 8dB
5. 1dB Gain Compression (Input): 9.5dBm
6. IP3 (Input): 17dBm
Colour:As Shown
Material:PC
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Package Contents:
1 * HMC412 Module
Details
| OPC | PYHSG8T |
|---|---|
| Brand | Torribaly |
| Codes | 6031443195460 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 3cm |
| Length | 4cm |
| Weight | 0.0115kg |
| Colour | As Shown |
| Material | PC |
