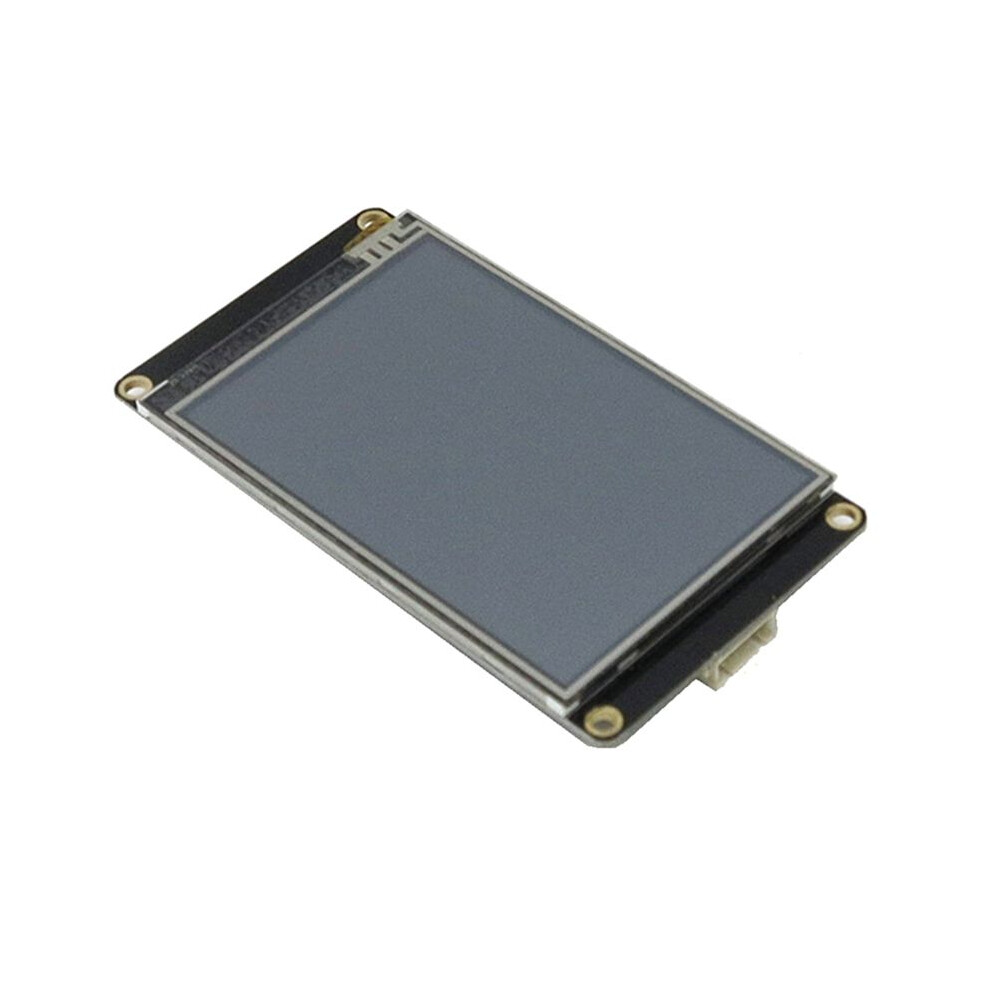

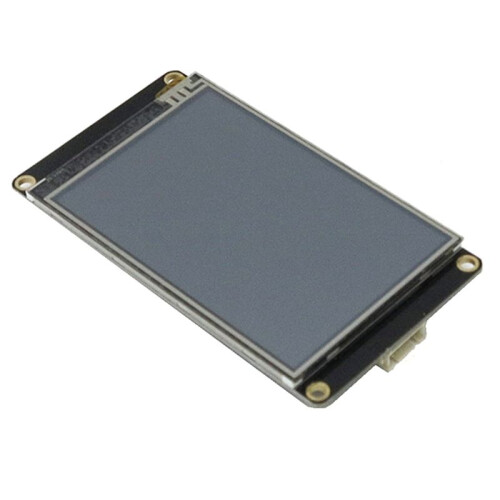

HMI LCD Touch Display NX4832K035 3.5-In UASRT TFT LCD Module

HMI LCD Touch Display NX4832K035 3.5-In UASRT TFT LCD Module Description

1. Enhanced version is more powerful. Compared to the basic display, the new display adds some new features: support for built-in RTC, support for saving data to flash memory, support for GPIO, larger flash memory capacity, and larger CPU clock. The Enhanced Series is available in 7 sizes ranging from a generic 2.4inch to 7.0inch.
2. Enhanced NX3224K028 is a powerful 2.8inch HMI TFT display with 16MB Flash data storage space, 1024 bytes EEPROM, 3584 bytes RAM. With GPIO support, you can now use to control external devices.
3. is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or device. It is the best solution to replace traditional LCD and LED digital tubes.
Color: Black
Material: plastic

Product Description

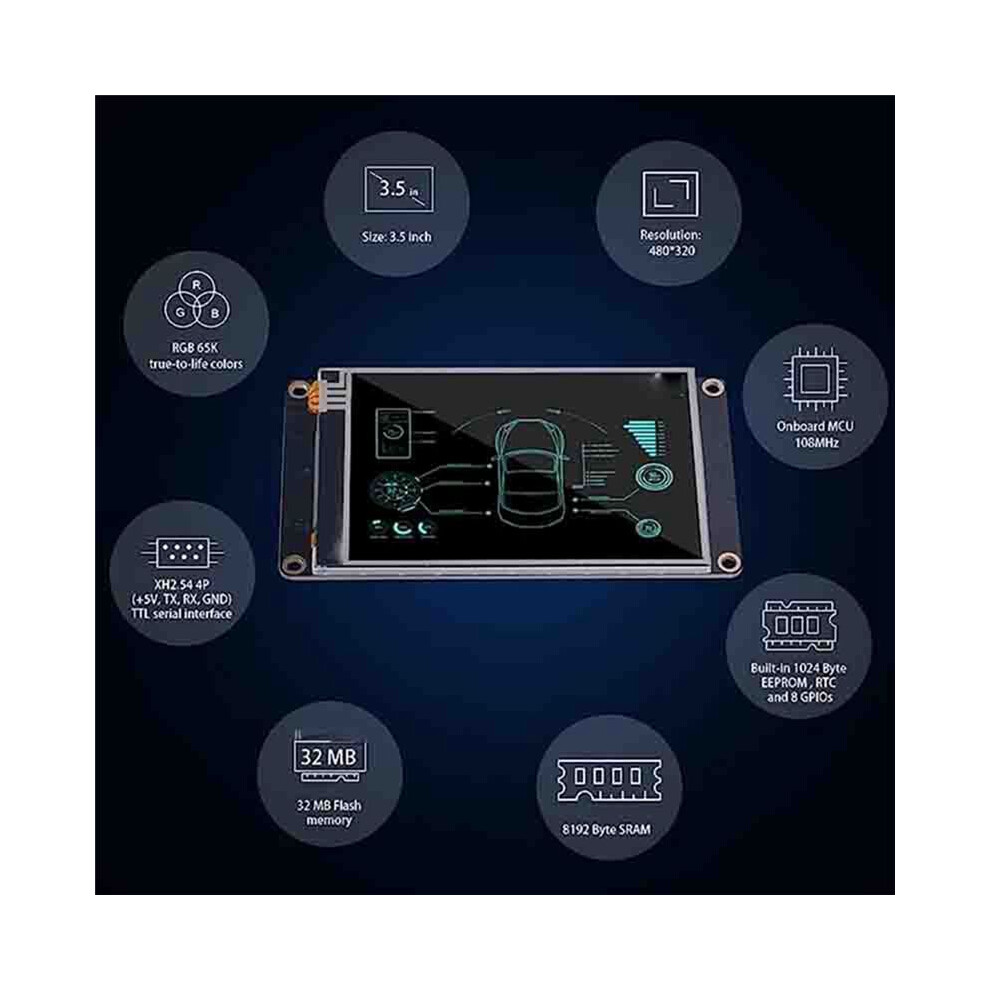

Support built-in RTC
Support GPIO
SD card interface: maximum support 32G Micro-TF/SD card (FAT32 file format)
Flash data storage space: 32MB
EEPROM: 1024 bytes
Memory: 8192 bytes
Instruction buffer: 1024 bytes
Resolution: 480x320 pixels
Adjustable brightness: 0~180 nit, the adjustment interval is 1%
Specification
Visual area: 73.44mm(L)x48.96mm(W)
Layout size: 100.5mm(L)x54.94mm(W)x5.45mm(H)
Touch type: Resistive
Backlight: LED
Backlight life (average): 30,000 hours
Recommended power supply: 5V 500mA DC

Package Contents:
1 x Display
1 supply test board
1 x 4-pin grove cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
