HMI LCD Touch Display NX4832T035 3.5-Inch Human-Machine Interface HMI

HMI LCD Touch Display NX4832T035 3.5-Inch Human-Machine Interface HMI Description

1. Display is a seamless human-machine interface (HMI) solution that provides control and visualization interfaces between humans and processes, machines, applications or devices.
2. Display is mainly used in the field of Internet of Things or consumer electronics. It is the best solution to replace traditional LCD and LED digital tubes.

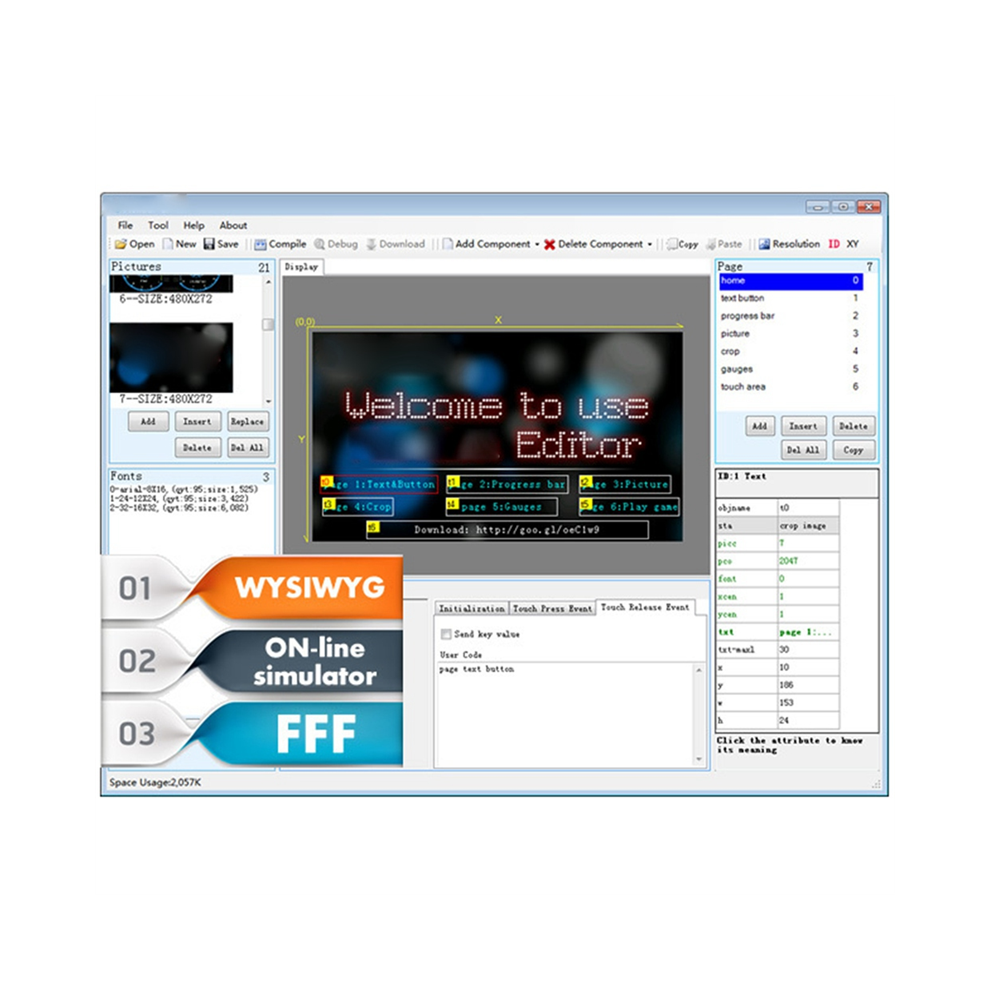

3. Through Nextion Editor software (official download), users can create and design their own Nextion display interface.
4. Working with insufficient power can easily damage the model with blurred and flickering screen You may be suffering from a power shortage.

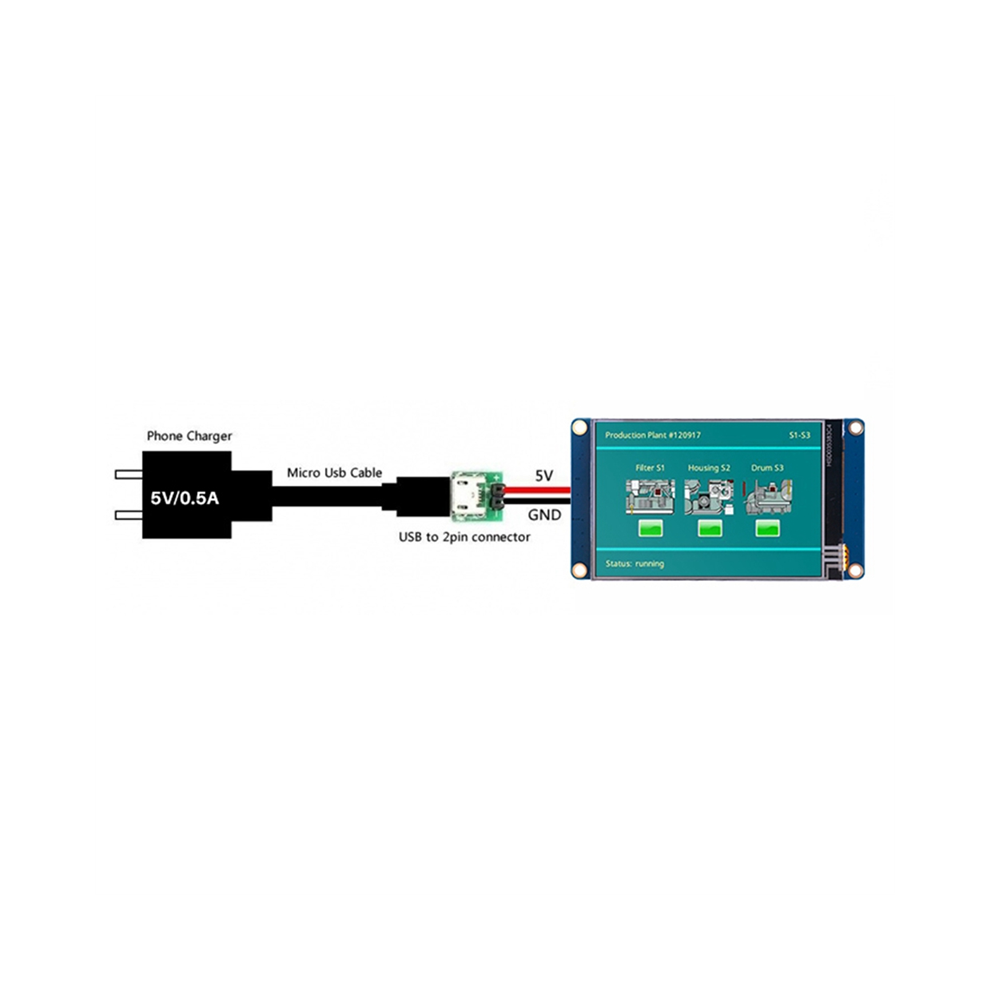

5. Power off the first time No more repeated attempts to damage models A small connector is included in the package. Please try to power the Display with a phone charger through the connector to check if the Display is working properly. A high quality usb cable is required.

Product Description
color: blue
Material: ABS
Color: 64K 65536 colors 16-bit 565, 5R-6G-5B
Resolution: 480x320 pixels can also be set to 320x480
touch resistive
Number of touches: Greater than 1 million
Backlight: LED
Backlight life: (average) Greater than 30,000 hours
Brightness: 200nit (NX4832T035_011N) 0% to 100% in 1% steps
180 nit (NX4832T035_011R) 0% to 100%, adjusted in 1% steps
Operating voltage: 4.75 5 7 V
Operating current: VCC5V, 100% brightness - 145 - mA
Sleep Mode: - 15 - mA
Recommended power supply: 5V, 500mA, DC
Working temperature: 5V, humidity 60%-20 25 70C
Storage temperature: -30 25 85 C
Working humidity: 25 10% 60% 90% RH
Serial port baud rate: standard 2400 9600 115200 bps
Output high voltage: IOH1mA 3.0 3.2 V
Output low voltage: IOL=1mA 0.1 0.2 V
Input high voltage: 2.0 3.3 5.0 V
Input low voltage: -0.7 0.0 1.3 V
Serial mode: TTL

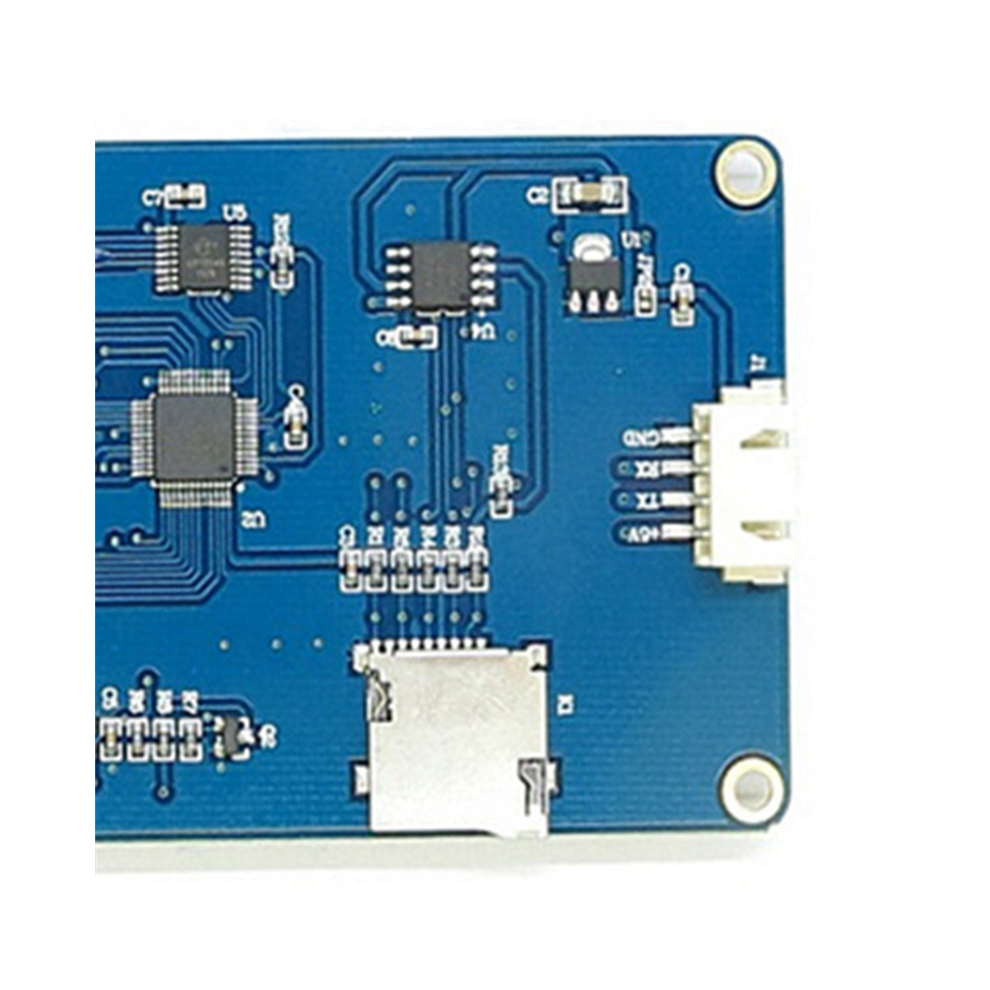

Serial port: 4Pin_2.54mm

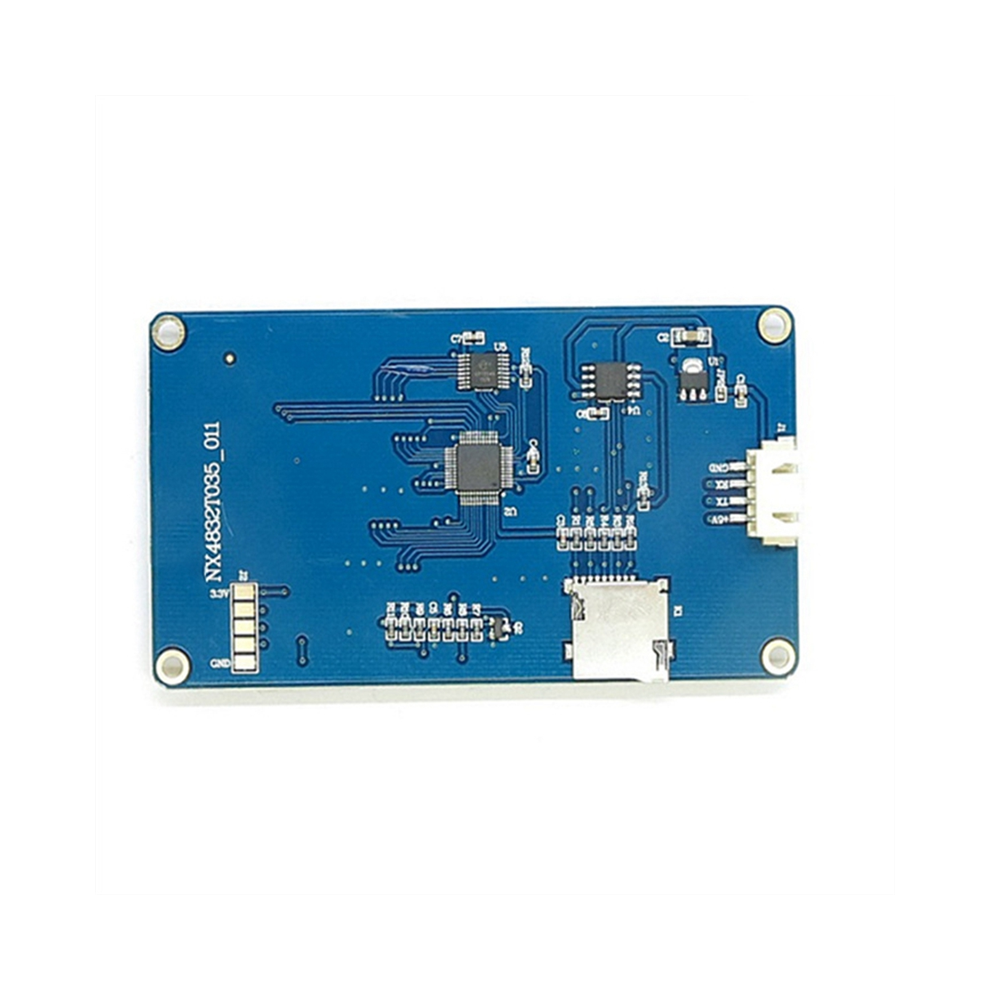

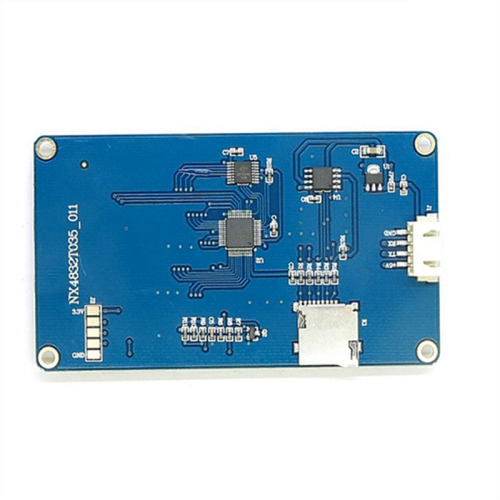

SD card slot: Yes (FAT32 format), maximum support 32G Micro-SD card
The microSD card slot is dedicated for upgrading Nextion firmware/HMI design
Flash memory: 16 MB for storing fonts and images
RAM: internal storage variable 3584 BYTE

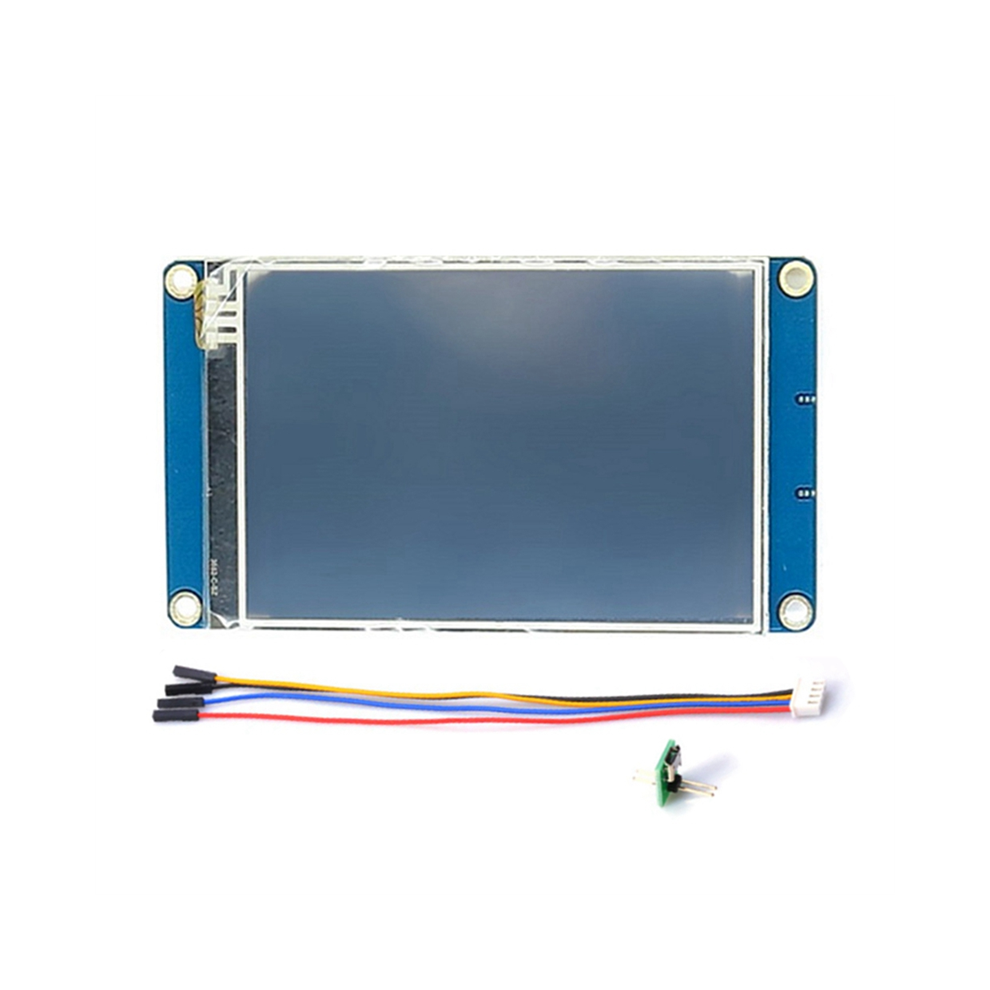

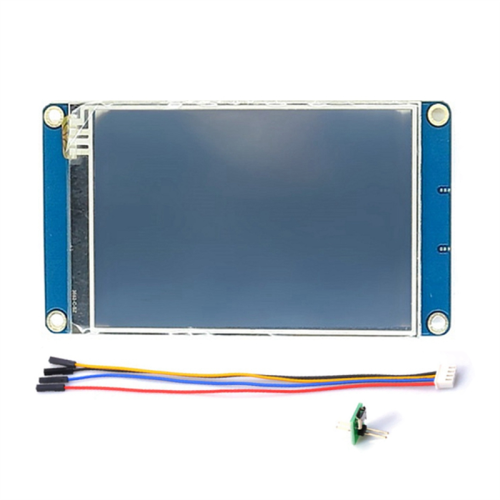

Package Contents:
1 x 3.5 inches Display
1 x power supply test board
1 x 4-pin grove cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
