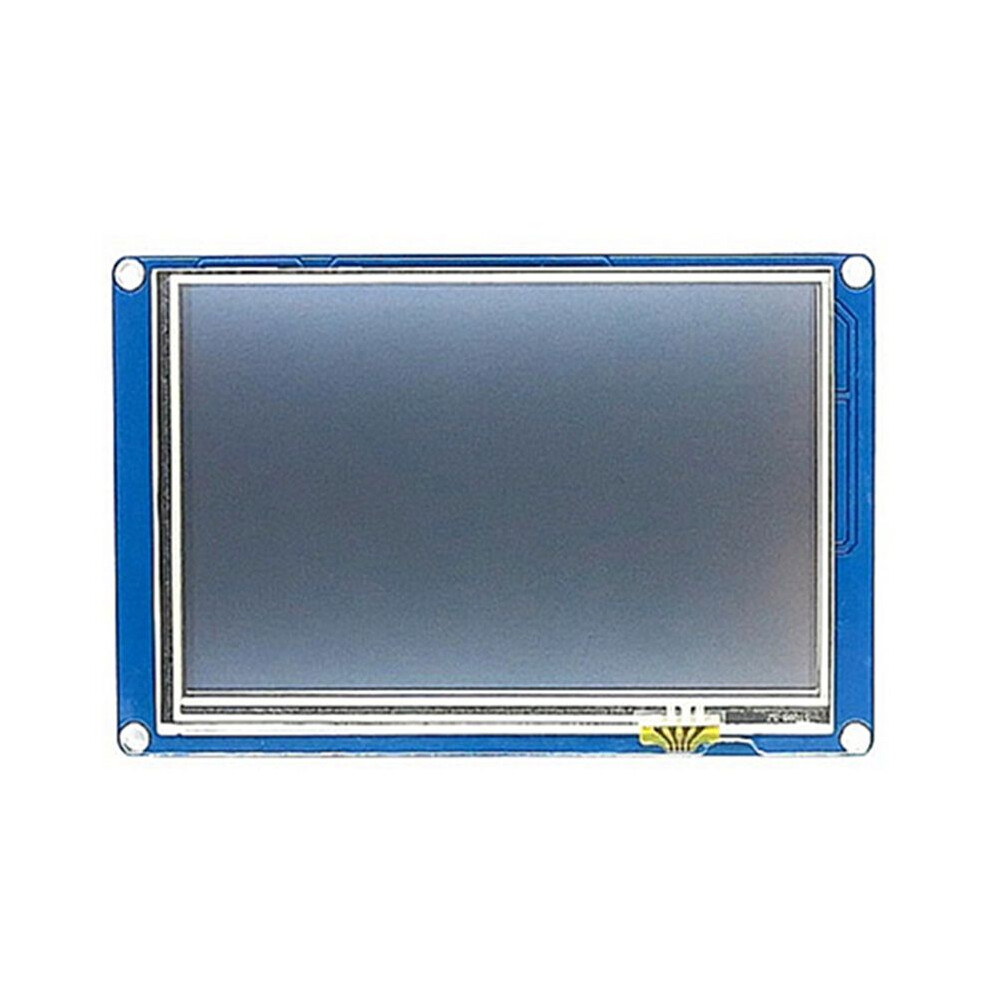

HMI LCD Touch Display NX8048T050 5-Inch Human-Machine Interface Resistive Enhanced Series

HMI LCD Touch Display NX8048T050 5-Inch Human-Machine Interface Resistive Enhanced Series Description

1. Is a seamless human-machine interface (HMI) solution that provides control and visualization interfaces between humans and processes, machines, applications or devices.
2. Is mainly used in of Internet of Things or consumer electronics. It is the best solution to replace traditional LCD and LED digital tubes.
3. Through Editor software (official download), users can create and design their own display interface.
4. Working with insufficient power can easily damage the model with blurred and flickering screen You may be suffering from a power shortage.
5. Power off the first time No more repeated attempts to damage models A small connector is included in the package. Please try to power the with a phone charger through the connector to check if the is working properly. A high quality usb cable is required.

Color:64K 65536 colors 16-bit 565, 5R-6G-5B
Effective area:(.) 118.50mm (length) x 77.55mm (width)
Visual area:(V.A.) 108mm (length) x 64.8mm (width)
Resolution:800x480 pixels can also be set to 480x800
Touch type:Resistive
Number of touches:
Backlight:LED
Backlight life (average): 30,000 hours
Brightness:250 nit (NX8048T050_011N) 0% to 100%, adjustable in 1% steps
Working temperature:5V, humidity 60%-20 25 70C
Storage temperature:-30 25 85 C
Working humidity:25 10% 60% 90% RH
Serial port baud rate:standard 2400 9600 115200 bps
Output high voltage:IOH1mA 3.0 3.2 V
Output low voltage:IOL=1mA 0.1 0.2 V
Input high voltage:2.0 3.3 5.0 V
Input low voltage:-0.7 0.0 1.3 V
Serial mode:TTL
Serial port:4Pin_2.54mm

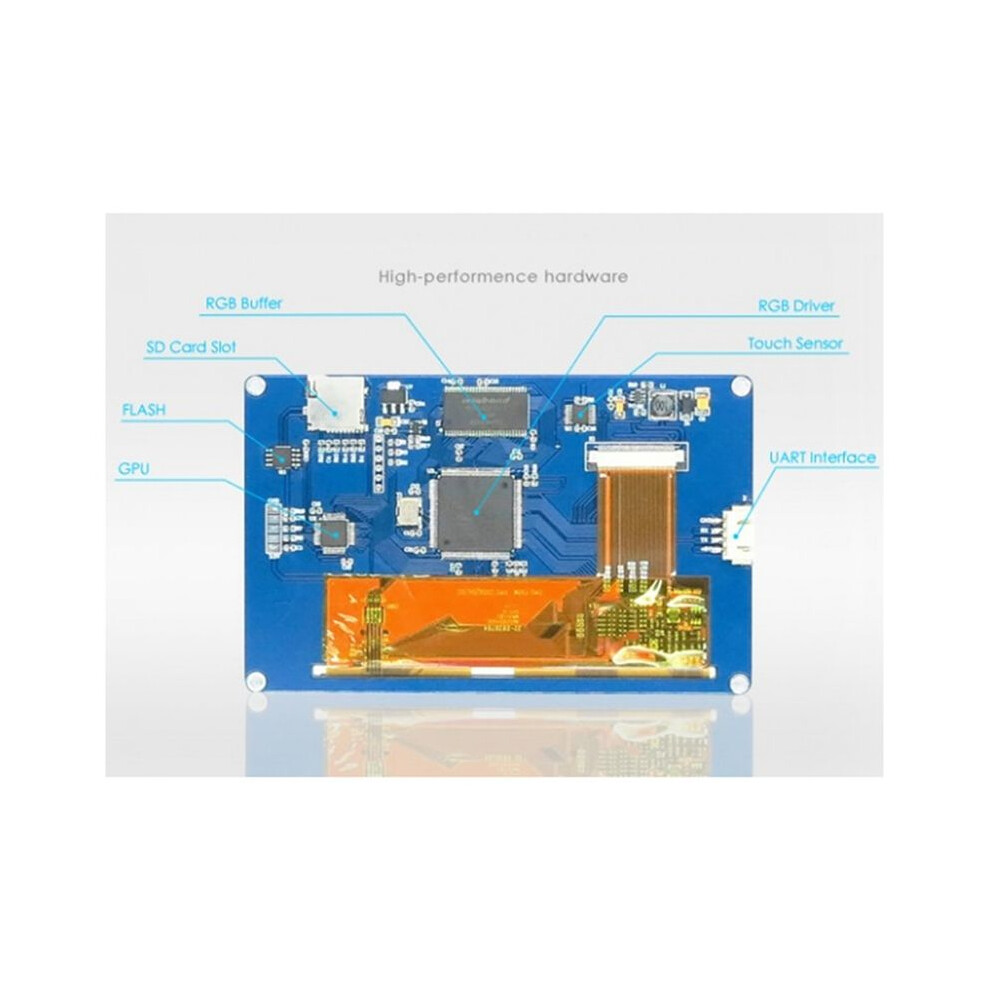

SD card slot:Yes (FAT32 format), maximum support 32G Micro-SD card
Flash memory:16 MB for storing fonts and images
RAM memory:store variables 3584 BYTE
Colour:Blue
Material:ABS
Size:133.5mm x 84mm

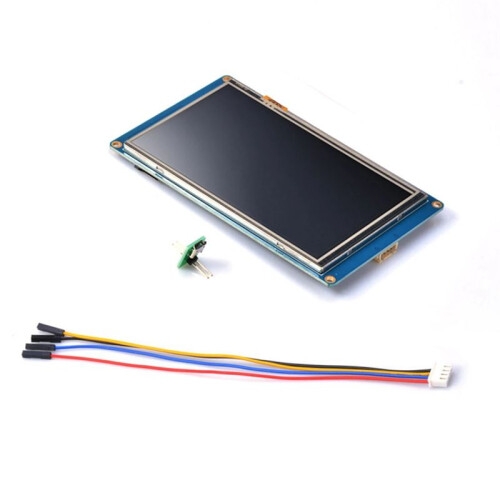

Package Contents:
1 * 5Inch Display
1 * power supply test board
1 * 4-pin grove cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
