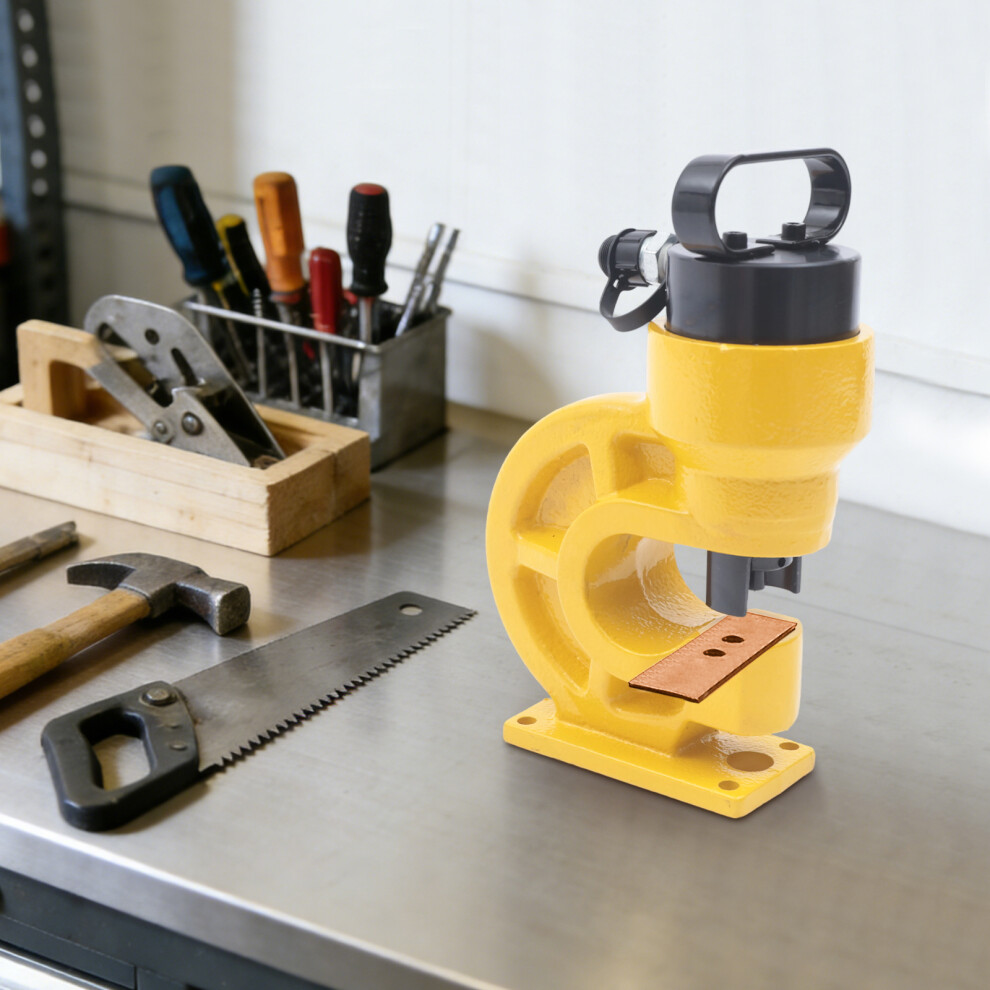

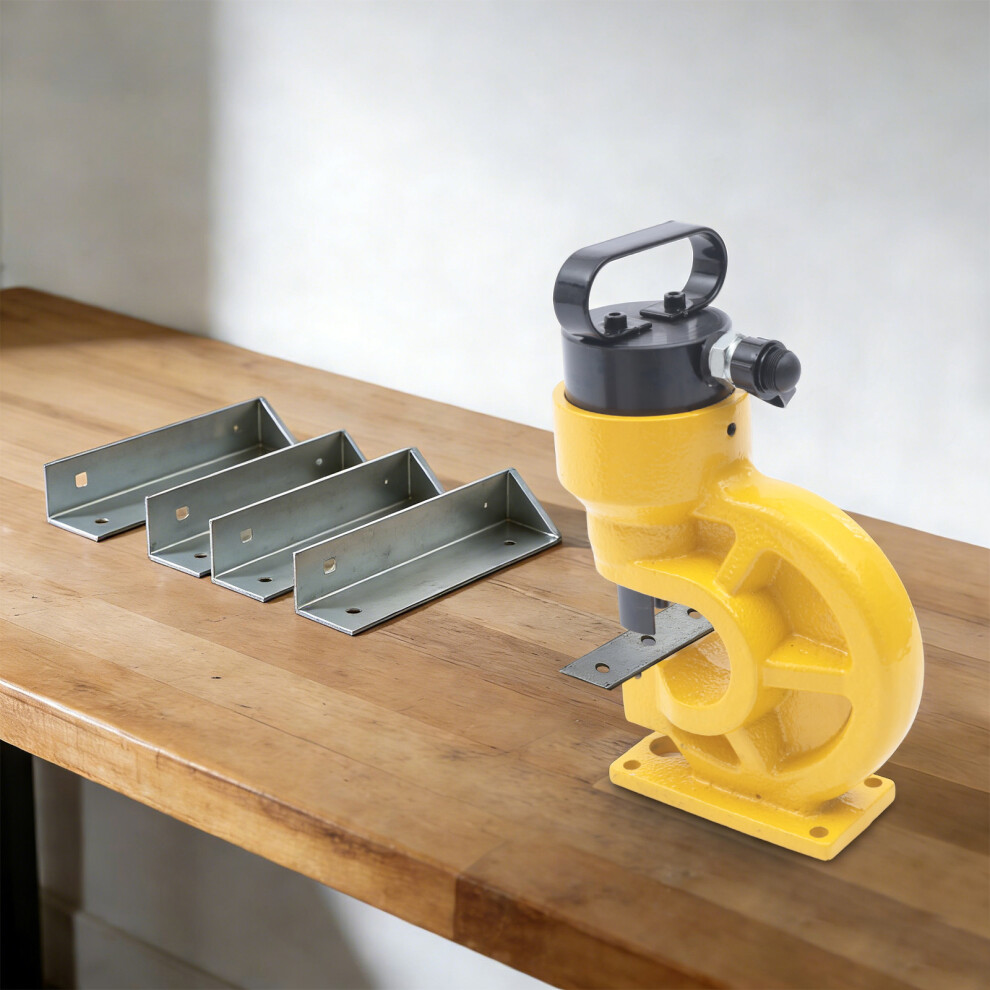

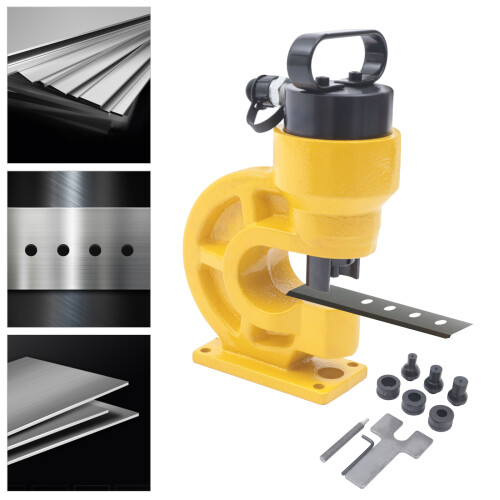

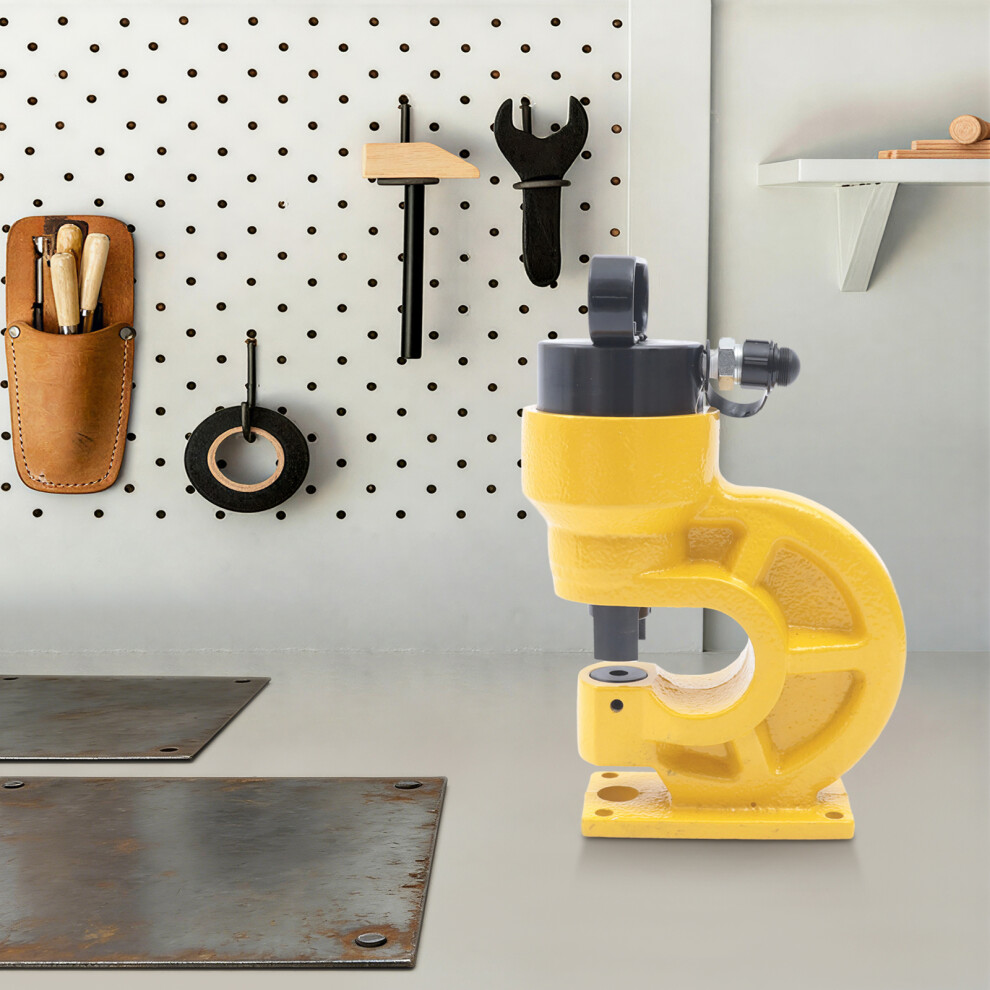

Hole Puncher Hydraulic Hole Punching Tool
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£104.50
£110.00
5% off!
FREE Delivery
1%
Earn £1.04 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 20th - Thu 22nd Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Strong Functionality: It comes with 3.74-inch throat depth and 31T punching pressure to bring efficient and convenient punching experience, handles most materials and satisfies your use demands. Single-return oil design and high-strength construction deliver solid structure and long service life.
- Versatile Compatibility: It includes 4 pairs of dies (1 pre-installed): 0.41 in, 0.54 in, 0.69 in, 0.81 in, and satisfies your demands for various punching tasks.
- Secure Structure: The upper part of the mold is locked with a locking cap and the lower part is fixed with screws, bringing stable and safe application.
- User-centric Design: The top handle offers a secure, comfortable grip for easy use. It connects easily via a male connector to the hydraulic pump's female connector, and a screw-on dust cap keeps debris out when not in use.
- Compact Desk-Friendly Design: Its base measures just 6.3 inches in length, so it sits neatly on your desk without interfering with your other work.
Hole Puncher Hydraulic Hole Punching Tool Description
Application
It is suitable for L, H types flat copper, bus bar, flat iron, etc. It can also be connected to CP-700, CP-700-2A, CP-800, DYB-63A, ZCB-700A pumps, or electric pumps (not included). It can be used in the energy industry, indoor, electric power, construction sites, outdoor, bridge construction, industrial buildings, etc.
Specifications
Color: Yellow
Material: Steel
Process: Plastic Spraying
Assembly Required: Yes
Cylinder Ton/Punching Pressure: 31T/304KN
Throat Depth: 95mm/3.74inch
Punching Dies Size: 0.41 in (ф10.5mm), 0.54 in (ф13.8mm), 0.69 in(ф17.5mm), 0.81 in(ф20.5mm)
Applicable Angle Steel: 4-5mm/0.16-0.2in Thickness
Applicable Channel Steel: 6-10# Wide Panel
Applicable Copper Bar: 3-10mm/0.12-0.39 in
Applicable Aluminum Bar: 1-10mm/ 0.04-0.39in
Applicable Iron Plate: 3-5mm/0.12-0.2 in
Product Size: 23*34.5cm/9.06*13.58in
Base Length: 16cm/ 6.3 in
Package Size: 37*26*16cm/14.57*10.24*6.3in
Gross Weight: 16.55kg/36.5 lbs
Package Included
1* Hydraulic Punching Machine
4* Punching Dies(One is Installed)
1* Padding Plate
Other Accessories for Use
Notes
1. Please note that this product is a split type and should be used with a manual hydraulic pump or an electric hydraulic pump(not included).
2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
