HORNBY Digital Train Set HL10 Large Layout - Multi Track with 2 Trains

Set Information

• R8214 Hornby Elite Controller
• Hornby Loco Flying Scotsman, w/3 Coaches
• Hornby Loco R30185

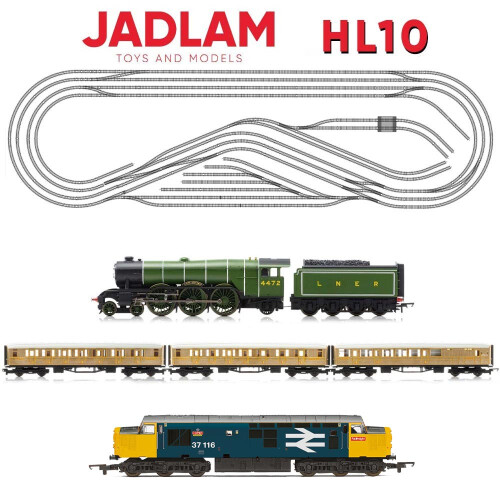

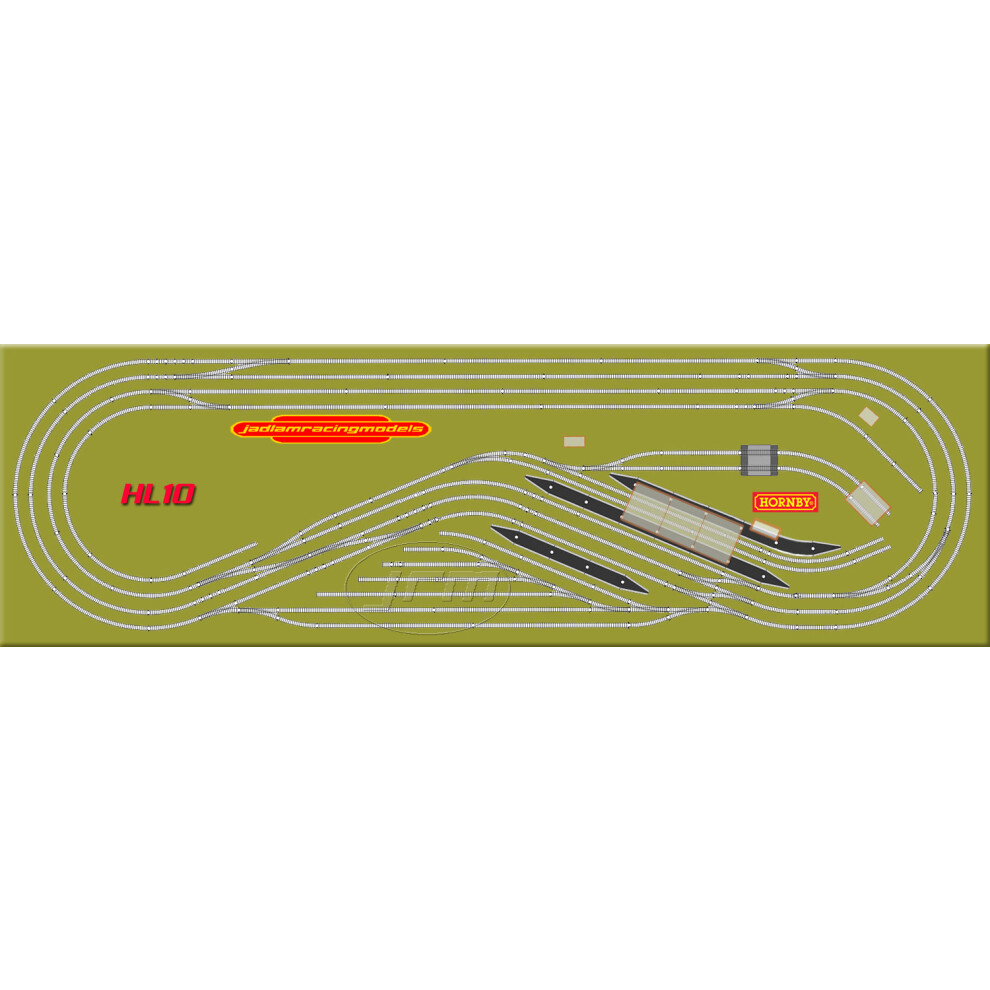

• Track to create the layout as shown, running length of 175.5ft (53.5m)
• Set footprint of 13ft 8in x 4ft (4.17m x 1.22m)

Contents
Everything you need to get rolling is included in our package - Track, Controller, Power Supply, Loco, Clips, Pins & even Buffers. Please note that Buildings, Platforms, Underlay & Signals are not included unless otherwise stated. When included, the TTS Sound Module will require fitting.

Why Buy a Jadlam Racing HL Set?

• Brand New Hornby Components with Standard Manufacturers Warranty
• Great value with much more exciting Track layout than a typical boxed set.
• Option to personalise layouts with different Locos, electric points, buildings etc (Contact Us)
• Supplied in discreet brown carton with official Hornby instructions and Track layout.
• Peace of mind. We are one of the leading Hornby Retailers in the UK.

______________________________________________

ENHANCE YOUR LAYOUT SECTION
Upgrade Ideas

• Upgrade to the revolutionary HM7000 control system using our pre-made bundles.
• Add Skaledale Buildings, Signals, Coaches & Rolling Stock.

Contact Us if you have any questions.

YOUTUBE VIDEO
On our YouTube channel, we have a video that shows the HL10 being used at home with 5 Locos, you can hear the Sound from the Digital TTS Locos - The set is controlled with R8214 Elite Controller plus Railmaster R8144. We have also added Signals, Buildings, Figures & Rolling stock to add to the realism - all of these items are available to purchase separately from us.

BENEFITS

Precision Control:
- Full control and programming via the free-to-download app. Available now on iOS and Android.
- Configuration Variables (CVs) can be changed without removing the model from the layout
- Precise control when shunting
- Manual braking option
- Driving wheel slip sound simulation on steam locomotives
- Motor control algorithm adjustments after auto-calibration

Speed:
- Easy to increase and decrease speed from start through to maximum acceleration
- Load compensation
- Creeping mode to allow precise coupling and uncoupling
- Shunting capability

Realistic sounds:
- Over 30 downloadable free sounds per profile
- Profiles available for diesel, electric, and steam locomotives
- Sound decoders fitted with Triplex sound capability allowing three sounds to be played at once e.g., horns, whistles, brakes or coal shovelling, wheel slip, injectors or any combination of three
- Ability to set the volume level for each sound individually or all at the same time
- Non-sound decoders also available

Lighting functions:
- Decoders can be used to control additional lighting functions, if fitted to the locomotive

Compatibility:
- Fully compatible with existing Hornby DCC controllers
- Backwards compatible - select and fit the right decoder to experience the sights, sounds, control and speeds using the HM7000 system
- Full NMRA function compatibility


UPGRADE PATHS

No matter your current set up, Hornby has made upgrading to the new HM7000 Control System easy. Whether you are simply a beginner with a train set or an advanced model railway fan with conventional controls, there are many ways to upgrade to a revolutionary new way to control and operate your model railway.

HM6000 > HM7000:

To convert an HM6000 layout to HM7000 control there are just six simple steps that need to be taken:
- Step 1: Download the free HM|DCC app onto a suitable smart 'phone or tablet.
- Step 2: Choose a locomotive to operate on DCC and install the appropriate decoder.
- Step 3: Link the locomotive to the smart device which has the HM|DC app already installed.
- Step 4: Fit DCC clips to all points and remove all non DCC fitted locomotives from the layout.
- Step 5: Using the HM|DC app, alter the PWM frequency to 'Highest' and slide acceleration control should be moved to full power.
- Step 6: Switch to the HM|DCC app and the HM7000 fitted locomotive can now be operated.

HM|DC > HM7000:

As with other connections, the HM7000 app will need to be downloaded onto a preferred smart device. The chosen locomotive or locomotives will each require the fitting of a suitable Hornby Bluetooth enabled decoder. Power to the track can be via a suitable Hornby 1A, 1.2A or 4A transformer.

> To link the transformer to the Hornby Power Track it is necessary to connect an HM7020 Power Supply Adapter Harness between the transformer lead and the track. Once power is connected it is then possible to link the Hornby Bluetooth enabled locomotives to the smart device and operations can begin.

DCC > HM7000:

Already using DCC? Simply download the free HM|DCC app on a selected smart device.

The locomotive(s) must be fitted with a suitable Hornby Bluetooth enabled decoder and paired with the smart device. Once this process is completed those models can now be controlled using the smart device.

All other locomotives can be controlled using the existing DCC unit only.

Conventional DCC Controller > HM7000:

It is possible for all locomotives fitted with either a Hornby HM7000 or conventional decoders to be operated using the HM|DCC Bluetooth system via a smart device. To do this, an HM7040 Legacy Dongle must be plugged into the RJ12 socket of an existing DCC Base Station, such as can be found on the Hornby 'Elite' or 'Select'.

Having connected the Legacy Dongle, ALL locomotives can be controlled either by a smart device or the Base Station, however only those fitted with an HM7000 type decoder can have their CV settings changed while remaining on the layout. All other models must have their CVs changed in the conventional way.

Please Note:

• You must have a compatible phone/tablet/device in order to install and use the free app, with bluetooth functionality vital.
