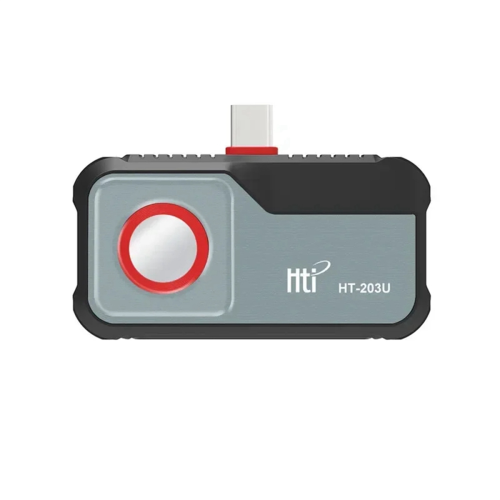

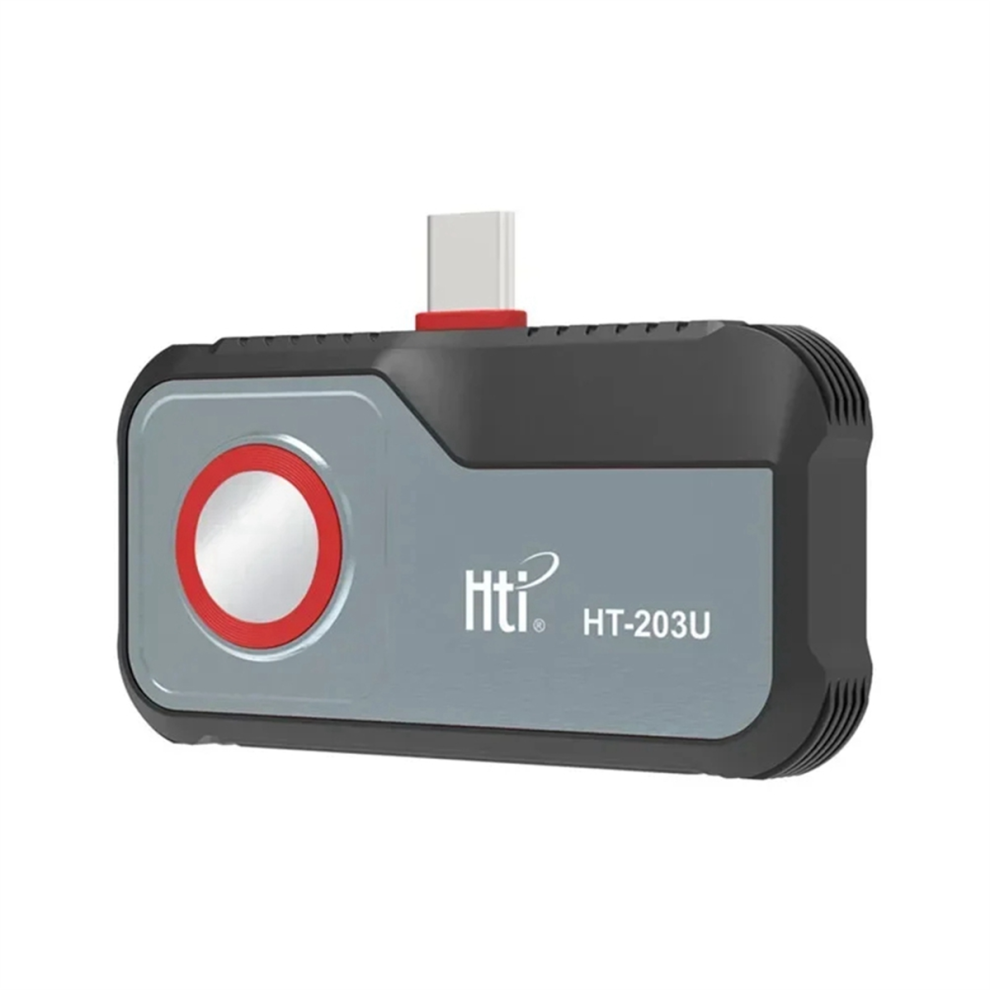

HT-203U Pixels Thermal Camera -20-550 for Electrical Repair

HT-203U Pixels Thermal Camera -20-550 for Electrical Repair Description

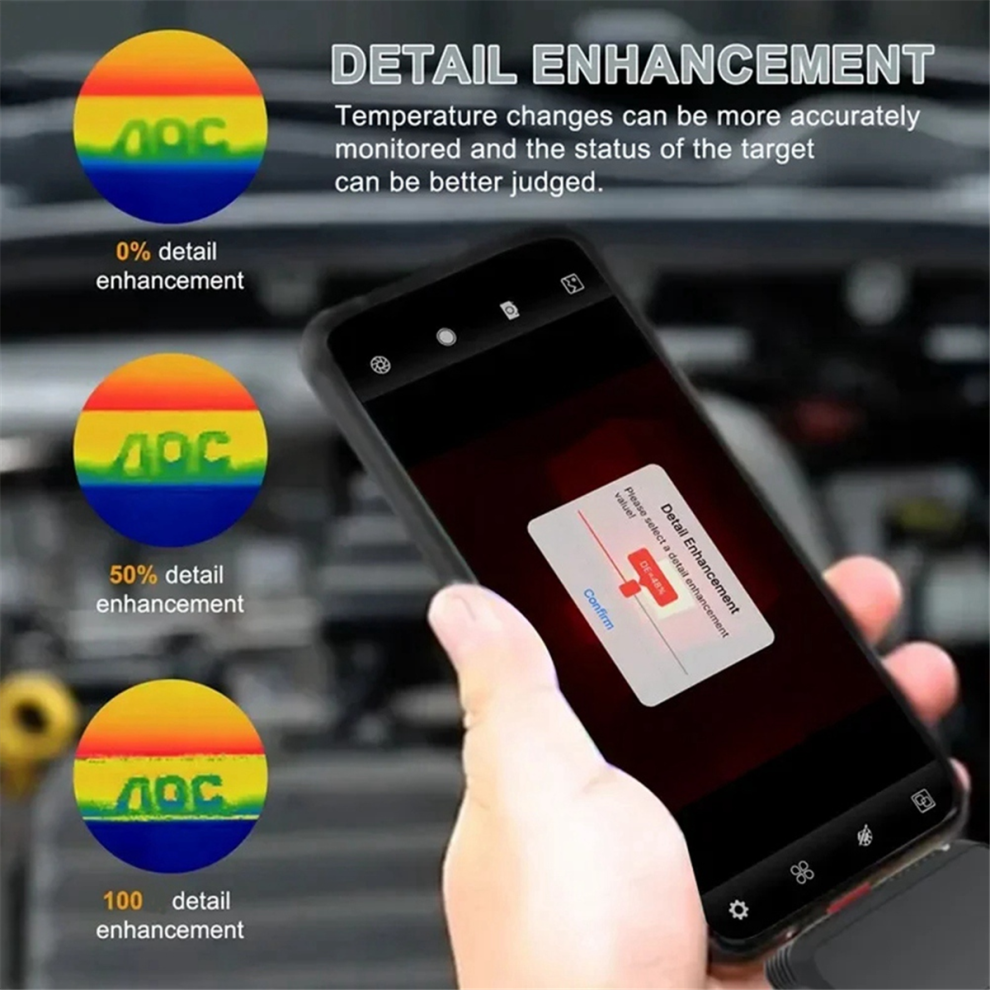

Temperature changes can be more accuratelymonitored and the status of the targetcan be better judged.
-color mode: White hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, , rain, , green blue, dark blue
Temperature measurement mode: point, line, area temperature measurement
Temperature measurement range: -20-120 and 120-550
Temperature measurement distance: 0.-3meter

Model:HT-203U
Detector type:Amorphous silicon uncooled infrared plane
Resolution:256x192
Pixel size:12μm
length:3.5mm
Field of view:50.0(H)x37.2(V)
Spatial resolution:3.43mrad
Working band:8 to 14μm
NETD:Less than 40mk@25C,@F/1.2
Frame rate:Less than 25HZ
Focus mode:Focus-free
Display
Brightness adjustment:Support
Contrast adjustment:Support
Temperature measurement accuracy:2 or 2% of reading
Photo/video recording:Support
Image/video format:JPG/MP4
Language:Chinese, English, Russian
Power consumption of the whole machine:Less than 0.36W
External interface:USB Type-C, DC5V power supply
Operating temperature:-20 to +50
Storage temperature:-30 to +70
Protection level:IP66

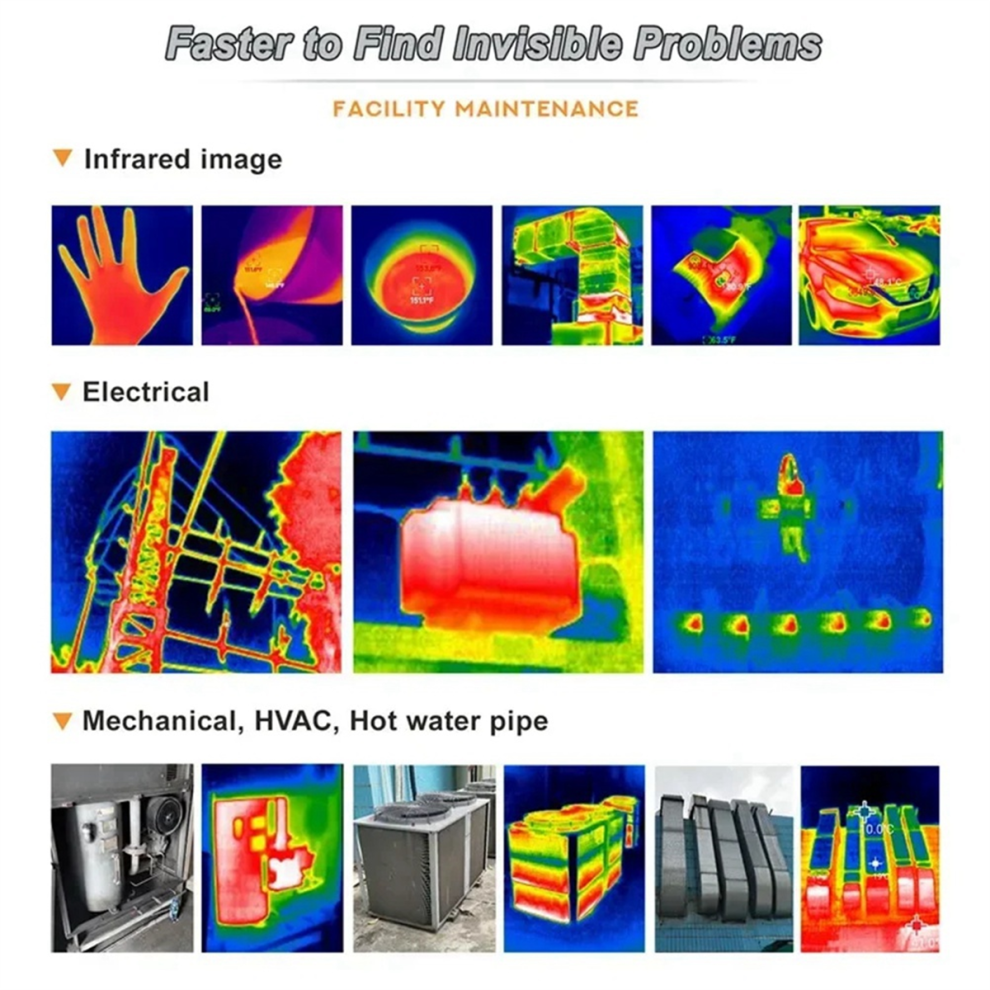

Applicable objects:Industrial object thermometer
Tips:The product may be updated constantly, The Actual Product May Have Slight Differences Or Color Differences the color and appearance may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance.
Colour:As Shown
Material:Plastic

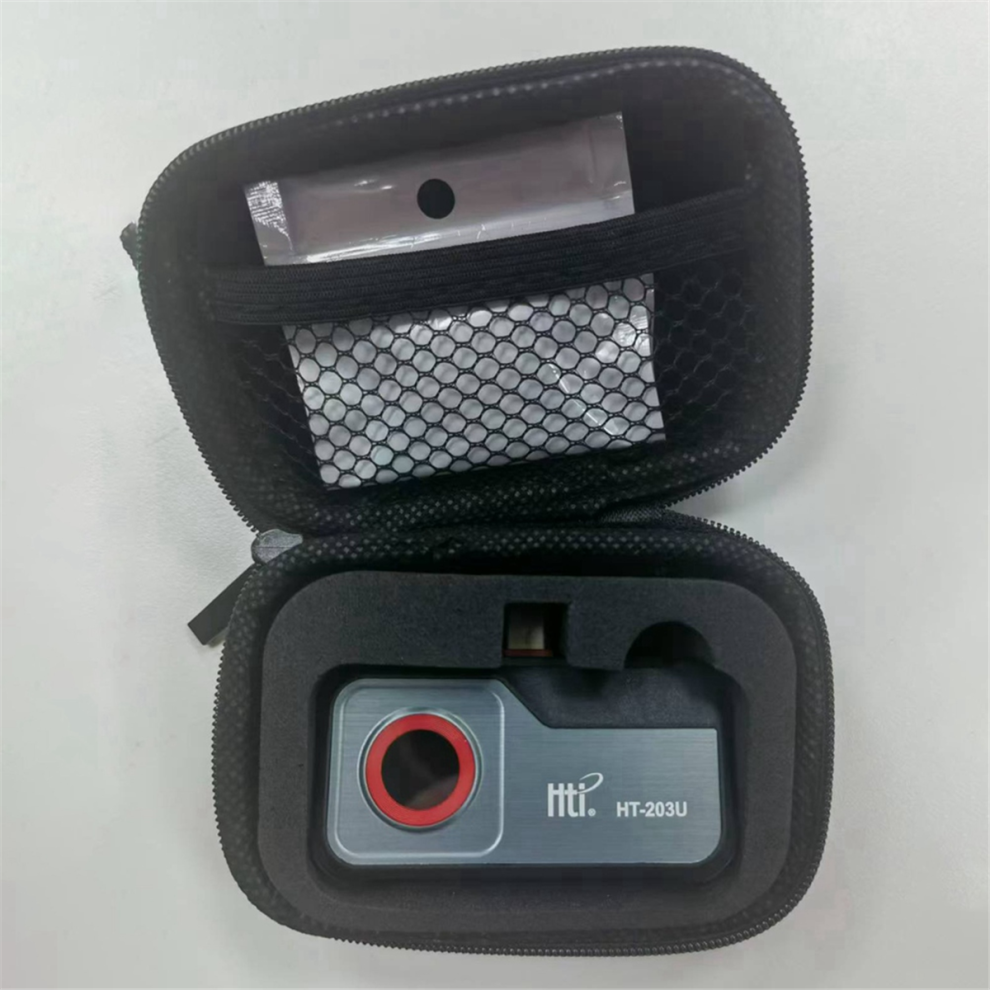

Package Contents:
1 * Pixels Thermal Camera

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
