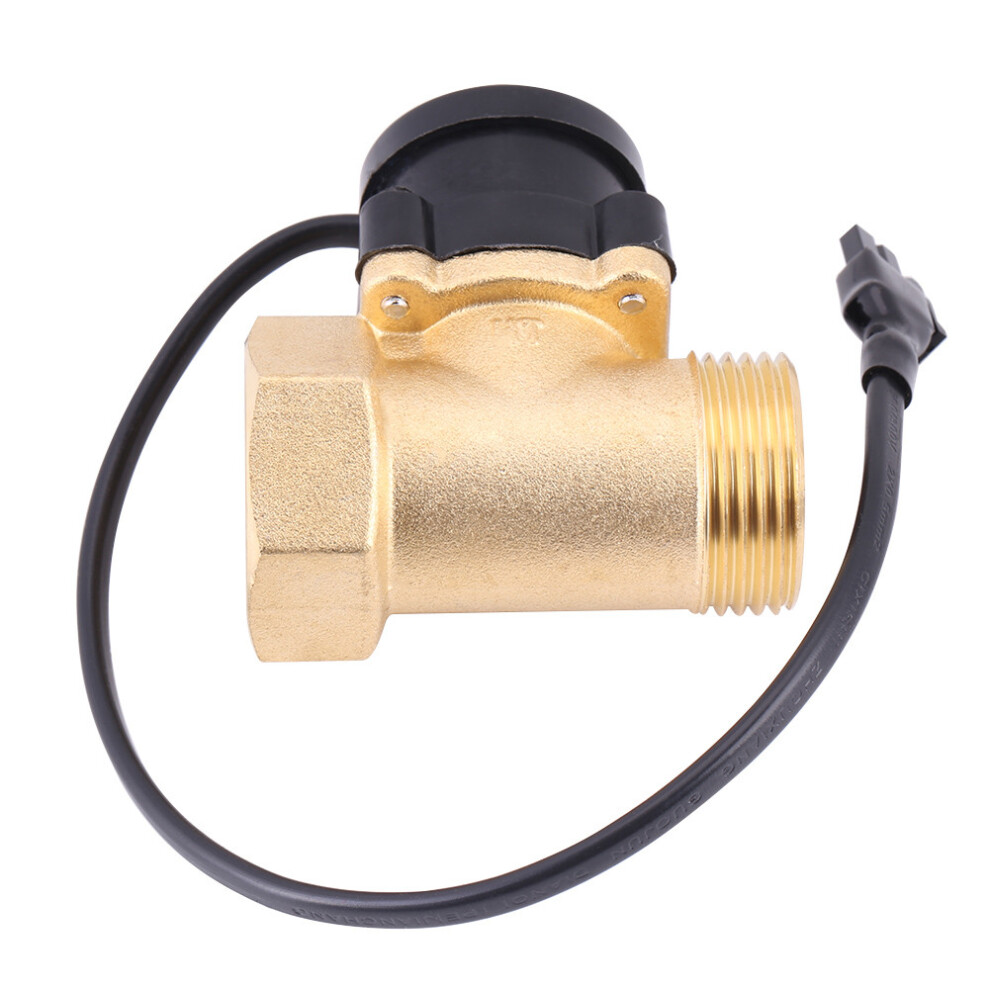

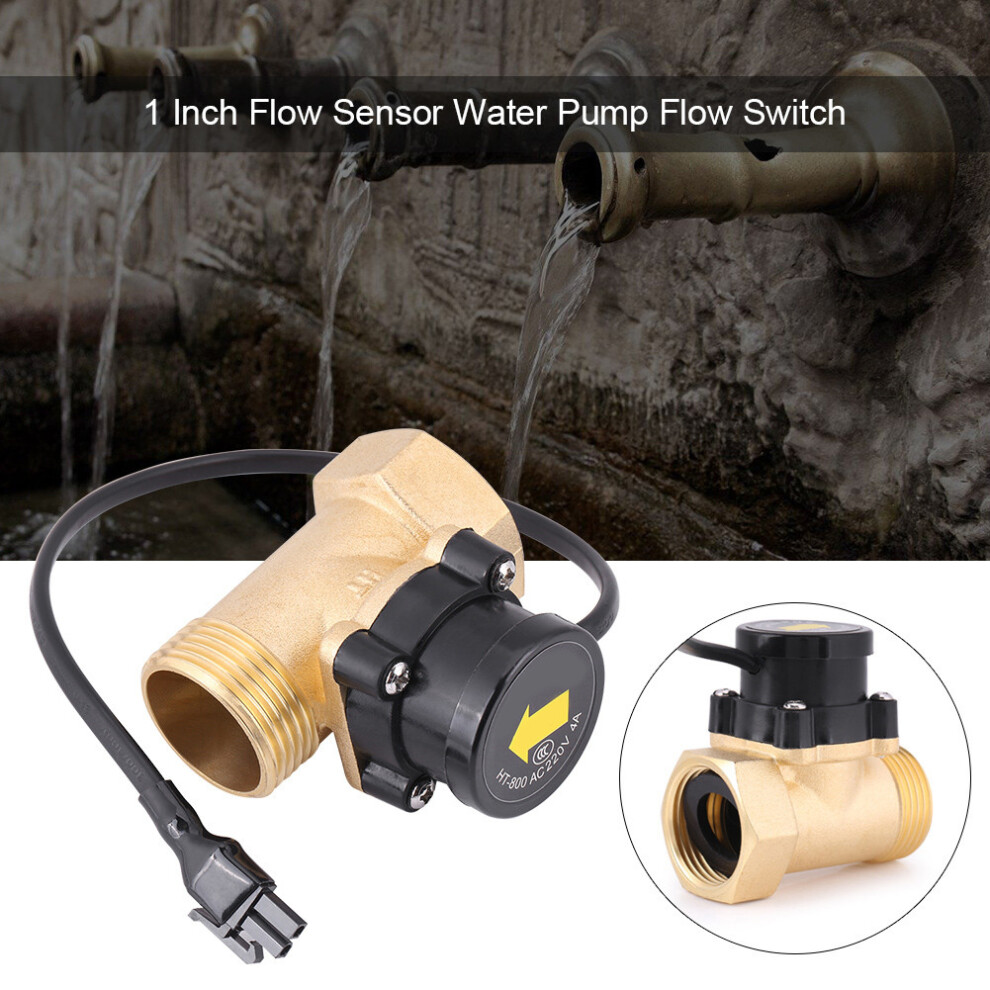

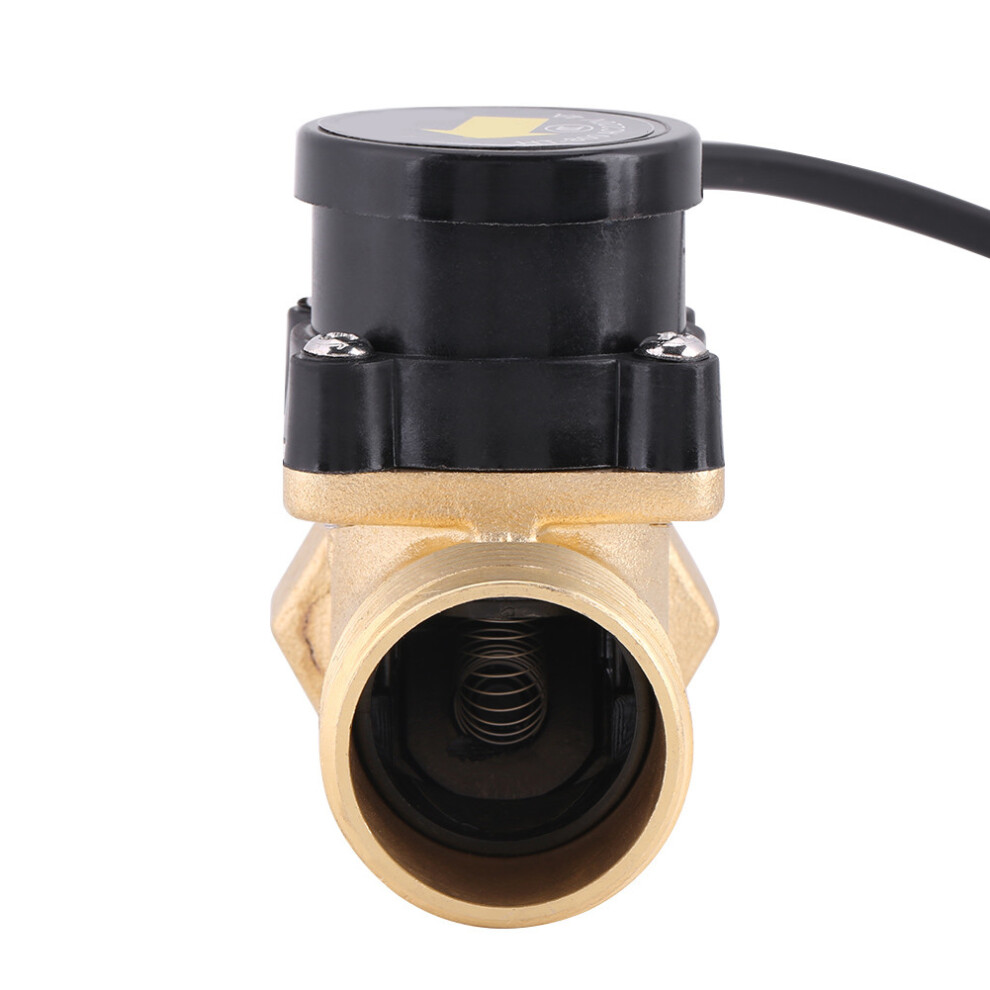

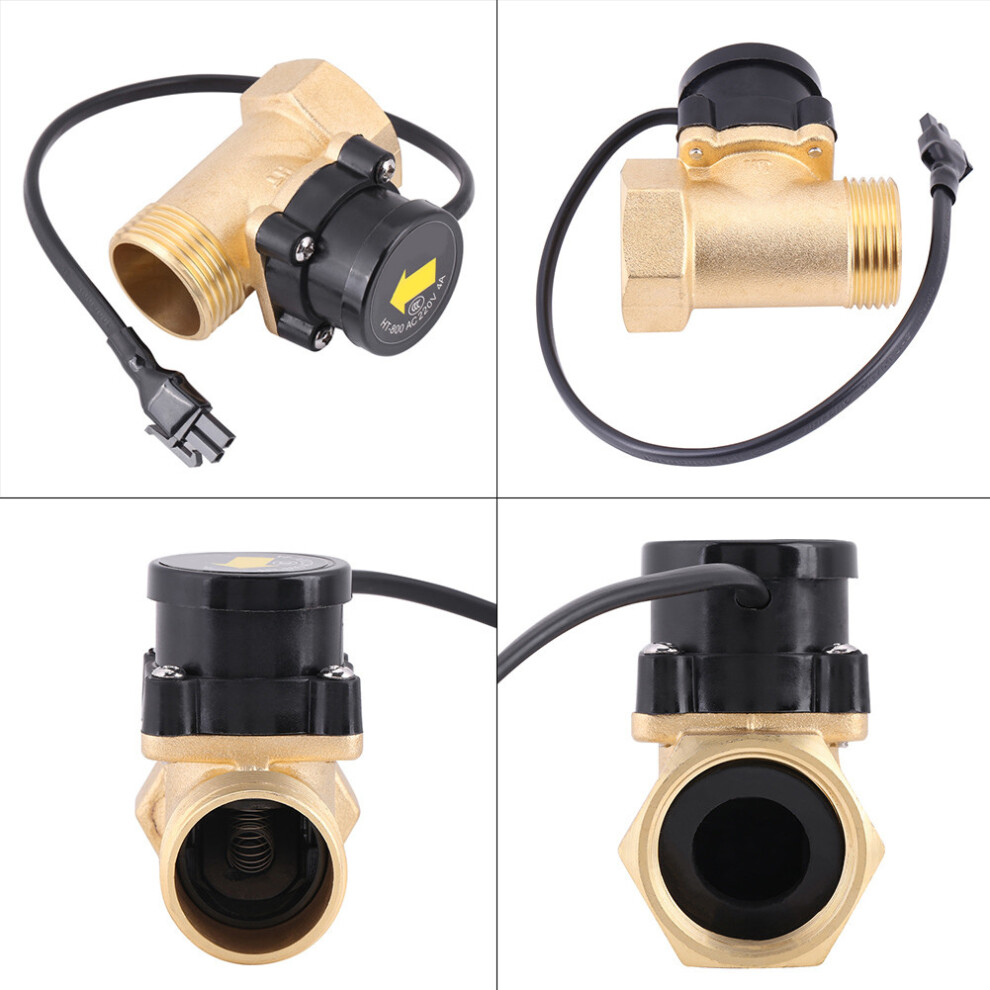

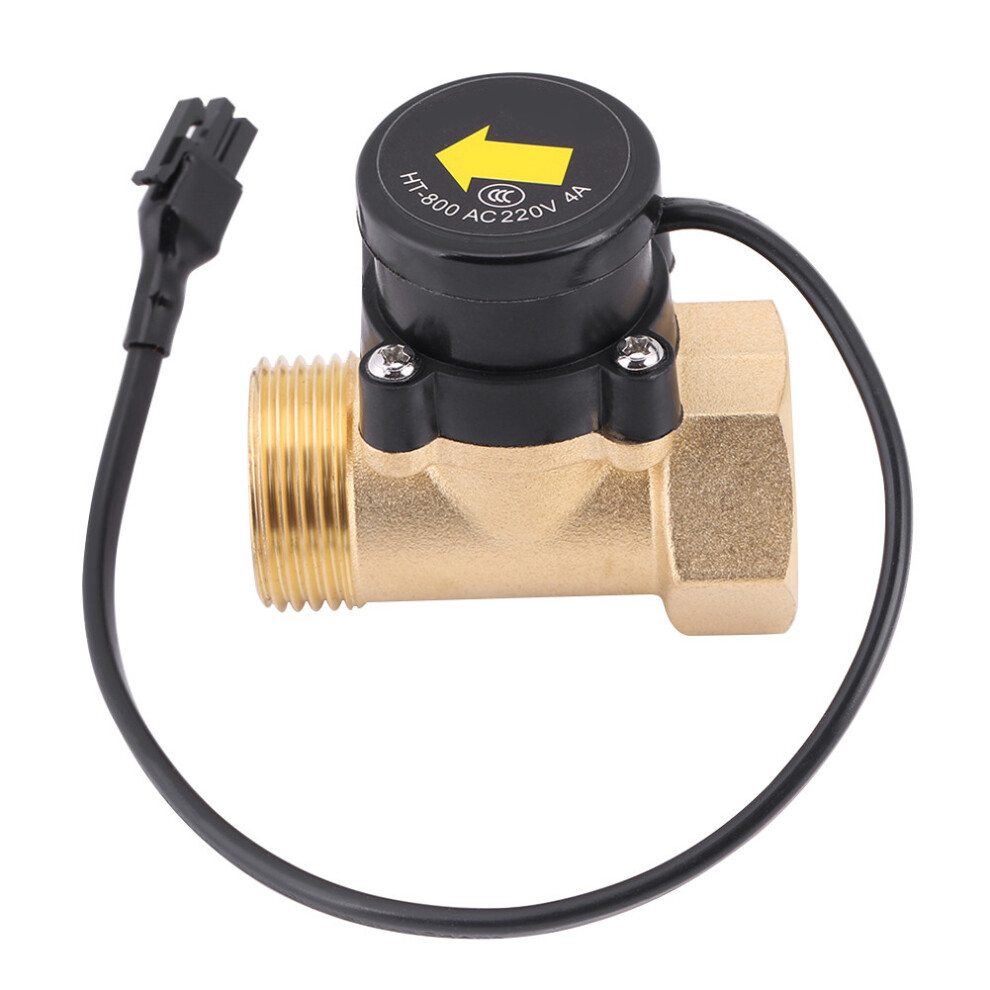

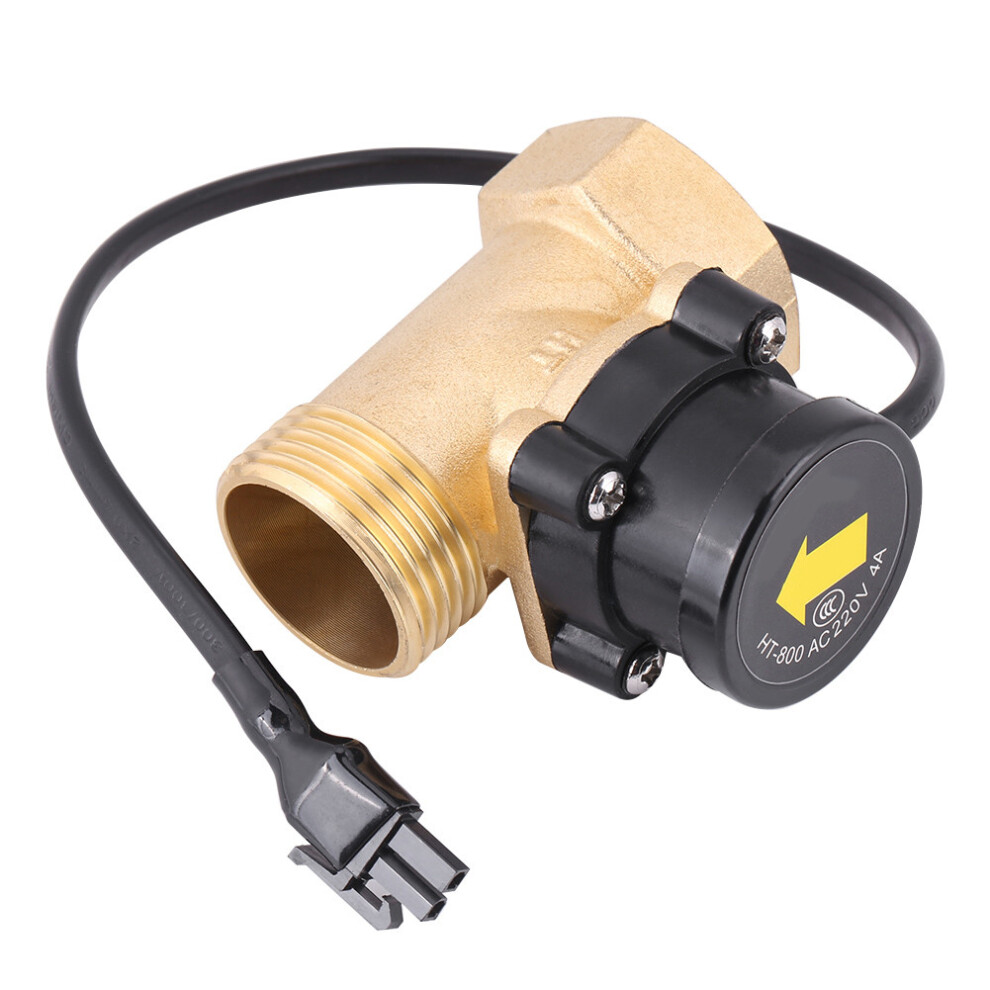

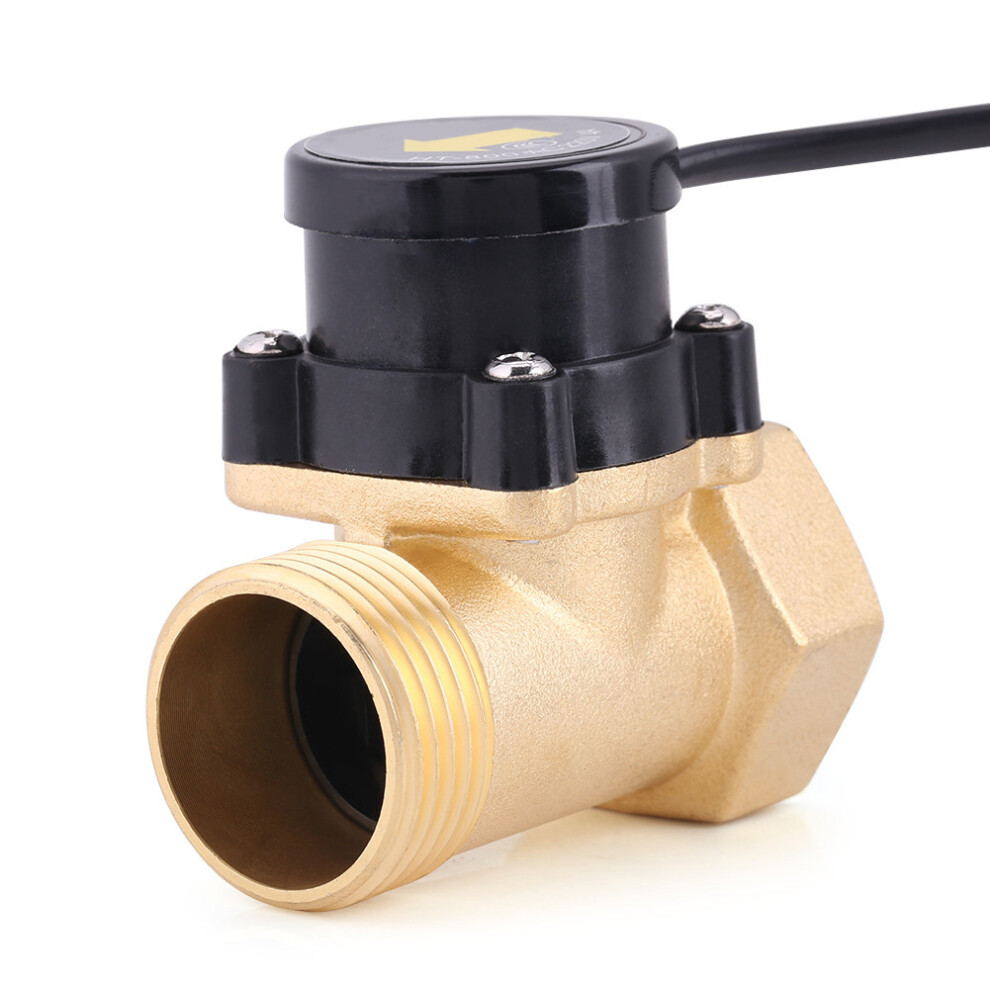

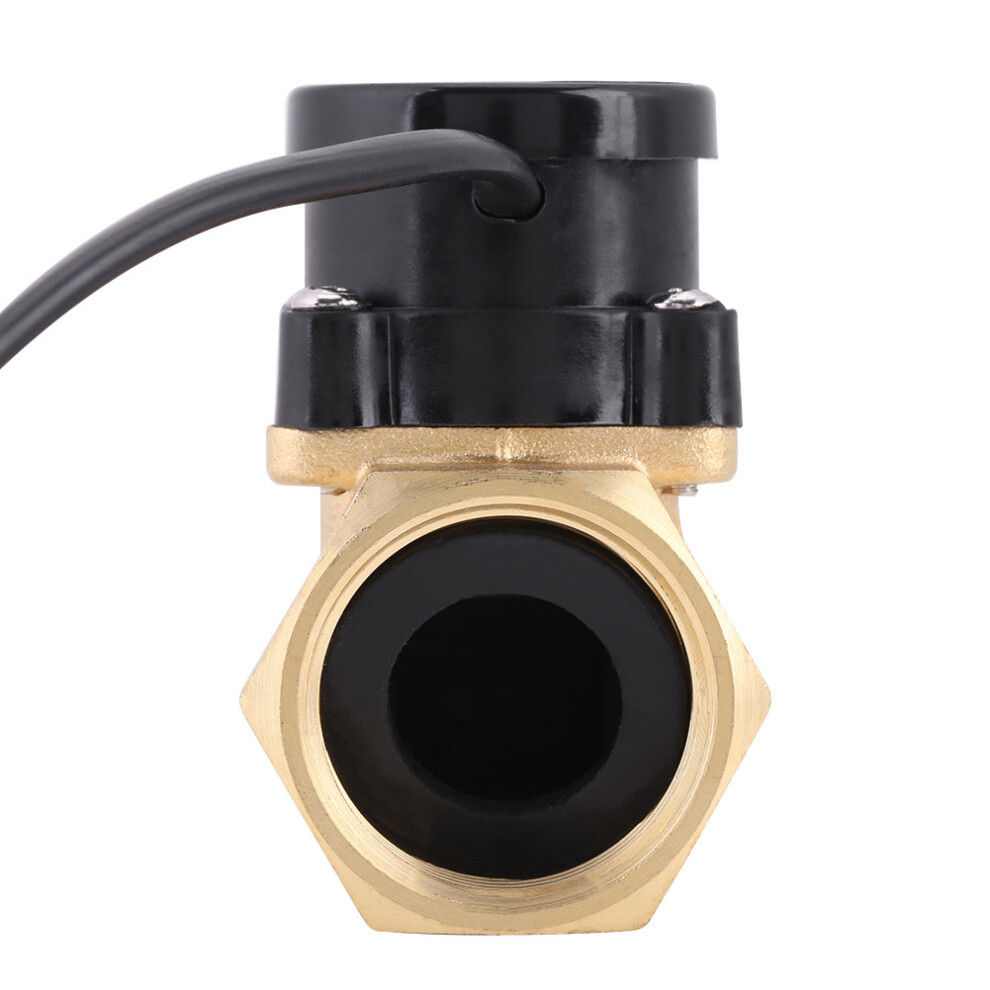

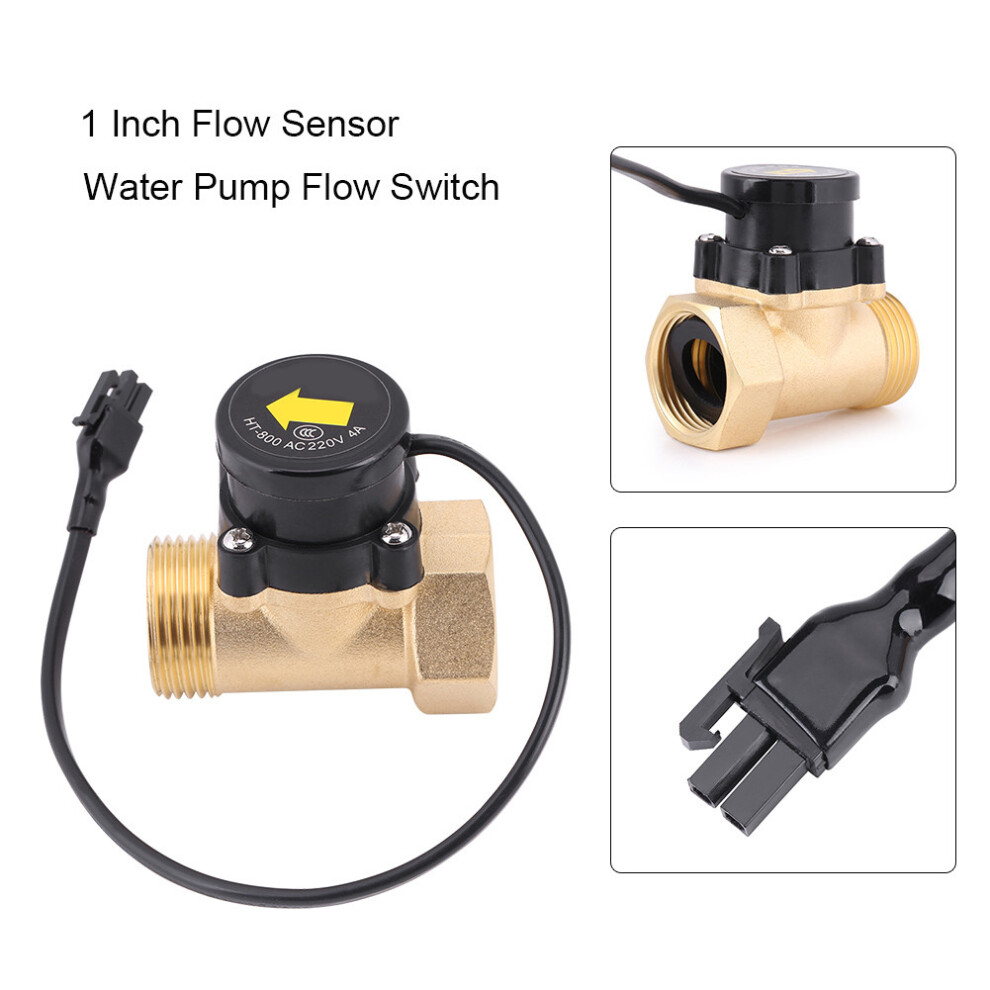

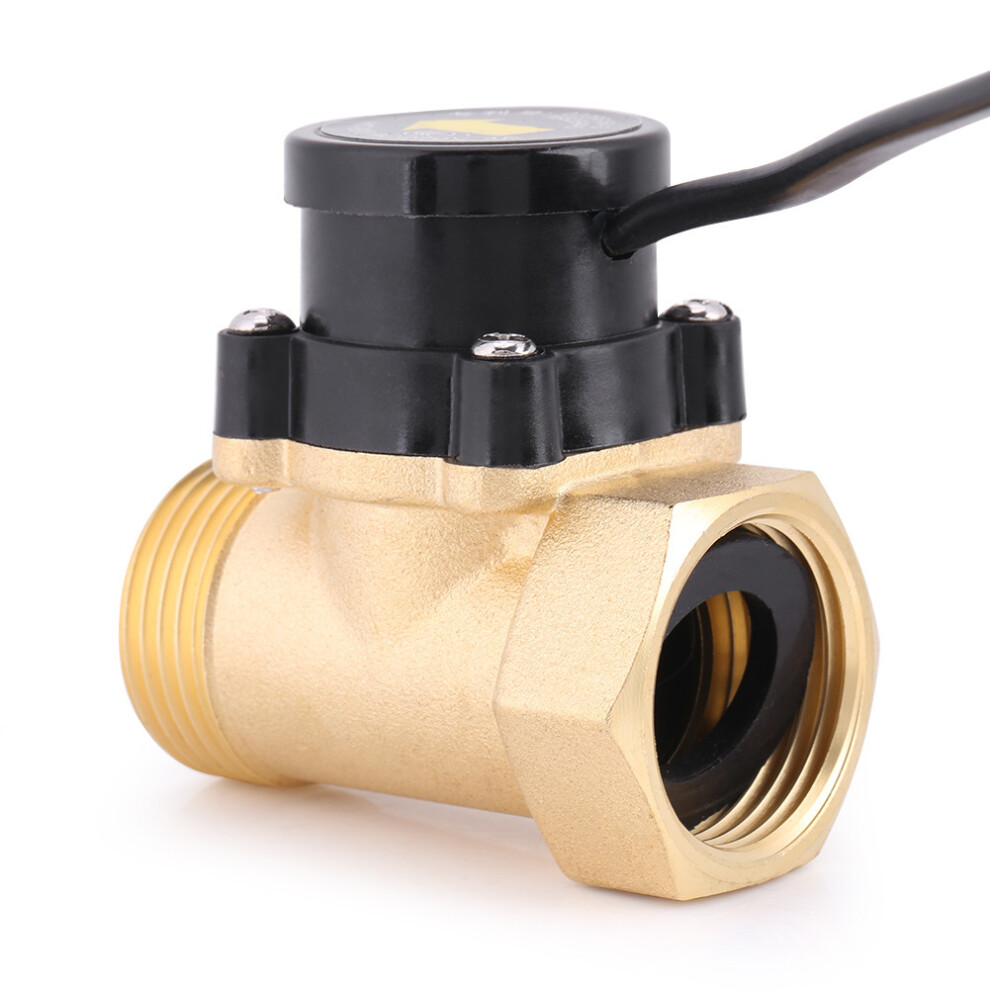

HT-800 G1 220V Water Pump Flow Sensor Switch, 4A, G1 Thread

HT-800 G1 220V Water Pump Flow Sensor Switch, 4A, G1 Thread Description

HT-800 G1 Thread 220V Water Pump Flow Sensor Automatic Control Switch

Features:

This water flow switch uses water flow magnetic control device and on-off control sensing elements, so as to switch on or off pump.


Stable performance; induction chamber, magnetic control chamber and electronic components are designed separately in order to avoid switch failure caused by iron matter in pipeline is magnetic adsorbed.


High temperature resistant materials allows the product to be used for both hot(up to 70) and cold water.


Low water pressure startup; reset spring is made of stainless steel; it can start up pump when water pressure is >0.03KG.


The electronic components as control device will not cause spark during work which is quite safe.


This product is widely used for low pressure area family, especially important for low water pressure ignition start-up of water heater, automatic water cycle of solar water heater.


Specifications:
Model: HT-800
Working Voltage: 220V
Working Current: 1.6A
Max. Current: 4A
Connection Thread: G1
Max. Power: 200W
Lifespan: >100,000 times
Suitable Liquid: Water or other liquid of similar physical and chemical property
Liquid Pressure: <0.6Mpa
Liquid Temperature: <70

Package Includes:
1 x Flow Switch
