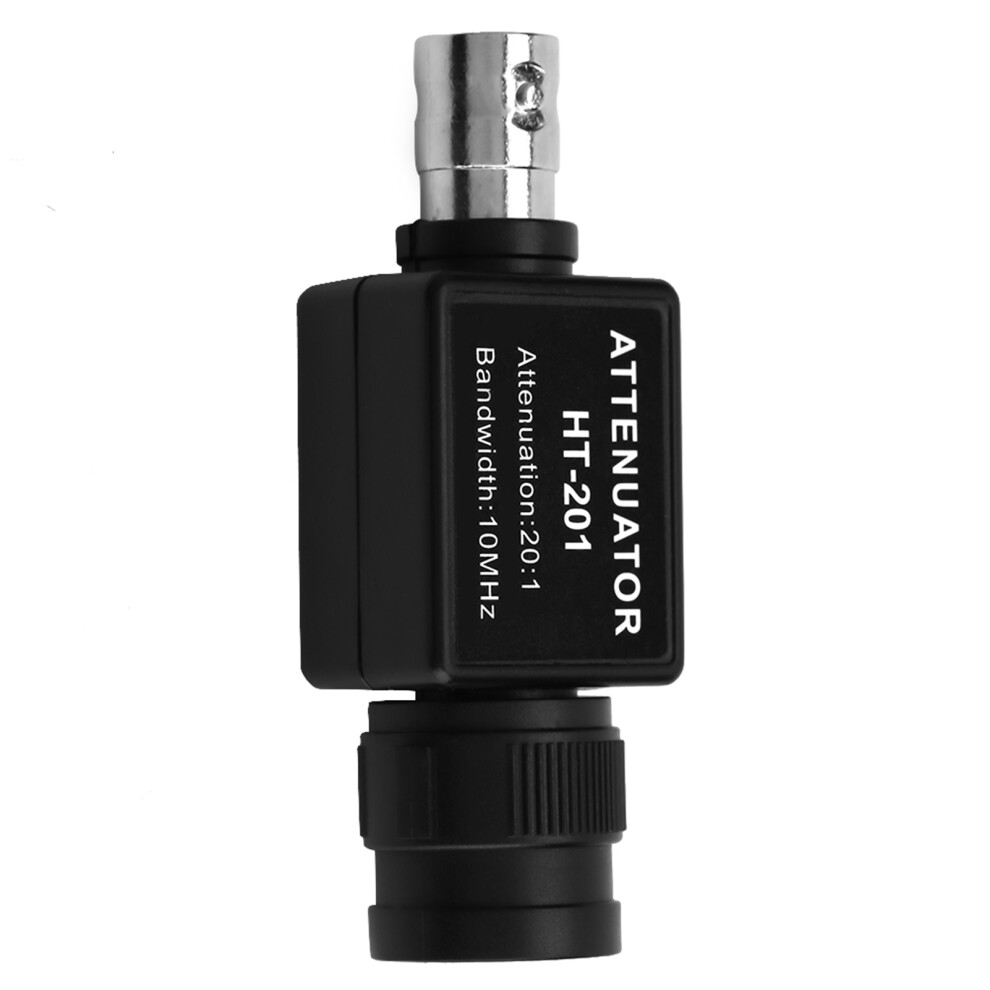

HT201 20:1 10MHz Passive Attenuator for Oscilloscope

HT201 20:1 10MHz Passive Attenuator for Oscilloscope Description

1、Designed for assisting automobile measurement 2、Can allow oscilloscope to measure fuel injector and primary ignition waveforms 3、Passive attenuator with 20:1 attenuation, if input a 20V signal, it can output a 1V signal 4、Because the signal is attenuated, by using this item, oscilloscope can measure voltage higher than its range(20V) 5、When used in an oscilloscope to measure an inductive signal, such as a jet nozzle and a primary ignition, it provides enhanced input overload protection
Features:
Designed for assisting automobile measurement.
Can allow oscilloscope to measure fuel injector and primary ignition waveforms.
Passive attenuator with 20:1 attenuation, if input a 20V signal, it can output a 1V signal.
When used in an oscilloscope to measure an inductive signal, such as a jet nozzle and a primary ignition, it provides enhanced input overload protection. Don't use it for secondary ignition tests.
Specifications:
Attenuation: 20:1
Bandwidth: 10MHz
Input Res: 1.053M
Size: Approx. 61 x 21 x 10mm/2.4 x 0.8 x 0.4in
Weight: 27g
Package Included:
1 x HT201 Signal Attenuation
