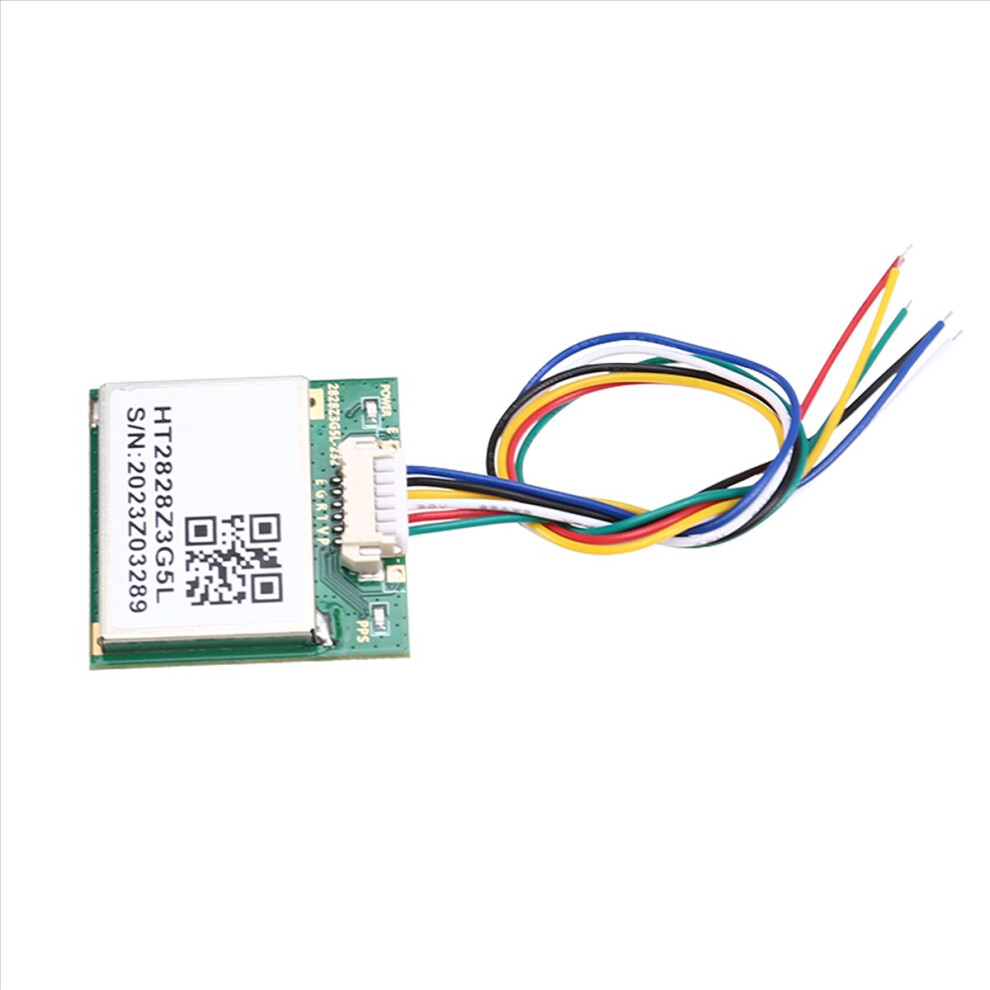

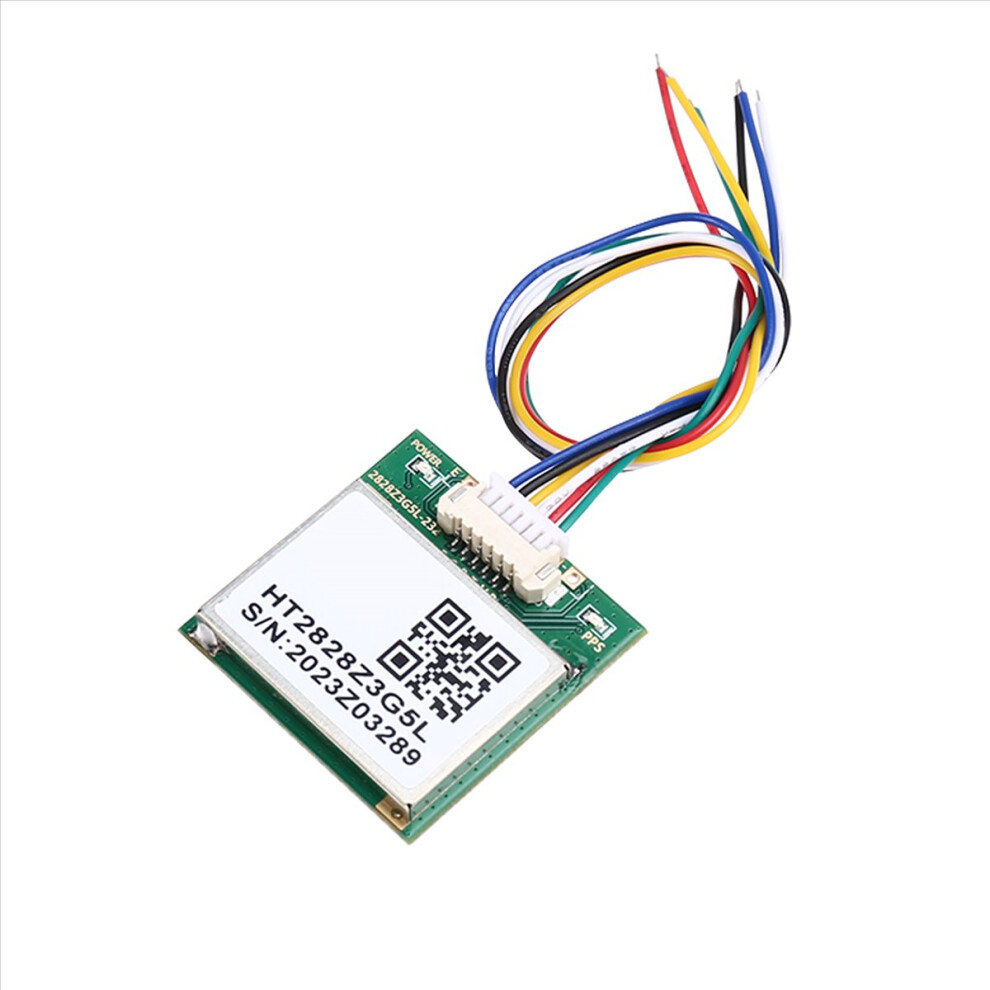

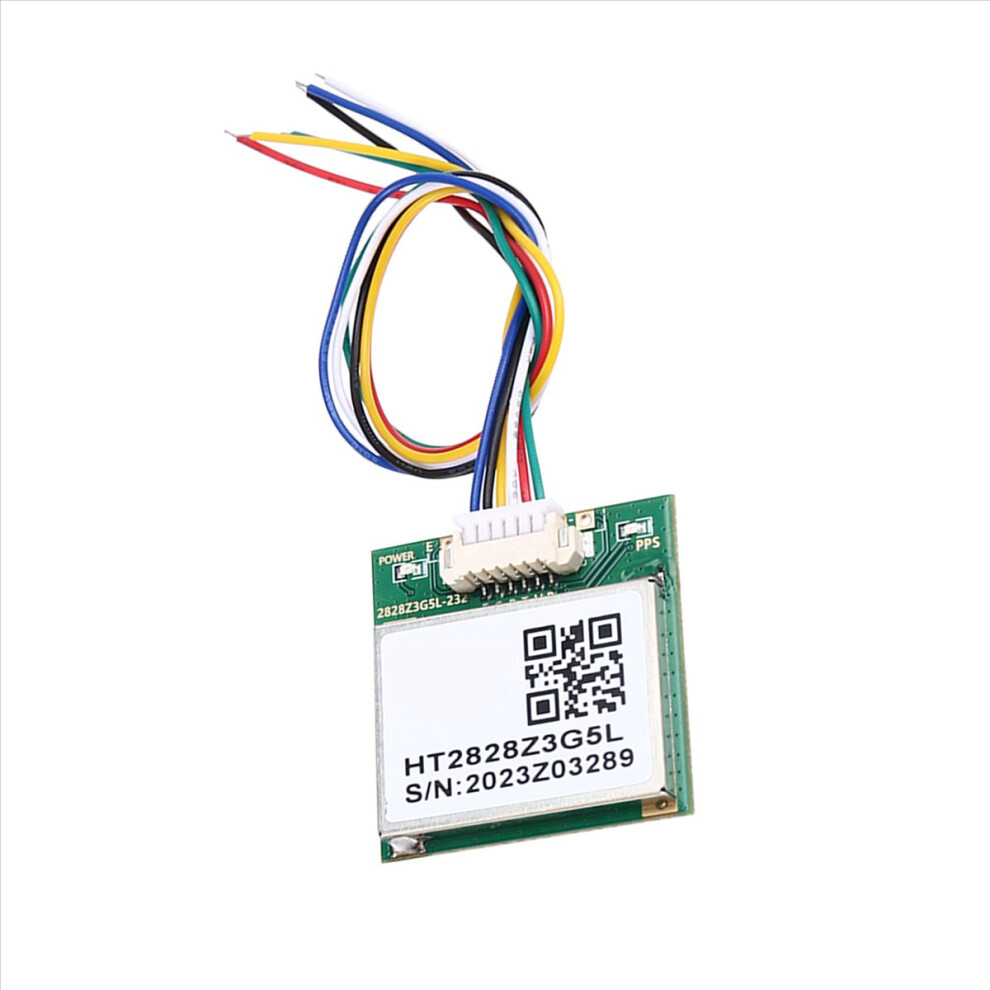

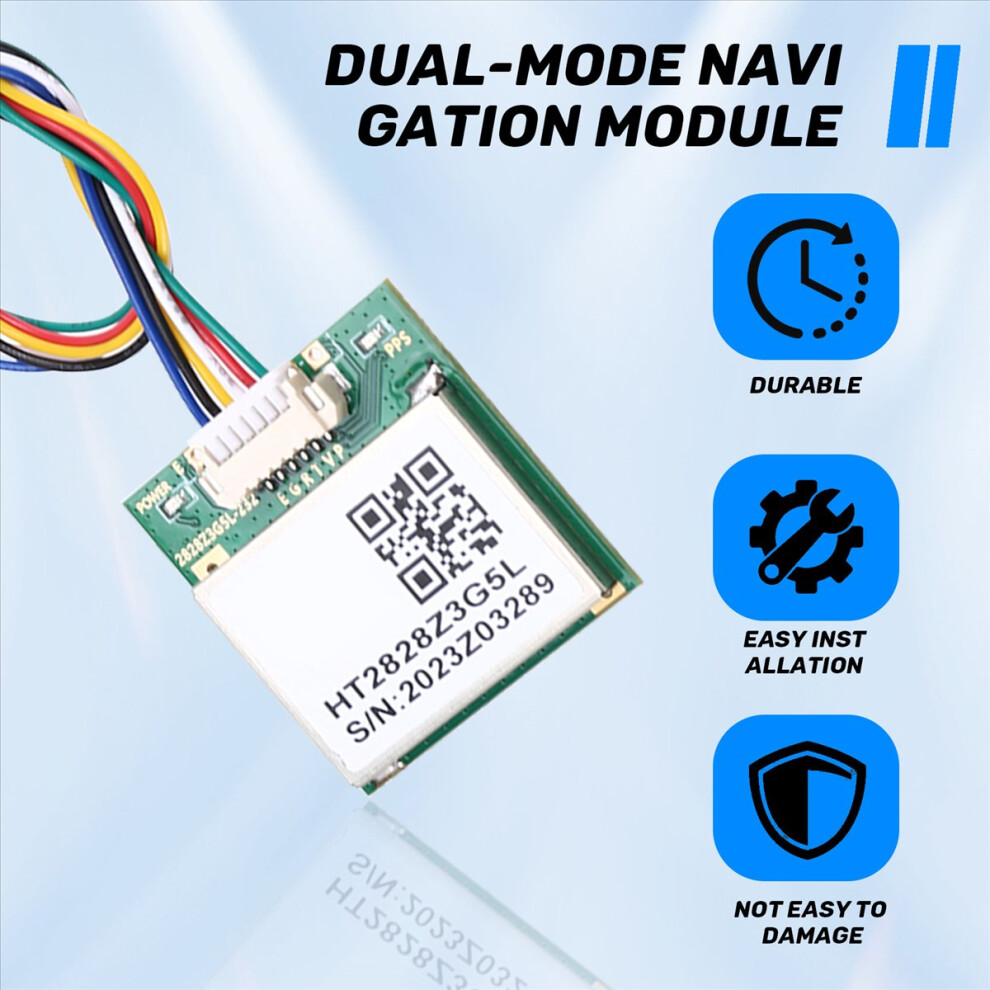

HT2828Z3G5L Dual-Mode Navigation Module Built-in FLASH

HT2828Z3G5L Dual-Mode Navigation Module Built-in FLASH Description

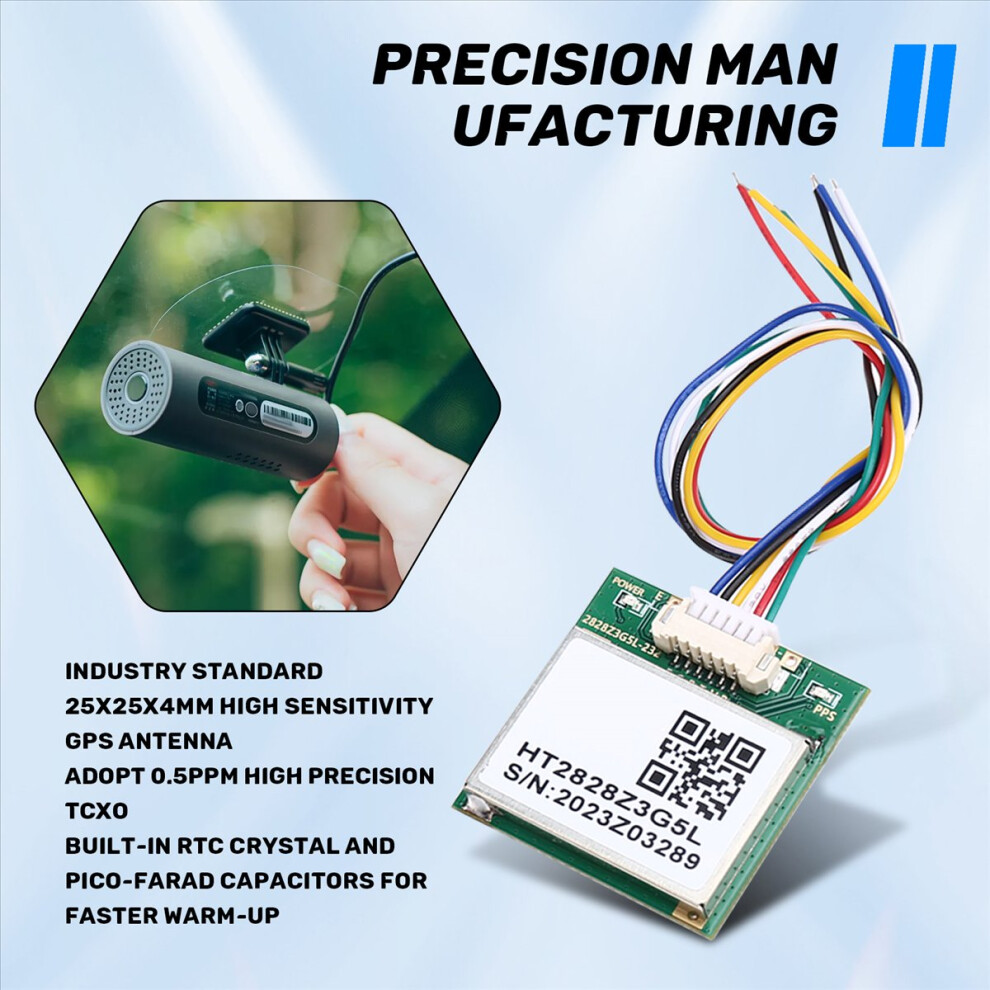

Industry standard 25x25x4MM high sensitivity GPS antenna
Adopt 0.5PPM high TCXO
Built-in RTC crystal and - capacitors for faster warm-up
Built-in LNA, low noise signal amplifier
Adopt 6558R, 6558F chip, built-in FLASH, support warm

1-10Hz positioning update rate
Supports A-GPS such as AssistNow Online and AssistNow Offline
GPS, GLONSS, , SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine
Application:
GPS Applications in PDAs, Pocket PCs and Other Portable Devices.
Personal positioning, car positioning and other trajectory tracking products.
Area measurement, distance measurement, m and other surveying and mapping products.
Car cameras, driving recorders, advertising machines, external antennas and other products.
Products such as trajectory recording and GPS/Beidou data point calibration.
Due to different product batches, the appearance , which does not affect the use.
Colour:As Shown
Material:PC

Package Contents:
1 * HT2828Z3G5L Dual-mode navigation module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
