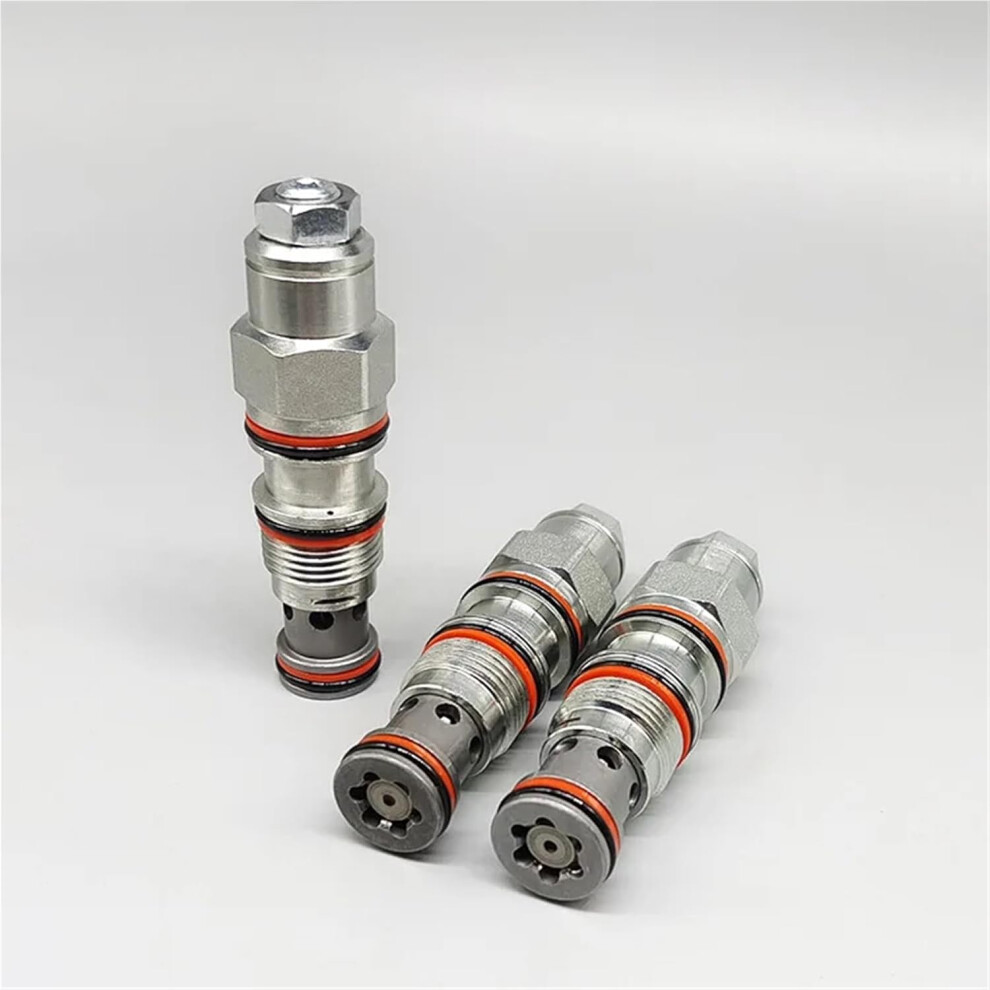

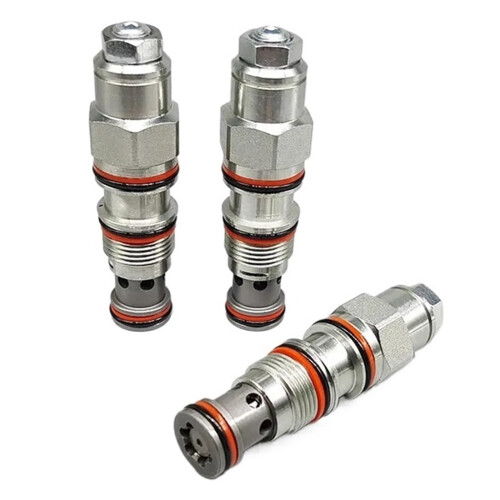

Hydraulic Pressure Relief Valve Threaded Cartridge Balanced CBCA/CBCG Reversing Flow Control

Hydraulic Pressure Relief Valve Threaded Cartridge Balanced CBCA/CBCG Reversing Flow Control Description

Hydraulic threaded cartridge reversing pressure relief valve - CBCA/CBCG balance (CBCALHN) single Overview This threaded cartridge reversing pressure relief valve (model CBCALHN, single) provides reliable pressure relief with reversing and balanced operation for hydraulic systems. Designed for installation into CBCA/CBCG series cavities, the CBCALHN combines compact cartridge form, balanced performance, and straightforward serviceability to protect components and stabilize system pressure. Key benefits Protects hydraulic circuits from overpressure while permitting reversing flow where required. Balanced design minimizes the effects of backpressure and improves stability under varying load conditions. Threaded cartridge format saves space and allows quick installation or replacement in compatible cavities. Singleunit configuration simplifies system integration and inventory control. Key attributes Functionality: Reversing pressure relief valve with balance characteristics for stable pressure control and reliable relief operation. Compatibility: Designed to fit CBCA and CBCG series cavities; intended as a direct threaded cartridge solution for those valve bodies. Model: CBCALHN (single). Form factor: Threaded cartridge for compact, inline installation in compatible manifolds and valve blocks. Construction: Robust hydraulicgrade construction suitable for typical industrial and mobile hydraulic environments. Performance: Provides stable relief action and resistance to backpressure influences due to its balanced internal design. Typical applications Mobile hydraulics: Protect cylinders, motors, and control circuits on construction, agricultural, and materialhandling equipment where reversing flow and overpressure protection are required. Industrial machinery: Serve as relief and reversing protection in presses, lifts, and clamping systems that use CBCA/CBCG cavitystyle valve blocks. OEM assemblies and maintenance: Use as a dropin cartridge for equipment or /upgrade of existing manifolds that accept CBCA/CBCG cartridges. Installation and maintenance Installs as a threaded cartridge into CBCA/CBCGcompatible cavities; designed for straightforward removal and replacement to reduce service time. Singleunit design simplifies stocking and sparepart management. Regular inspection of the hydraulic system for contamination and proper filtration is recommended to maintain valve performance and longevity. Ordering information Model: CBCALHN (Single) - threaded cartridge reversing pressure relief, balanced (CBCA/CBCG). For applications that require a compact, balanced reversing pressure relief solution for CBCA/CBCG cavity systems, the CBCALHN single cartridge delivers reliable protection, predictable performance, and easy servicing.
