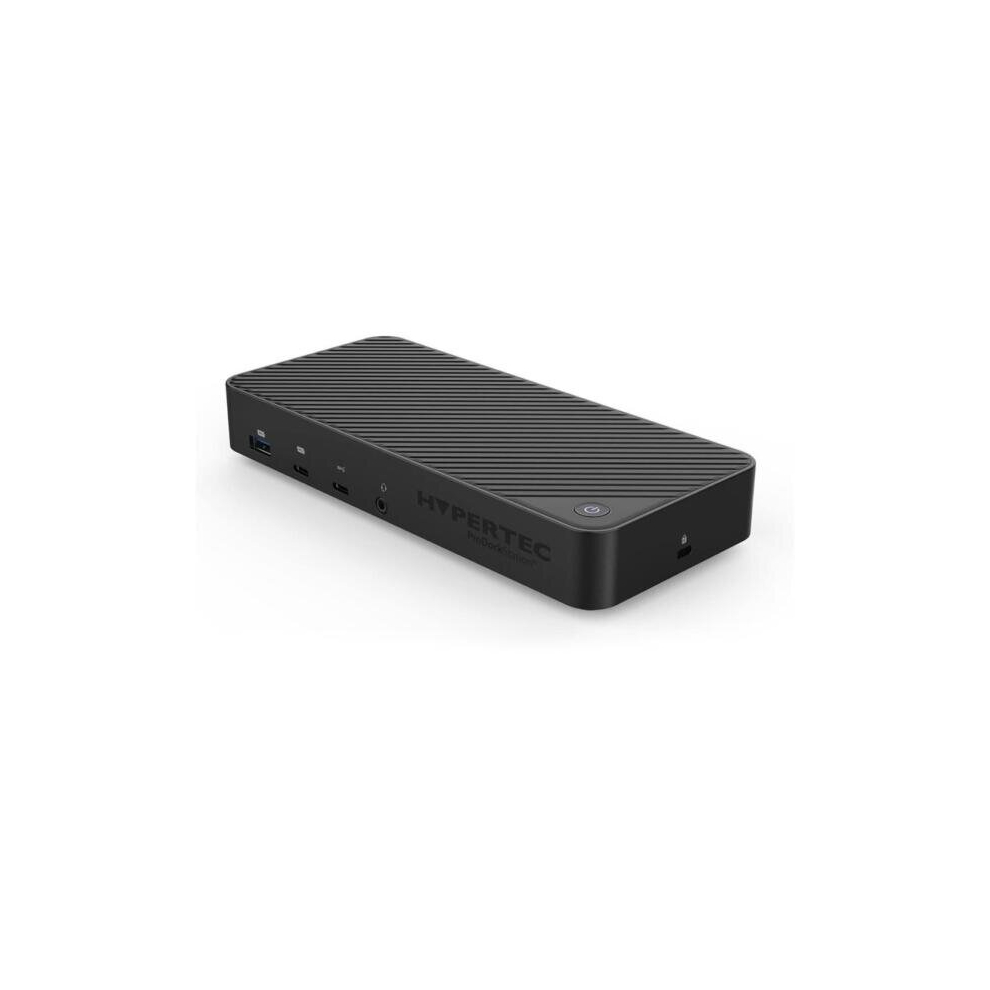

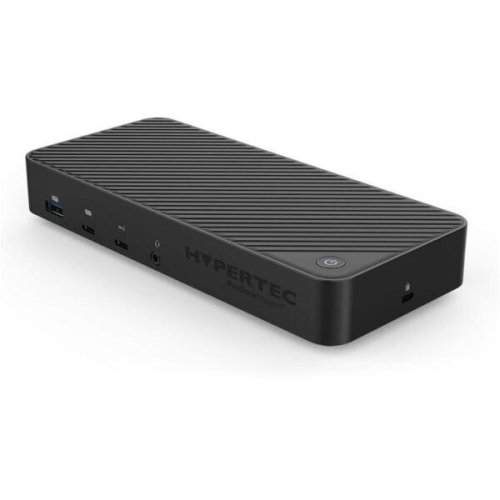

Hypertec ProDockStation Universal Multi-Display Docking Station HYP-USBCAPD-S
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 8th - Sat 10th Oct
Sold by: Branded and New
Returns: 30 days
180-day payment protection
You might also like
Hypertec ProDockStation Universal Multi-Display Docking Station HYP-USBCAPD-S Description
Hypertec ProDockStation Universal Multi-Display Docking Station HYP-USBCAPD-S If you have a USB-C enabled device and need to work on multiple screens, the SD4839P is the ideal docking station. Simply connect any USB-C laptop running Windows 10 or later and choose the right connections and resolutions for your needs. The nine-in-one design expands your connectivity options. A zero-footprint mounting option and security cable lock slots maximises desktop space, reduces clutter and protects your investment. Driverless USB-C connectivity No driver to download, install or update. Fast data transfer speed and Power Delivery make this an ideal solution for all USB-C Windows laptops supporting DisplayPort Alt Mode and Power Delivery. Numerous video ports With 2 DisplayPort++ 1.4 ports and HDMI 2.0 port, select the right connections and resolutions for your needs. Dynamic video support Supports advanced resolution - an ideal solution for multi-monitor setups. 85W Power Delivery Allows you to quickly and easily charge any Thunderbolt 3, Thunderbolt 4, USB4 or USB-C enabled. 9-in-1 design with 4 USB ports The front features a USB-C 3.2 Gen2 port, 3 USB-A 3.2 Gen2 ports and a combo audio port. The rear features a Gigabit Ethernet port, DP++ 1.4 ports and one HDMI 2.0 port. Specifications Product Type: Docking station Width: 180 mm Depth: 80 mm Height: 22 mm Weight: 270 g Video Max Resolution Details: 4K - 30 Hz (DisplayPort 1.4 (with DSC) only), 4K - 30 Hz (HDMI only), 1920 x 1080 - 60 Hz (Triple Display (2 x DisplayPort 1.4 + HDMI)) Networking Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Expansion / Connectivity Interfaces: 1 x USB-C 3.2 Gen 2 - 24 pin USB-C, 3 x USB 3.2 Gen 2 - 9 pin USB Type A, 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45, 1 x audio - headphones/microphone - mini-phone 3.5 mm, 1 x audio / video - 19 pin HDMI Type A, 2 x display / video - 20 pin DisplayPort (1.4) Miscellaneous Cables Included: 1 x USB-C cable
Details
| OPC | PCTZW6X |
|---|---|
| Brand | Hypertec |
| Codes | 5050914185602 (EAN) |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Weight & dimensions
| Weight | 850 g |
|---|---|
| Height | 31.8 mm |
| Width | 85 mm |
| Depth | 191 mm |
Performance
| Certification | RoHS, REACH, Prop65, CE, FCC |
|---|---|
| Plug and Play | Yes |
| Cable lock slot | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Reset button | No |
| Housing material | Plastic, Silicone |
| Maximum digital resolution | 3840 x 2160 pixels |
| On/off switch | Yes |
| Rubber feet | Yes |
| Maximum refresh rate | 60 Hz |
| Brand compatibility | Universal |
| Charging function | Yes |
| Number of displays supported | 3 |
| Display modes | Double, Duplicate, Extended, Single, Triple |
| Cable lock slot type | Kensington |
| NVMe | No |
| Built-in SSD | No |
| SSD enclosure | No |
Packaging data
| Package dimensions (WxDxH) | 280 x 210 x 42 mm |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Storage temperature (T-T) | -10 - 55 °C |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 0 - 85% |
Software
| Mac compatibility | Yes |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | USB Type-A to USB Type-C, USB Type-C |
| Manual | Yes |
Power
| Power supply | 130 W |
|---|---|
| Input current | 5.41 A |
| Power source type | AC, DC |
| USB cable length | 0.5 m |
| AC input voltage | 24 V |
| Wireless charging | No |
Network
| Ethernet LAN | Yes |
|---|---|
| Networking standards | IEEE 802.3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| Audio output | 3.5mm jacket |
| Headphone outputs | 1 |
| Microphone in | No |
| DC-in jack | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity | 3 |
| Headphone connectivity | 3.5 mm |
| HDCP | No |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| PowerShare | No |
| USB Power Delivery up to | 100 W |
| Dual antenna pass-through | No |
Control unit
| Remote control included | No |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Other features
| Maximum operating temperature | 70 °C |
|---|---|
| USB data transfer rates | 10000 Mbit/s |
| USB ports quantity | 6 |
| USB port | Yes |
Technical details
| Warranty period | 1 year(s) |
|---|
