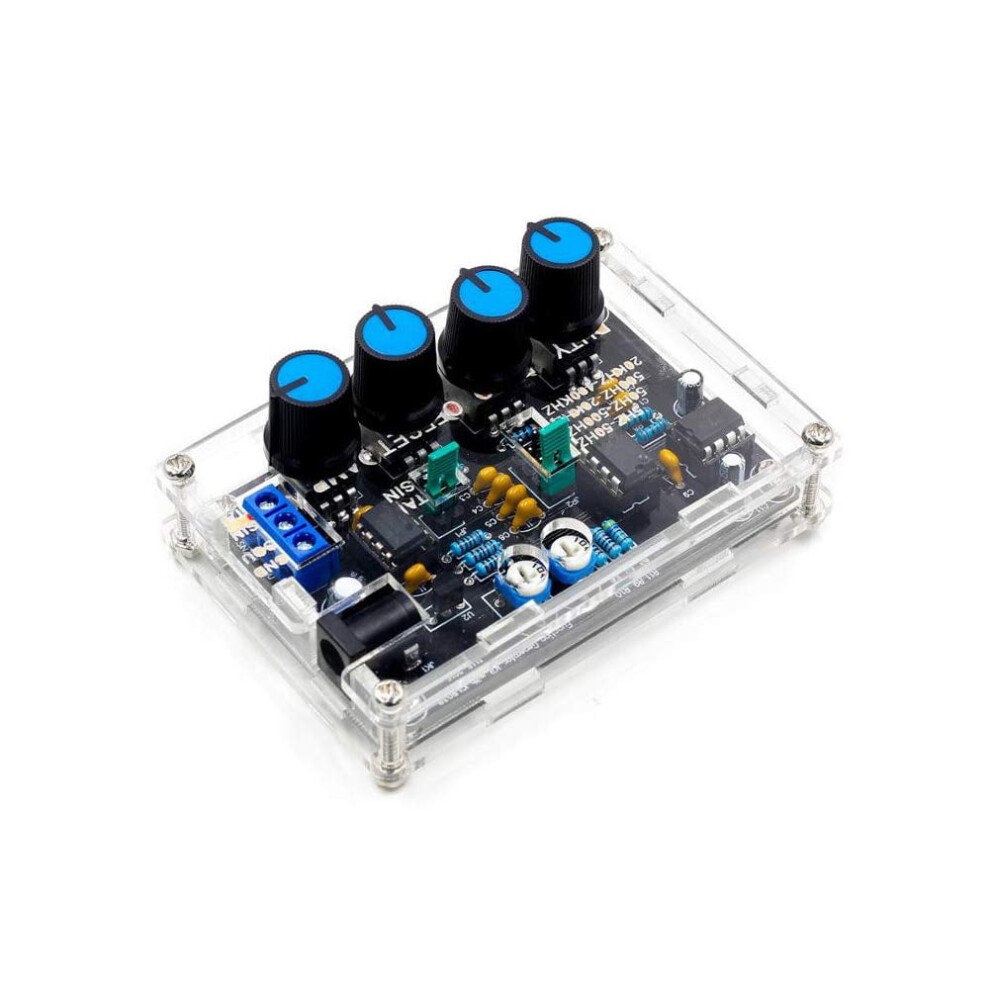

ICL8038 Signal Generator Kit Sine Triangle Square Wave
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£30.38
£60.77
50% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 27th - Sat 29th Aug
Returns: 30 days
180-day payment protection
Description & Details
Summary
- This signal generator is a product to generate sine/triangle/square wave/Forward and Reverse sawtooth waveform, which is also a DIY kit for you to weld and install.
- Using ICL8038 chip and high-speed operational amplifier, higher accuracy. Supports bi-amp, without blocking capacitors, ensuring high and low frequency signal distortion.
- Adjustable frequency and amplitude. Frequency range: 5Hz ~ 400kHz; Duty Ratio Range：2 ~ 95% (adjustable).
- All straight inserted components, simple installation and debugging.
- Frequency adjustment can be coarse-tuning or fine-tuning.
ICL8038 Signal Generator Kit Sine Triangle Square Wave Description

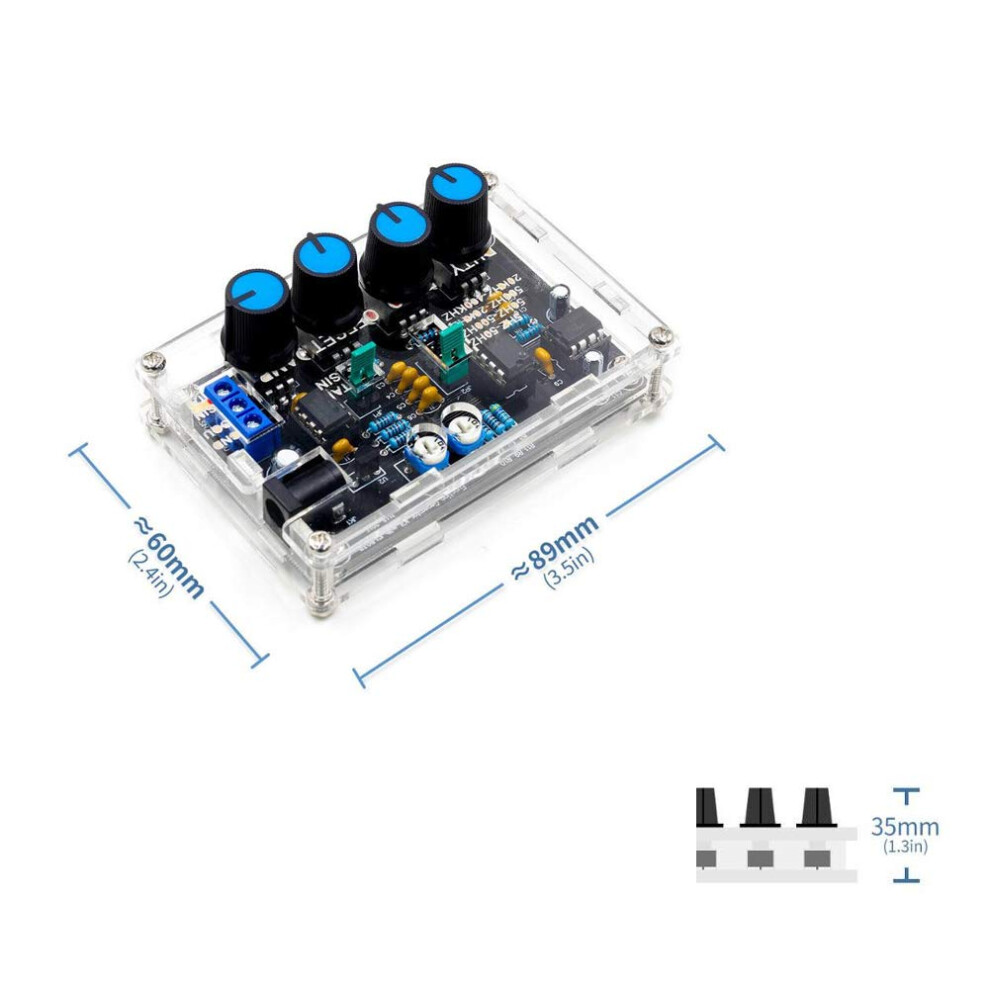

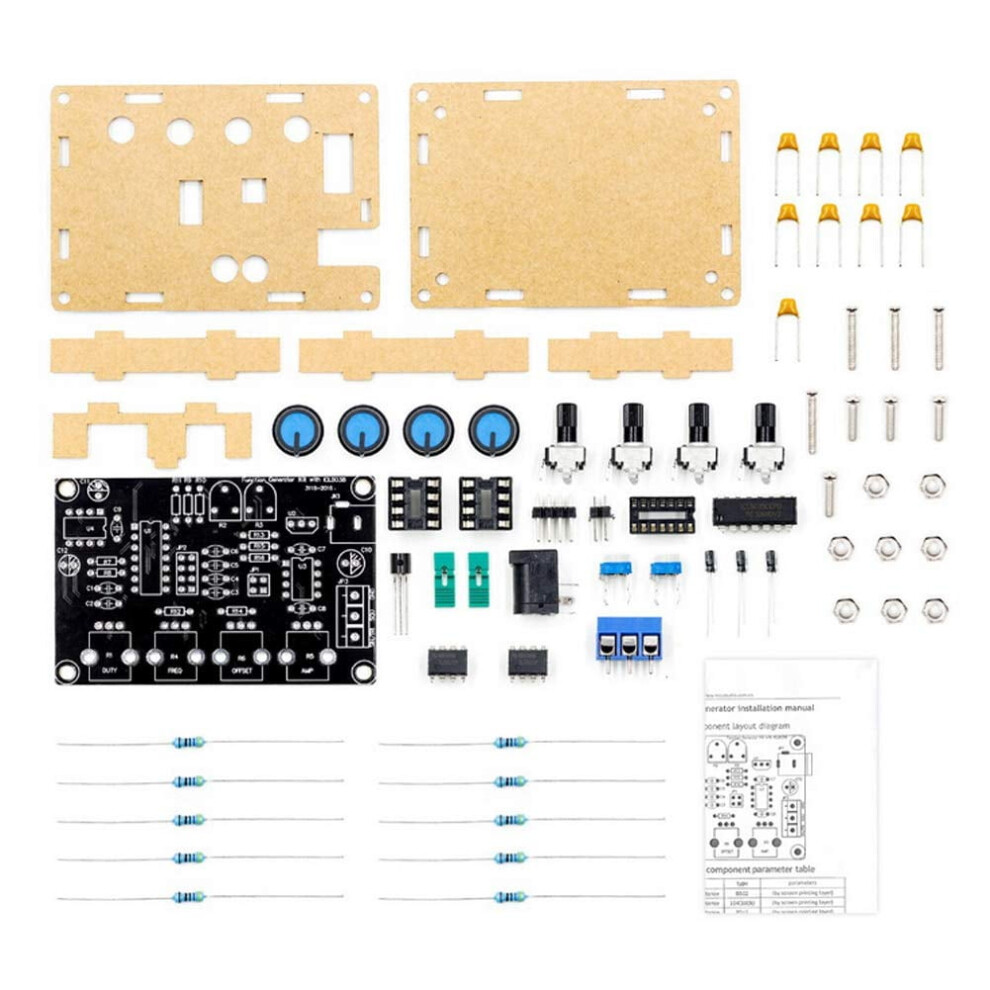

Product Description Specification： Power supply voltage: DC12V ~ 15V Frequency range: 5Hz ~ 400KHz (adjustable) Duty ratio range: 2 ~ 95% (adjustable) Low distortion sine wave: 1% Low temperature drift: 50ppm / C Output triangle wave linearity: 0.1% DC offset range: -7.5V ~ 7.5V Output amplitude range: 0.1V ~ 11VPP (working voltage 12V) PCB size: 7.8 X 5cm / 3.07 X 1.97In Package included： 1 x ICL8038 Low-Frequency Signal Generator DIY kit 1 x Instruction Note: This Kit need to be assembled by yourself. Straight inserted components, simple installation.
Details
| OPC | PXSNPHD |
|---|---|
| Codes | 999532491281 (UPC) |
