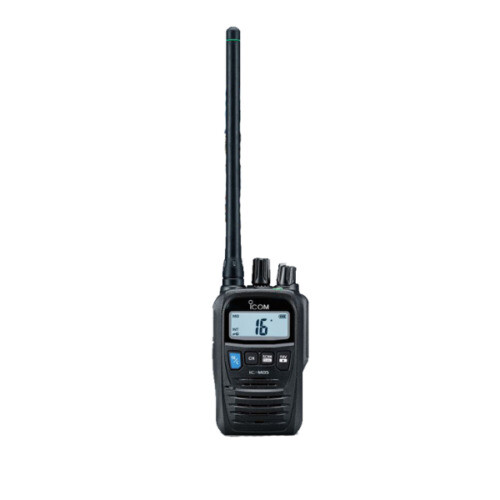

ICOM M85E VHF Radio

ICOM M85E VHF Radio Description

About the ICOM M85E VHF Radio

Key Features:

Compact and Lightweight Design

The IC-M85E is the most compact (W×H×D: 56 × 92 × 29 mm) and lightweight (weight: 246 g (with BP-290, FA-SC58V and MBB-3)) commercial grade marine and land mobile hybrid radio in the world.

Covering 136–174 MHz PMR Frequency

In addition to VHF marine channels, the IC-M85E covers 136–174 MHz PMR channels. Up to 100 programmable channels are available for PMR use. Each channel is programmable with CTCSS and DTCS tone.

Automated Emergency Alarm

The IC-M85E has three emergency related functions: the MOB Alarm, Man Down and Lone Worker functions. If one of these functions are activated, the radio automatically makes an emergency alarm.

Instant Operation with Multi-Function Button

Channel group changing (Marine PMR) or the scrambler function ON/OFF can be assigned in the multi-function button on the top panel. The Key lock function can be activated by holding the button.

700 mW Powerful Audio

Despite its compact body, the IC-M85E delivers 700 mW of loud audio. Clear communications is vital in noisy environments.

Private Conversation

The radio has a built-in Voice Scrambler and provides private communication between stations (32-code, compatible with UT-112 voice scrambler unit).

IP67 and MIL-STD Rugged Construction

The IC-M85E is built durable to endure 1 m submersion for 30 minutes and dust-tight protection. The radio also passes MIL-STD-810 specifications.

General Specifications

Dimensions 9.2 x 5.6 x 2.9cm

Weight 246g

Operating Temperature

–15 °C to +55 °C (Marine Channels)

–25 °C to +55 °C (PMR Channels)

IP Rating IP67 (Dust-tight and waterproof protection)

Frequency Coverage (Marine Channels)

156.000-161.450MHz (Tx)

156.000-163.425MHz (Rx)

Frequency Coverage (PMR Channels)

136.000-174.000 MHz

Output Power

5/3/1 W

Audio Output Power 700mW typical
