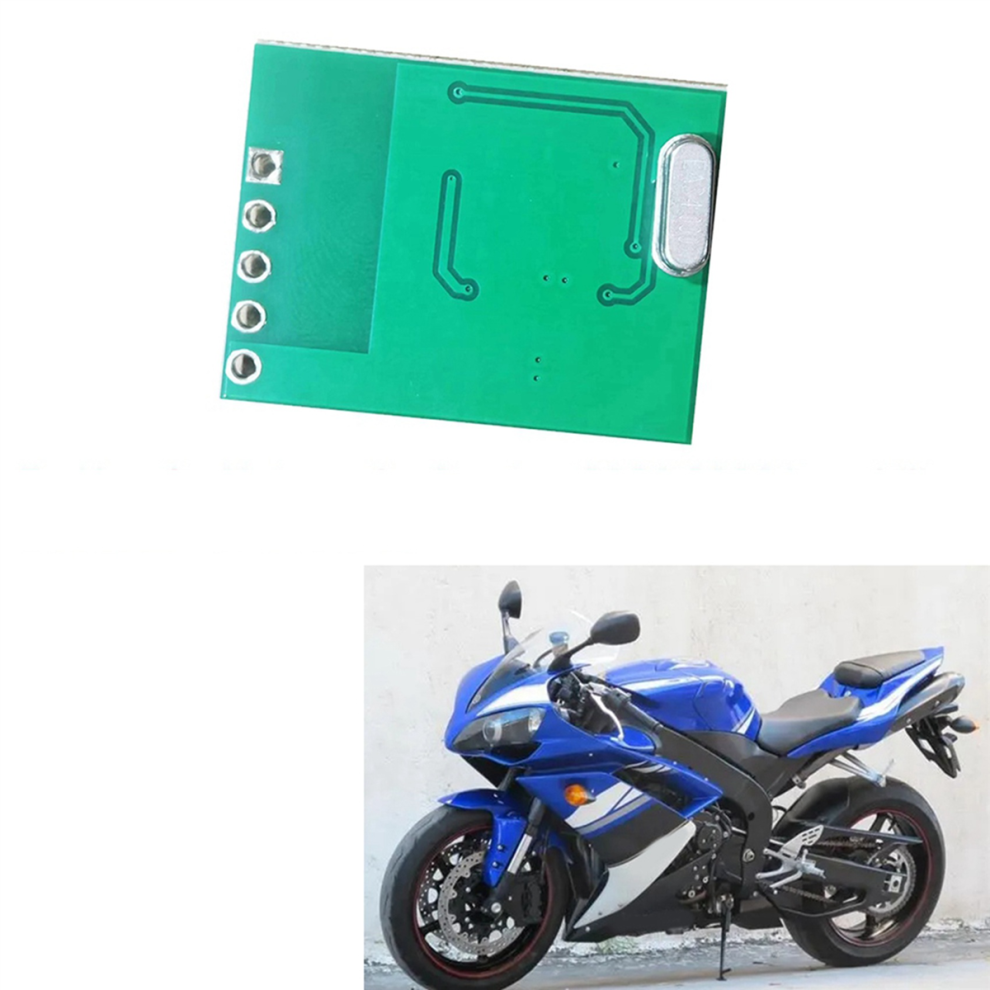

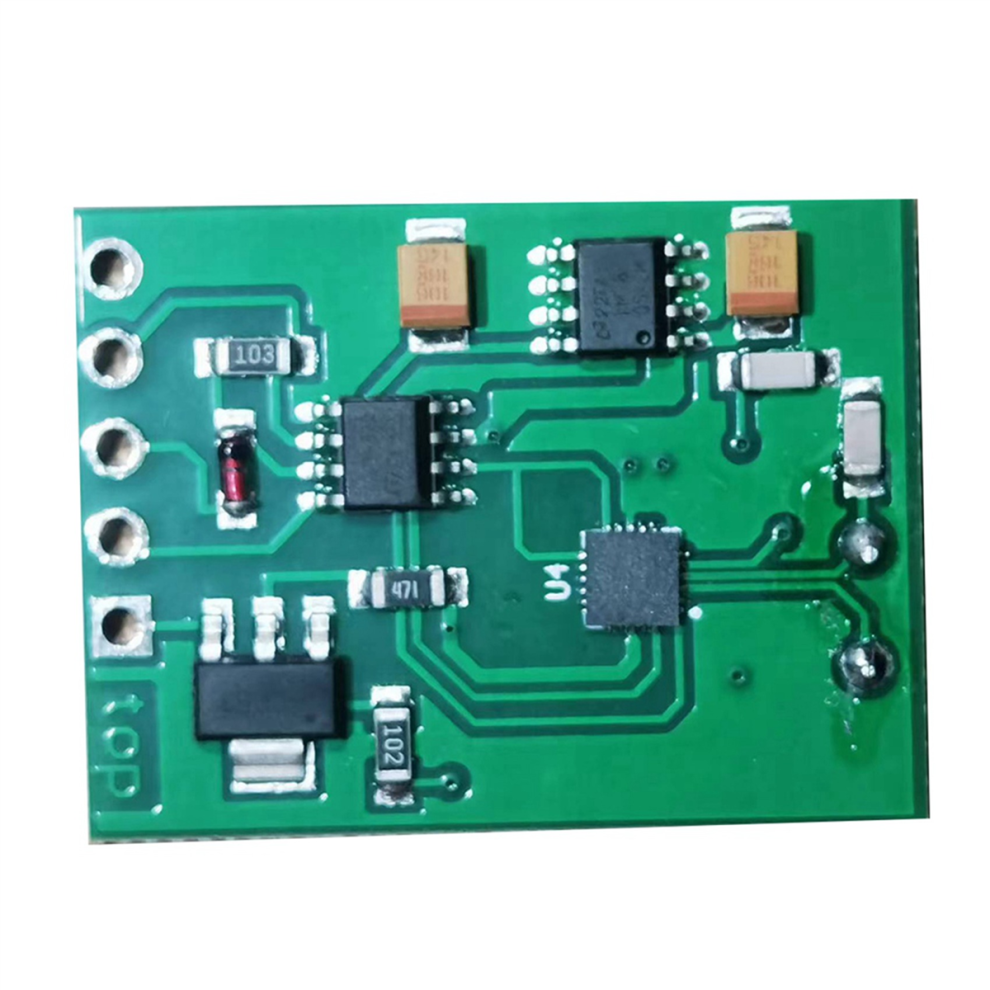

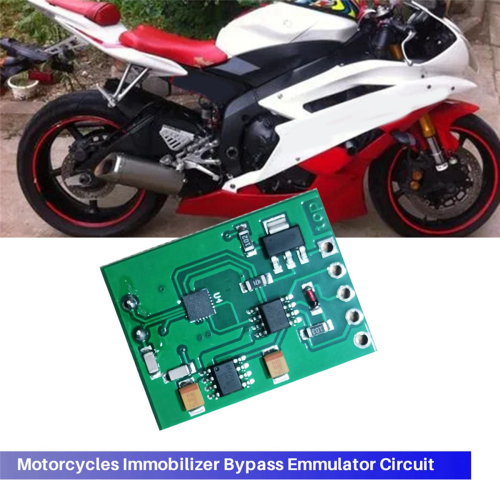

Immobilizer Emmulator Circuit for Motorcycles Scooters 06-09

Immobilizer Emmulator Circuit for Motorcycles Scooters 06-09 Description

the emulator of an immobilizer for motorcycles and scooters FOR .
Works with for all motorcycles and scooters from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.

For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
Colouring of wires and their appointment:
Black (2 pcs.) GND
Red BATT (+12v)
Yellow (+12v)
Gray LED (+5v)
for 2006-2009 all motorcycles and scooters
Blue K-line Immo-ECU
Material: plastic+metal
colour: Green

Package Contents:

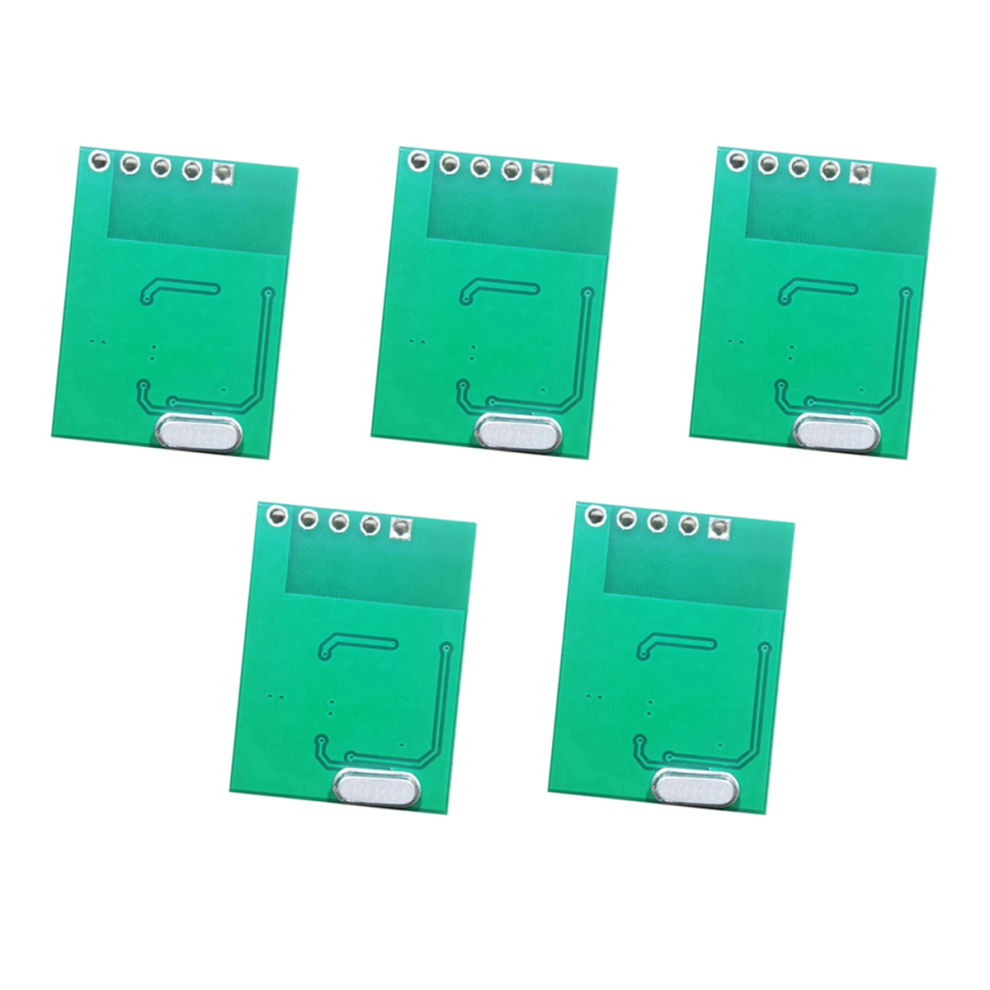

5 x Motorcycles Scooters Immobiliser Emulator Circuit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
