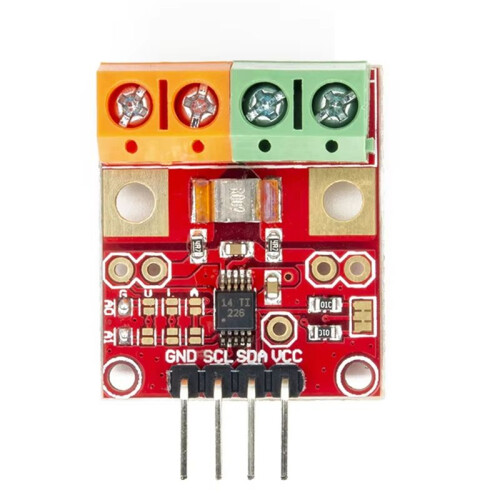

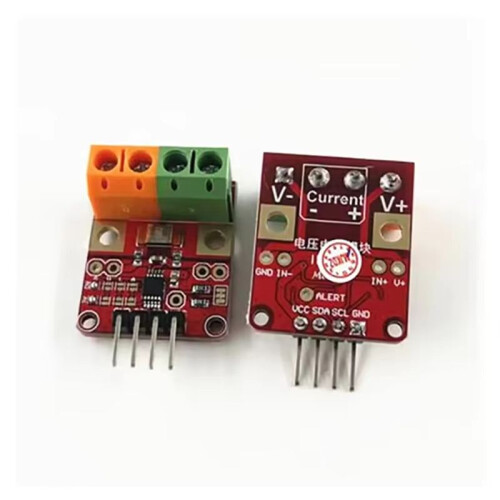

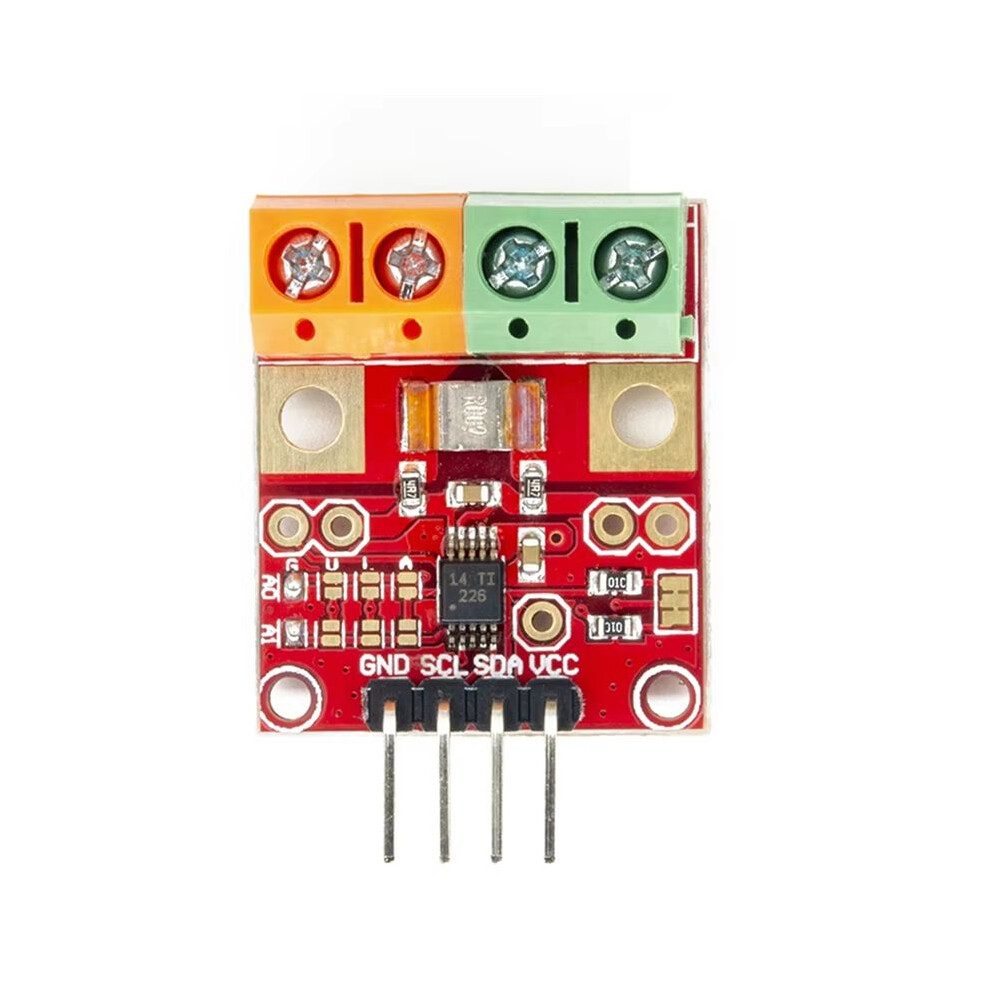

INA226 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board INA226
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£25.50
+£1.52 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.52) | Mon 26th - Sat 31st Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface.
- The device simultaneously monitors the parallel voltage drop and the bus power supply voltage.
- The programmable calibration value, conversion time and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts.
- The device has up to 16 programmable addresses on the I2C compatible interface.
- Voltage Monitoring Sensor Module
INA226 Current Voltage Monitoring Sensor Module IIC I2C Interface Bi-Directional Zero-Drift Breakout Board INA226 Description
INA226 is a current shunt and power monitor with I2C or SMBUS compatible interface.

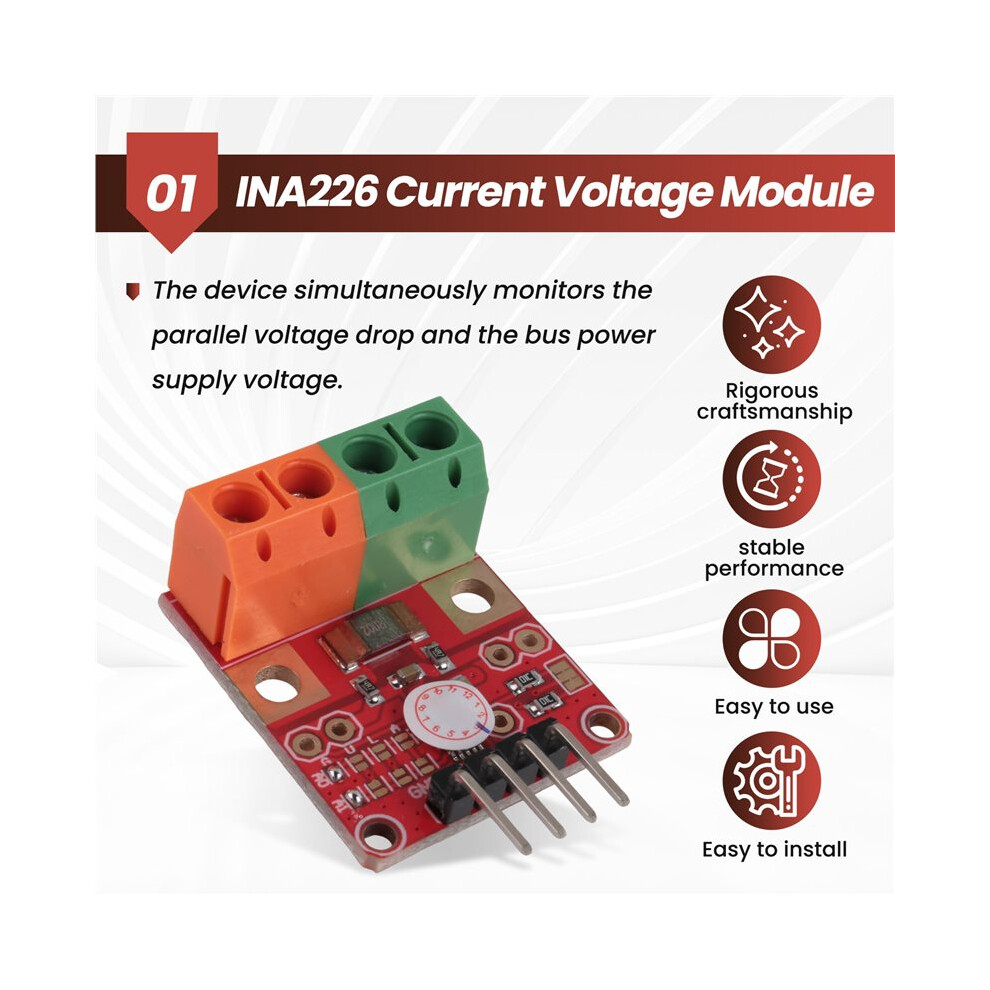

The device simultaneously monitors the parallel voltage drop and the bus power supply voltage.
The programmable calibration value, conversion and average value are used in conjunction with the internal multiplier to directly read the current in amperes and the power in watts.

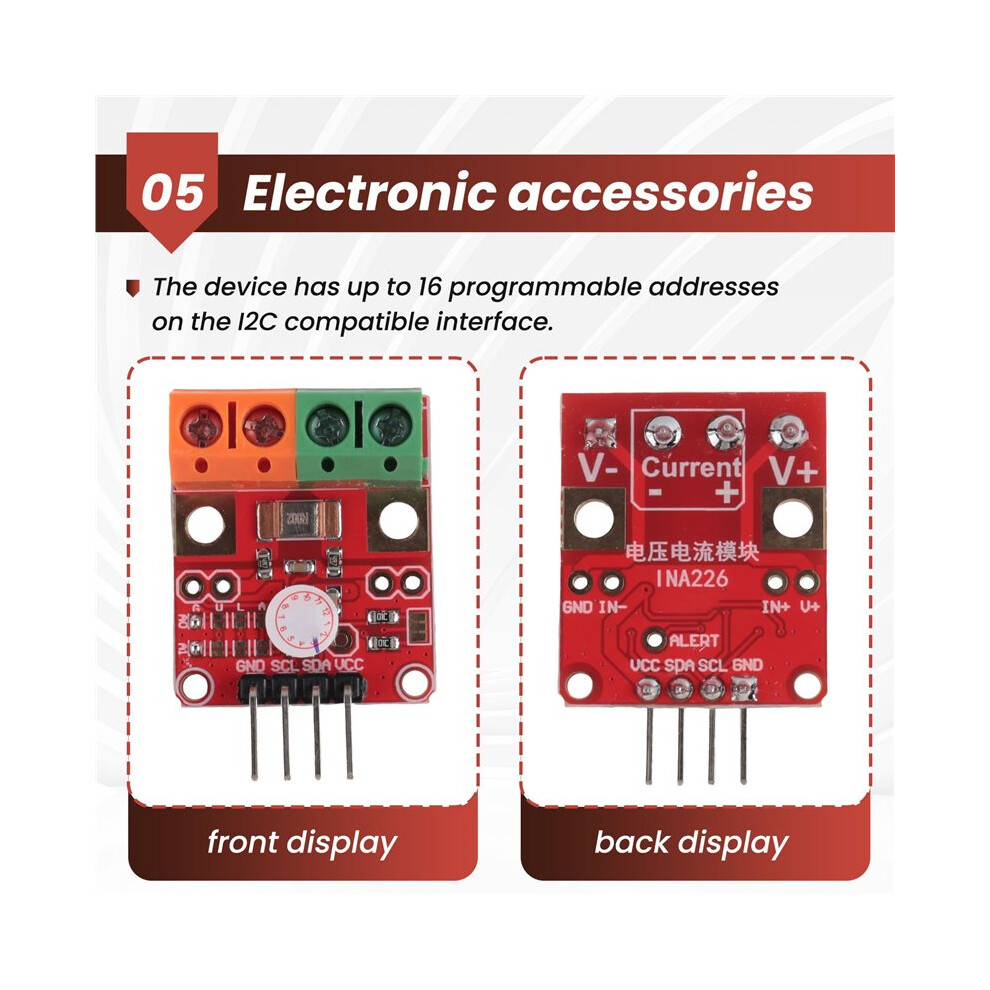

The device has to 16 programmable addresses the I2C compatible interface.
Micro-controller
Safety inspection
Industrial control
Product name: INA226 Voltage Current Monitor

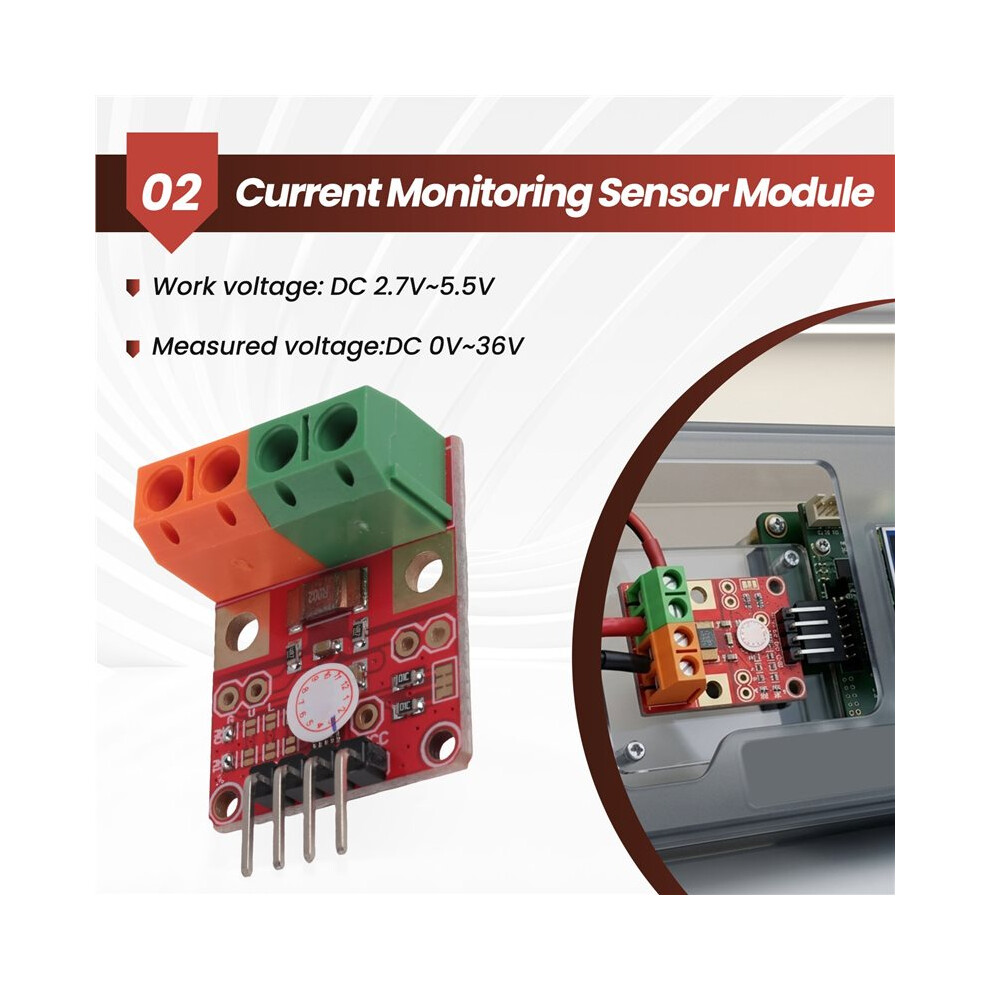

Work voltage: 2.7V~5.5V
Measured voltage: 0V~36V

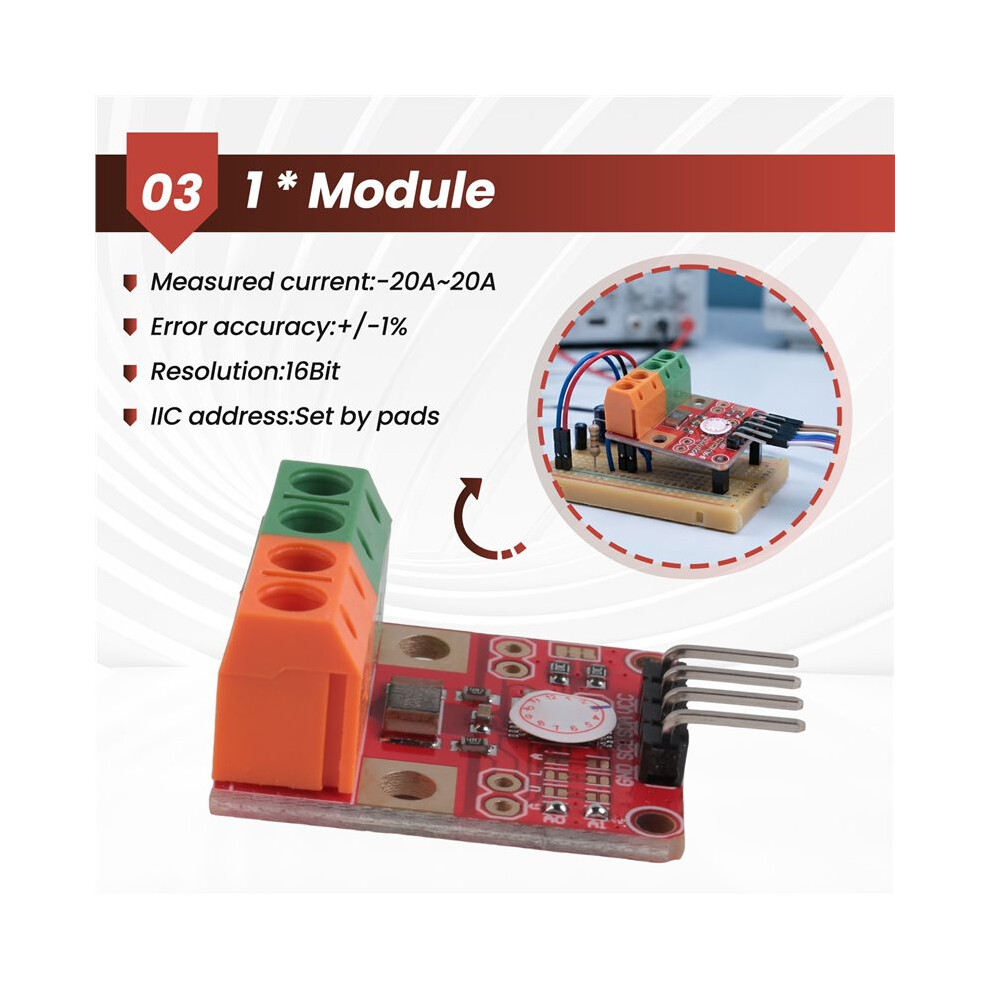

Measured current:-20A~20A
Error accuracy:+/-1%
Resolution:16Bit

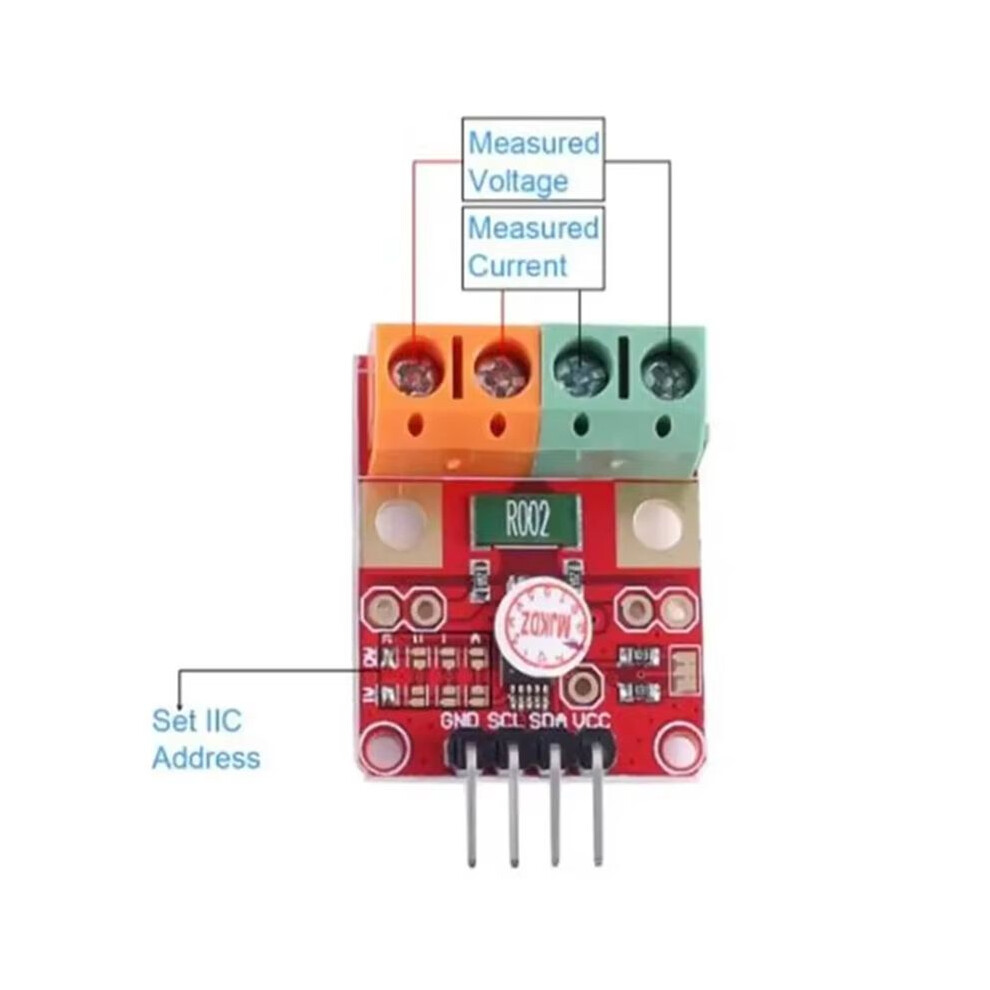

IIC address:Set by pads
PCB Size:26 x 22 x 14mm

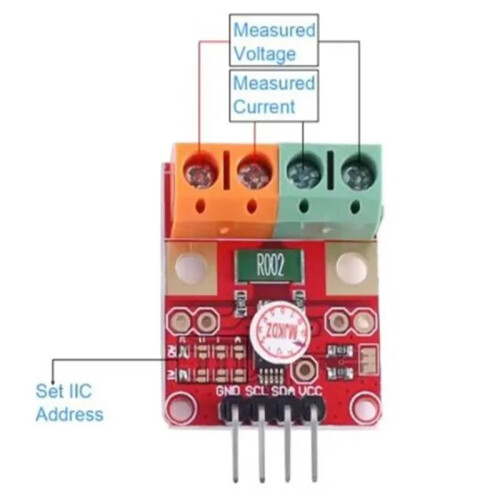

IIC address can be set
Measuring voltage
Measuring current

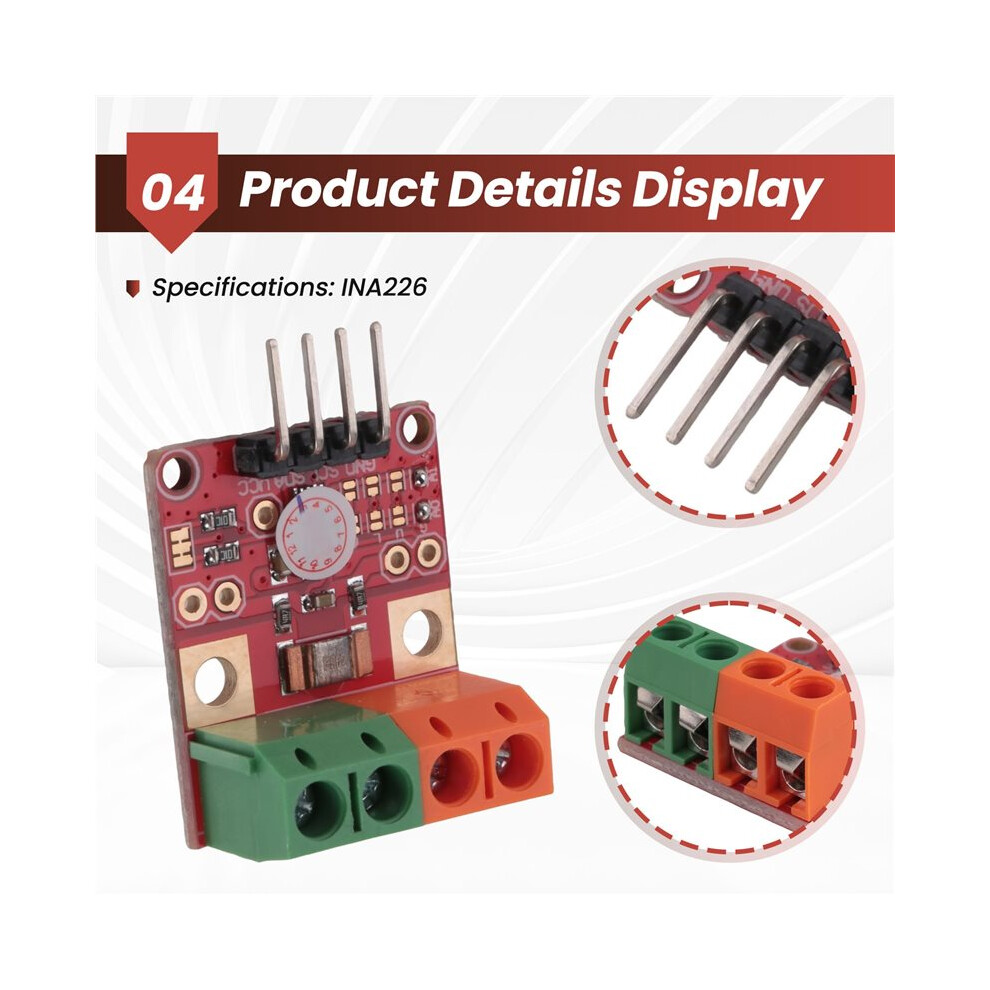

Specifications: INA226
Color: As Shown
Material: PCB
Package Contents:
1 * Module
Details
| OPC | PYGKPJ7 |
|---|---|
| Codes | 6033153812705 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 2cm |
| Length | 3cm |
| Weight | 0.0065kg |
| Colour | As Shown |
| Size | INA226 |
| Material | PCB |
