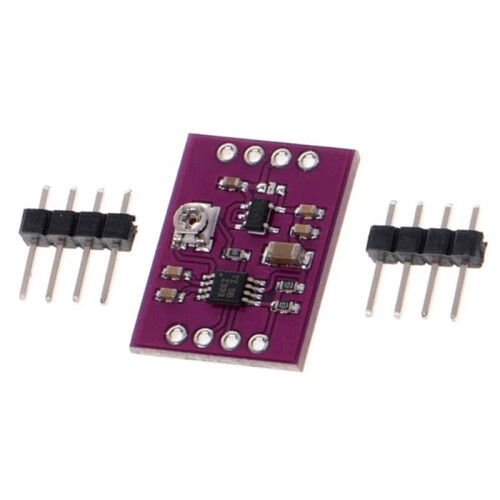

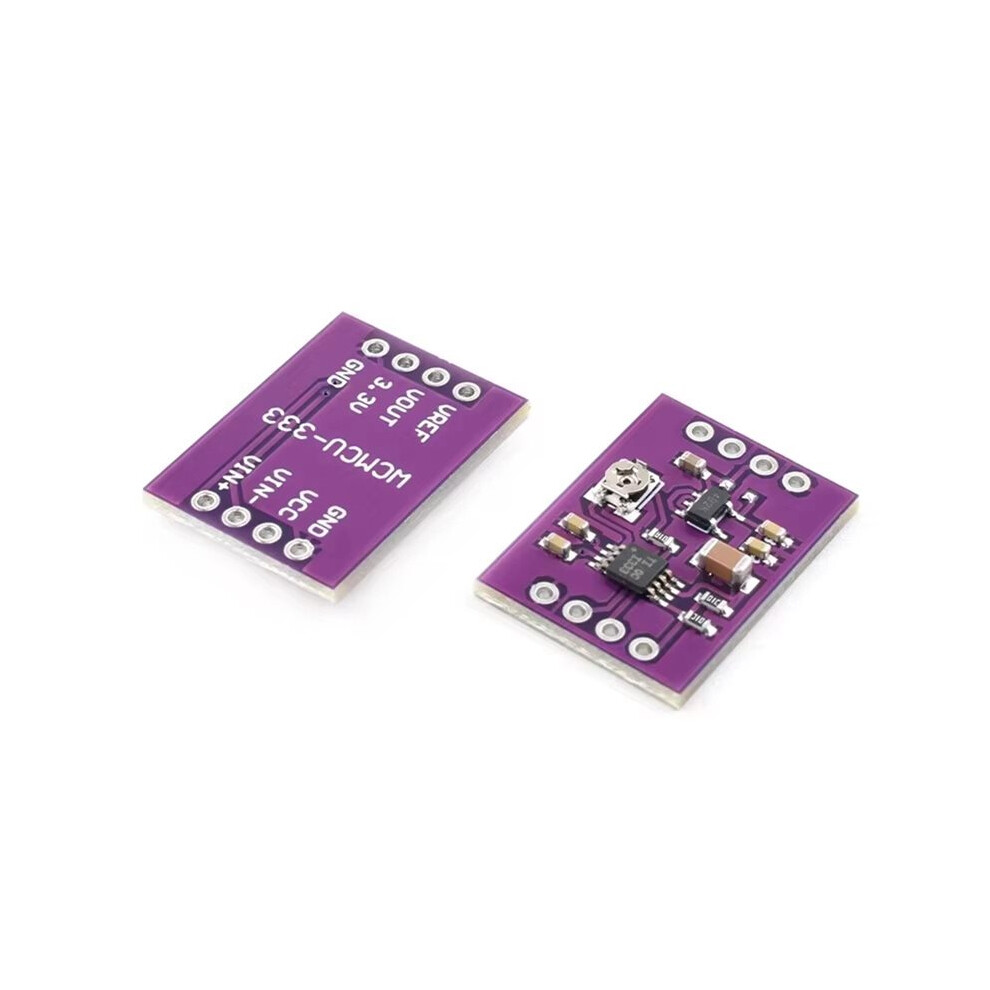

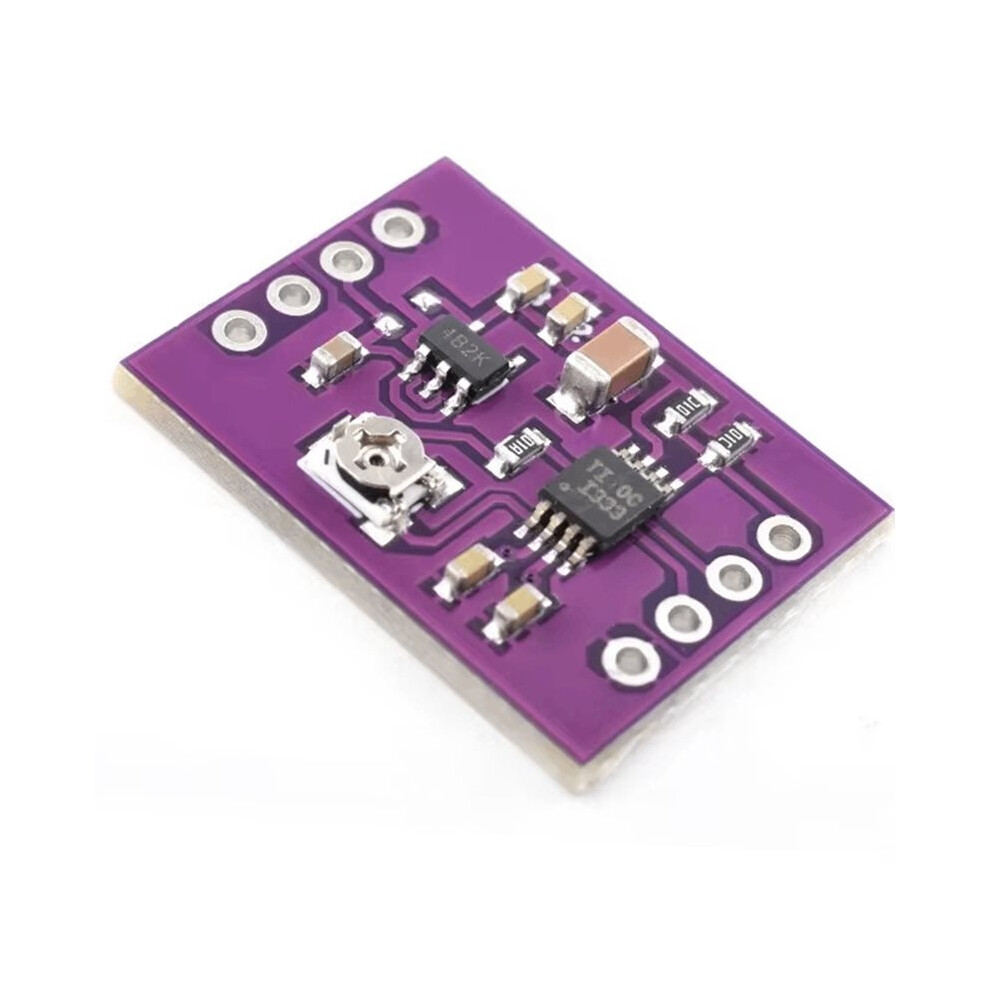

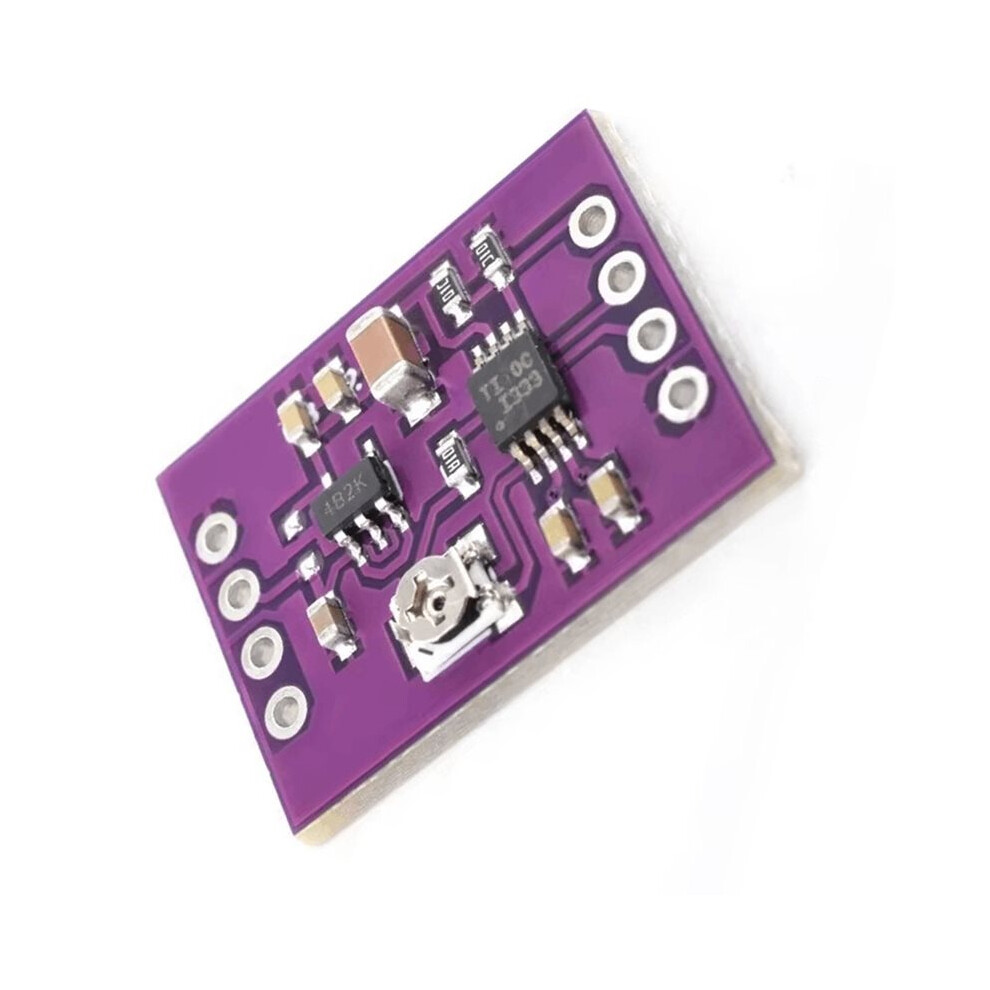

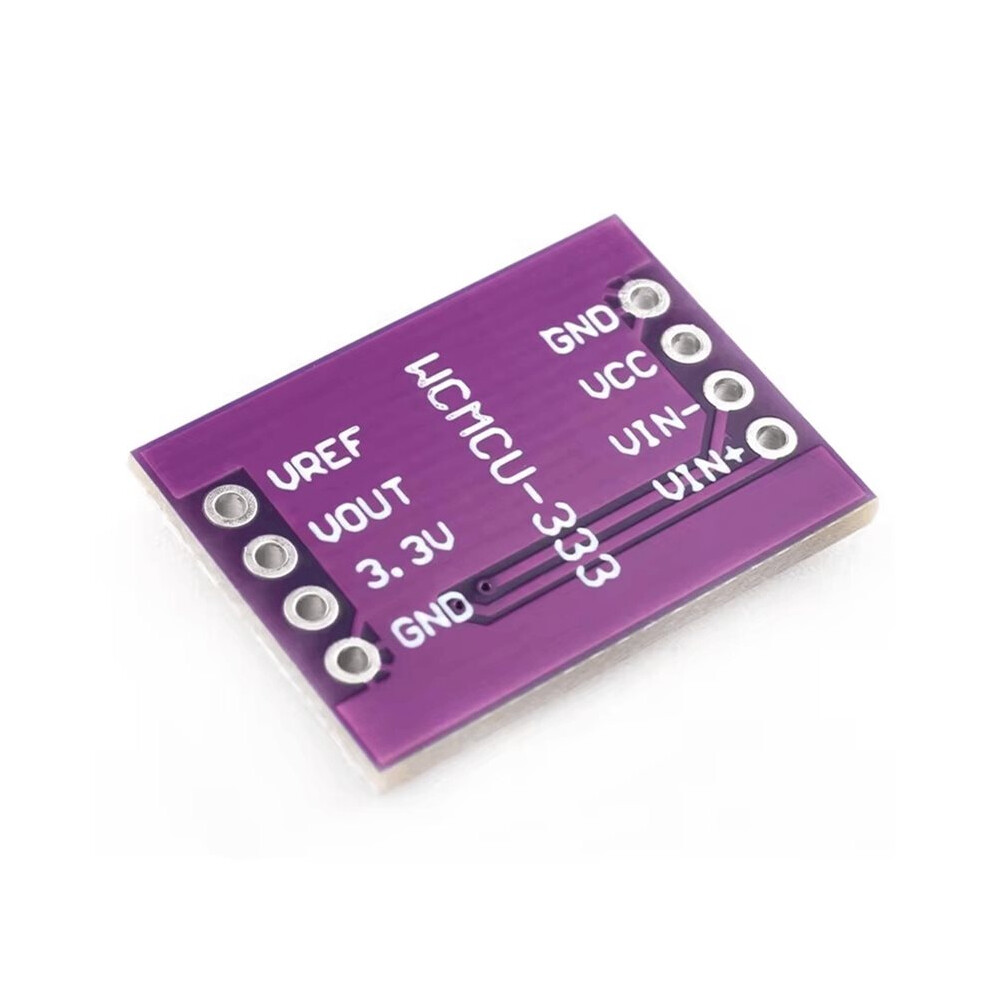

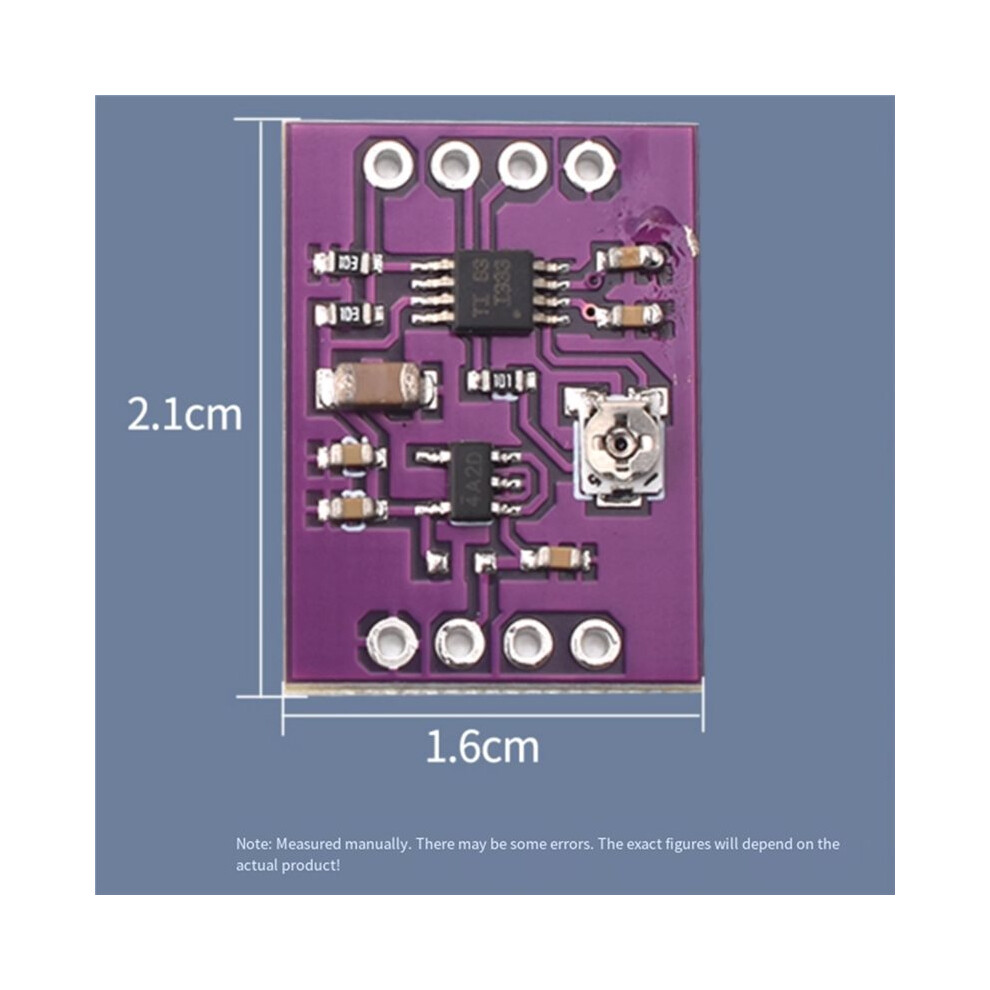

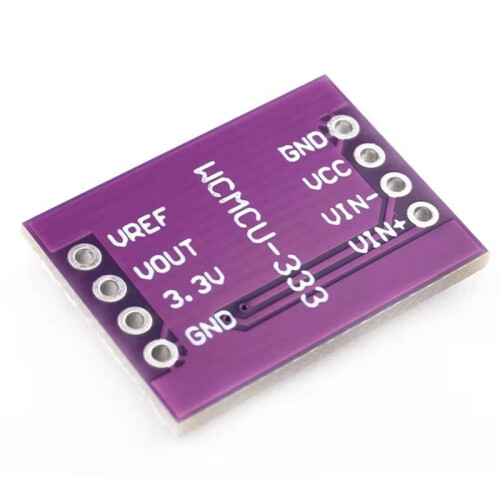

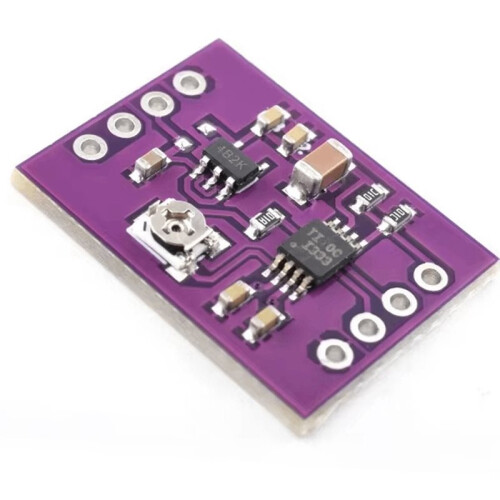

INA333 Human Micro Signal Multifunctional Module 3 Operational Amplifier Precision Instrumentation Amplifier Module

INA333 Human Micro Signal Multifunctional Module 3 Operational Amplifier Precision Instrumentation Amplifier Module Description

The INA333 is a low-power, high-precision instrumentation amplifier with excellent accuracy.
The gain can be set from 1 to 100 using a single external resistor.
Designed for computer applications, this module enhances signal processing capabilities, ensuring smooth and efficient operation.
Operates efficiently within the INA333 temperature range, guaranteeing stable performance under various environmental conditions.
-efficient and safe, with no high-concern chemicals used in its production, making it environmentally friendly.

Input offset voltage: 25 µV (max), G greater than equal 100
Zero drift: 0.1 µV/C, G greater than equal 100
Common-mode rejection ratio: 100 dB (min), G greater than equal 10
Input bias current: 200 pA (max)
Input voltage range: (V-) + 0.1V to (V+) - 0.1V
Output voltage range: (V-) + 0.05V to (V+) - 0.05V
Color: As Shown
Material: PCB

Package Contents:
1* Module
2 *pin headers
