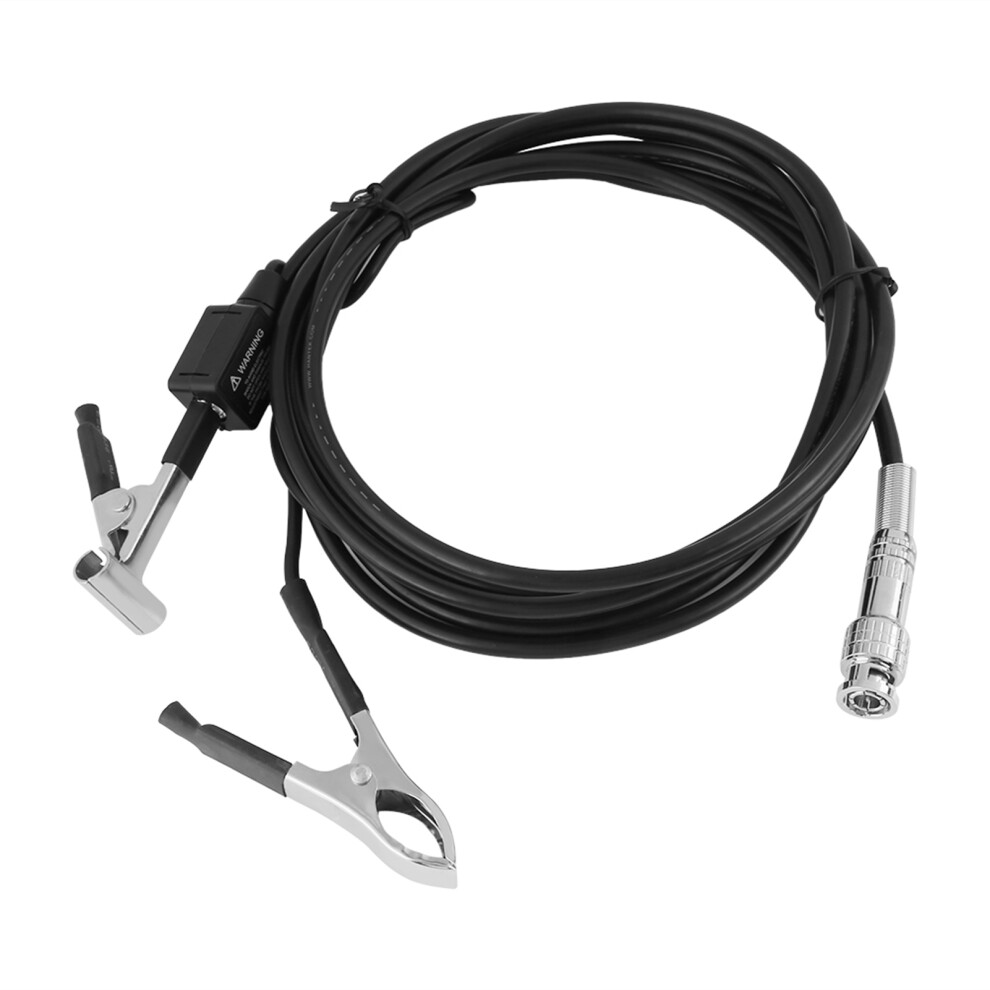

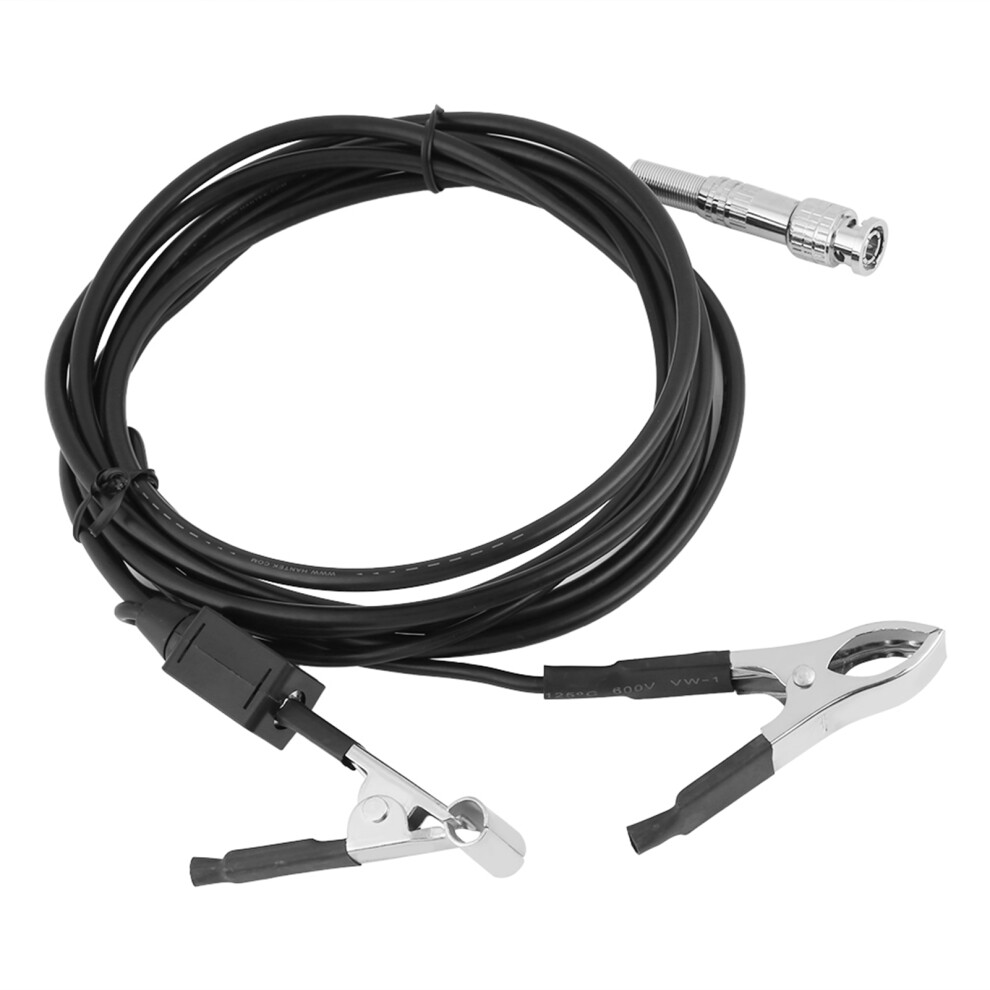

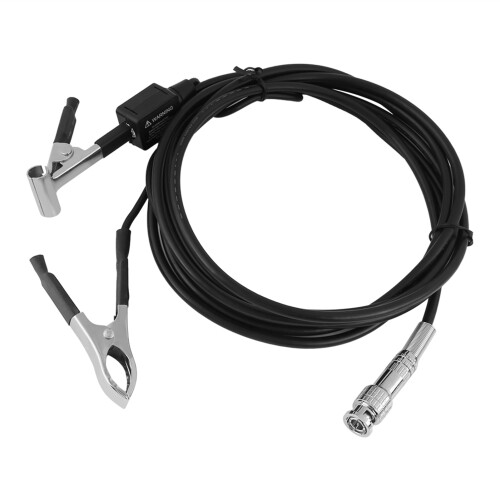

Inductive Capacitance Sensor for Automotive Use, Oscilloscope Diagnostic Tool Featuring High-Voltage Inductive Ignition Probe Design, Secondary

Inductive Capacitance Sensor for Automotive Use, Oscilloscope Diagnostic Tool Featuring High-Voltage Inductive Ignition Probe Design, Secondary Description

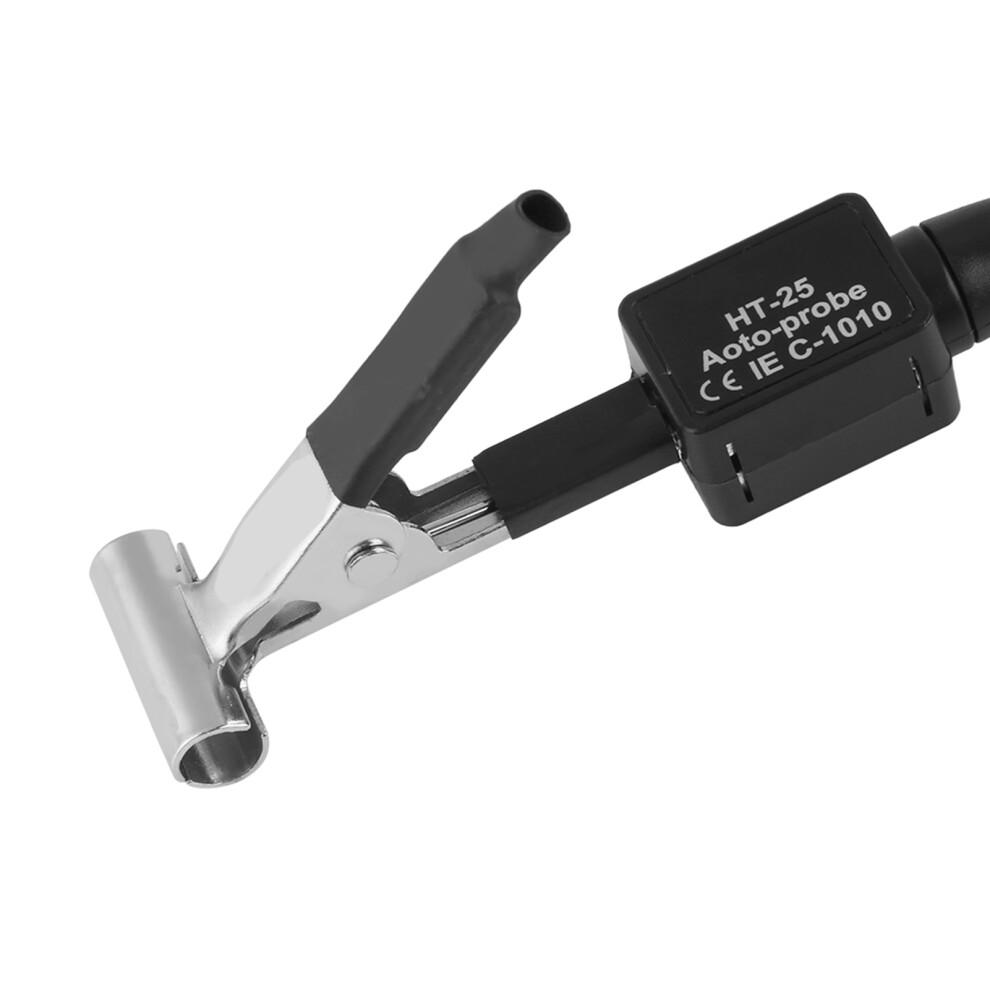

This inductive capacitance sensor is a vital tool for modern automotive diagnostics, enabling safe and accurate capture of high-voltage ignition signals. By coupling capacitively to spark plug wires, it eliminates the need for direct contact, reducing risks of electric shock or component damage. The probe supports detailed analysis of ignition waveforms, aiding in the diagnosis of engine misfires, faulty coils, and timing irregularities. With its durable construction and 10000:1 attenuation, it's ideal for use in workshops and field service environments requiring reliable, repeatable measurements. High-Voltage Inductive Ignition Probe : Specifically constructed to handle the extreme voltages generated during spark ignition, this probe safely couples with ignition cables to provide representative waveform data for diagnostic interpretation. Engine Ignition Position Diagnosis : Allows technicians to verify proper ignition sequencing and identify timing deviations by displaying cylinder-specific voltage patterns over time on connected oscilloscopes. Precision Signal Attenuation : The integrated pickup clip acts as a high-ratio attenuator, stepping down ignition pulses from tens of thousands of volts to safe, measurable levels compatible with standard test equipment. Universal BNC Compatibility : Connects effortlessly to most automotive oscilloscopes via a secure BNC interface, ensuring minimal signal loss and robust connection during live engine testing. Enhanced Safety Features : Designed with insulation and grounding protocols in mind, it includes a grounding clip to stabilize readings and prevent floating potentials, enhancing both user and instrument safety.
