Inductive Electronic Counter Panel JDM11‑6H 999999 Counts

Inductive Electronic Counter Panel JDM11‑6H 999999 Counts Description

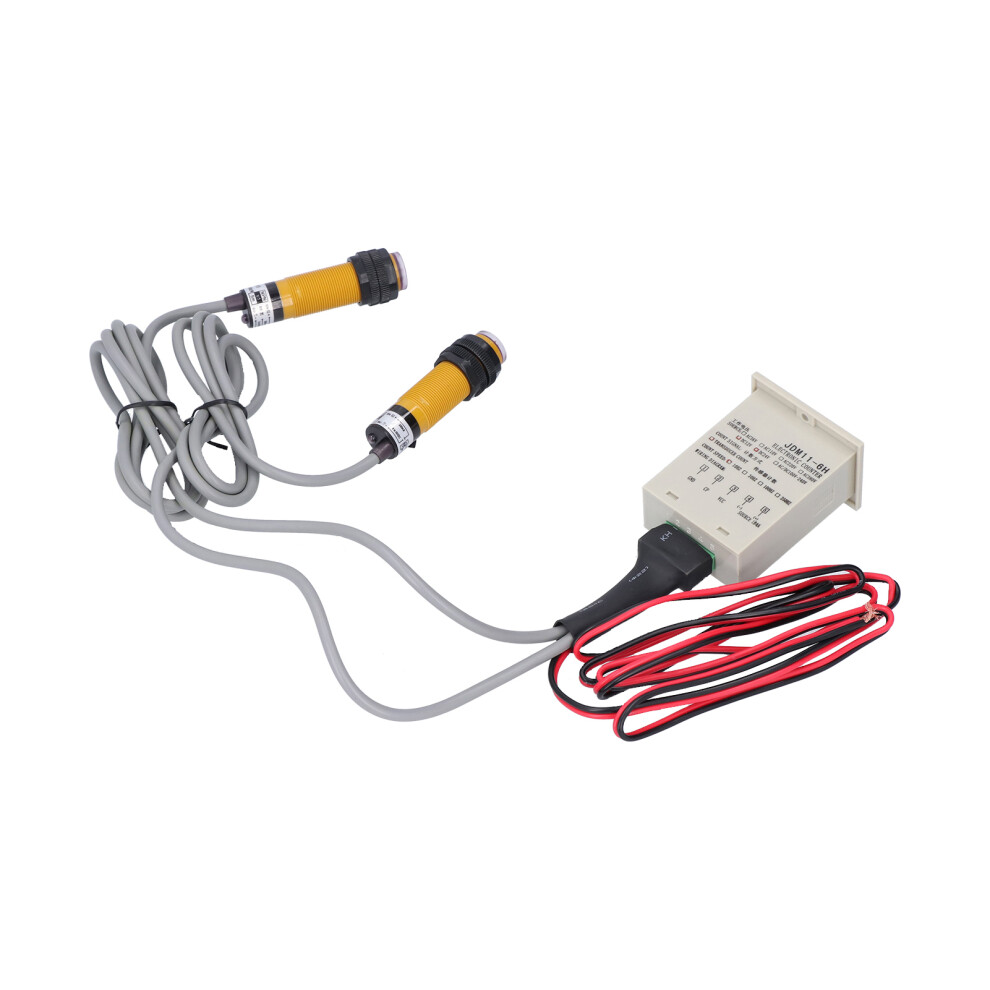

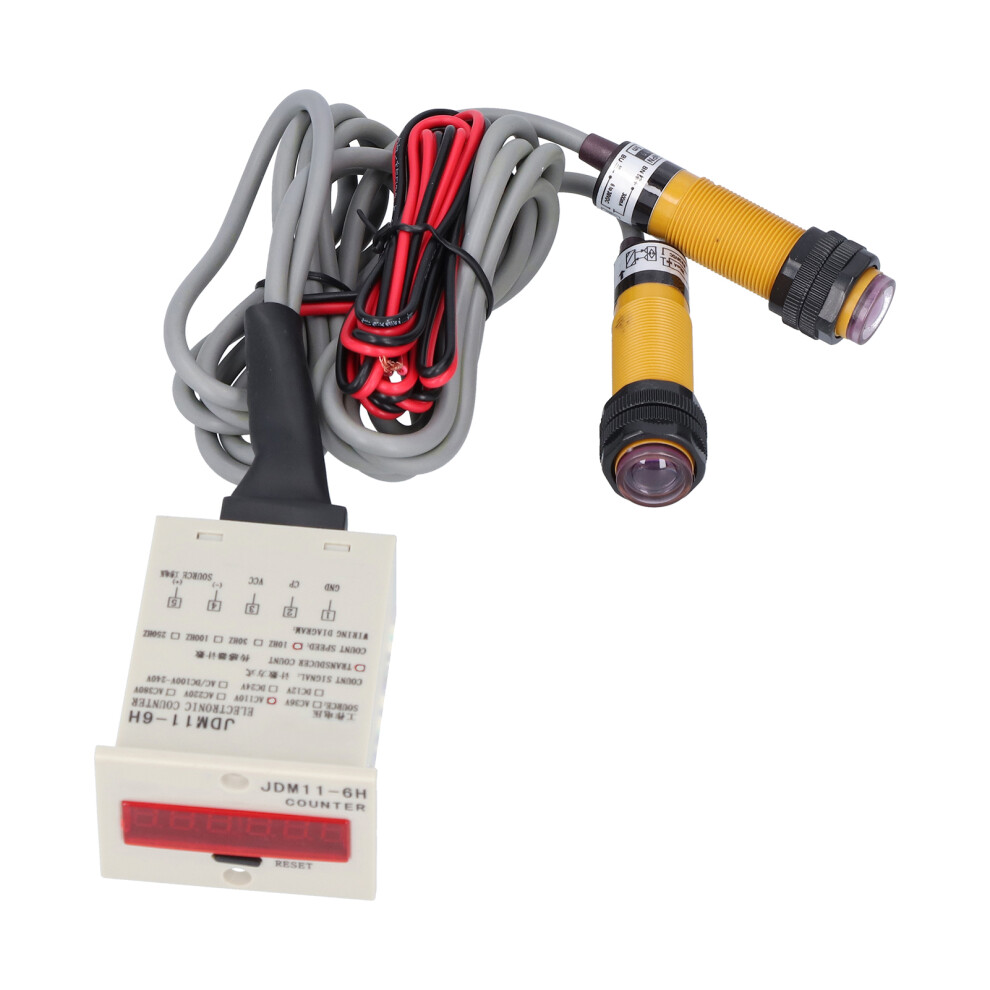

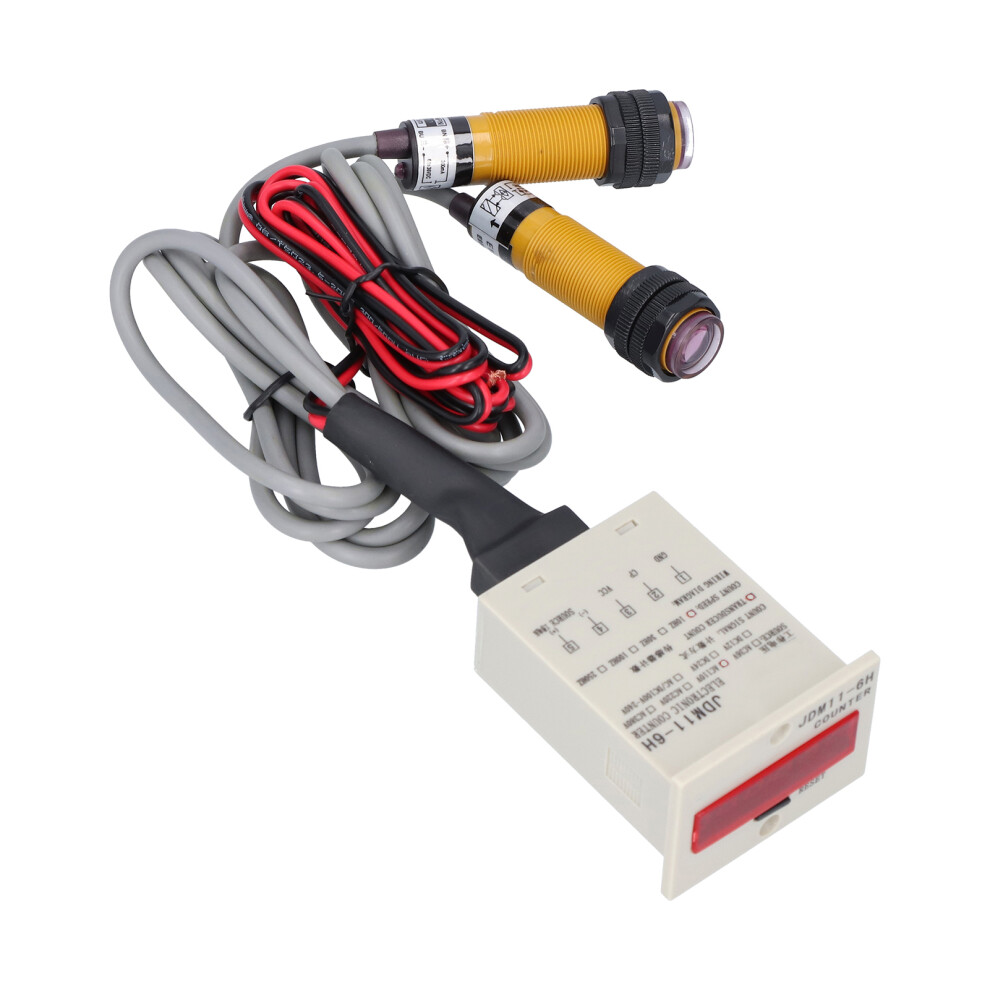

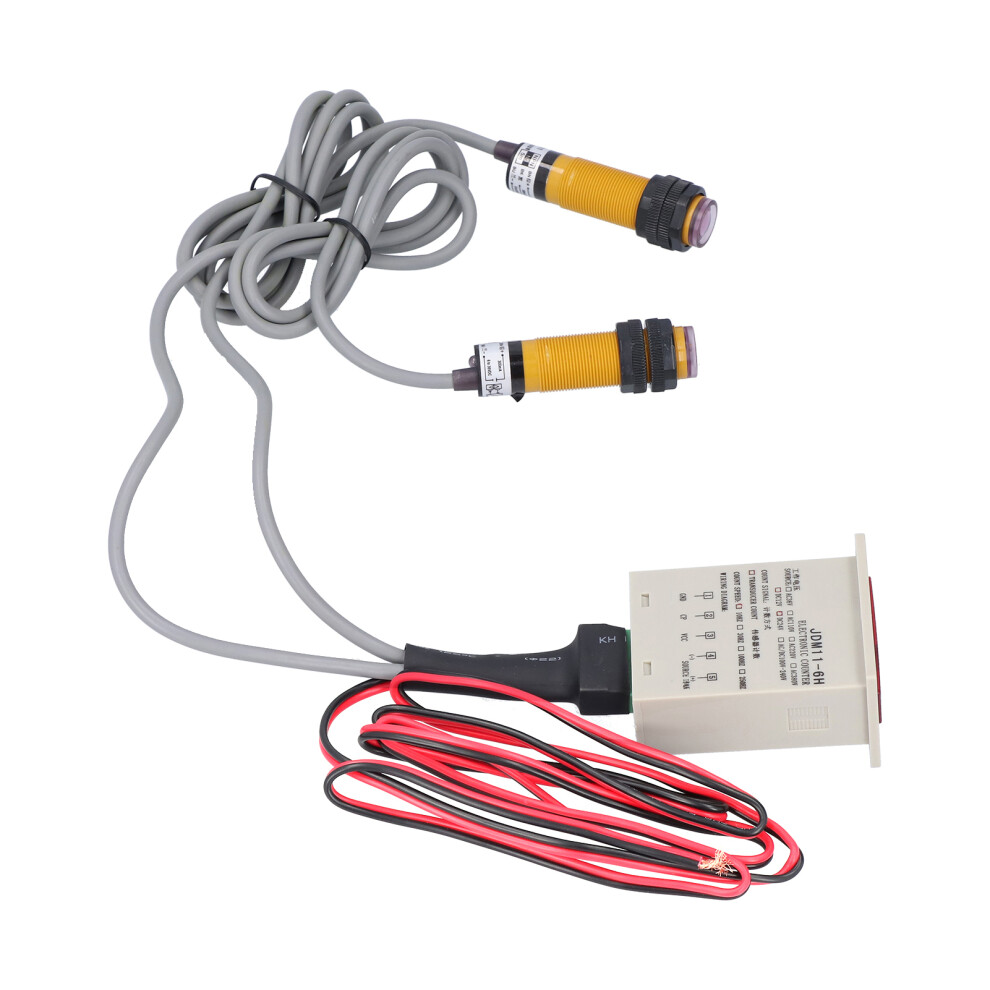

BERM LED Electronic Counter Inductive Digital Display Panel Install Counting Tool JDM11‑6HAC380V
Item Type: LED Electronic Counter
Product Model: BEM-6H-T3N1-L-CT
Counter Model: JDM11-6H
Power Consumption: 10W
Counting Range: 1-999999
Counting Speed: 10 times/s
Working Method: Continuous working system
Counting Method: Contact count, level count and sensor count
Operating Temperature: -5-45
Storage Temperature: -20-70
Reset Time: 0.5s
Power Restart: 1s
Sensing Distance: Approx. 5m / 16.4ftDetection Object: Transparent/opaque objects
Reset Method: Panel reset
Counting Error: 1
Data Retention: 10 years
Power Cord Length: Approx. 1.5m / 4.9ft
Sensor Cable Length: Approx. 1.15m / 3.8ft

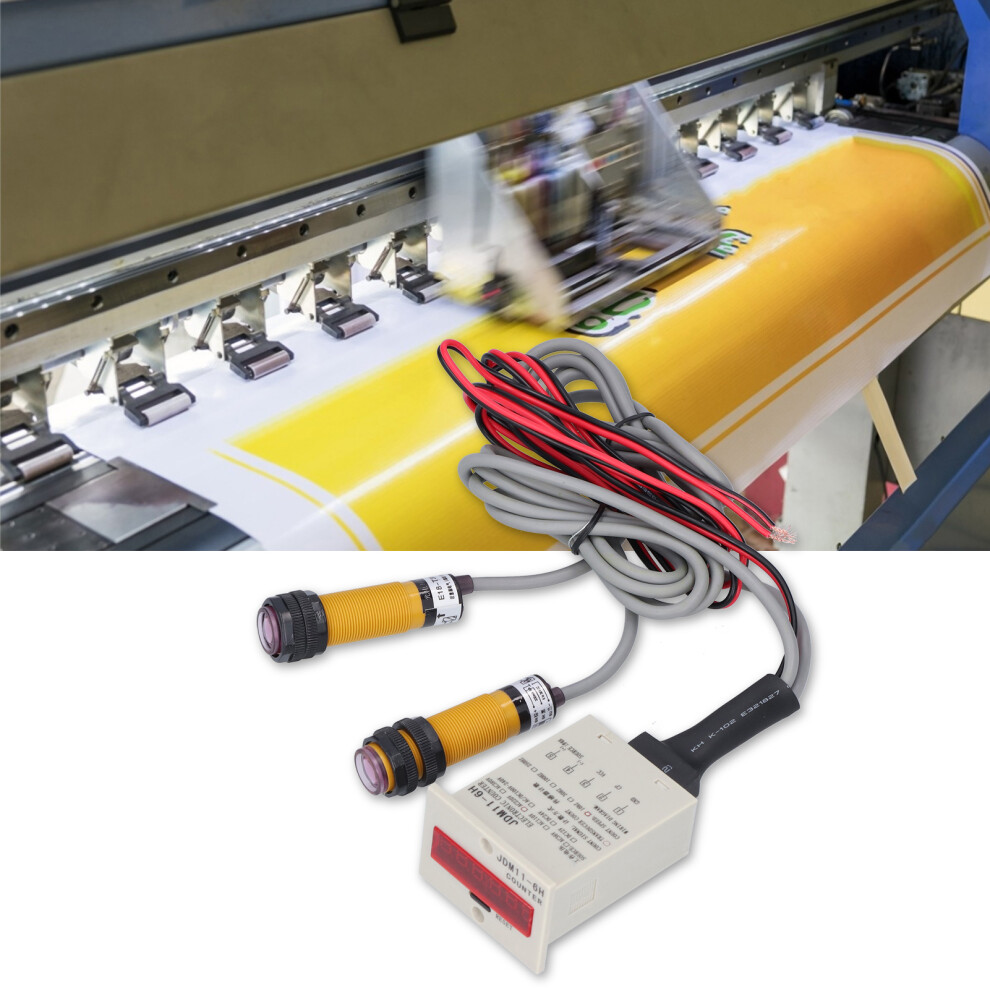

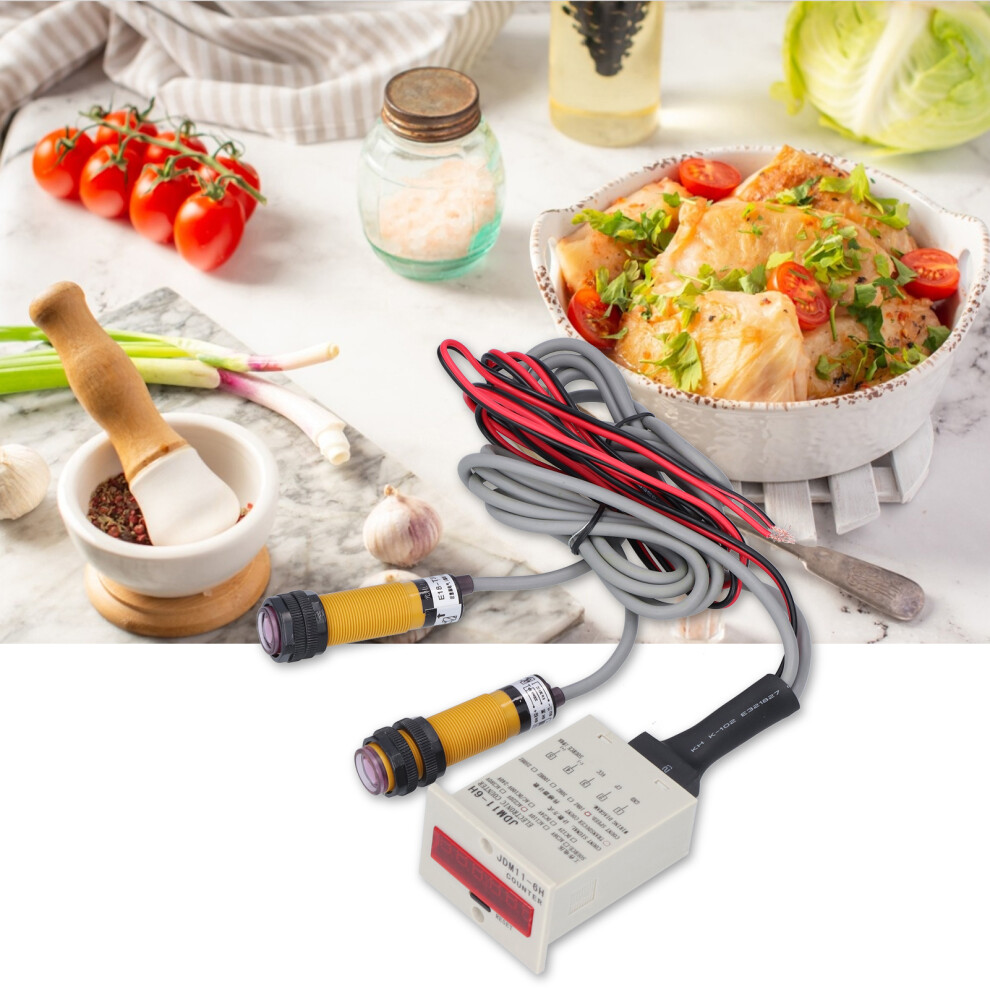

Application: Widely used in petroleum, chemical, textile, machinery, mining, national defense, agriculture, food, printing and other industries; but for the control of valuable equipment or the situations where the product is damaged and safety is endangered, please do a secondary protection.

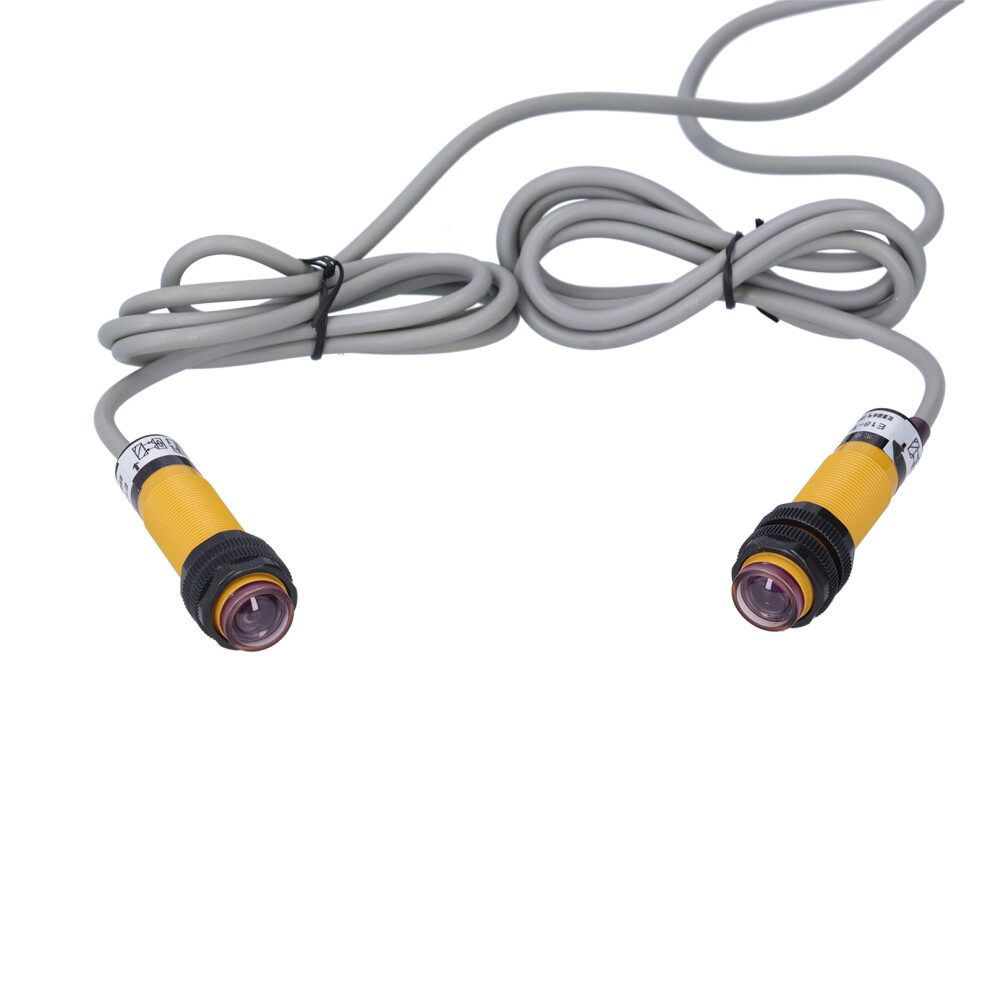

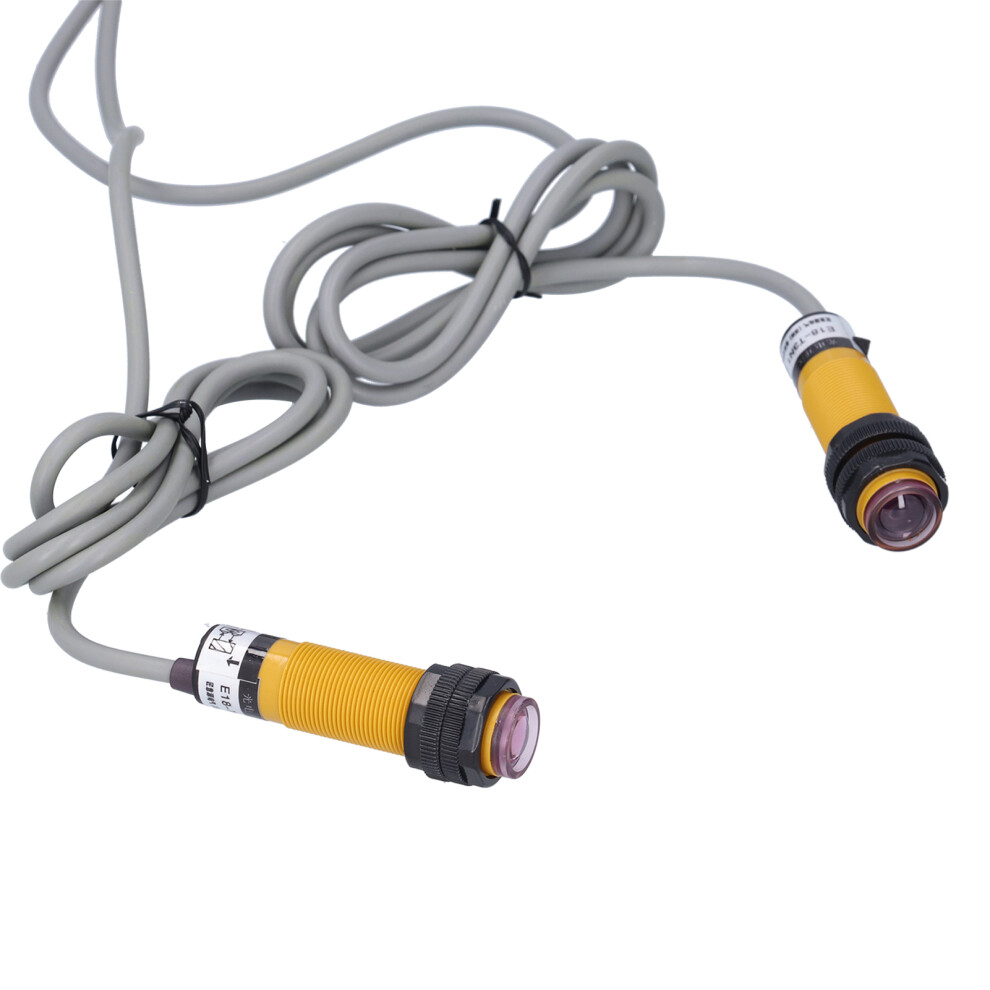

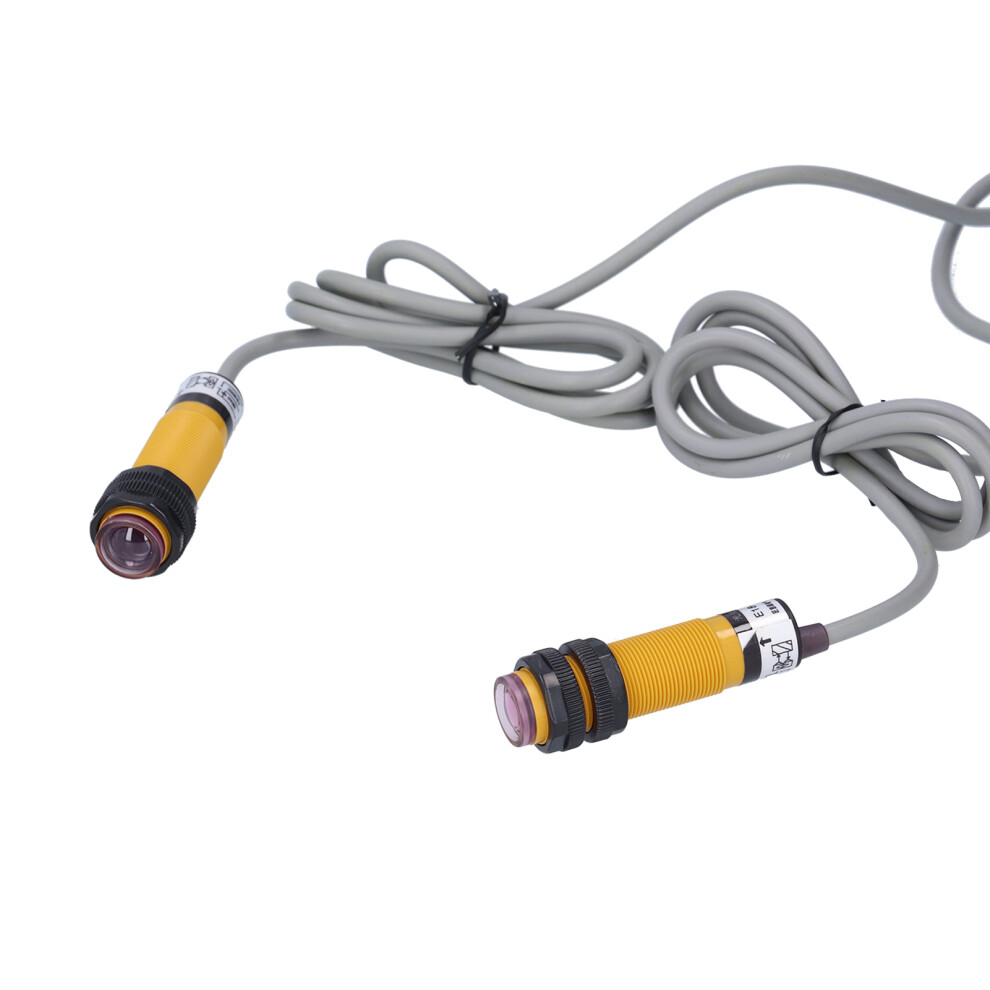

Working Principle: The sensing distance is 5m. When transparent/opaque object passes through the sensor, it starts counting.

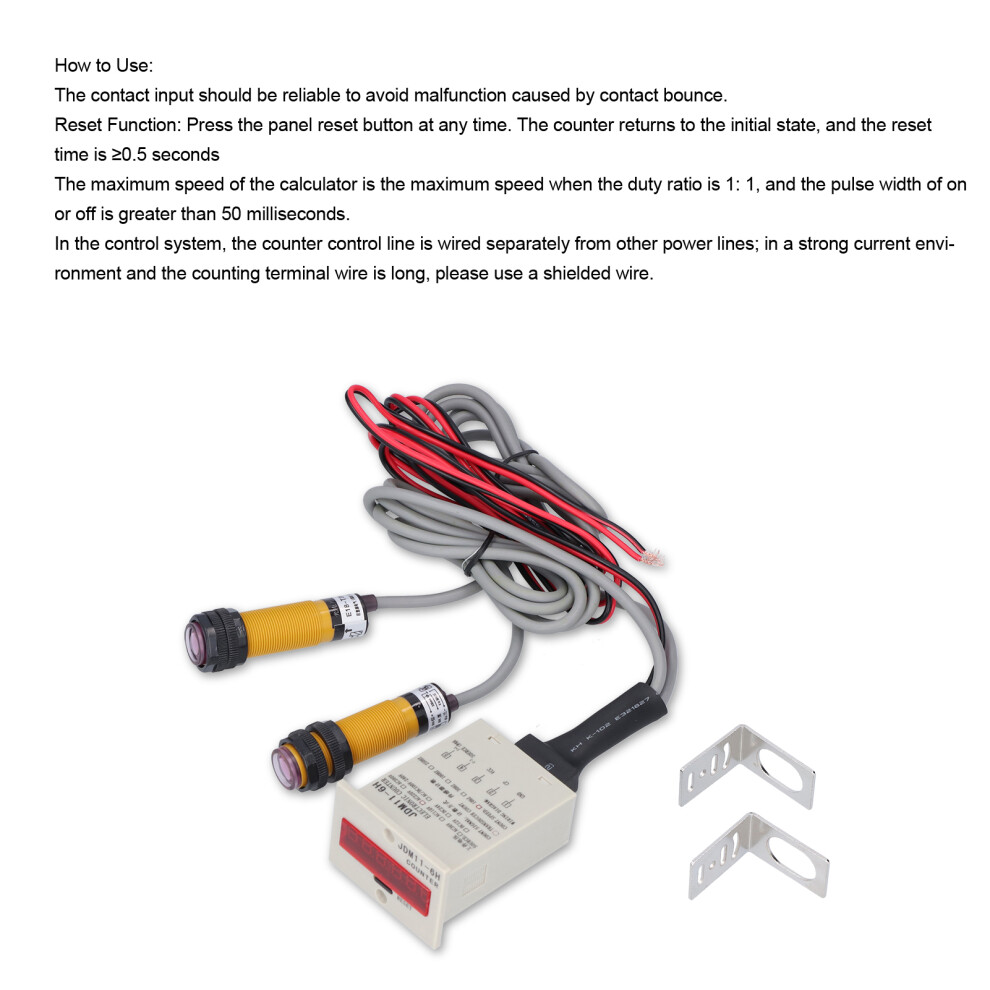

How e:
The contact input should be reliable to avoid malfunction caused by contact bounce.

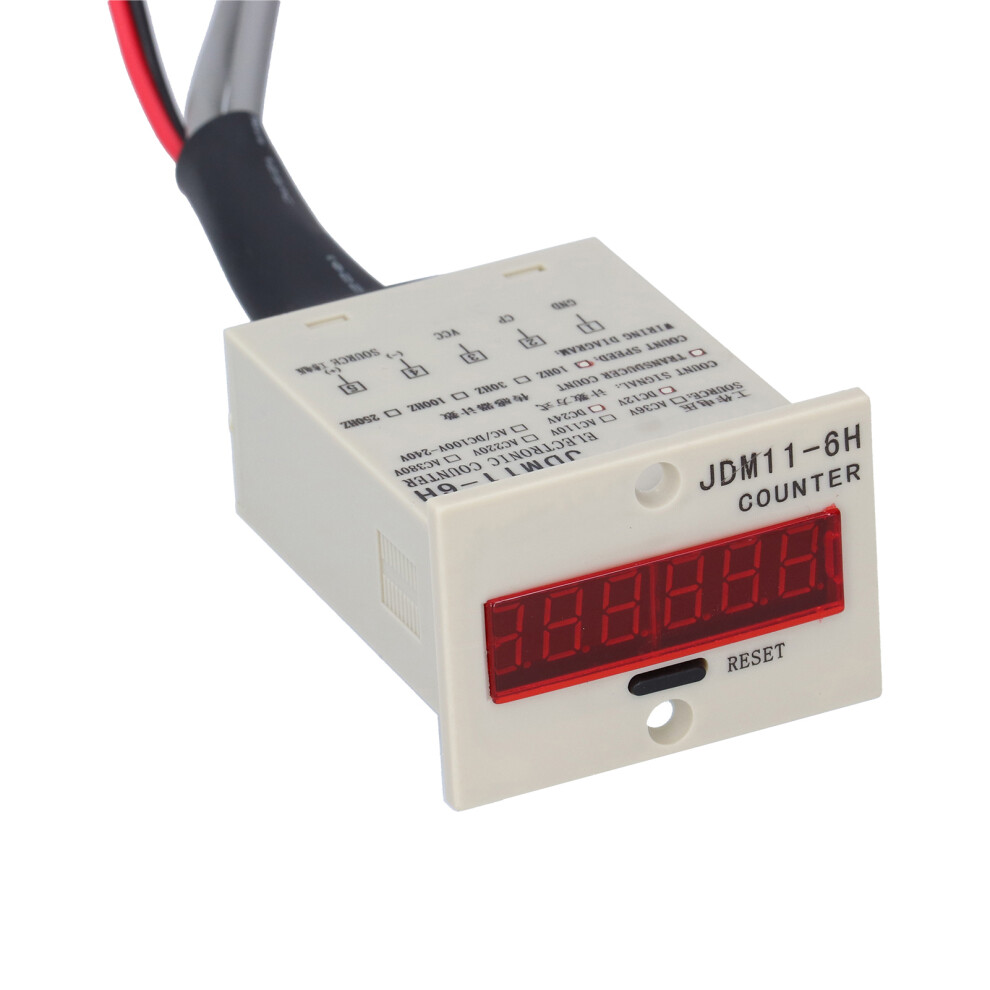

Reset Function: Press the panel reset button at any time. The counter returns to the initial state, and the reset time is 0.5 seconds
The maximum speed of the calculator is the maximum speed when the duty ratio is 1: 1, and the pulse width of on or off is greater than 50 milliseconds.
In the control system, the counter control line is wired separately from other power lines; in a strong current environment and the counting terminal wire is long, please use a shielded wire.
