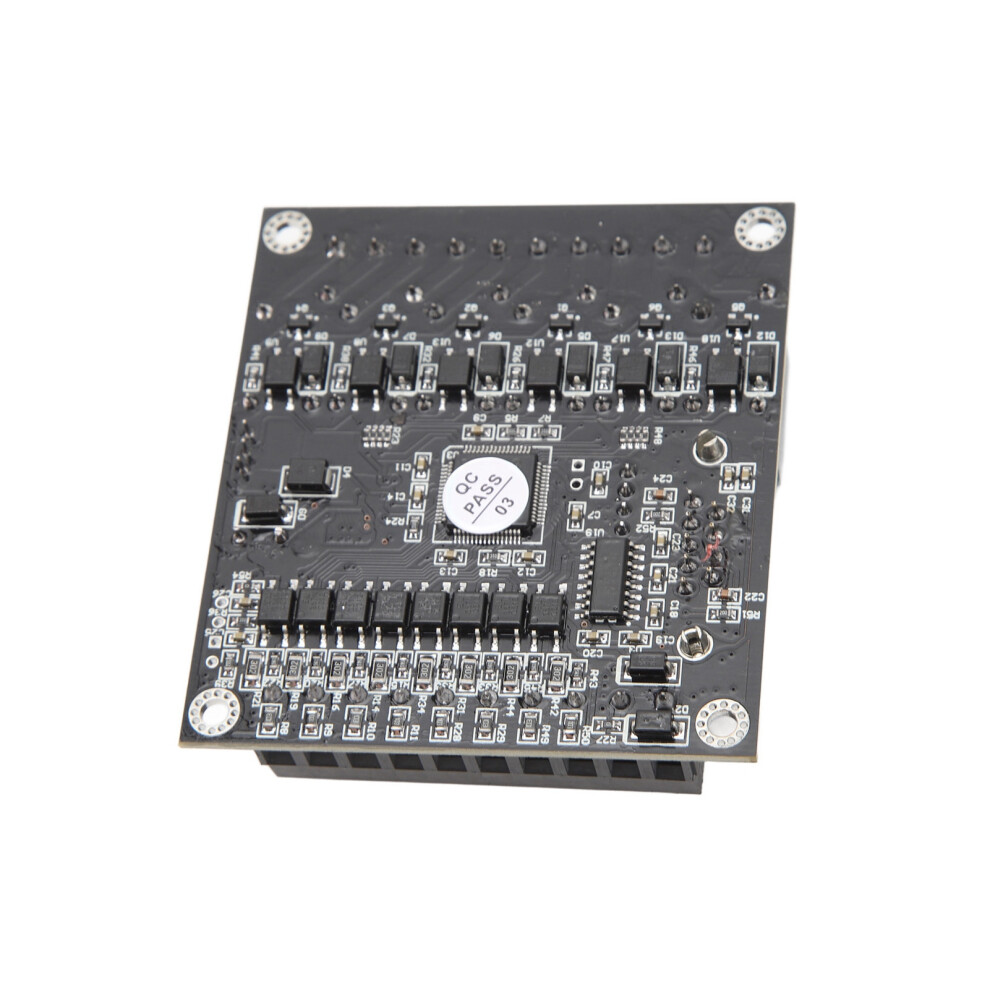

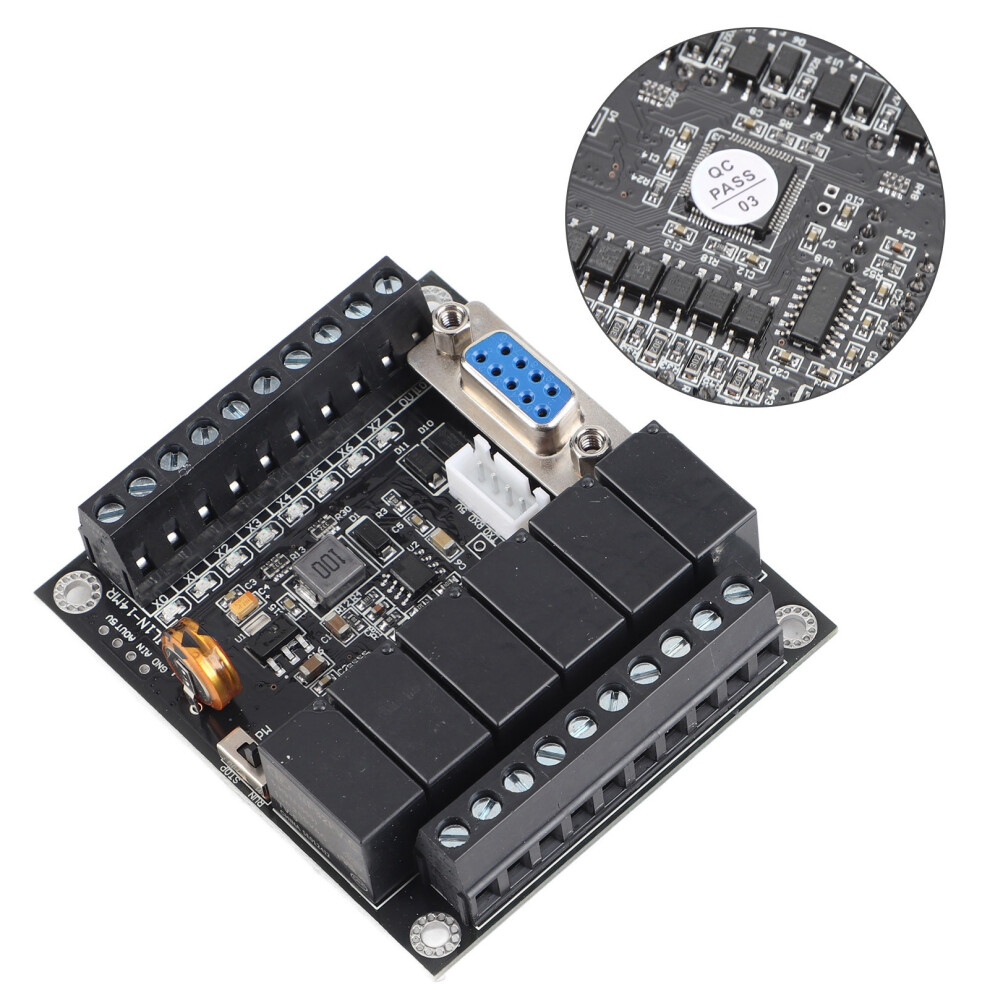

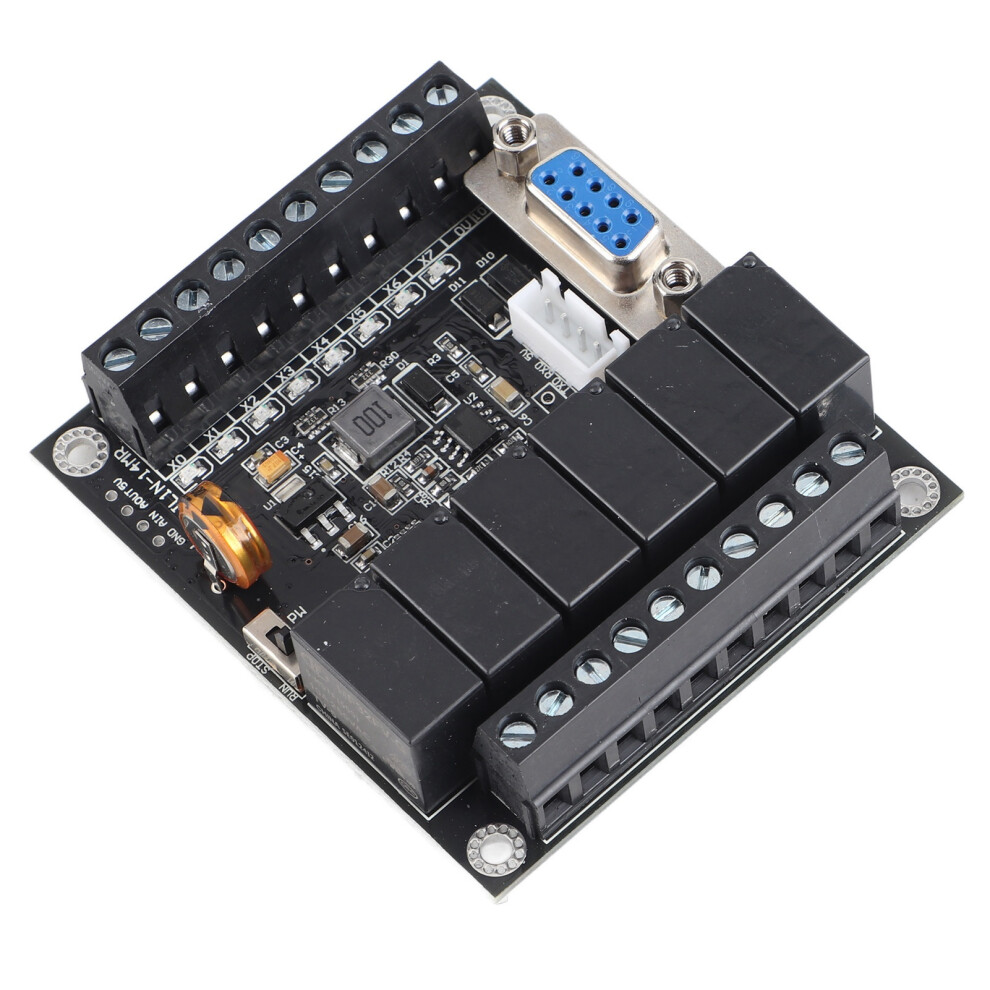

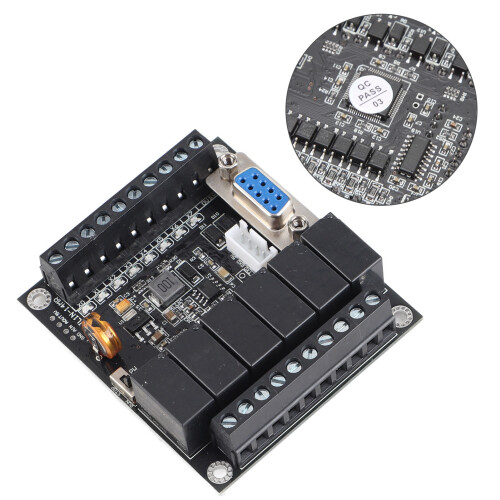

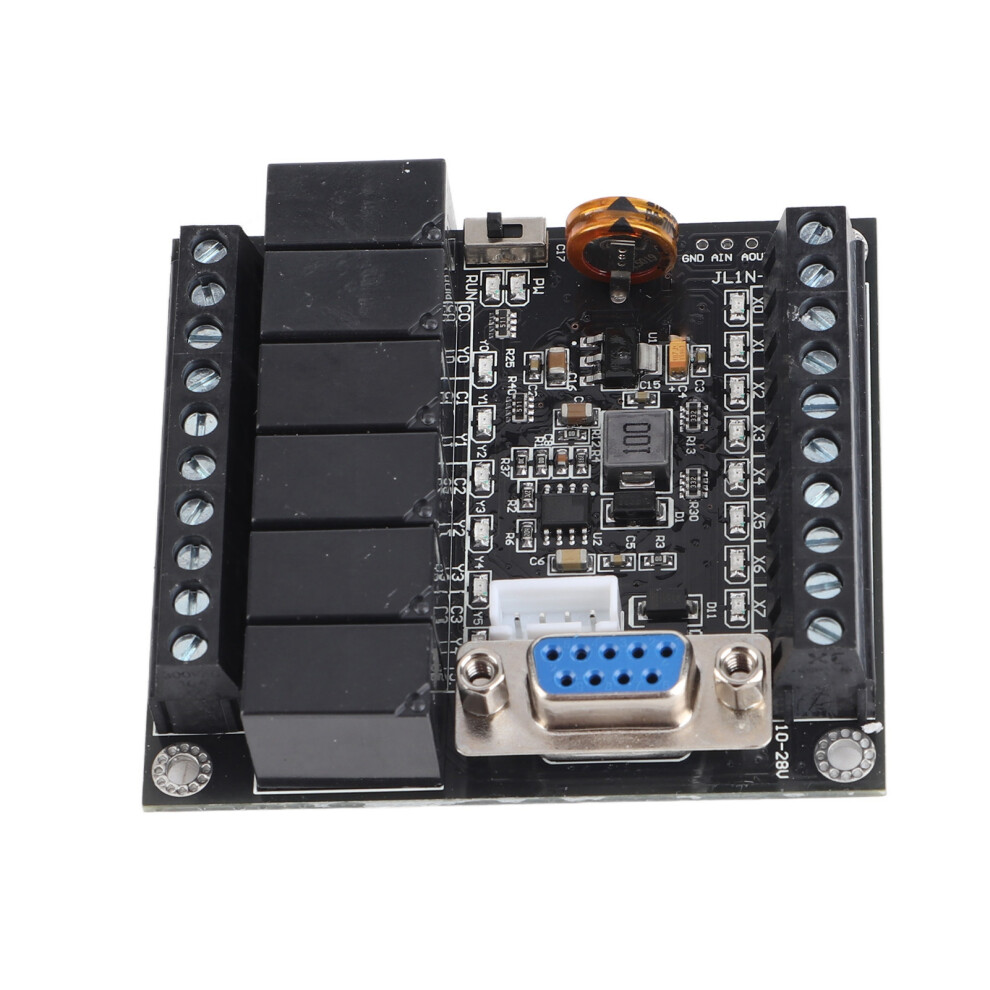

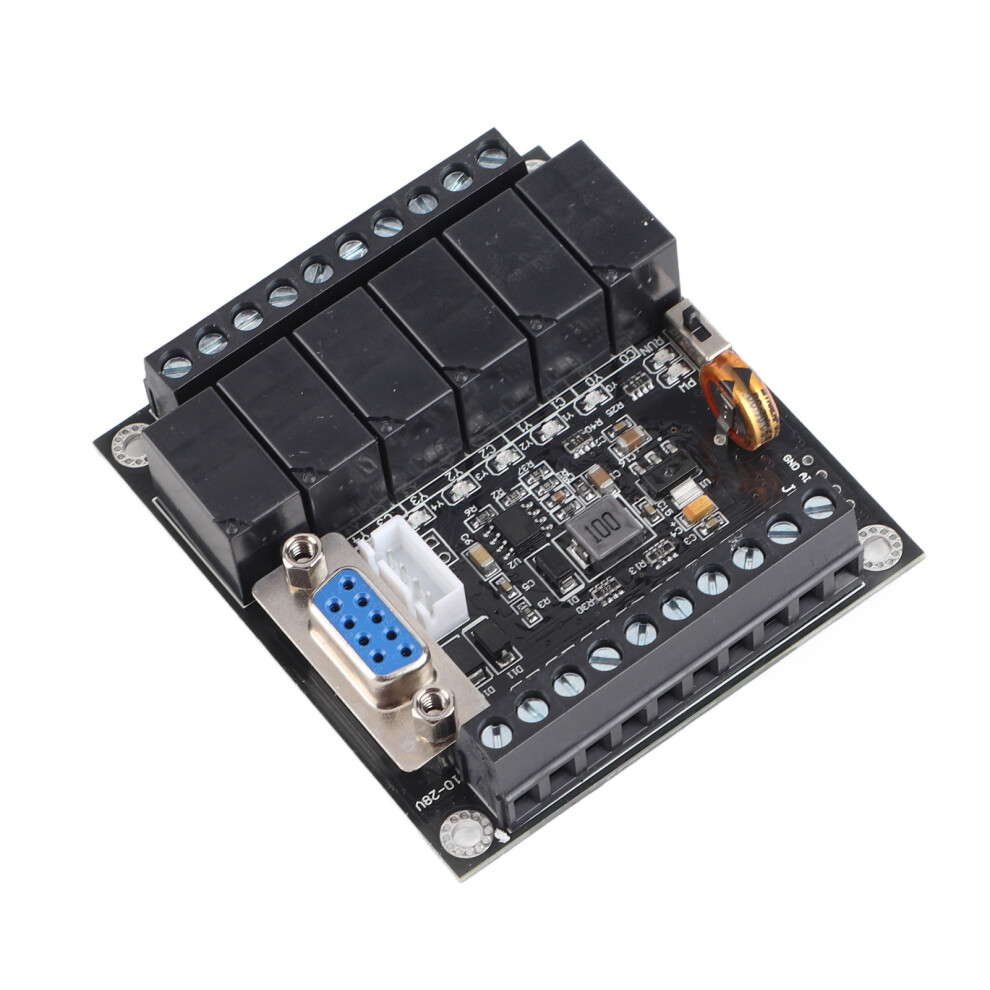

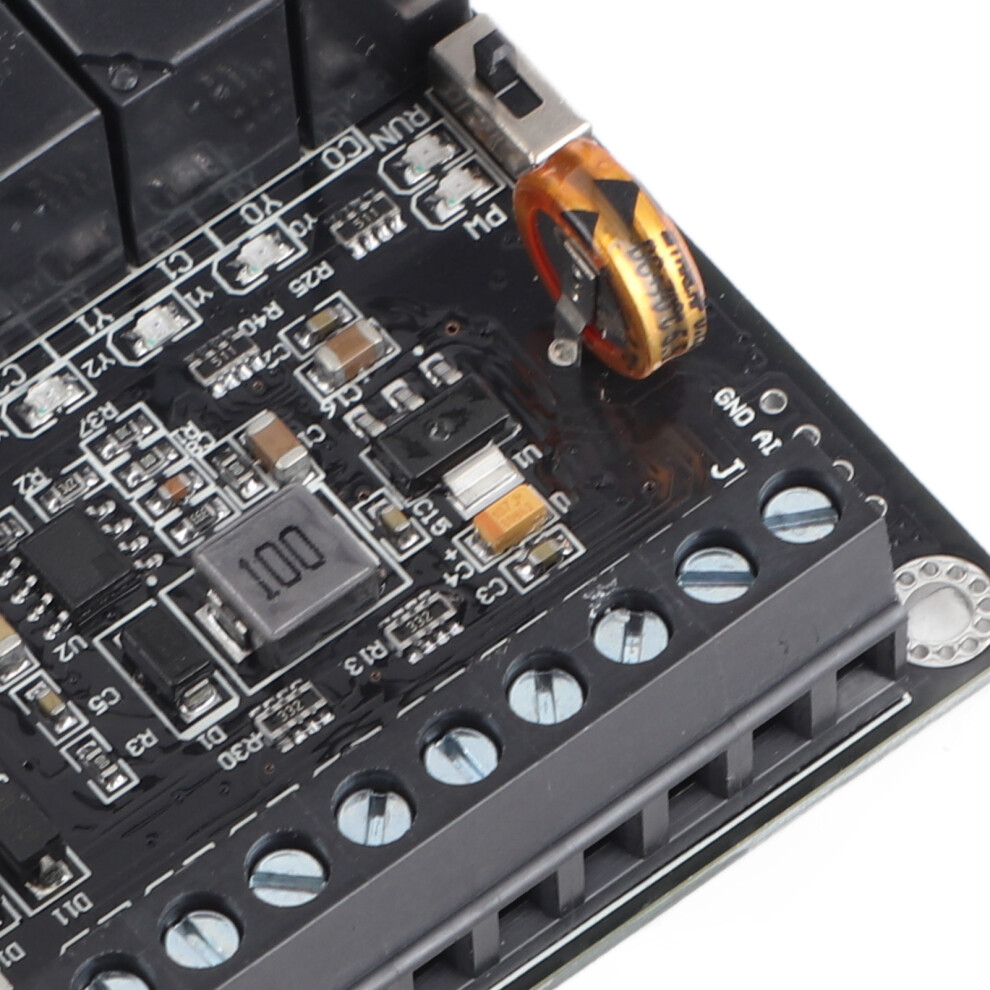

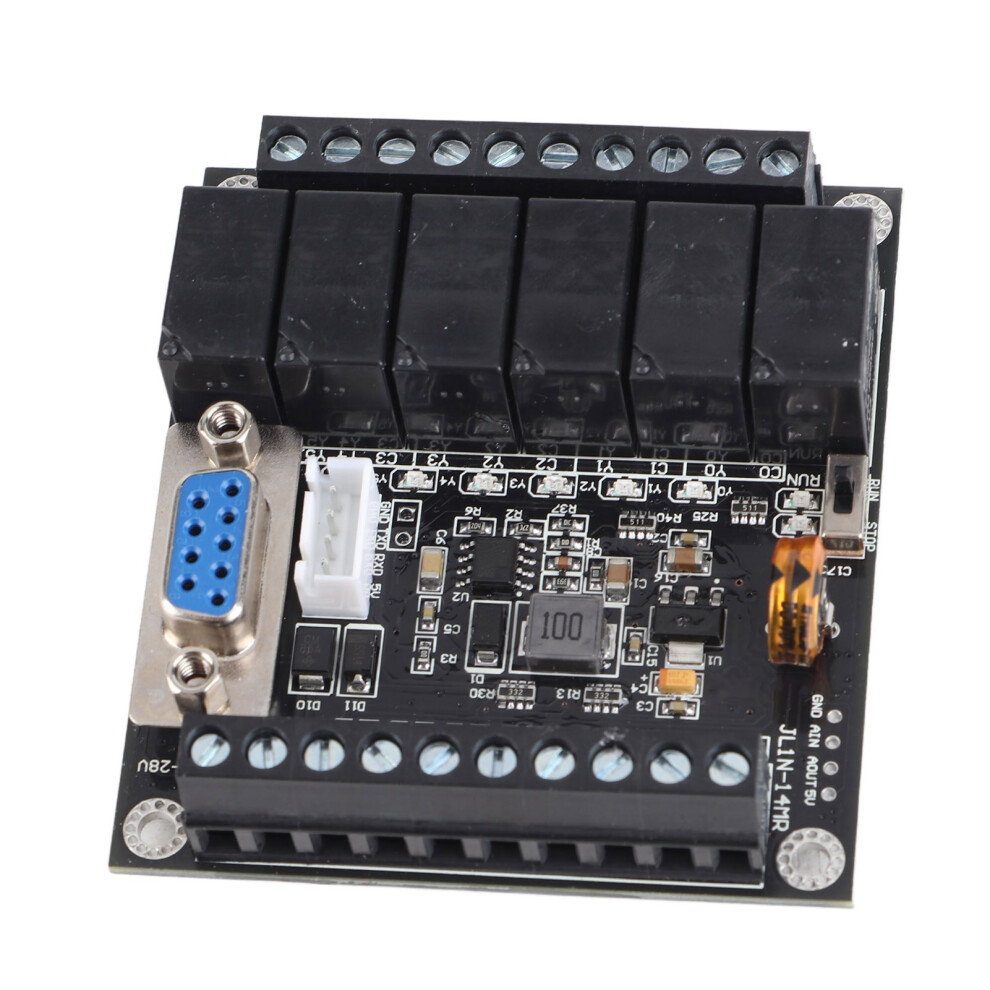

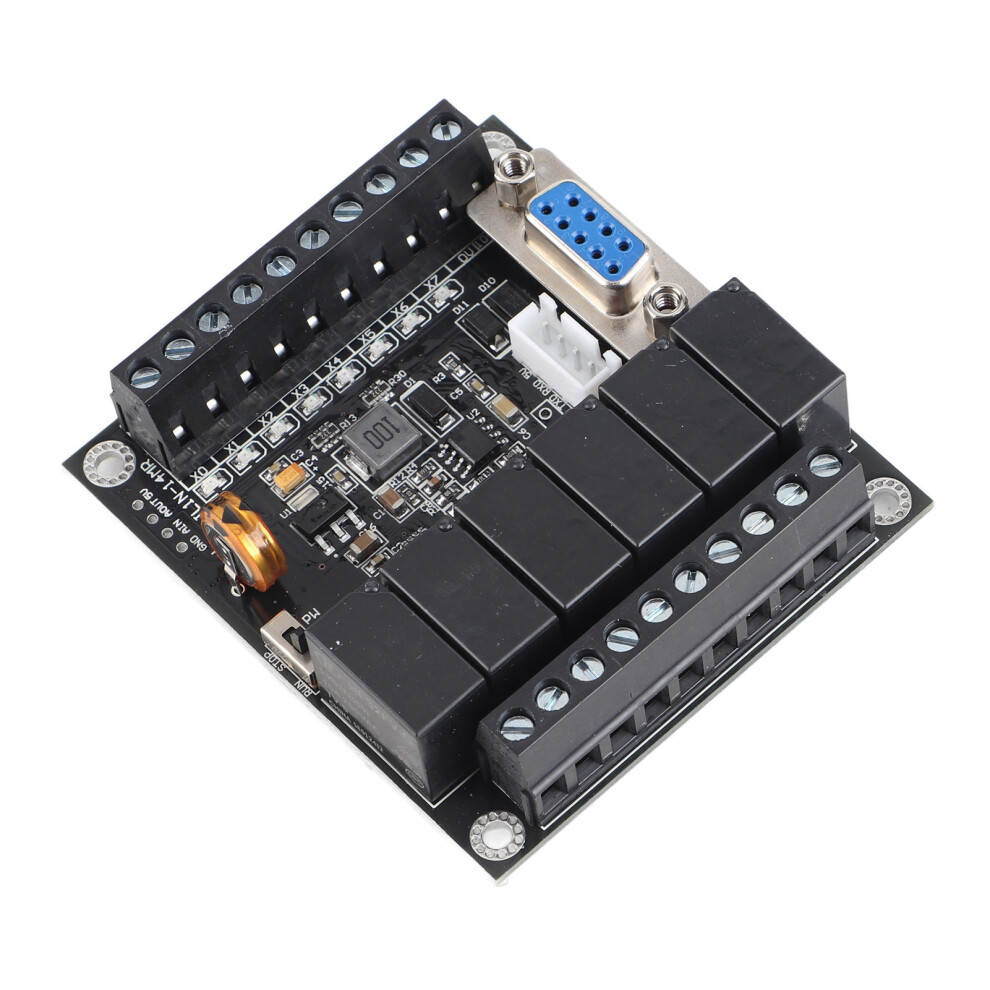

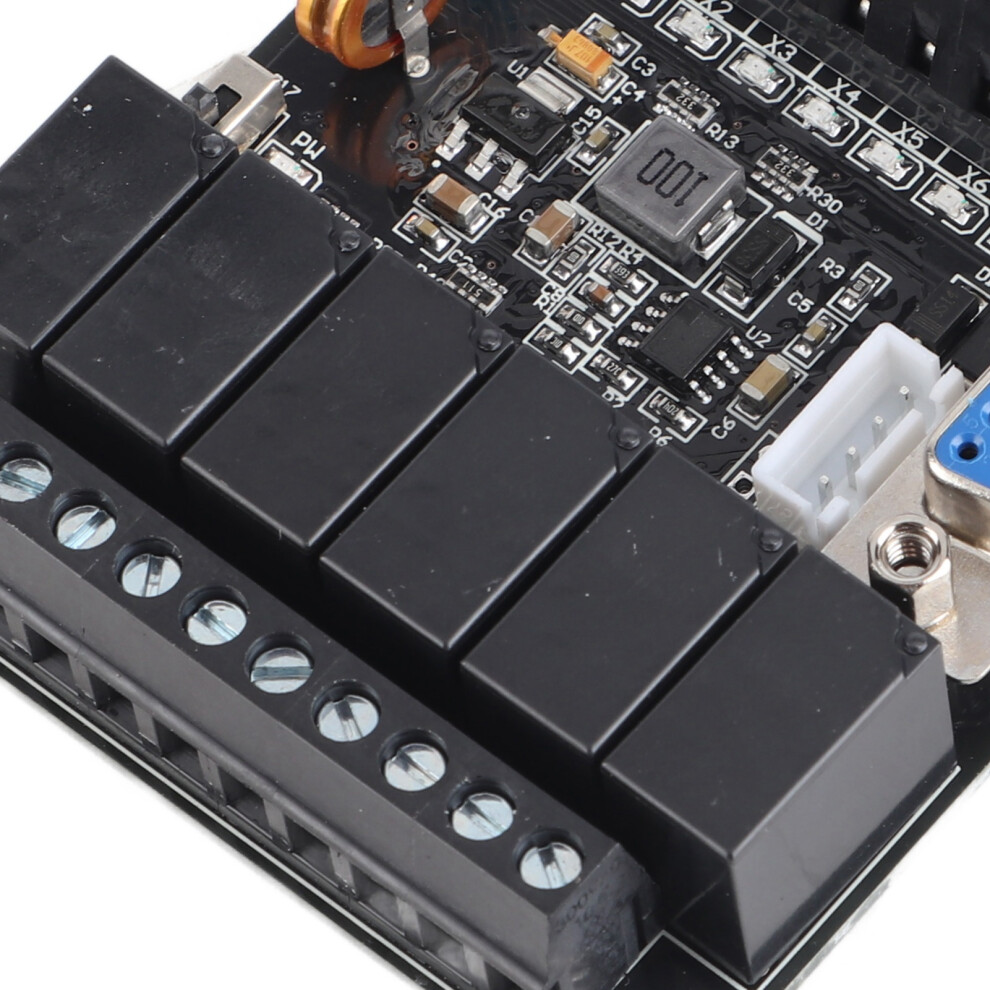

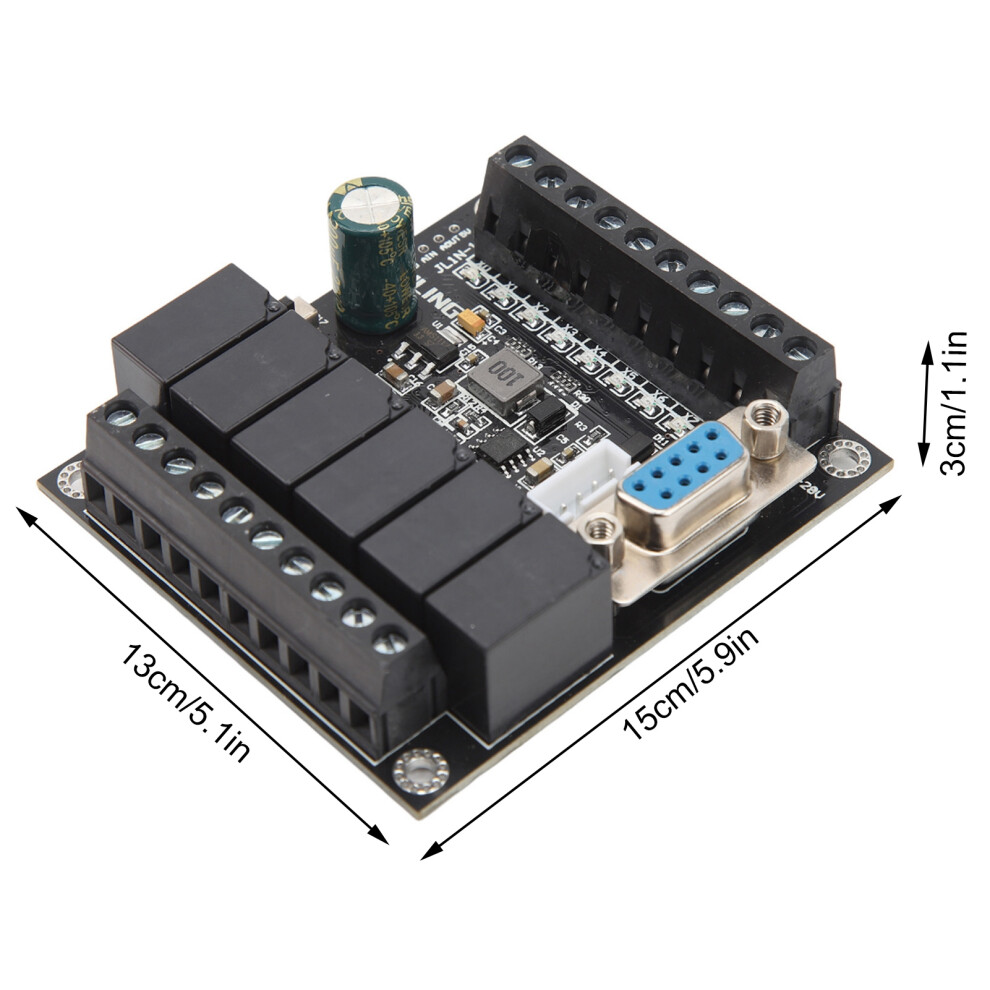

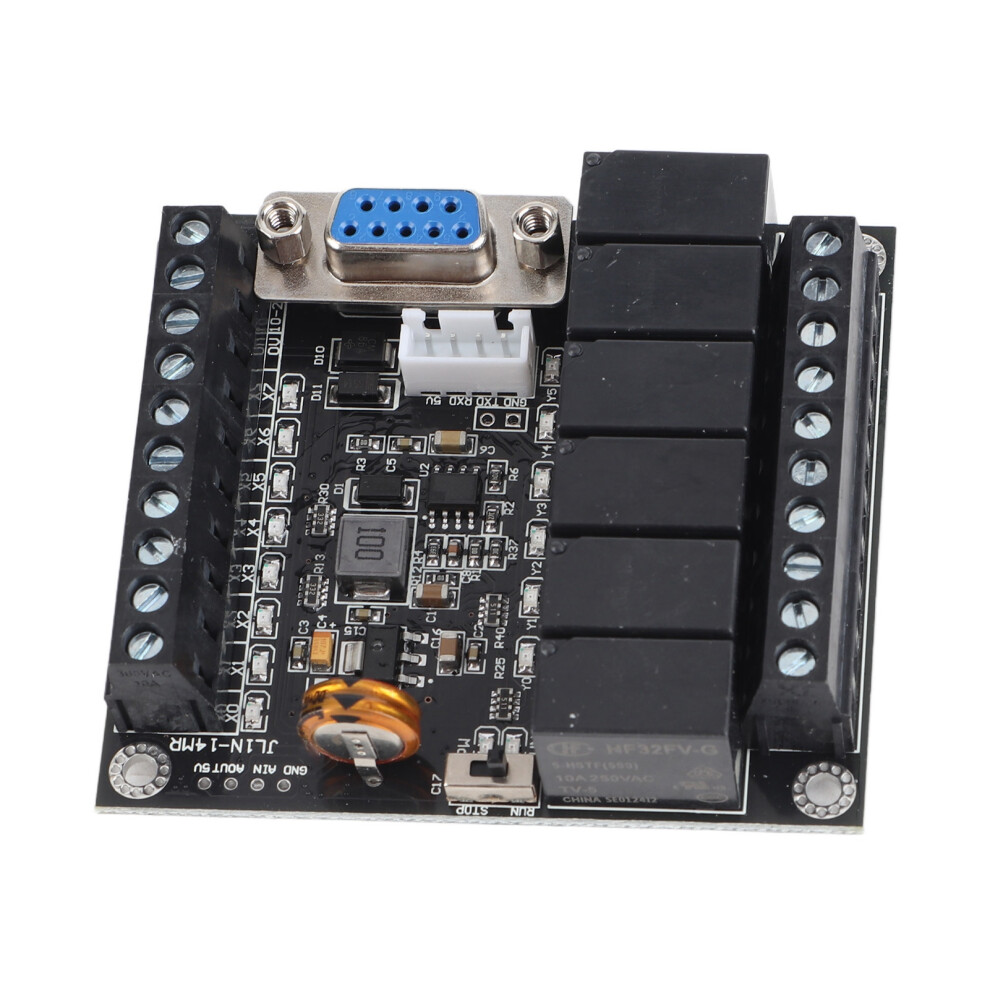

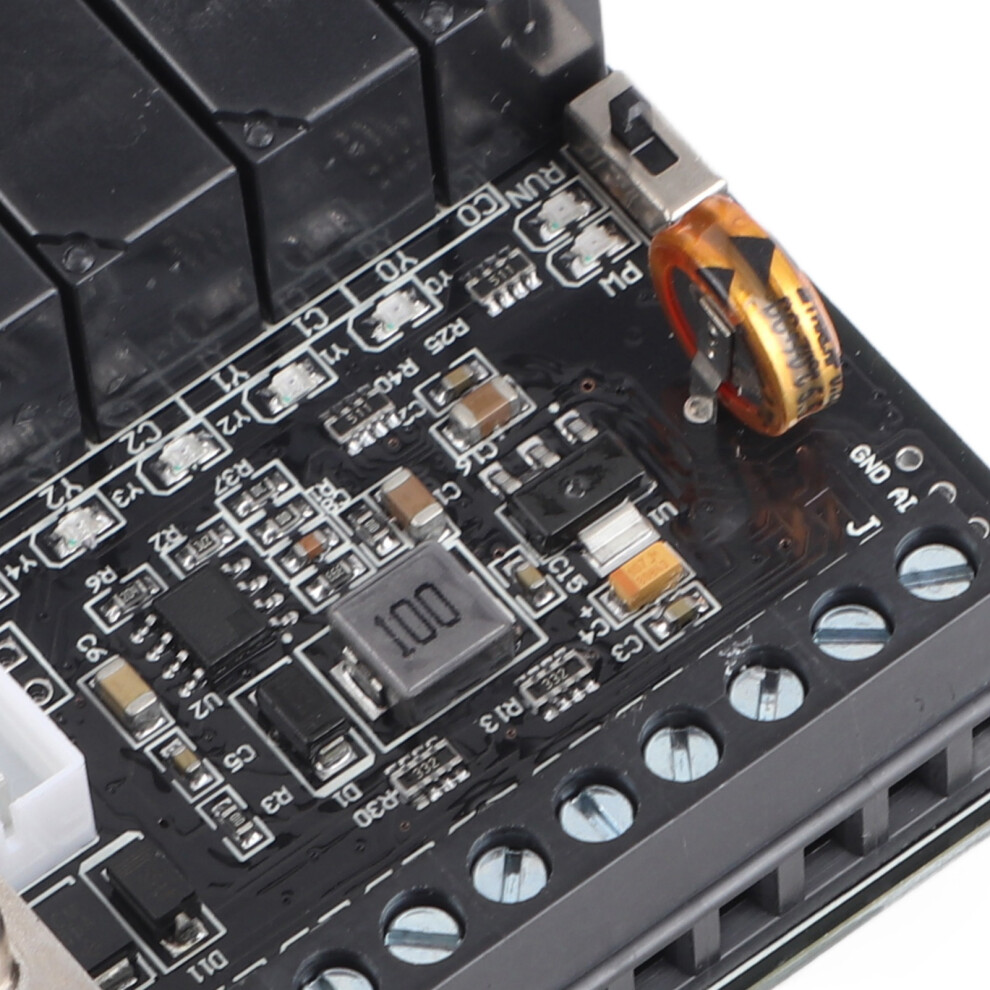

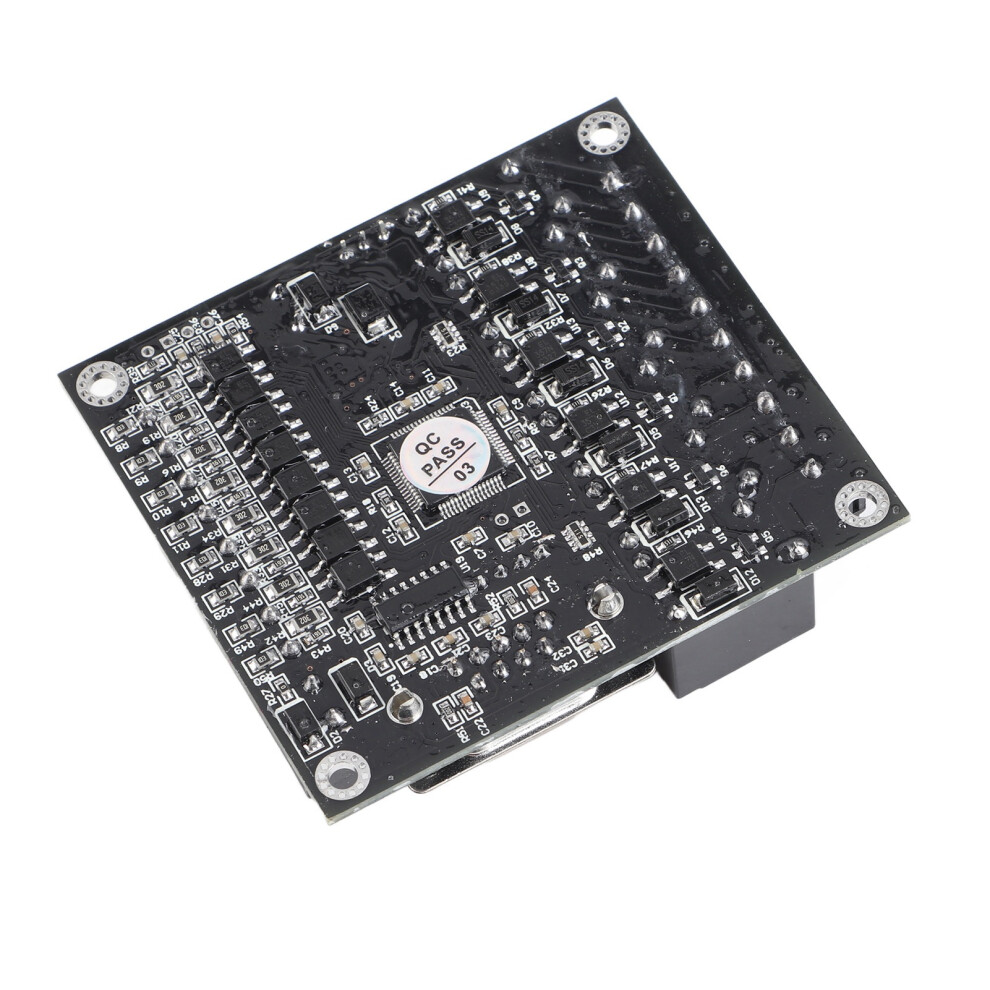

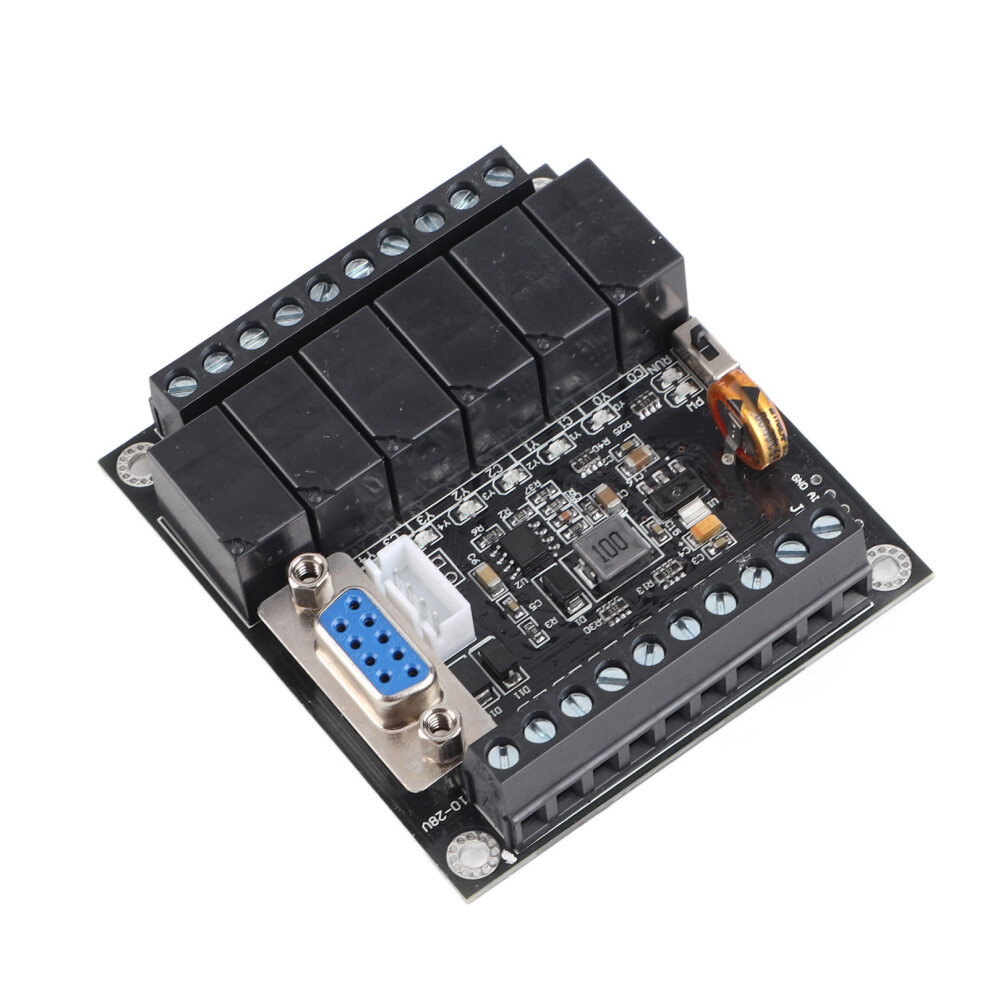

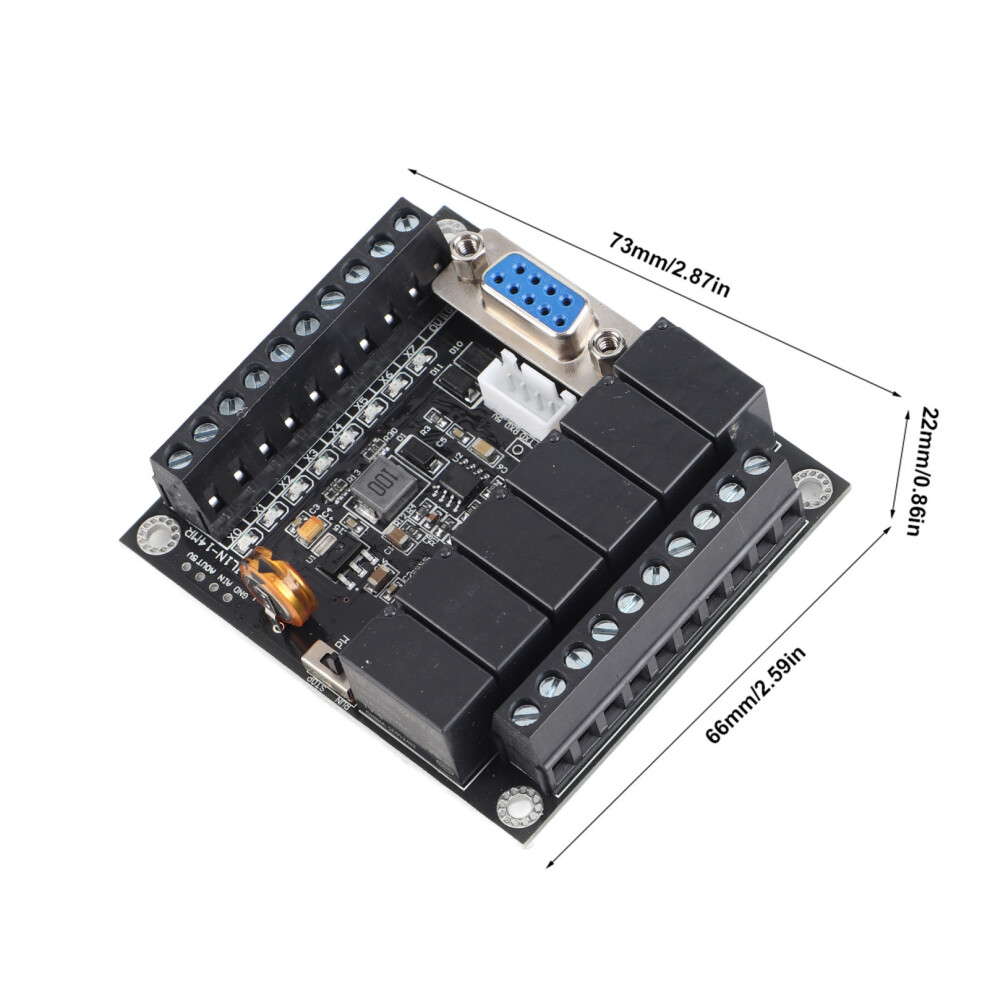

Industrial FX1N‑14MR PLC Control Board with Relay Function for Manufacturing

Industrial FX1N‑14MR PLC Control Board with Relay Function for Manufacturing Description

PLC Industrial Programmable Control Board FX1N‑14MR Relay Controller Module

Features:

The PLC adopts strong anti-interference industrial-grade 32-bit MCU, and supports for GX Developer and GX Works2.


It
supports super encryption, as long as input the keyword 11111111 under
PLC state, there is no read function, only can download program in order
that user program cannot be cracked.

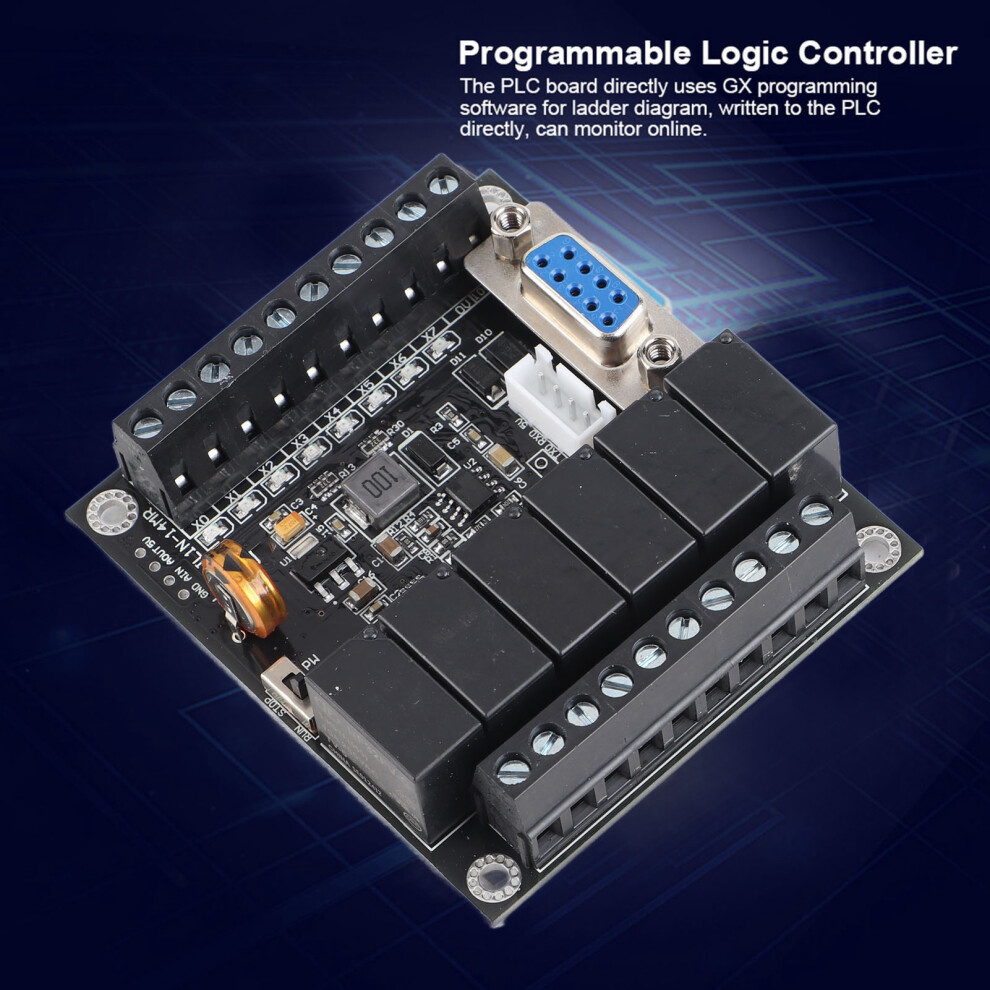

The PLC board directly uses GX programming software for ladder diagram, written to the PLC directly, can monitor online.


Comprehensive
and systematic anti-interference processing, power supply circuit has
multiple anti-interference design and can work in adverse
electromagnetic interfere environment.


Widely used in all
kinds of industrial automatic control, such as metallurgy, chemical,
plastics, textile, food, packaging, printing, building materials,
carpentry, central air conditioning, environmental protection equipment
and industrial single process control equipment in industrial assembly
line, various kinds of machine tools.


Specifications:



Model


FX1N-14MR


Output Type


Relay Output




Input Points


8 points


Output Points


6 points




Power Supply Voltage


DC24V


Memory Capacity


8000 steps




High Speed Input


3K/AB phase


High Speed Output


No




Connecting to Text Screen


Support


Connecting to Touch Screen


Support




Programming Software


GX Developer or GX Works2




Operational Control
Mode


Store program repetitive scanning mode




Input Output Control
Mode


Batch processing mode(when execute END command, input output
refresh command,with pulse capture function)




Programming Language


Relay symbol mode+stepper ladder diagram mode(or SFC)




Ladder Diagram
Programming Software


GX-Developer




Program Memory


Program Capacity,Form


Buit-in 8K steps EEPROM(no need storer battery support)




Command Type


Sequence Control Command


27




Step Ladder Diagram Command


2




Basic Apply Command


102




Operation Processing Speed


Basic Command


0.15-0.5us/command




Apply Command


0.5~10us/command




Input Output Points


Input Points


Input:
opto-isolator
X000~X17(octal number)
All input points can be set filter time 0-255mS by software




Output Points


Relay
Y00-Y15(octal number)




Auxiliary Relay


Normal Use


M0~M383  384
points




Hold Use (EEPROM Hold)


M384~M1535  1152 points




Special Use


M8000~M8255  256 points




State


Original State Use (EEPROM Hold)


S0~S9  10
points




Hold Use (EEPROM Hold)


S10~S999 990 points




Timer
(Delay Set ON)


100ms


T0~T199  200 points
(0.1~3,276.7 seconds)


VR1: D8030
VR2: D8031
VR3: D8032




10ms


T200~T245 46 points
(0.01~327.67 seconds)




1ms accumulative


T246~T249  4 points
(0.001~32.767 seconds)




100ms accumulative


T250~T255  6 points
(0.1~3,276.7 seconds)
EEPROM hold




Counter


16-bit Add Mode


C0~C15  16
points(0~32, 767 counter)




16-bit
Add Mode
(EEPROM Hold)


C16~C199  184
points (0~32, 767 counter)




32-bit High Speed Dual Direction


C200~C219  20 points
(-2,147,483,648~+2,147,483,647) count




32-bit
Add/Minus Dual Direction
(EEPROM Hold)


C220~C234  15 points
(-2,147,483,648~+2,147,483,647) count




High
Speed Counter
(EEPROM Hold)


C235~C255




Data
Register
(use a pair as 32-bit)


16-bit Common Use


D0~D127  128
points




16-bit
Hold Use
(EEPROM Hold)


D128~D2047   1920 points




16-bit
Special Use


D8000~D8255  256 points




16-bit
Modify Address


V0~V7, Z0~Z7  16 points




Pointer


 JAMP, CALL Branch Use


P0~P127  128
points




Nest


Master Control Use


N0~N7  8
points




Constant


Decimalism (K)


16-bit:
-32,768~+32,767
32-bit: -2,147,483,648~+2,147,483,647




Hexadecimal
(H)


16-bit: 0~FFFF
32-bit: 0~FFFFFFFF




Package Includes:
1 x PLC
