Industrial Microscope Camera 48MP 2K 1080P 60FPS USB C Mount Lens

Industrial Microscope Camera 48MP 2K 1080P 60FPS USB C Mount Lens Description

1、Multi Purpose: Industry microscope camera can be widely used in maintenance industry, jewelry, printing, mobile phone repair and other fields. 2、Characteristic: The high definition camera adopts 48MP CMOS sensor, 180X C Mount Lens, with high definition multimedia interface and USB interface, clear and easy to operate. 3、Operating System: Inspection microscope camera supports multiple systems, including for Windows XP 7 8 10. When connecting the camera to the computer, just plug in the USB cable. 4、High Resolution: Industrial inspection microscope camera has high resolution, uses C Mount Lens, and the video resolution is 2.7K, 30FPS, 1080p, 60FPS. 5、Premium Material: Industrial inspection microscope camera adopts high hardness metal and plastic shell, which is sturdy, durable and long use life.
Item Type: Microscope Camera
Material: Metal, Plastic
Sensor: 48MP CMOS
Optical Format: 1/2.3in
Pixel Size: 1.335μm x 1.335μm
Interface: High Definition Multimedia Interface (Class A). USB (Type B). Small Memory Card
High Definition Multimedia Interface Image Resolution: 48MP
Video Resolution: 2.7K, 30FPS, 1080p, 60FPS
High Definition Multimedia Interface Resolution: 1920 x 1080p 60FPS
High Definition Multimedia Interface Ratio: Support 4:3, 16:9, 16:10 Screen
USB 2.0 (Drive Free): 1920 x 1080 (30FPS) 1280 x 720 (30FPS)
Small Memory Card: Up To 128GB (Not Included)
AWB: AWB Color Correction, Automatic, Manual
R.G.B Value Setting Independent
Exposure: Auto Manual. AE Value Can Be Set
Cross Line: 8 Lines, Color, Width, Position Can Be Set
Tick Marks: 2 Lines.
Dotted Line: 2 Lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Monochrome Negative: Support
Mirrors: Horizontal and vertical mirrors
Languages: English, Simplified Chinese, French, Spanish, Japanese, German and other languages
Digital Zoom: Support
Infrared Remote Control: Support
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C CS mount
Remote Control Battery: 1 x CR2025 Button Battery (not included)

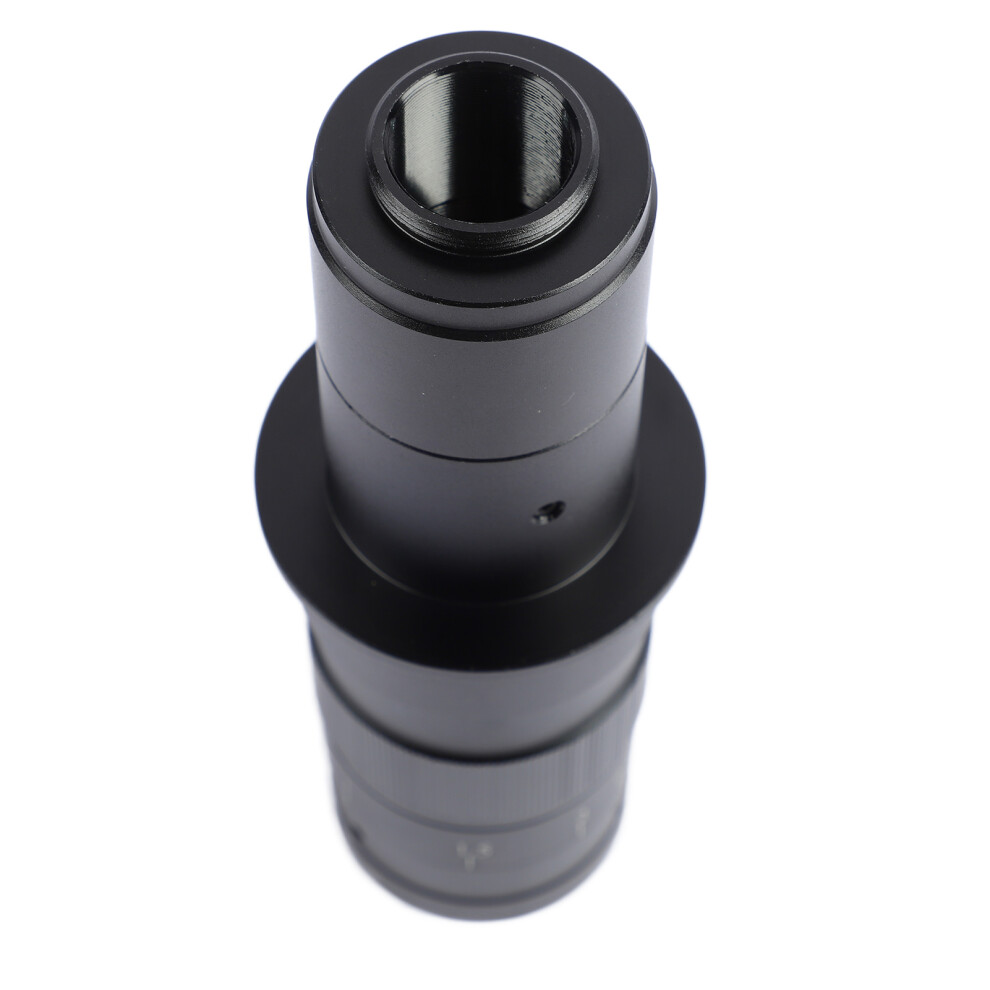

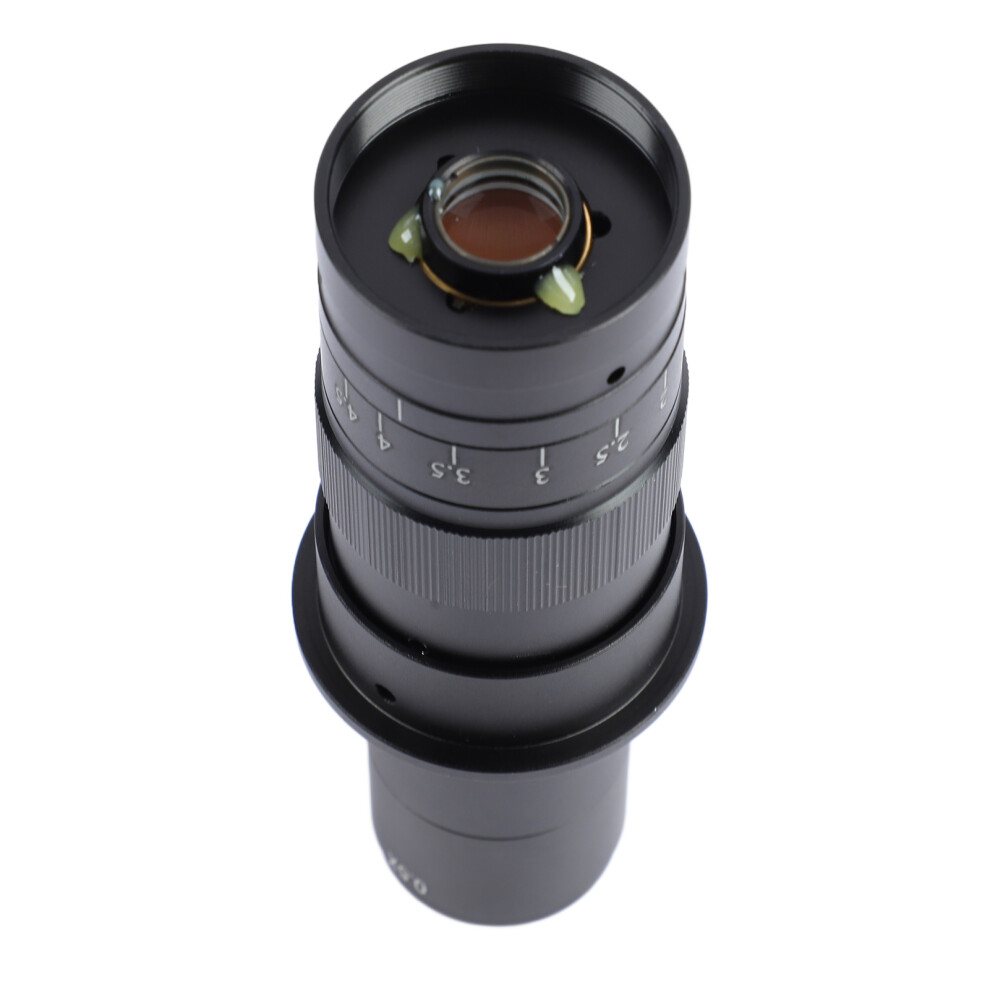

10X-180X Zoom Type C Mounting Lens: 0.5X Type C Mounting Adapter
Working Distance: Approx. 100mm-150mm / 3.94-5.91in
Field Of View: 6mm-24mm
Zoom Ratio: 6.5:1
Objective Lens Magnification: 0.7-4.5X (about 10-180X on the monitor)

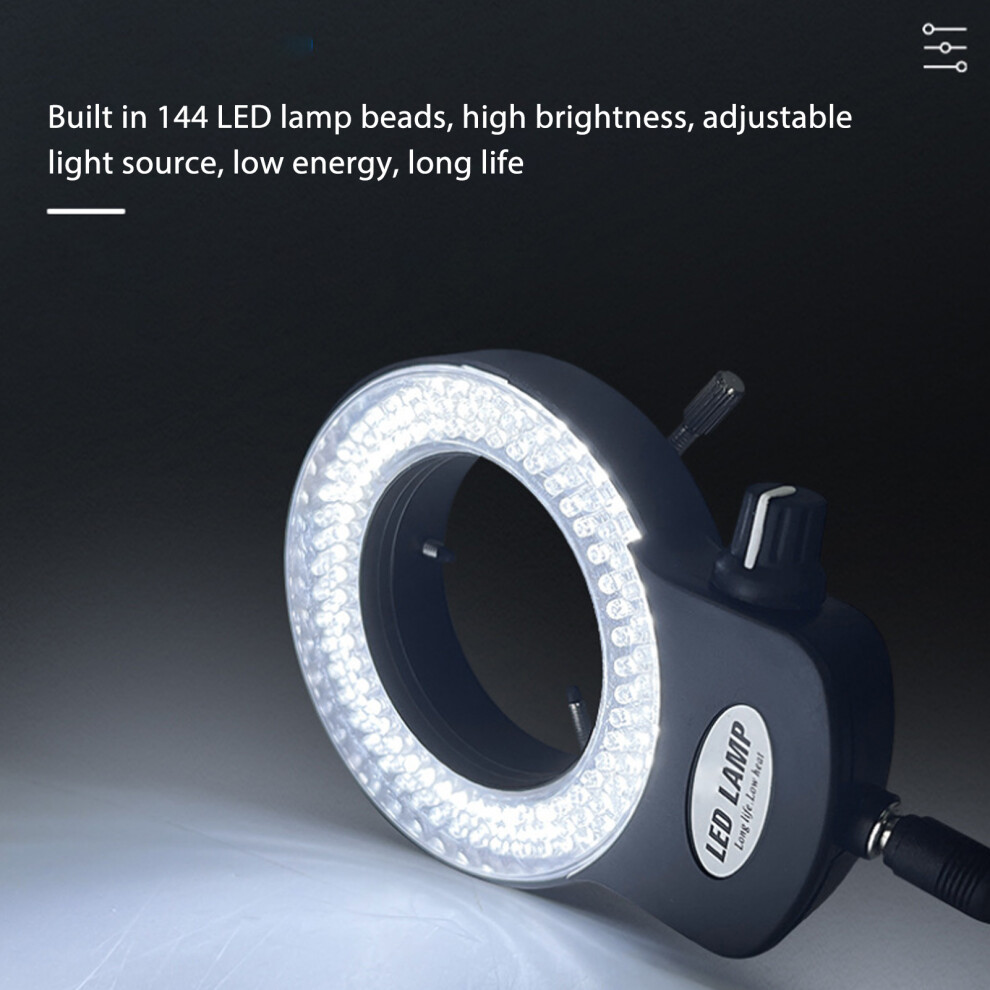

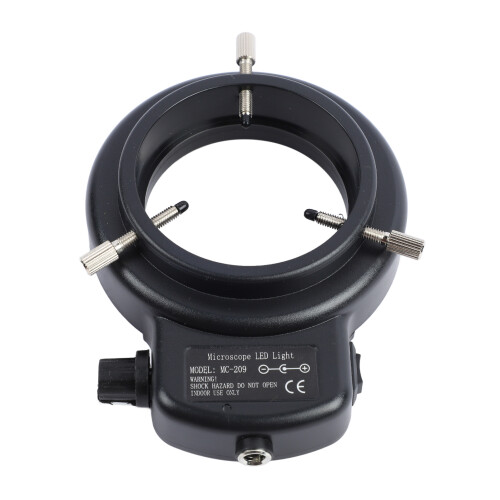

144 LED Microscope Ring Lights: 144 LED Adjustable Compact Microscope Ring Lights for Intense and Focused Shadowless Illumination, 144 Bright White LED Bulbs, Variable Intensity Control of Illumination Direction, Intense and Focused Shadowless Illumination 100,000 hours life
Ring light inner diameter: 1.0 inches (27 mm)
Overall outer diameter: 1.77in (45mm)
Working distance: 27mm-45mm
1 x Microscope Camera
2 x
1 x 180X Lens
1 x 144LED Microscope Light Source
1 x Camera Mount
1 x USB Cable
1 x High Definition Multimedia Interface Cable
2 x Metal Base
1 x Support Frame
1 x Remote Control (Battery Not Included)
1 x High Temperature Resistant Work Mat
5 x Screw
1 x Manual
