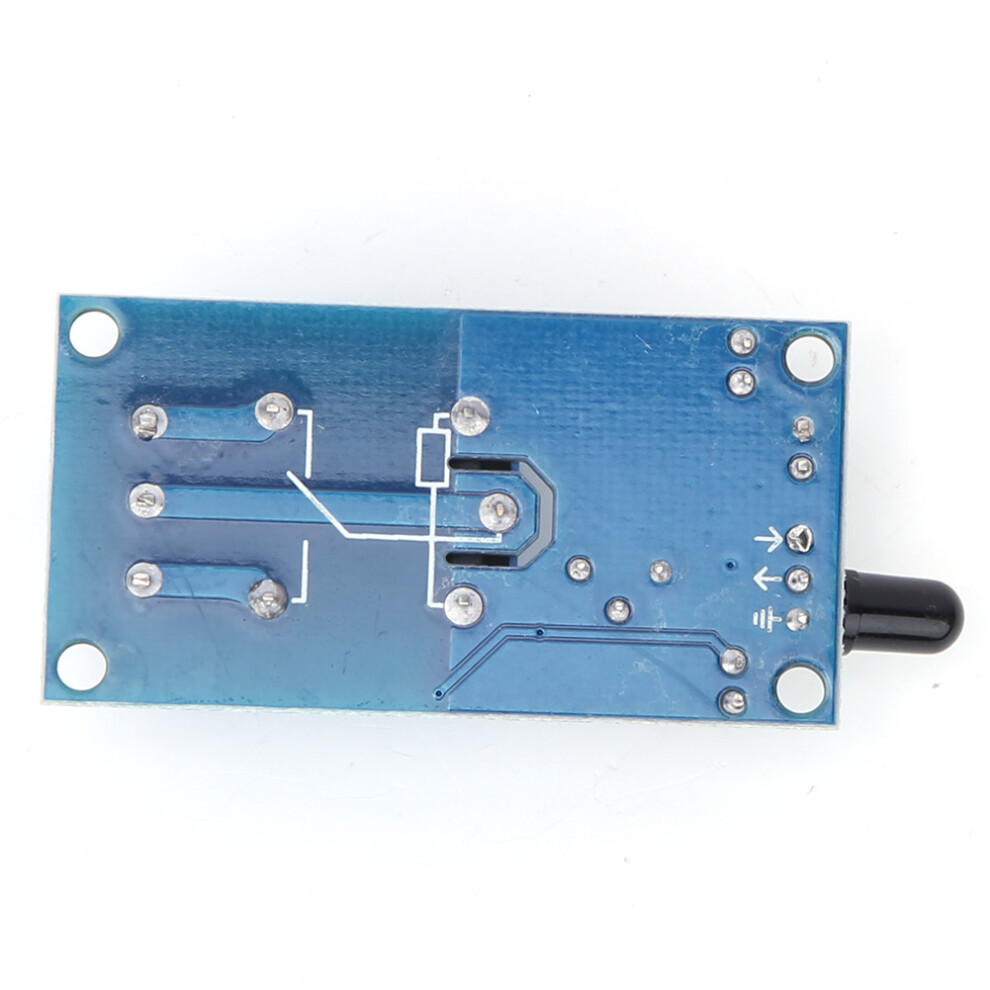

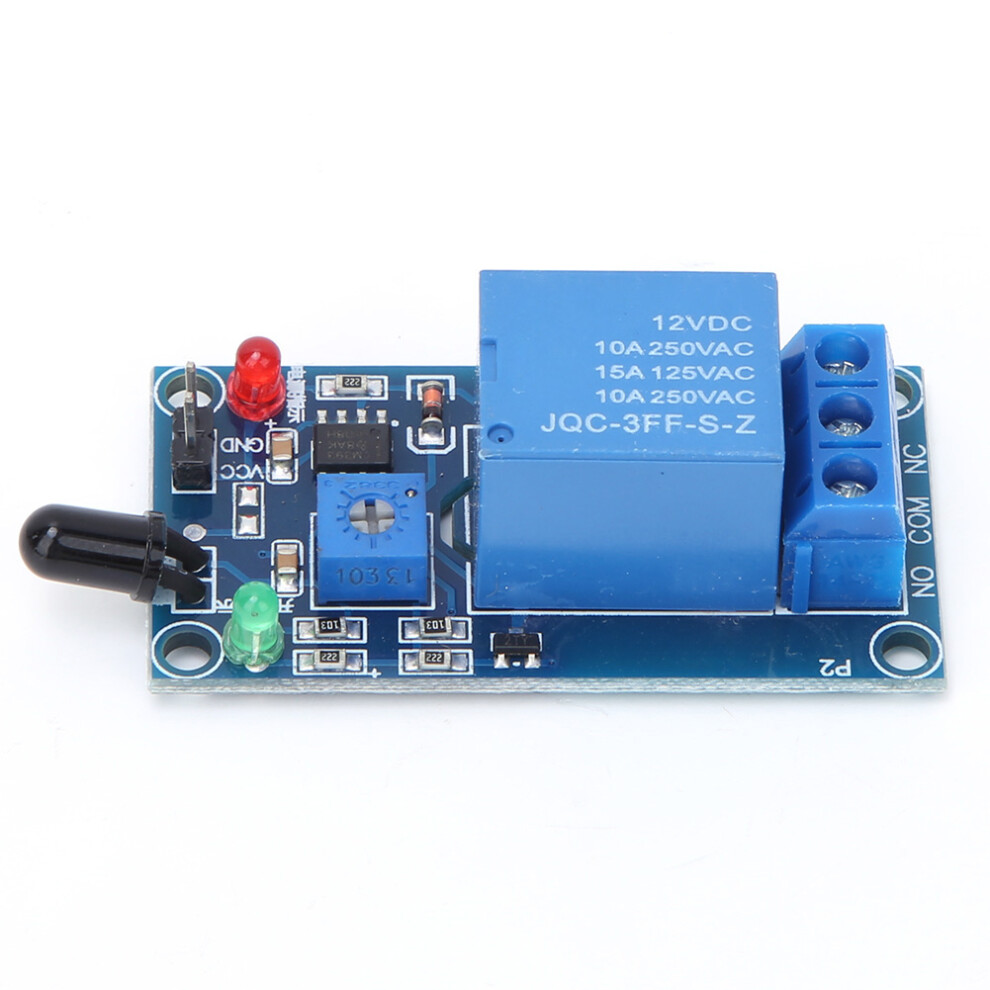

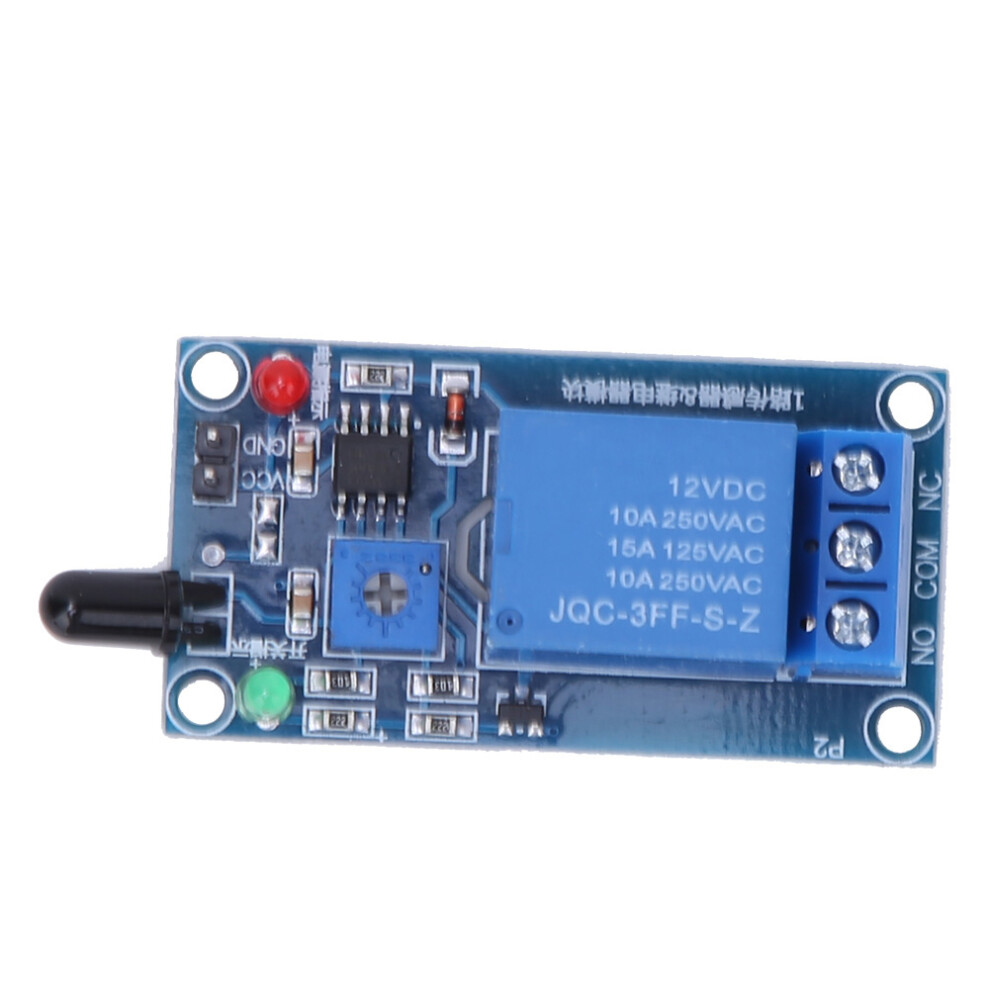

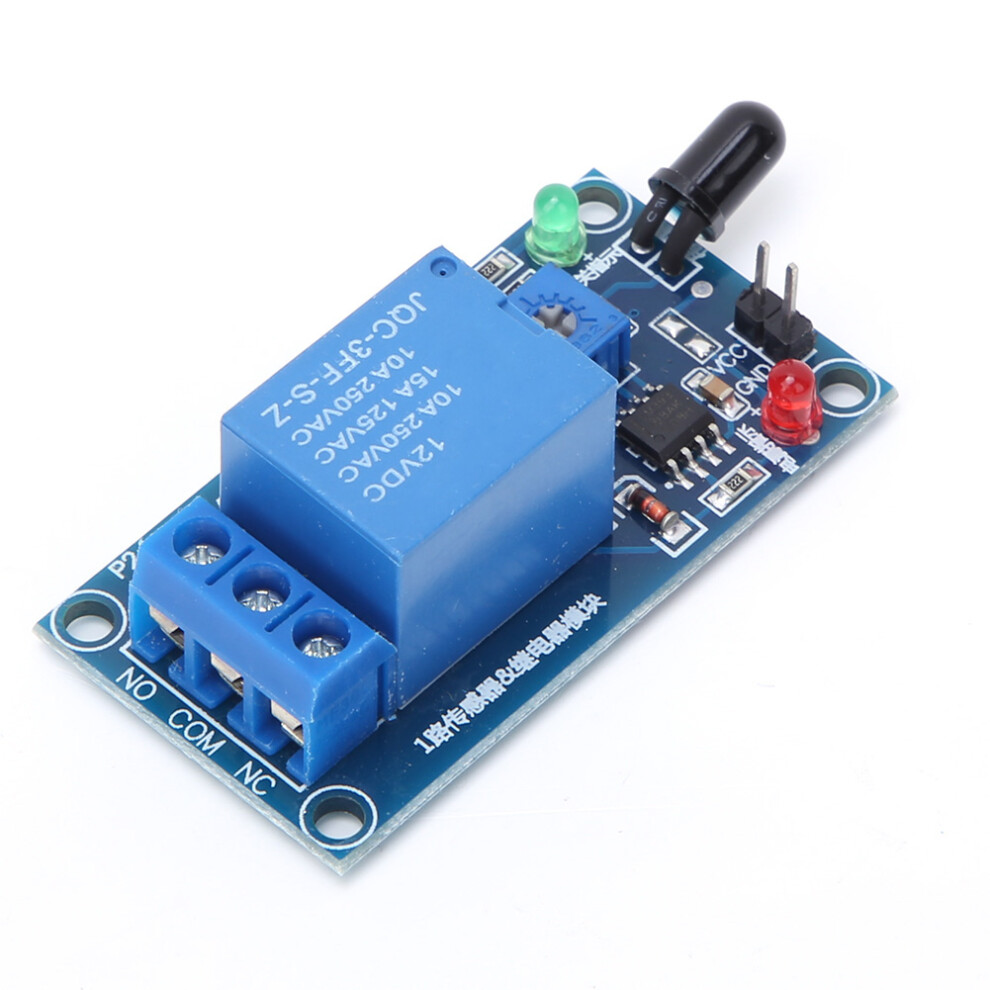

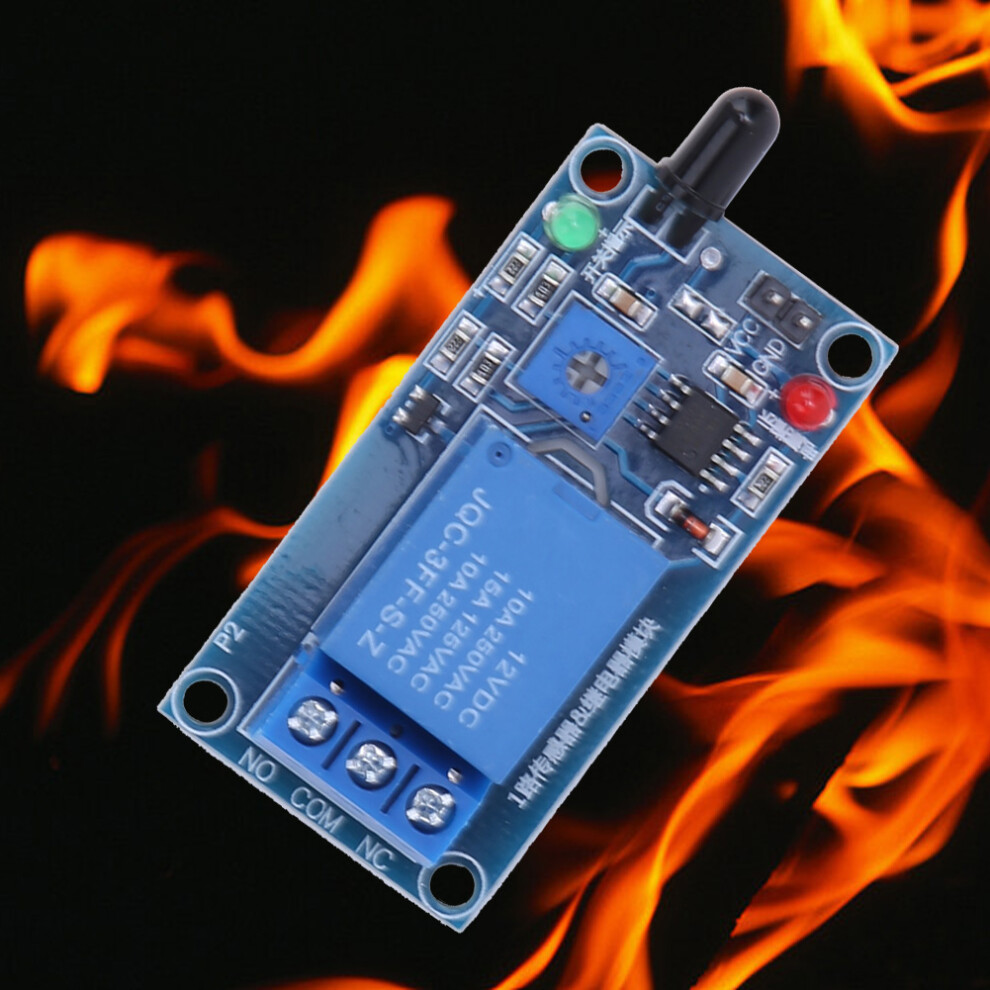

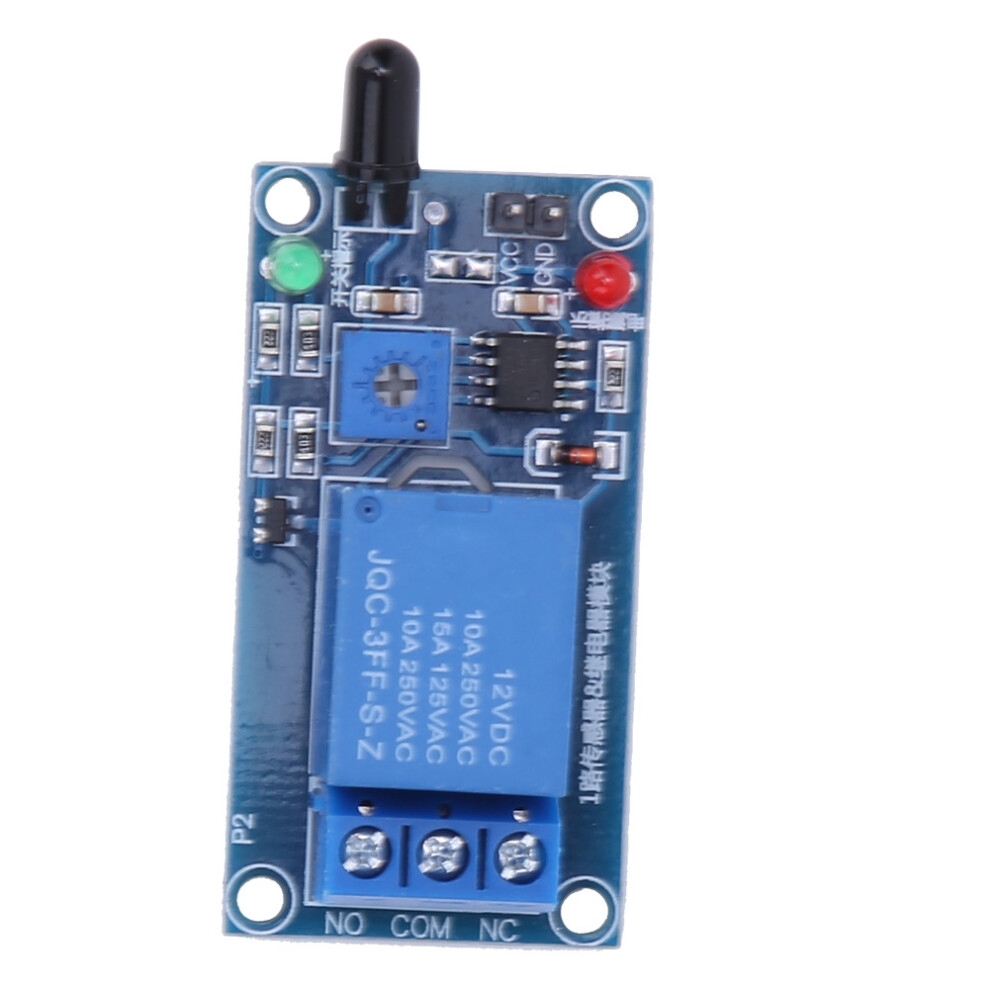

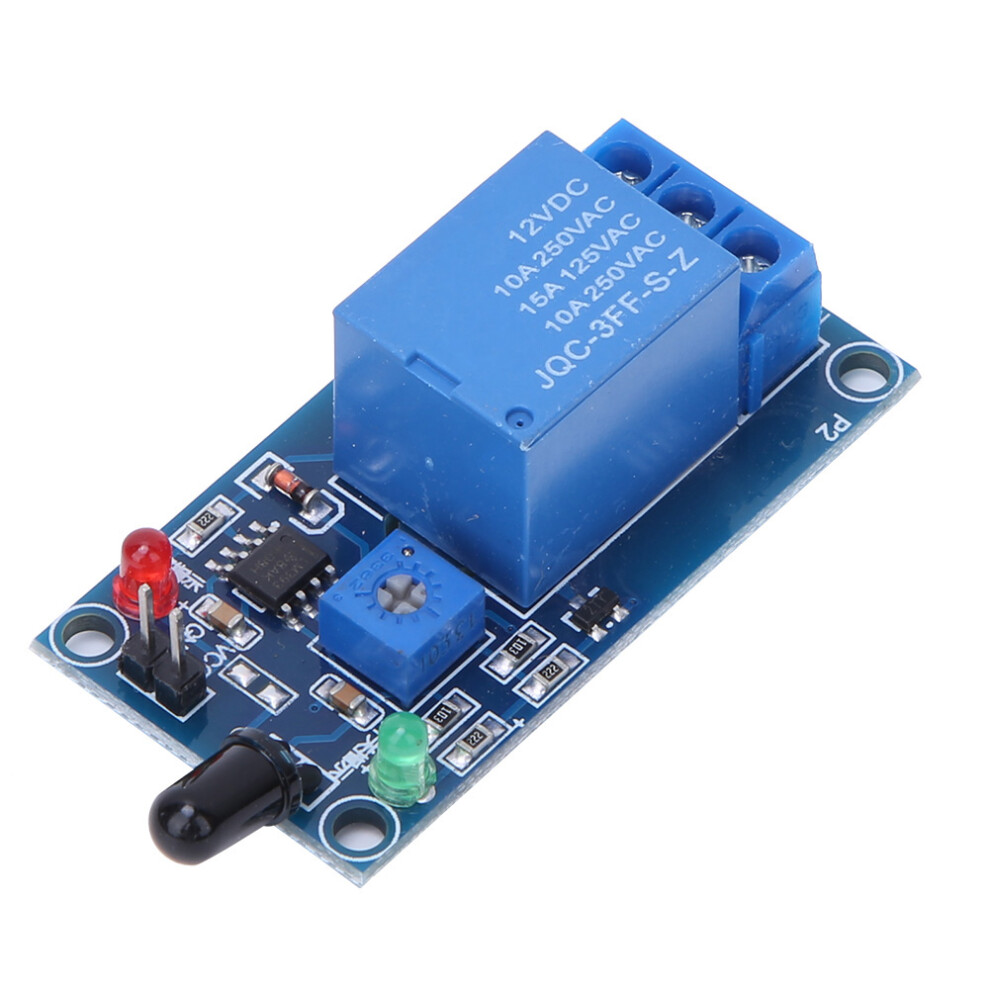

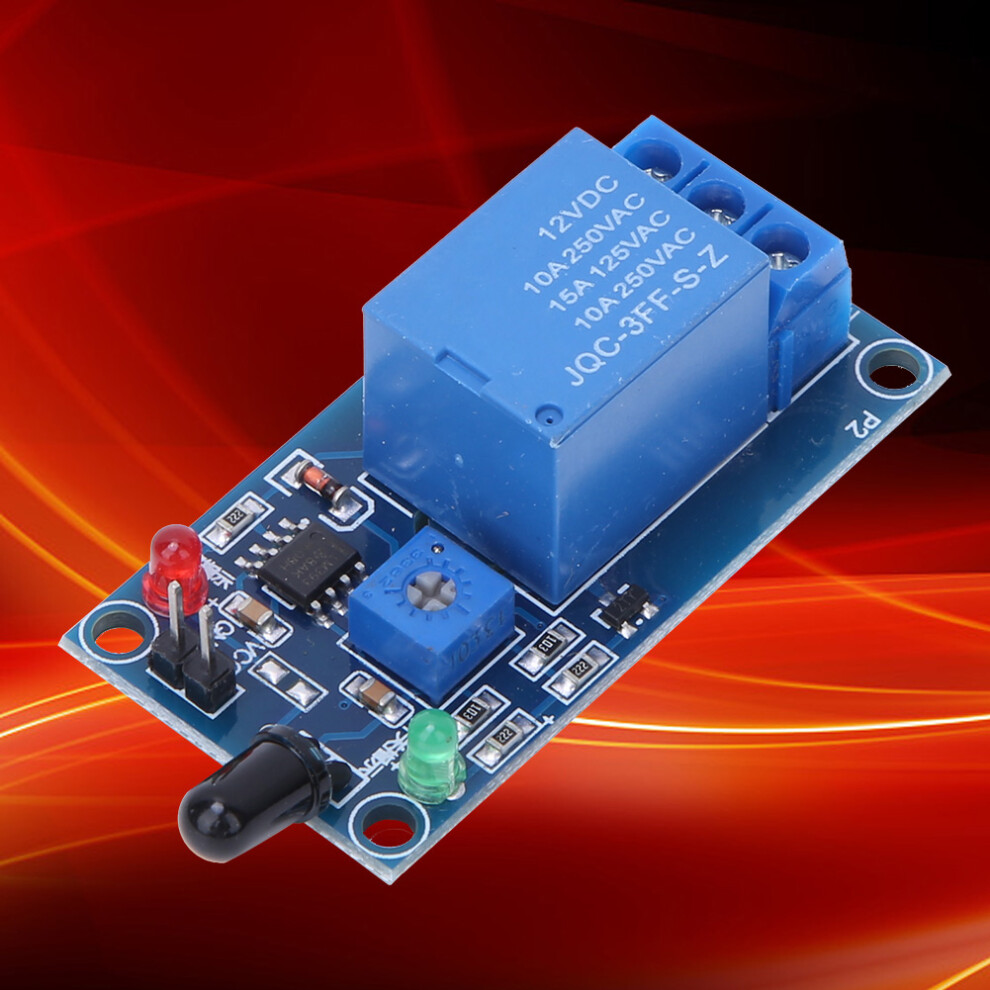

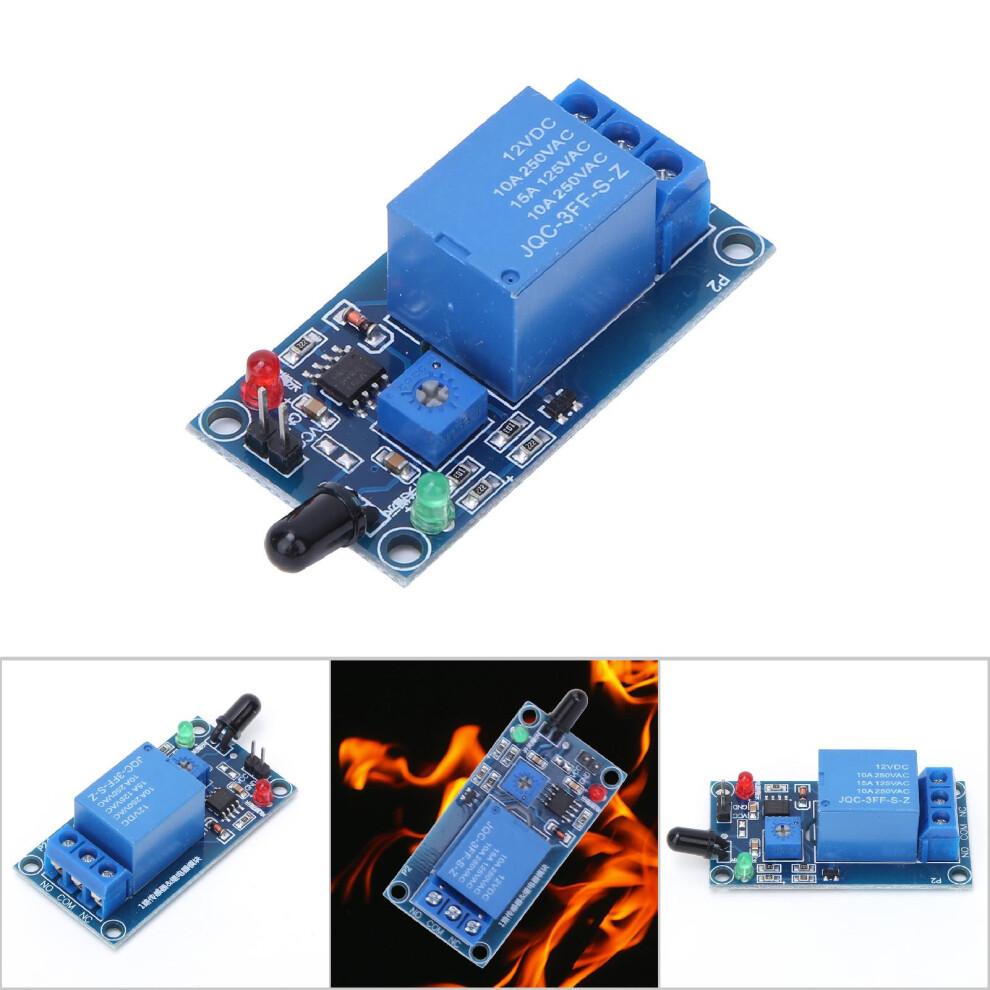

Infrared Flame Sensor Module 12VDC, 760~1100nm, Size:50x26mm

Infrared Flame Sensor Module 12VDC, 760~1100nm, Size:50x26mm Description

Infrared Fire Detection Sensor Module Flame Sensing Relay Module 12VDC 760~1100nm
Item Type:Fire Detector Sensor
Size:50 x 26mm / 1.97 x 1.02in
Thickness:19mm / 0.75in
Current:>150mA
Load:250VAC 10A or 30VDC 10A
Users Manual:
1. The flame sensor is most sensitive to the flame and also responds to the sunlight. It is generally used for fire alarms and other purposes.
2. By adjusting the potentiometer, the intensity of the sensor's induced flame can be set. When the flame exceeds the set threshold, the relay pulls in, the common end is connected to the normally open end, and when the flame is lower than the set threshold, the relay is disconnected. The common end is connected to the normally closed end;
3, the common end, normally open, normally closed three ports are equivalent to a dual control switch, when the relay coil is powered, the common end is open to the normally open end, when there is no electricity, the common end and the normally closed end are turned on;
4. The sensor and the flame should be kept at a certain distance to avoid damage to the sensor at high temperature. The flame distance of the lighter is 80cm. The larger the flame, the farther the test distance is.
