Injector Tester Fuel System Scan Tool Gasoline Injector Tester

Injector Tester Fuel System Scan Tool Gasoline Injector Tester Description

This injector tester can be used to help identify stuck, leaked or burned out conditions,it uses 12V vehicle battery for power.
Large LED display/4 Pulse Modes. Test Lead: 41.5cm / 16.3 inches.
It can work with any fuel pressure tester, easily to clean most car motorcycle fuel injectors.
It will help us clean and test the injectors of gasoline cars and motorcycles.
The engine of the car must be turned off before using this instrument.

Name:Injector Tester Fuel Injector Tester
Power Supply:12V Car Battery
Applicable Models:All Models
Operation Environment:0-40?,relative humidity Less than 80%
Storage Environment:-20?-50?,relative humidity Less than 85%
Explanations for 4 modes:
Mode 1:the tester outputs 1 pulse,whose pulse width is about 255ms
Mode 2:the tester outputs 50 pulse,every pulse's pulse width is about 7ms
Mode 3:the tester outputs 100 pulse,every pulse's pulse width is about 3.5ms
Mode 4:the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms,every pulse's pulse width is about 7ms

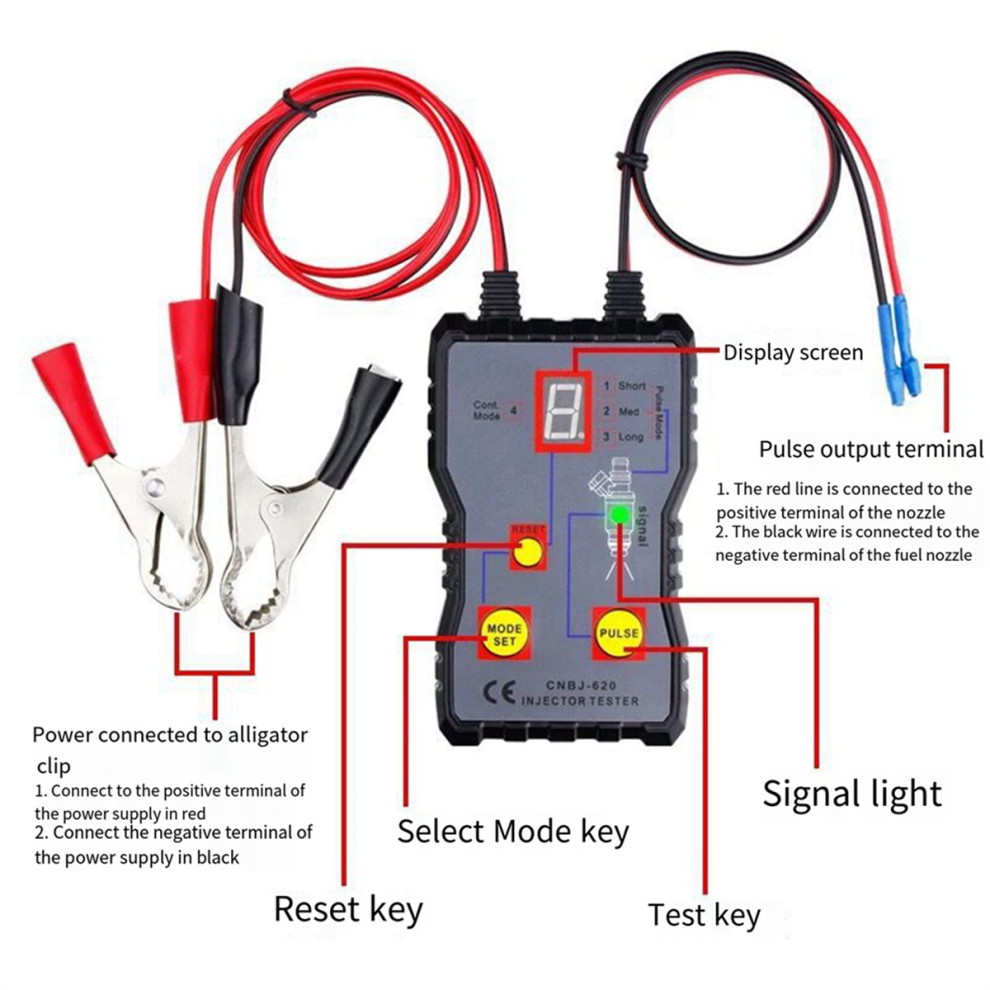

Operation Instructions:
Turn off the vehicle's engine
Connect Black/Red Clip to the Negative/Positive terminal of battery
Connect pulse output terminal to the fuel injector
Press the "SELECT" key to select the desired pulse mode,and use knob to turn up or down the Frequency or width
Press the "START" key,the tester will output pulse to the injector,and then the pulse signal
indicator will light as indication
Tips:The product may be updated constantly,The Actual Product May Have Slight Differences Or Color Differences the color and appearance may be changed,please don't mind.And take a consideration before place the order if you have request for color or appearance.
Colour:As Shown
Material:Plastic

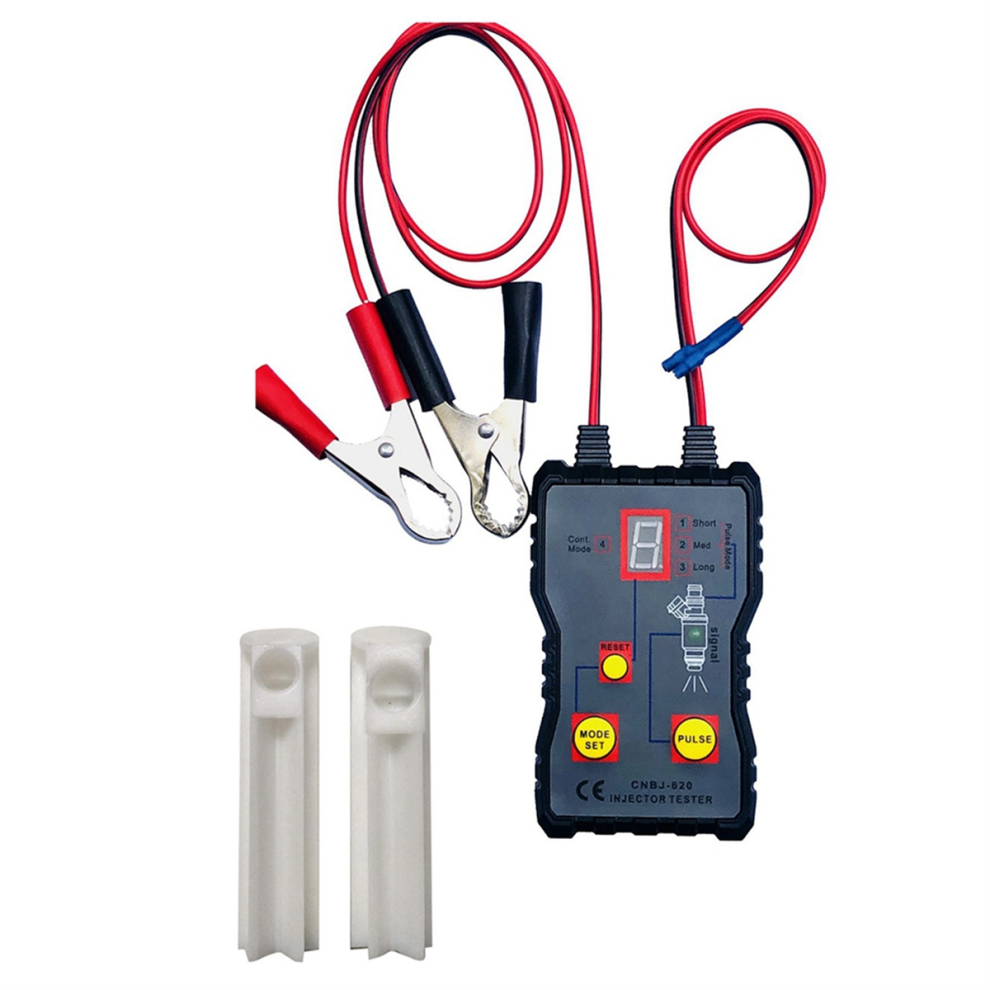

Package Contents:
1 *Fuel Injector Tester
2 * connectors

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
