Inspection Scale Small Height Gauge Hi-Lo Internal Welding Ruler

Inspection Scale Small Height Gauge Hi-Lo Internal Welding Ruler Description

Root Weld spacing gauge:Easy operation determines rootweld spacing
1. Unlock the retaining screw and insert the gauge interior alignment stops between the two pieces of pipe to be fitted
2. Insert the leg with the longer taper into the root until it makes contact with both slides of the .
3. Re-lock the retaining screw, the gauge and read it
4. The scale is calibrated in fractional dimensions from 1/32 to 3/16 in 1/16 inch increments, the read-out you receive represents the amount of rootweld

:Metalworking
Model Number:2924043

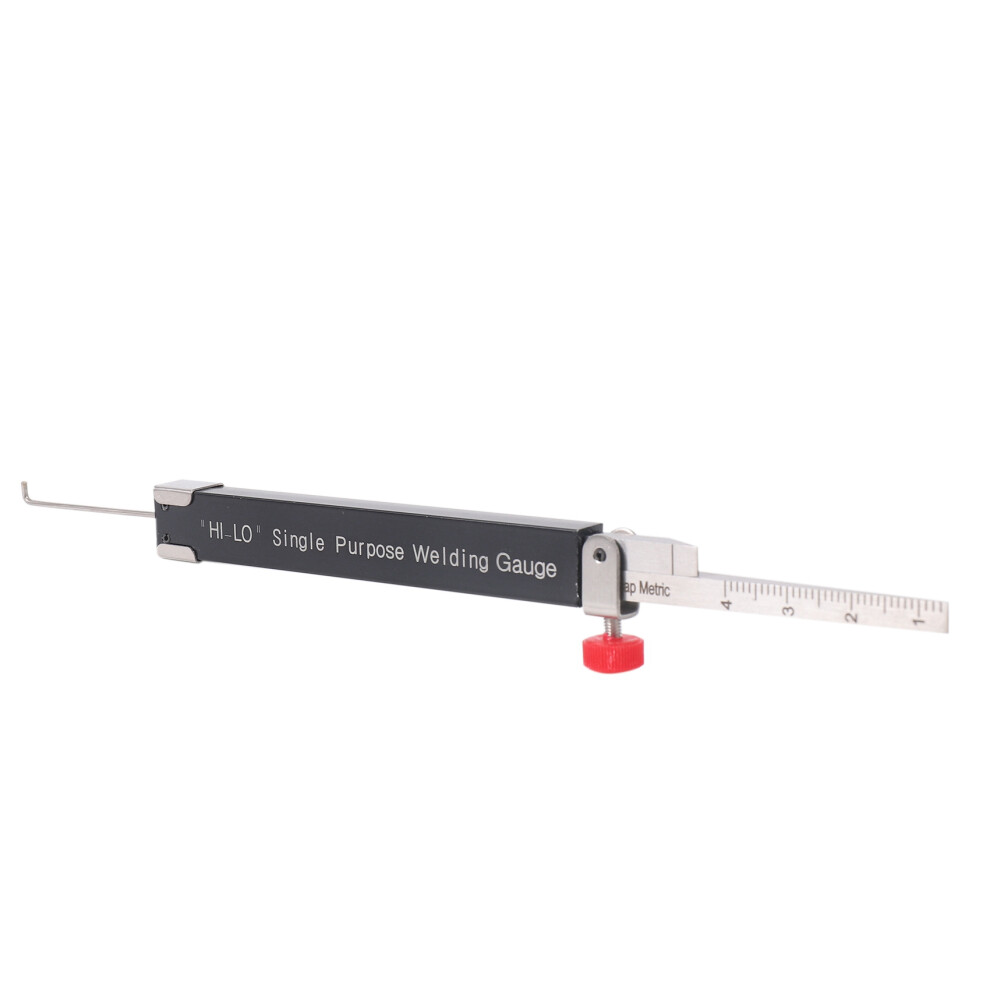

Internal Hi-Lo gauge:
4 quick steps check internal alignment
You can check the internal alignment of you fit-up quickly with the Hi-Lo gauge
1. Unlock the retaining screw. the gauge legs beyond the
2. Insert the legs (wired) into the root space or the two pieces of pipe to be fitted, turn the gauge 90Â, being careful to apply a constant back pressure to the
3. Hold the gauge as square as possible with the fitting to obtain an accurate reading. lock the retaining screw. reverse the 90Â turn and the gauge, you're now ready to read the increment opposite the
4. When the aligns with the 1/32 increment line you have a good internal alignment and fit-up. misalignment can be determined from the zero line by increment marking of 1/16 inch
Color: black, silver
Material: Stainless steel

Package Contents:

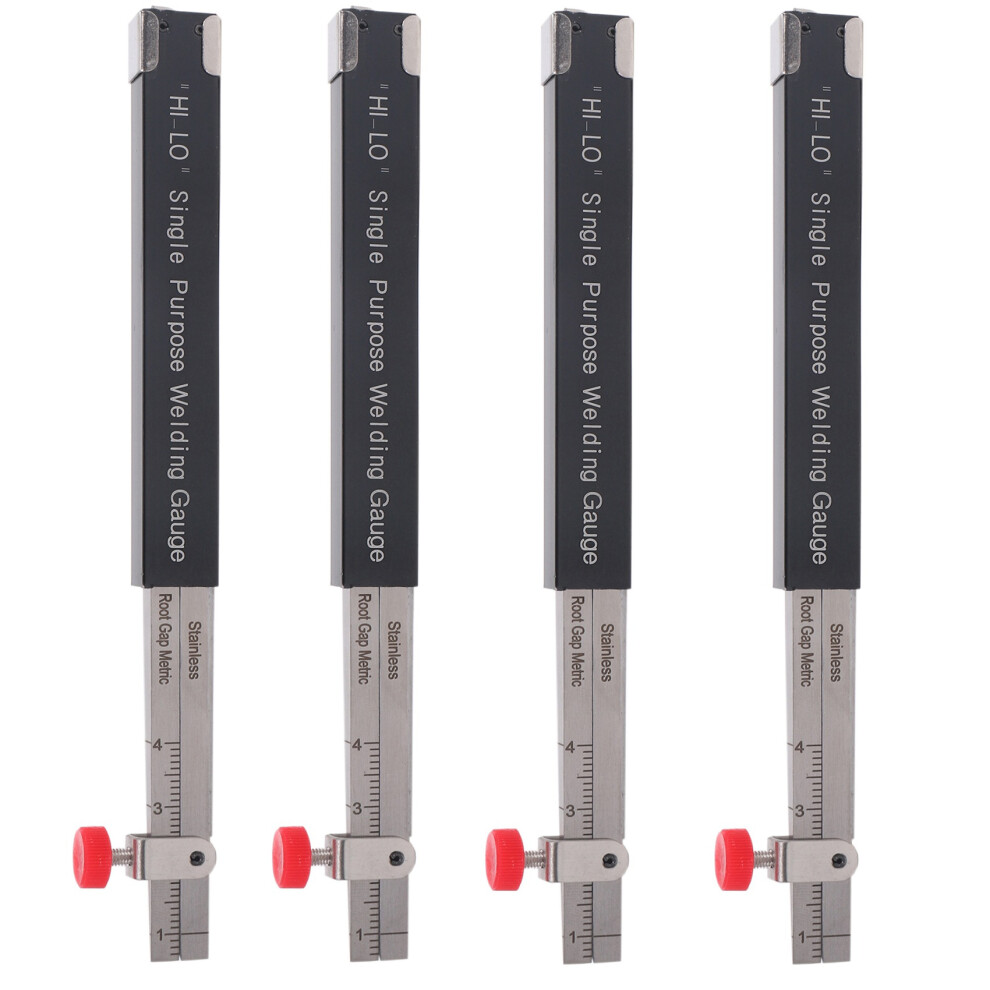

3 x Wedling Single Purpose Gauge
3 x Portable leather bag
3 x User manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
