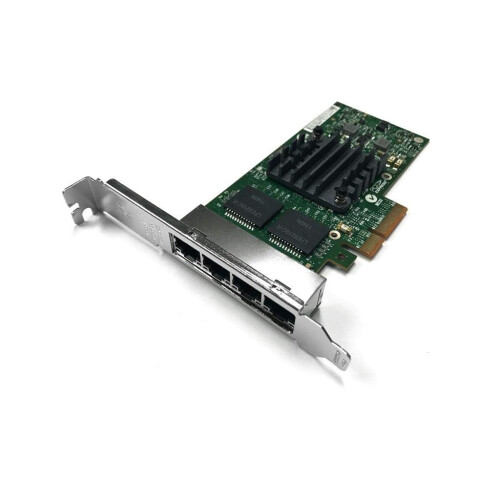

Intel E1G44HT I340-T4 4 port PCIe Ethernet Server Adapter Description
Intel Ethernet Svr Aptr i340Interface: PcI Express 20 x4Ports: 4 x RJ45Rated TDP: 43WLow Profile Bracket Included
Details
| OPC | PDTTD96 |
|---|---|
| Brand | |
| Codes | 0675901022705 (EAN) |
| MPN | E1G44HT |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel® Ethernet Server Adapter I340 is Intel’s fourth generation of PCIe* GbE adapter. This adapter showcases the industry’s first fully integrated quad-port PCIe Gen2 GbE controller, providing a smaller footprint and lower power dissipation. In addition, the Intel® Ethernet Server Adapter I340 offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI* Express Gen 2.0 interface.
Intel’s first eco-friendly halogen-free board combines low-power and cost for the best price/performance ratio in a quad-port solution available today.
Alternative names:
- Intel E1G44HT network card Internal 1000 Mbit/s
Detailed Product Information
Design
| Internal | Yes |
|---|---|
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
Other features
| Dimensions (WxDxH) | 68.9 x 135.4 x 120 mm |
|---|---|
| Slot type | x4 / x8 / x16 |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Interface type | PCIe v2.0 (5.0 GT/s) |
| Cable length | 100 m |
| Cable type | Category-5 up to 100m |
| Ports quantity | 4 |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| PCI Bus | 2.0 (5 GT/s) |
| Controller type | Intel 82580 |
| Cabling type | Category-5 up to 100m |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG* SR-IOV Capable | No |
| On-chip QoS and Traffic Management | Yes |
| Intel Flexible Port Partitioning | Yes |
| Speed & slot width | 5.0 GT/s, x4 Lane |
| Message signal interrupt | Yes |
| Low halogen options available | No |
| Intelligent Offloads | Yes |
| iWARP/RDMA | No |
| Intel Ethernet Power Management | No |
| Number of QPI links | Quad |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Thermal Design Power (TDP) | 4.3 W |
| Storage Over Ethernet | iSCSI, NFS |
| Product type | Network Interface Card |
| Status | Discontinued |
| Launch date | Q2'10 |
| Product name | Intel Ethernet Server Adapter I340-T4 |
| Product brief URL | http://www.intel.com/Assets/PDF/prodbrief/323205.pdf |
| Born on date | Q2'10 |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Last change | 63903513 |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I340 |
| Product codename | Bartonville |
| Ethernet adapter ARK ID | 49186 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
Power
| Power consumption (typical) | 4.3 W |
|---|
Network
| Supported network protocols | IEEE 1588 PTC |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Maximum operating distance | 100 m |
| LAN controller | Intel® 82580 |
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
Weight & dimensions
| Height | 120 mm |
|---|---|
| Width | 68.9 mm |
| Depth | 135.4 mm |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| PCI version | 2.0 |
System requirements
| Compatible operating systems | Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, , VMware ESX/ESXi* |
|---|
Logistics data
| Harmonized System (HS) code | 8517620090 |
|---|
