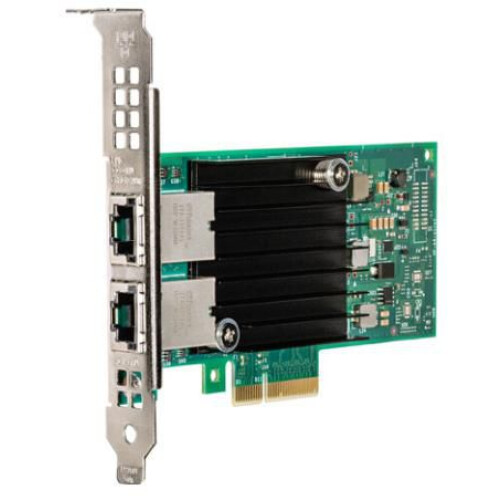

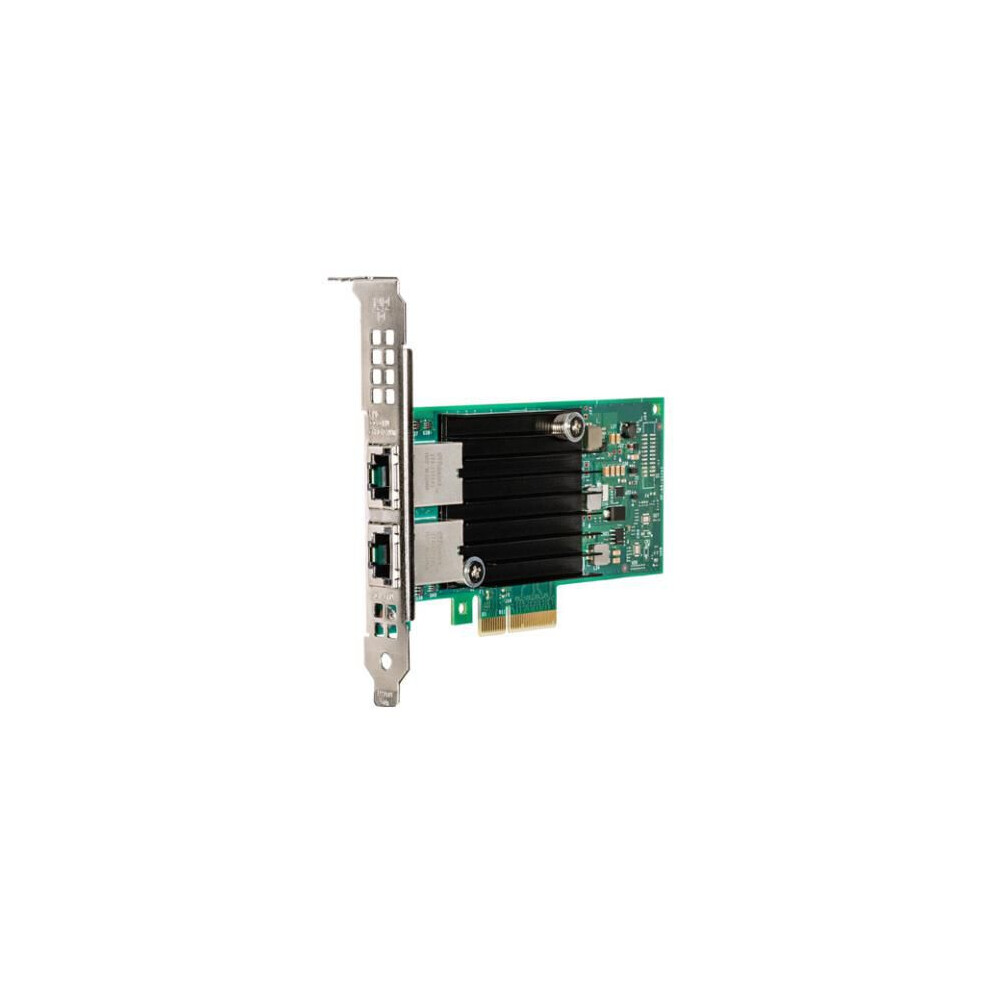

Intel Ethernet Converged Network Adapter X550-T2

Intel Ethernet Converged Network Adapter X550-T2 Description

Intel Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption. Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices. Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth. Design:- Internal: Yes- Product colour: Green/SilverNetwork:- Cabling technology: 10GBase-T- Ethernet interface type: 10 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet- Ethernet LAN: Yes- Ethernet LAN data rates: 100/1000/10000/2500/5000- iSCSI support: Yes- LAN controller: Intel X550- Maximum data transfer rate: 10000- Maximum operating distance: 100- Networking standards: IEEE 802.1as/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ad- VLAN tagging: YesOperational conditions:- Operating temperature (T-T): 0 - 55- Storage relative humidity (H-H): 0 - 90- Storage temperature (T-T): -40 - 70Other features:- Bracket height: Low-Profile (LP) / Full-Height (FH)- Bracket height: Low Profile and Full Height- Cable type: RJ45 Category 6 up to 55m; Category 6A up to 100m- Cabling type: RJ45 Category 6 up to 55m; Category 6A up to 100m- Commodity Classification Automated Tracking System (CCATS): G135872- Conflict-Free: Yes- Controller type: Intel Ethernet Controller X550- Data transfer rate: 8- Desktop Management Interface (DMI) version: 2.0- Ethernet adapter ARK ID: 88209- Export Control Classification Number (ECCN): 5A992C- Fiber Channel over Ethernet: Yes- Halogen-free: No- Intel Data Direct I/O Technology: Yes- Intel Flexible Port Partitioning: Yes- Intel Virtual Machine Device Queues (VMDq): Yes- Intel Virtualization Technology for Connectivity (VT-c): Yes- Intelligent Offloads: Yes- Interface type: PCIe v3.0 (8.0 GT/s)- iWARP/RDMA: No- Last change: 64826838- Launch date: Q1'16- Low halogen options available: No- Market segment: Server- Network interface card cable medium: Copper- Network interface card type: Server- Number of VLANs: 4096- On-chip QoS and Traffic Management: Yes- PCI-SIG* SR-IOV Capable: Yes- Processor family: 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)- Product brief URL: http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html- Product family: Intel 10 Gigabit server adapter- Product series: 500 Series Network Adapters (up to 10GbE)- Product type: Network Interface Card- Speed & slot width: 8.0 GT/s, x4 Lane- Status: Launched- Storage Over Ethernet: iSCSI, FCoE, NFSPorts & interfaces:- Connectivity technology: Wired- Ethernet LAN (RJ-45) ports: 2- Host interface: PCI Express- Interface: Ethernet- PCI Card form factor: Half-height (low-profile)- PCI version: 3.0System requirements:- Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html- Linux operating systems supported: Red Hat Enterprise Linux WS 5.0/Red Hat Enterprise Linux WS 6.0/SUSE Linux Enterprise Desktop 10/SUSE Linux Enterprise Desktop 11- Server operating systems supported: Windows Server 2003/Windows Server 2008 R2/Windows Server 2008 R2 x64/Windows Server 2008 x64/Windows Server 2012 R2/Windows Server 2012 R2 x64- Windows operating systems supported: Windows 7 Enterprise/Windows 7 Enterprise x64/Windows 7 Home Basic/Windows 7 Home Basic x64/Windows 7 Home Premium/Windows 7 Home Premium x64/Windows 7 Professional/Windows 7 Professional x64/Windows 7 Starter/Windows 7 Starter x64/Windows 7 Ultimate/Windows 7 Ultimate x64/Windows 8/Windows 8 Enterprise/Windows 8 Enterprise x64/Windows 8 Pro/Windows 8 Pro x64/Windows 8 x64Vendor information:- Brand Name: Intel- Warranty: 1- Product.Details.Specifications.Level1: Server, Computer & Printer Parts- Product.Details.Specifications.Level2: Servers & Computers- Product.Details.Specifications.Level3: System Components- Product.Details.Specifications.Level4: Networking Cards
