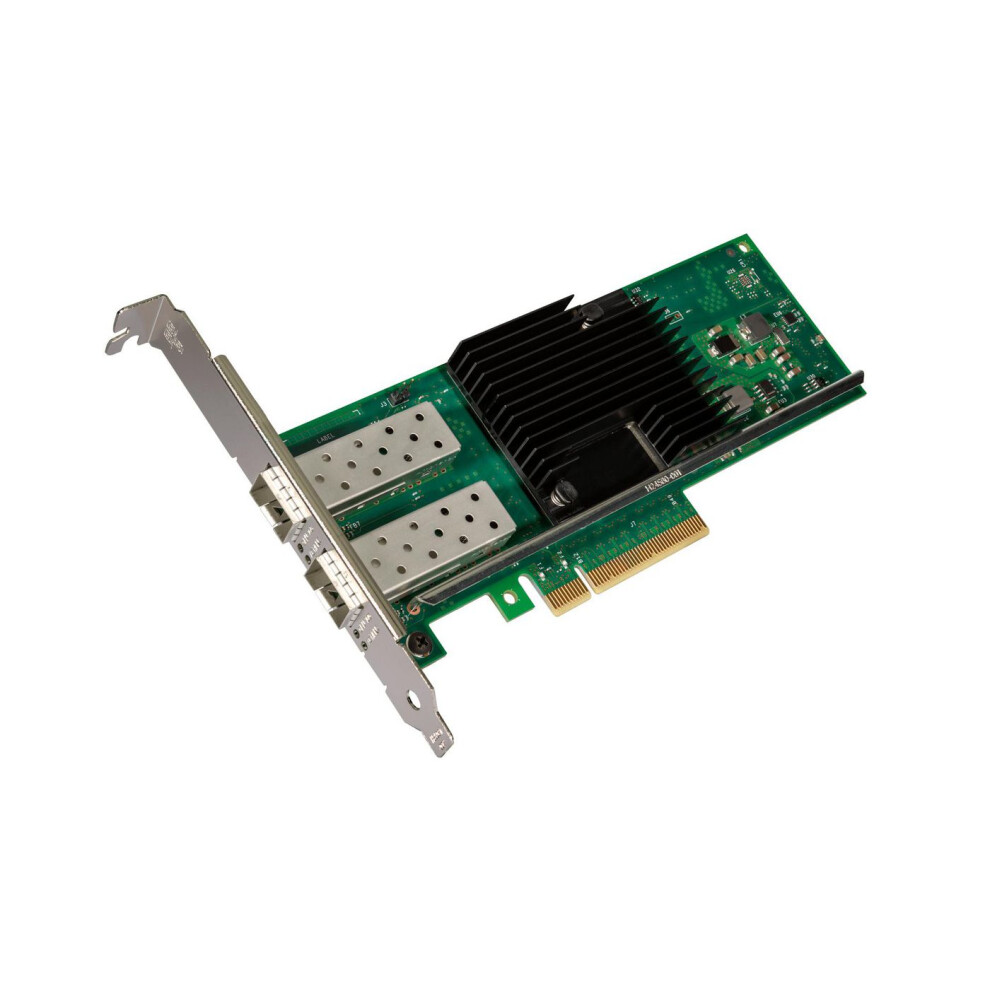

Intel Intel Ethernet Converged Network Adapter X710DA2

Intel Intel Ethernet Converged Network Adapter X710DA2 Description

iWARP/RDMA iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration. Intel Data Direct I/O Technology Intel Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption. PCI-SIG* SR-IOV Capable Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices. Intel Ethernet Power Management Intel Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed. Flexible Port Partitioning Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth. Virtual Machine Device Queues (VMDq) Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance Design:- Certification: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC- Chipset: X710-AM2- Internal: Yes- LED indicators: Yes- Product colour: Black/GreenNetwork:- Ethernet interface type: 10 Gigabit Ethernet/Gigabit Ethernet- Ethernet LAN: Yes- Ethernet LAN data rates: 1000/10000- Fiber ethernet cabling technology: 10GBASE-LR/10GBASE-SR- iSCSI support: Yes- LAN controller: Intel X710- Maximum data transfer rate: 10000- Maximum operating distance: 10- Networking standards: IEEE 802.1as/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ad- Supported network protocols: TCP, UDP, IP- VLAN tagging: YesOperational conditions:- Operating temperature (T-T): 0 - 55- Storage relative humidity (H-H): 35 - 90- Storage temperature (T-T): -40 - 70Other features:- Born on date: Q4'14- Bracket height: Low-Profile (LP) / Full-Height (FH)- Cable type: SFP+ Direct Attached Twinaxial Cabling up to 10m- Cabling type: SFP+ Direct Attached Twinaxial Cabling up to 10m- Commodity Classification Automated Tracking System (CCATS): NA- Conflict-Free: Yes- Controller type: Intel Ethernet Controller X710- Embedded options available: No- Ethernet adapter ARK ID: 83964- Export Control Classification Number (ECCN): 5A991- Fiber Channel over Ethernet: Yes- Flow control support: Yes- Intel Data Direct I/O Technology: Yes- Intel Ethernet Power Management: Yes- Intel Flexible Port Partitioning: Yes- Intel Trusted Execution Technology: No- Intel Virtual Machine Device Queues (VMDq): Yes- Intel Virtualization Technology for Connectivity (VT-c): Yes- Intel Virtualization Technology (Intel VT): VT-c- Intelligent Offloads: Yes- Interface type: PCIe v3.0 (8.0 GT/s)- iWARP/RDMA: No- Last change: 64826824- Launch date: Q4'14- Low halogen options available: No- Management protocols: PXE, SNMP, RMON- Market segment: Server- Message signal interrupt: No- Network interface card cable medium: Copper- Network interface card type: Server- Number of VLANs: 4096- On-chip QoS and Traffic Management: Yes- PCI-SIG* SR-IOV Capable: Yes- Processor family: 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)- Product brief URL: https://cdrdv2.intel.com/v1/dl/getContent/641693- Product codename: Fortville- Product family: Intel 10 Gigabit server adapter- Product name: Intel Ethernet Converged Network Adapter X710-DA2- Product series: 700 Series Network Adapters (up to 40GbE)- Product type: Network Interface Card- Speed & slot width: 8.0 GT/s, x8 Lane- Status: Launched- Storage Over Ethernet: iSCSI, NFS- Storage-over-ethernet: Yes- Target market: Artificial Intelligence, High Performance ComputingPorts & interfaces:- Connectivity technology: Wired- Ethernet LAN (RJ-45) ports: 2- Fiber optic connector: SFP+- Fiber ports quantity: 2- Host interface: PCI Express- Interface: Fiber- PCI Card form factor: Full-height (low-profile)- PCI version: 3.0Power:- Power consumption (typical): 4.5System requirements:- Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html- Linux operating systems supported: RedHat EL Linux 6.0- Other operating systems supported: FreeBSD- Server operating systems supported: Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2Vendor information:- Brand Name: Intel- Warranty: 1- Product.Details.Specifications.Level1: Server, Computer & Printer Parts- Product.Details.Specifications.Level2: Servers & Computers- Product.Details.Specifications.Level3: System Components- Product.Details.Specifications.Level4: Networking Cards
