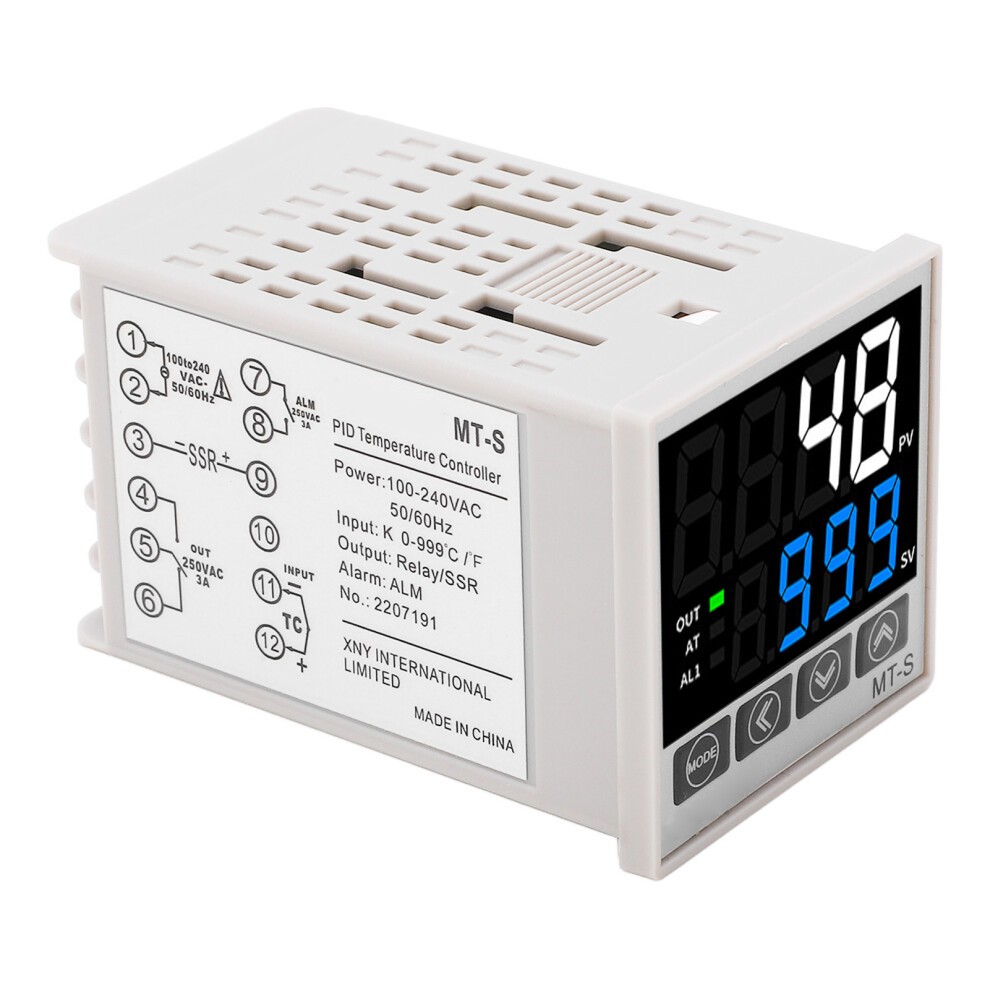

Intelligent PID Temperature Control Instrument Dual Modes 48x48mm

Intelligent PID Temperature Control Instrument Dual Modes 48x48mm Description

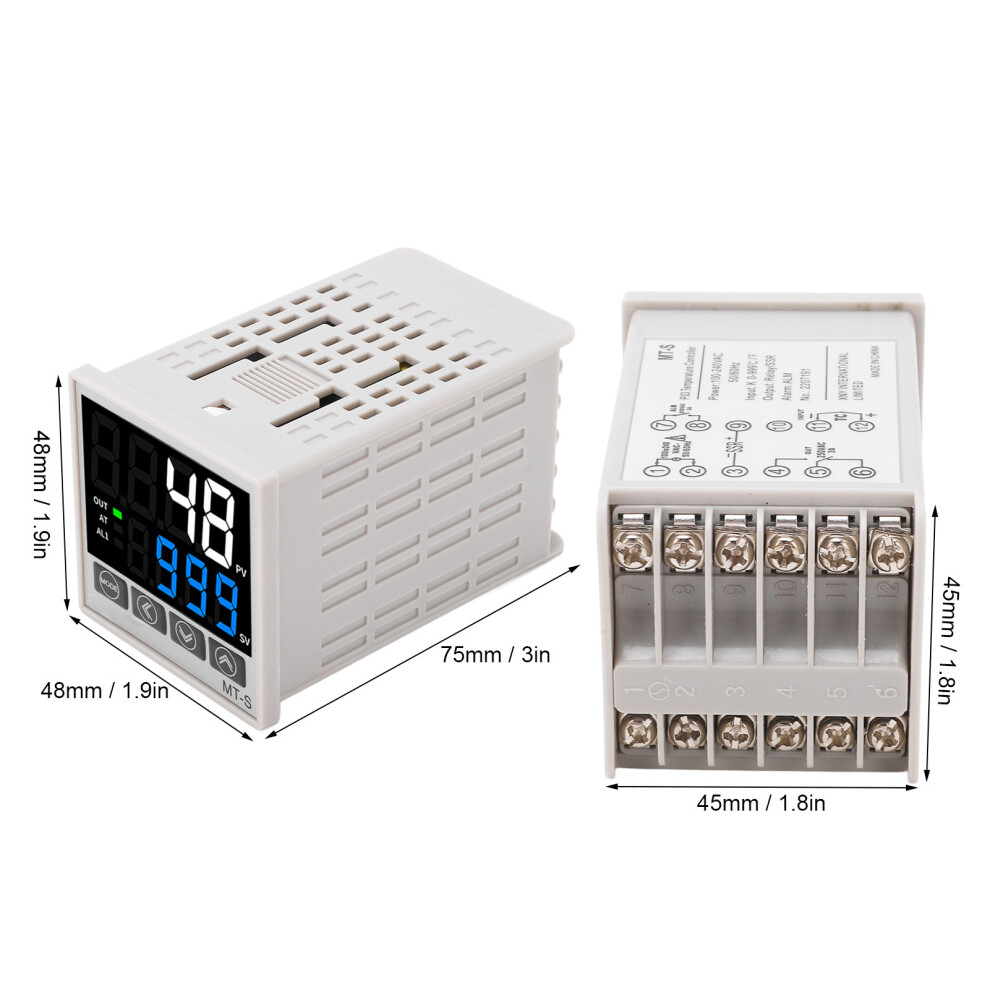

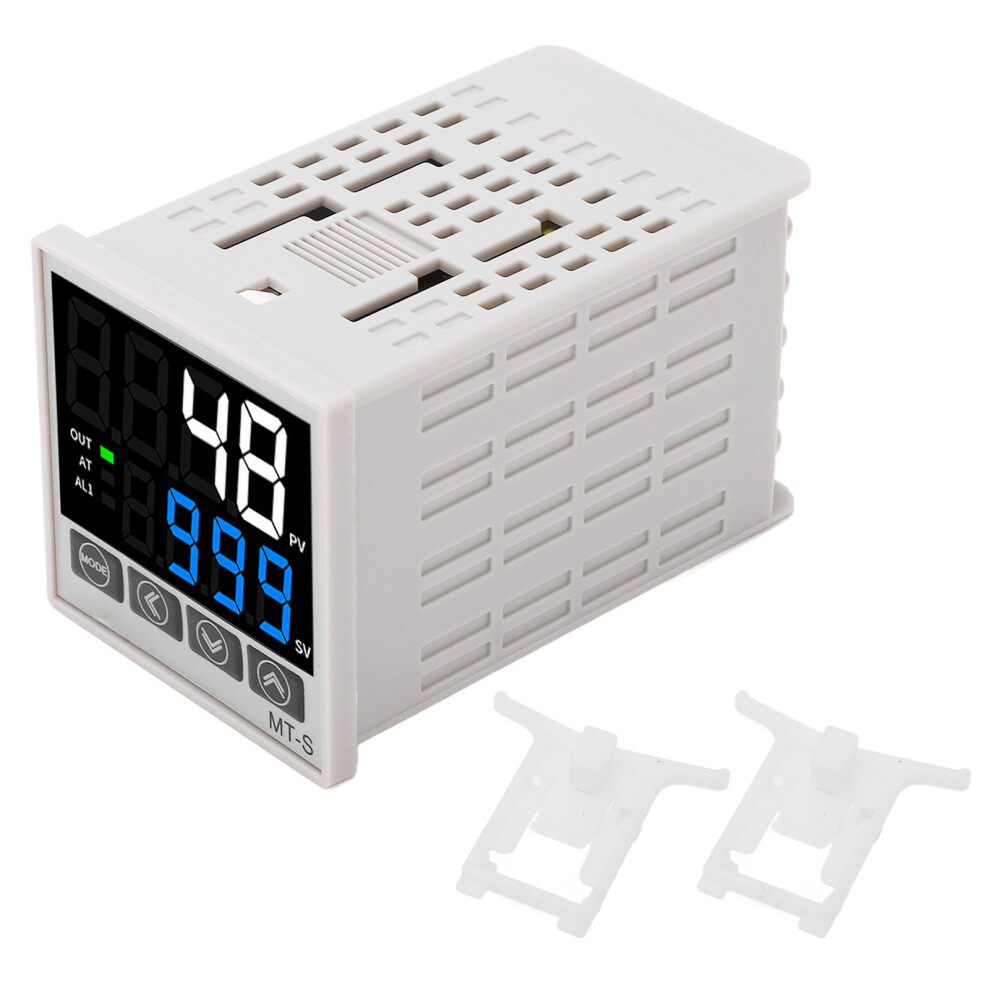

PID Temperature Controller Kit Intelligent Digital Display Automatic Temperature Control Instrument AC100‑240V 48 X 48mm
Item Type: PID Temperature Controller Kit
Material: ABS
Supply Voltage: AC100-240V 50/60HZ
Input: Support 4 kinds of thermocouple (K, J, E, N) user can freely switch settings

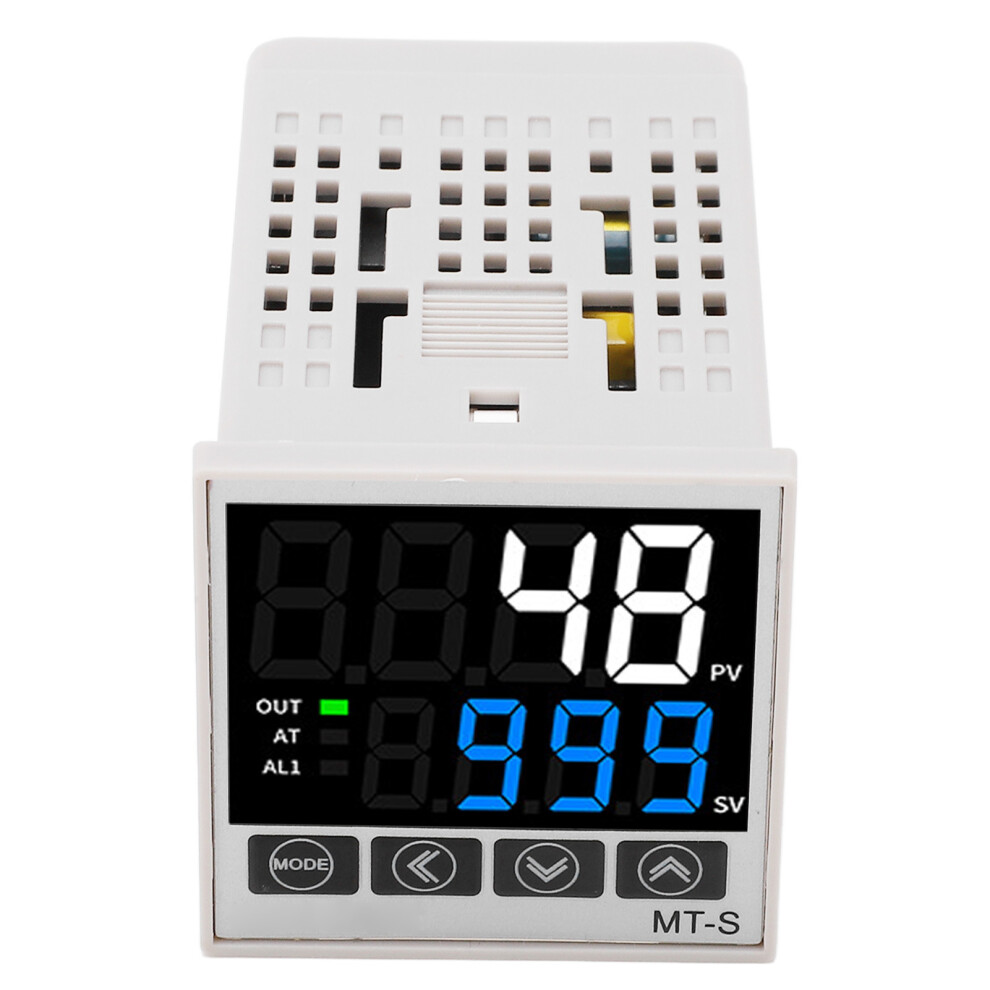

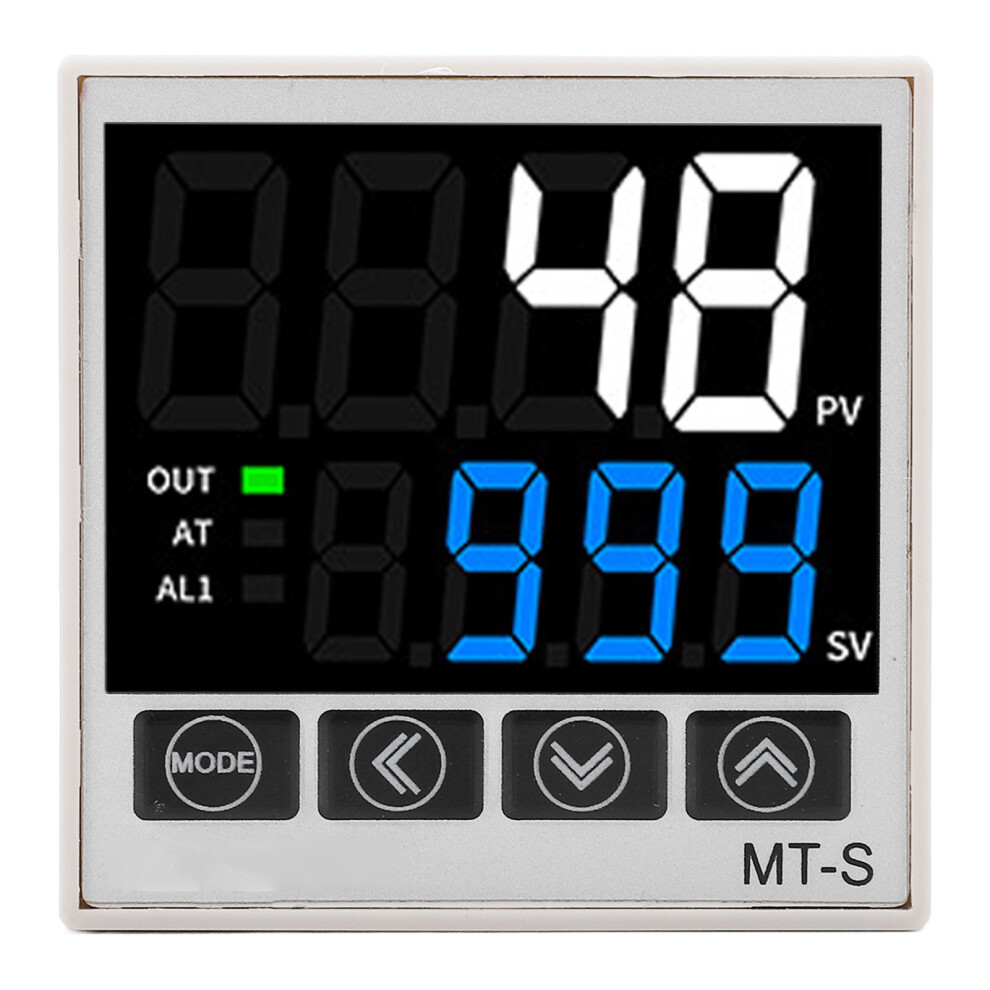

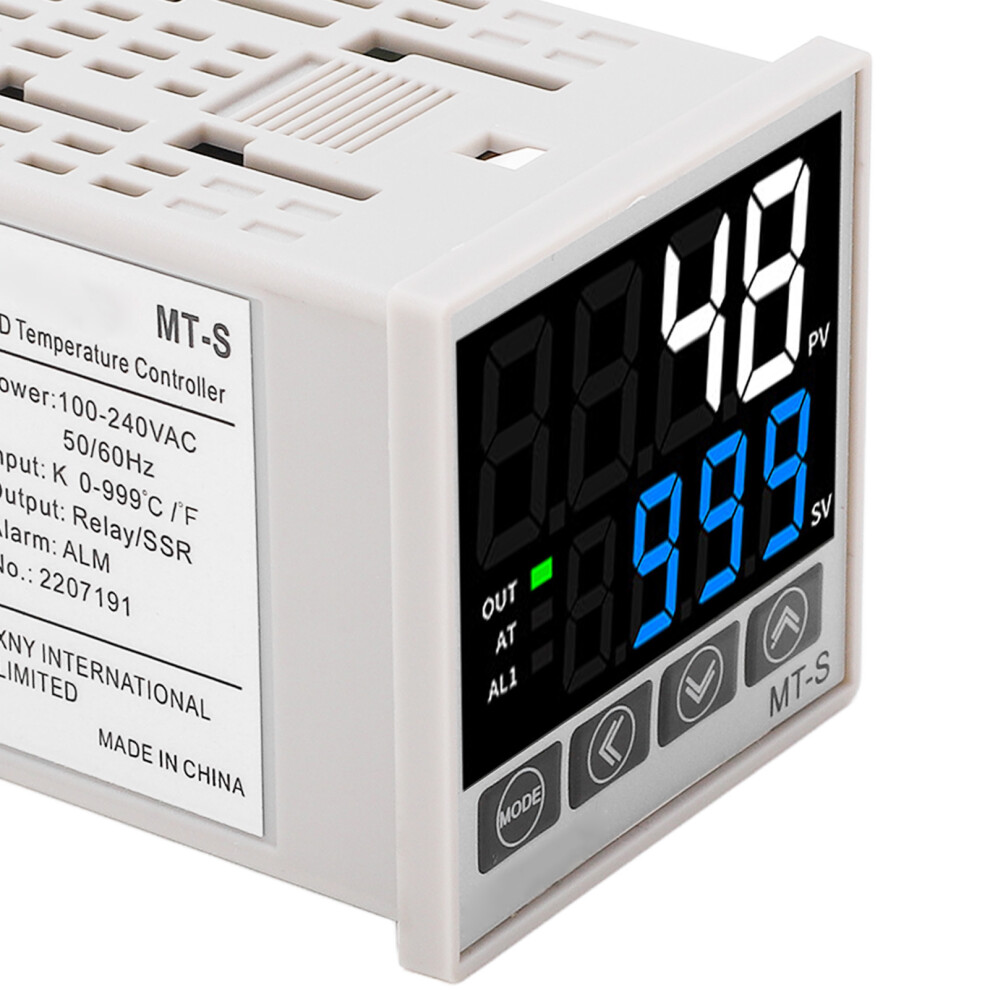

Display: Process value (PV), set value (SV), output (OUT), alarm (ALM), self tuning (AT) status display
Display Temperature Unit: Celsius / Fahrenheit , can switch to set the display unit
Control Mode:
1.PID control (including NO/OFF, bit type PID and continuous PID)
2. Self tuning control
Working Mode: Reverse action (heating), positive action (cooling), user can set
Accuracy: Measurement accuracy: 0.5%FS Sampling Period: 0.5 seconds
Set Value Range:
Set Value (SV): Same range (PV)
Proportional Band (P): 0-full range (set 0, for NO/OFF control)
Integration Time (I): 0-999 seconds (set 0 when no integration effect)
Differential Time (D): 0-999 seconds (set 0 when no differential effect)
Proportional Period: 1-100 seconds
Bit Control Output Hysteresis Loop Width: 1-100 (or other PV units)

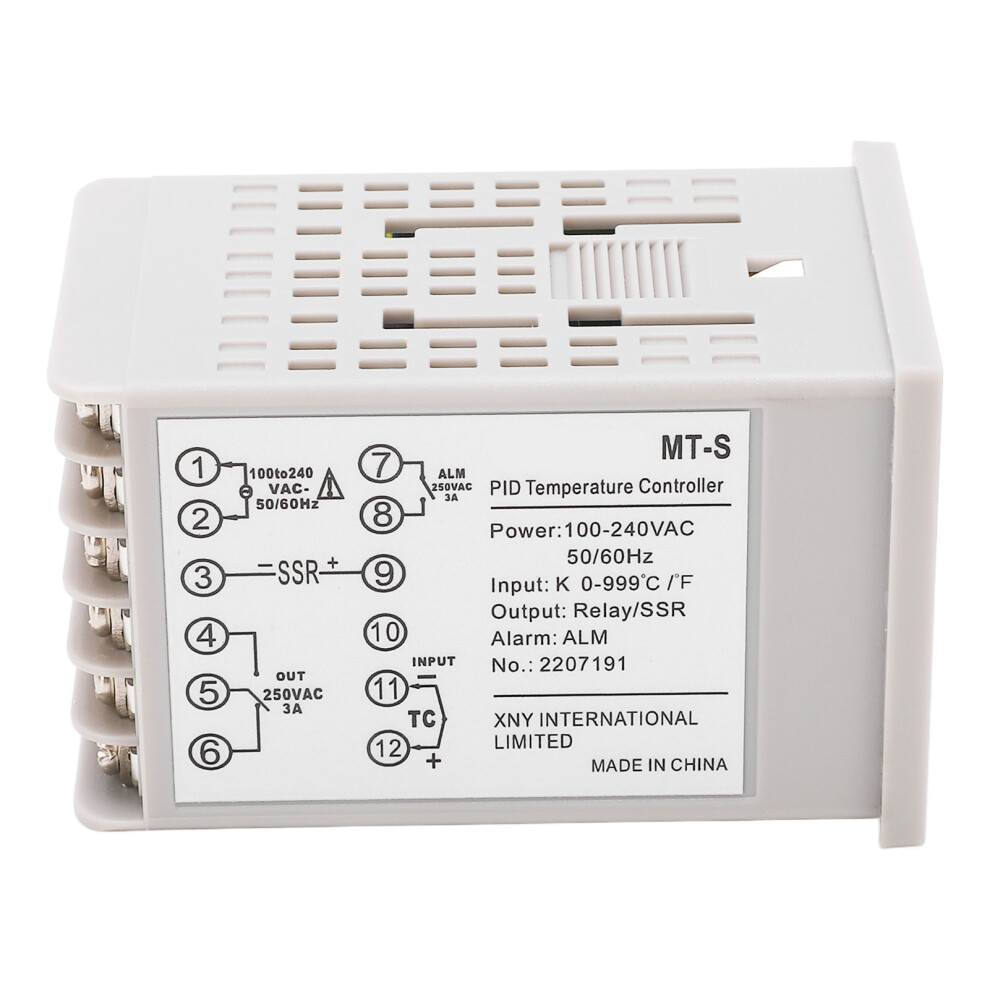

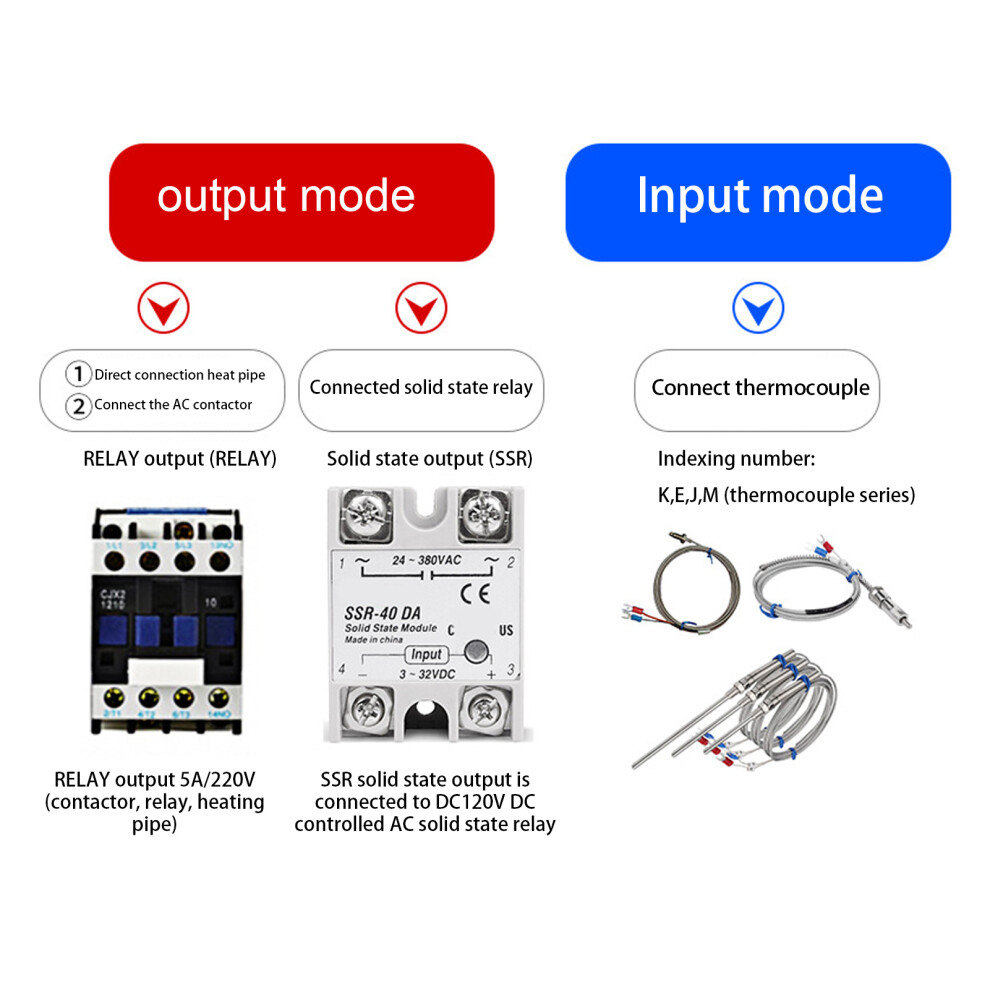

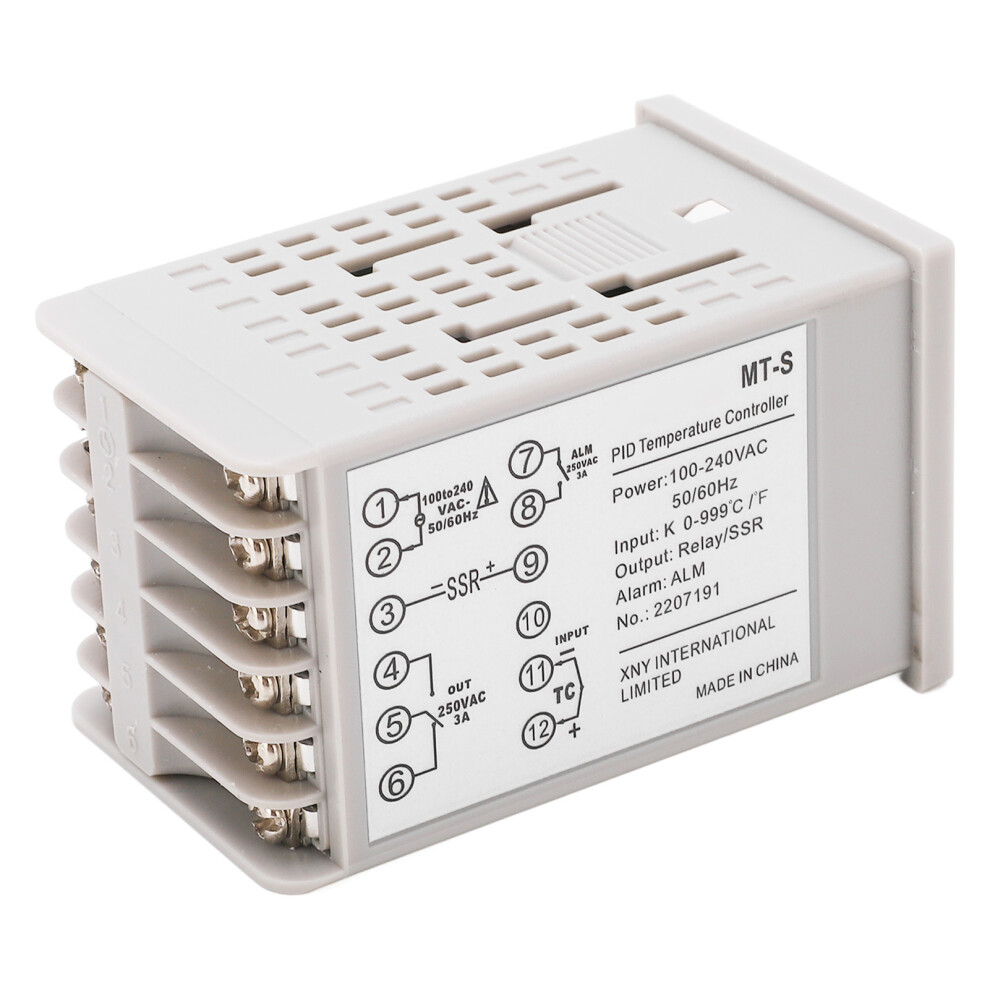

Control Output: A set of main control output, while supporting the following 2 output methods for the user to choose.
Relay Output: contact capacity AC250V 3A (resistive load)
Voltage Pulse Output: 0-12V (for external solid state relay SSR)
Alarm Function Output: One set of output, 6 modes selection Alarm output contact capacity AC250V 3A
Other Parameters:
Power Consumption: <10VA
Use Environment: Temperature not exceeding 0-50, humidity not exceeding 30-80%RH without corrosive gas
