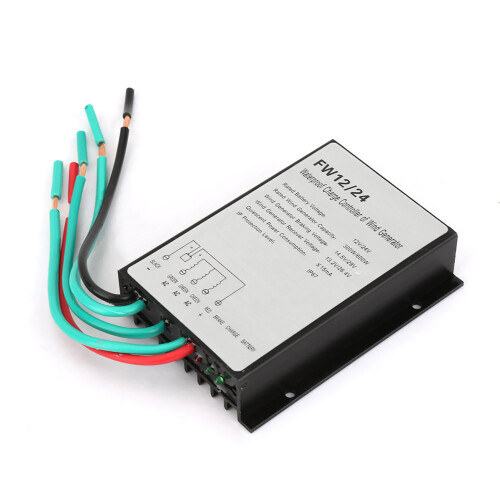

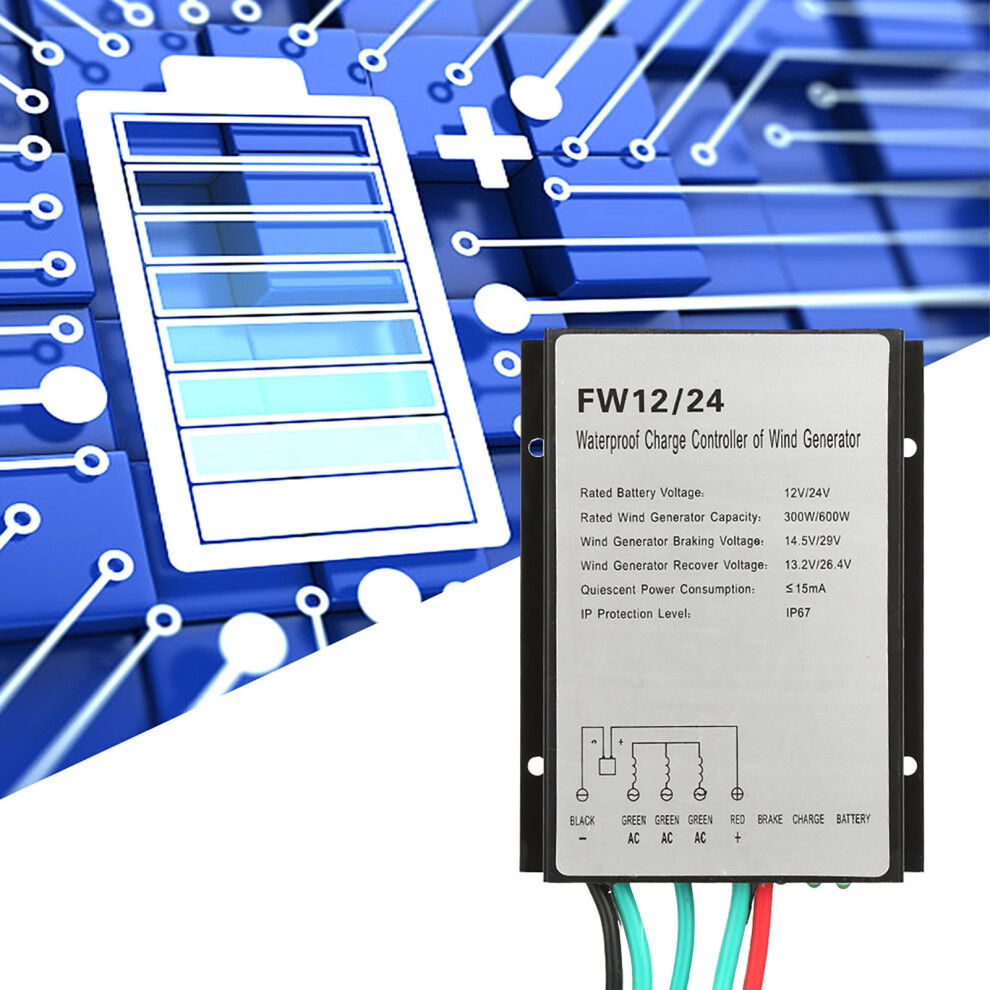

IP67 Waterproof FW12/24 Wind Turbine Battery Charge Controller

IP67 Waterproof FW12/24 Wind Turbine Battery Charge Controller Description

Waterproof Wind Turbine Generator Charge Controller Regulator FW12/24

Features:
1.

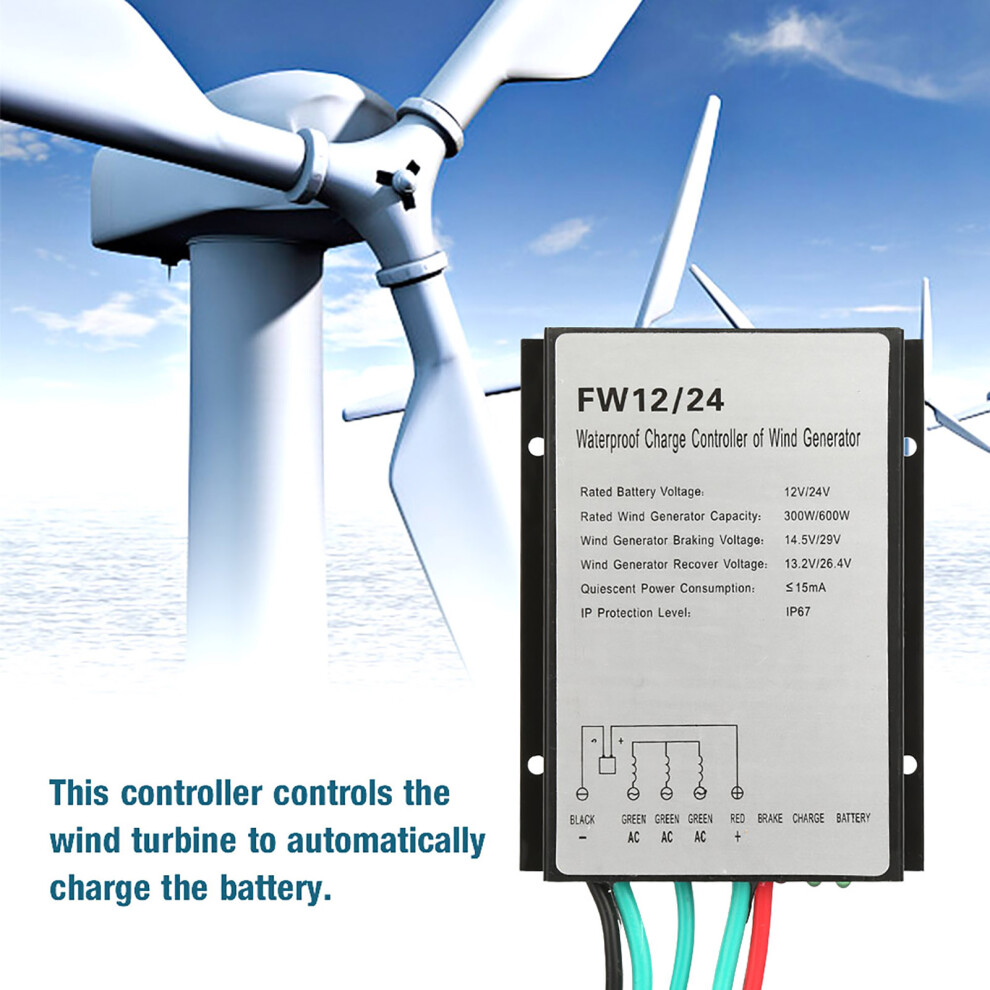

1. This controller controls the wind turbine to automatically charge the battery.
2. When the battery is full, the fan is braked by the internal circuit automatic control. When the battery voltage drops to the recovery voltage, the fan resumes charging the battery, thus protecting the fan and the battery.
3. The rectifier and brake circuit part of the controller adopts integrated module design.
4. Fully waterproof protection, fully waterproof and fully waterproof, with protection level above IP67.

Specification:
Condition:
Model: FW12/24
Battery Rated Voltage: 12/24V
Wind Turbine Rated Power: 300W/600W
Brake Start Voltage (Factory Value): 14.4V/28.8V
Brake Recovery Voltage (Factory Value): 13.2V/26.4V
Display Mode: Led (Light-Emitting Diode Display)
Working Temperature And Humidity Range: -35-+75
Quiescent Current: 15 mA
Protection Level: IP67
Weight: Approx. 255g / 9.0oz
Size: Approx. 100 * 87 * 28mm / 3.9 * 3.4 * 1.1in

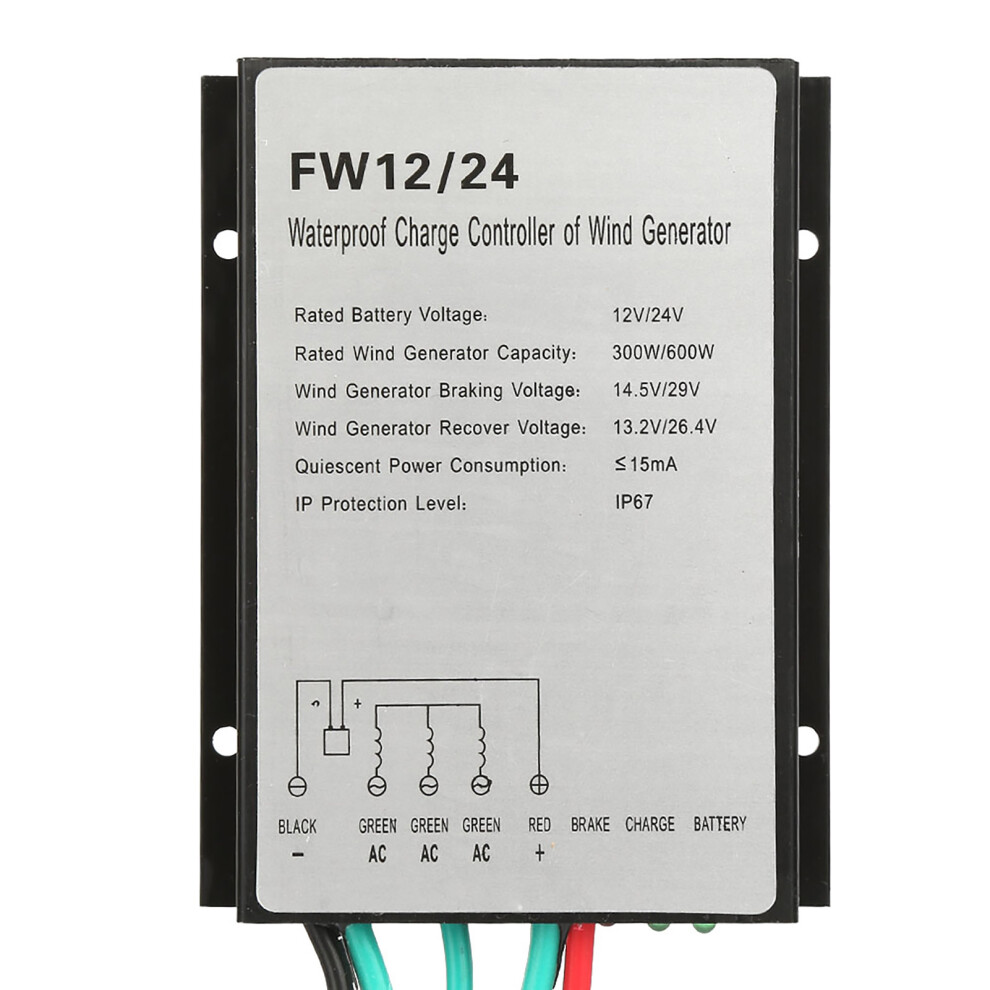

Wiring:
1. Connect the positive and negative terminals of the battery to the positive (red) and negative (black) terminals of the battery.
2. Connect the three-phase output voltage of the wind turbine to the three-phase input (green line) terminal of the controller fan.

Package List:
1 * Wind Turbine Controller

Note:
1. Verify that the wind turbine output voltage matches the rated voltage of the battery.
2. Wiring sequence: first connect the positive and negative poles of the battery, then connect the three-phase voltage output of the fan.
Please connect the battery and wind turbine to the controller in strict accordance with the instructions. If the polarity is reversed or the wrong position is connected, the system will work abnormally and even cause the controller to be completely damaged.

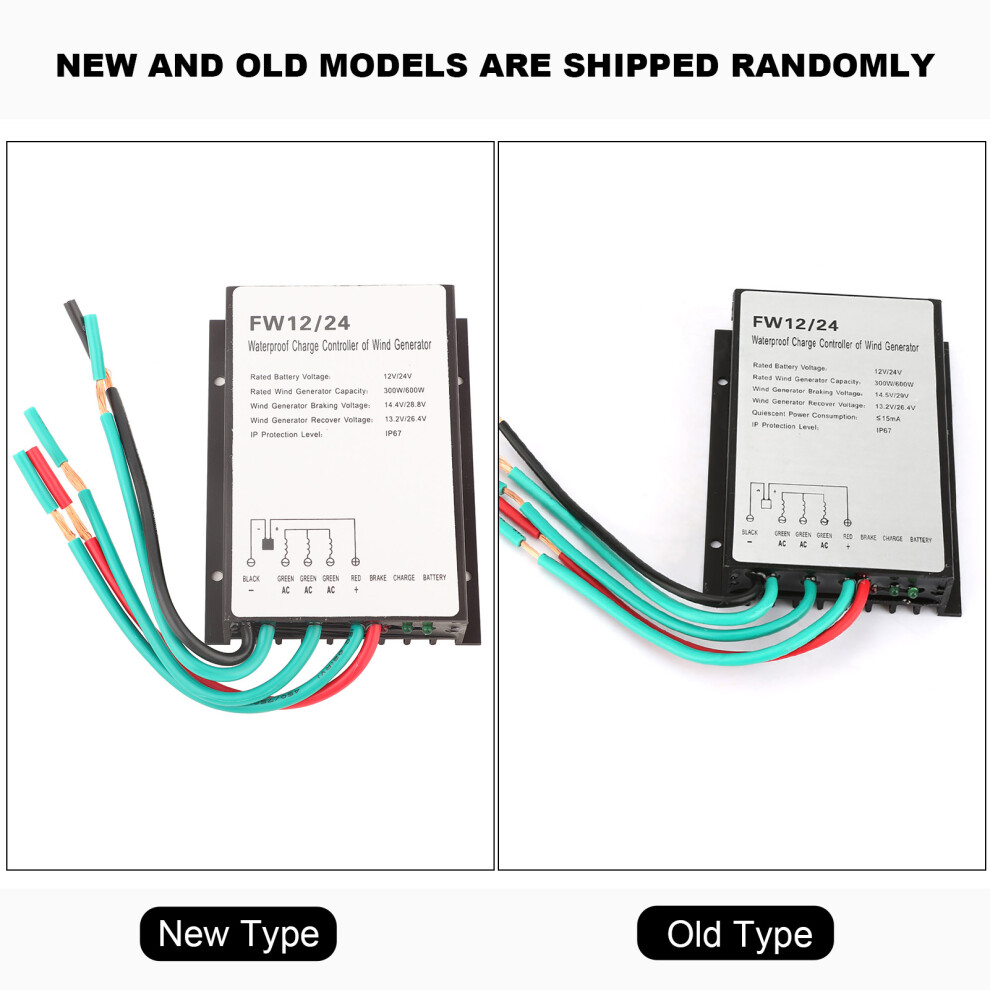

3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
