IP68 Soil Moisture Sensor 0‑100% Humidity Transducer, 4-20mA, 2s Response

IP68 Soil Moisture Sensor 0‑100% Humidity Transducer, 4-20mA, 2s Response Description

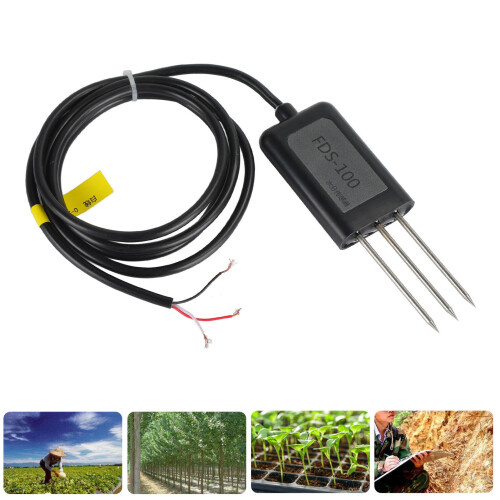

IP68 Soil Moisture Sensor Humidity Transducer for Garden Greenhouse Agriculture 0‑100% 2s ResponseOutput 4‑20mA 12‑24V
Item Type: Soil Moisture Sensor
Material: ABS
Weight: Approx. 141g / 5oz
Probe Material: Stainless Steel
Sealing Material: Epoxy Resin
Measurement Parameter: Soil Volumetric Water Content
Measuring Range: 0-100%
Measurement Accuracy: 3%
Resolution: 0.1%
Measurement Area: A cylinder with a diameter of 7cm and a height of 7cm surrounding the central probe with the central probe as the center
Probe Diameter: Approx. 3mm / 0.12in
Response Time: 2s
Cable Length: Approx. 1.5m / 4.9ft
Working and Storage Conditions:
Working Temperature: -40-85
Working Humidity: 0-100%RH
Storage Temperature: -40-125
Storage Humidity: <80% (No Condensation)
Protection Level: IP68

V: Voltage Type
A: Current Type
R: RS485 Type
Operating Voltage
7-24V
12-24V
7-24V
Working Current
3-5mA
3-25mA
3-5mA
Output Signal
Output Signal 0-2V DC
4-20mA
RTU Protocol
RTU Protocol
Communication Method: RS485 communication, transmission distance <1000 meters
Communication Rate: 9600, n, 8, 1
Communication Protocol: RTU protocol, the factory station number (device address) is station 2, which can be modified as needed.
Commands of RTU Protocol Include: Read the value of soil moisture (the factory is station 2)
Working Principle:
FDR frequency domain method uses the principle of electromagnetic pulse to measure the dielectric constant (ε) of the soil according to the propagation frequency of electromagnetic waves in the medium to obtain the soil volumetric water content (θv).
Scope of Application: Suitable for water-saving agricultural irrigation, greenhouses, flowers and vegetables, grassland pastures, soil rapid testing, plant cultivation, scientific experiments, underground oil, gas pipelines and other pipeline anti-corrosion monitoring fields.
Wiring:
Line Color
Red Line
Black Line
White Line
Simulation
Power Positive
Power Negative
Signal
Line Color
Red Line
Black Line
Yellow Line
Brown Line
RS485
Power Positive
Power Negative
485A
485B
Example of Read Command Format: 02 03 00 00 00 01 84 39
Note: The first byte 02 at the beginning is the station number. If you have modified the station number setting, you should change the first digit 02 to the station number you set. The last two digits 84 39 are CRC16 checksums, and customers need to calculate them by themselves.
Example of Command Format of Returned Data: 02 03 02 01 1F BC 1C
Note: The 4 and 5 bits of 01 1F are the moisture value, and BC 1C is the returned CRC check.
Analysis Method of Soil Moisture Data: Moisture=0X011F/10=28.7%
Modify Own Station Number:
Method 1: Know the current station number and send the following command
02 10 10 00 00 01 02 00 03 E3 60 Its function is to change the station number from No. 2 to No. 3.
Note: Replace italicized characters with the original station number, and replace the regular characters with the value of the target station number that you want to modify. Sending requires the customer to calculate the CRC value by himself.
Method 2: Know the current station number and send the following command
02 06 10 00 00 03 CD 38 Its function is to change the station number from No. 2 to No. 3.
Note: Replace the italicized characters with the original station number, and replace the regular characters with the value of the target station number that you want to modify. Sending requires the customer to calculate the CRC value by himself.
Method 3: Forget the original station number, you need to connect the product to the computer alone, pay attention
There can be no other 485 products on the bus. Use station 0 to operate them. The instructions are as follows: 00 10 10 00 00 01 02 00 03 FA 00
Note: The big characters are the target station number value that you want to modify. The customer calculates the CRC check value by himself.
This sensor uses the FDR method (frequency domain method) to measure soil moisture, which can correspond to the soil volumetric moisture content. The FDR method (frequency domain method) measuring soil moisture is mainly related to the pH of the measured soil, the density of the soil, the soil quality, and the depth of the measurement.
Fault Analysis and Elimination:
1. The sensor output signal is abnormal
Check whether the supply voltage is stable
Check whether the power supply range is normal
Check whether the line is virtual
2. The sensor has no signal output
Check whether the positive and negative poles of the power supply and the ground wire are connected correctly
Check whether the power supply voltage meets the requirements
Care and Maintenance:
This instrument is a scientific and technological product with excellent design and functional principles, and attention should be paid to maintenance. The following suggestions will help you effectively use maintenance services.
1. Prevent the instrument from being scratched, maintain the integrity of the external protective film, and increase the service life of the instrument.
2. When using the instrument, please fix the connection parts firmly to avoid damage to the instrument.
3. Rough handling of the instrument will destroy the internal circuit board and precise structure.
4. Do not paint the instrument with paint, as the paint will block debris in the detachable parts and affect normal operation.
5. Use a clean, dry soft cloth to clean the outside of the instrument.
6. Regularly check the power supply of other configuration equipment to ensure that the instrument works normally.
7. When cleaning, turn off the power, take out the sensor, and then gently wipe the surface of the sensor and the inner surface of the constant current device with soft filter paper, and then rinse it with clean water. When cleaning, be careful not to scratch the surface of the sensor.
