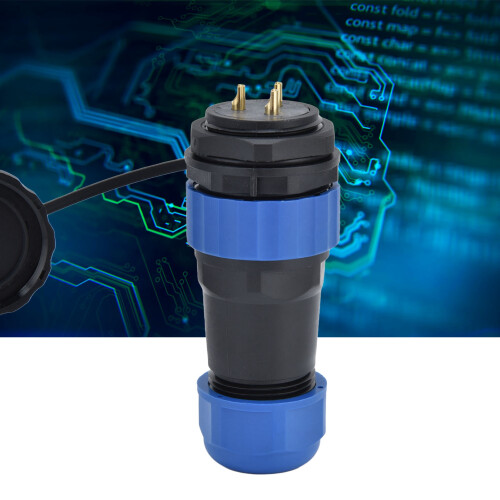

IP68 Waterproof Aviation Plug Socket 380V 25A 3-Pin, 28mm
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
£13.61
£20.62
34% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 6th - Wed 8th Jul
Returns: 30 days
180-day payment protection
Most Popular in Power Outlets & Sockets
Description & Details
Summary
- Connector Specification: M28x1.5mm thread specification, rated current is 25A, working voltage is 380V, and the applicable cable of the shell is Φ12~14.5mm².
- Premium Quality Pins: Solid pin is plug resistance, pure copper gold plated, oxidation resistance and has a long service life.
- Robust Shell: The shell is made of PA66 and PA6 materials, which has good corrosion resistance and flexibility, and will not crack due to low temperature.
- Electric Soldering Iron Welding Method: Use electric soldering iron welding method for conductive wire connection to ensure a strong connection.
- Wide Application: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms, etc. electronic equipment.
IP68 Waterproof Aviation Plug Socket 380V 25A 3-Pin, 28mm Description
Aviation Plug Socket IP68 Waterproof SP28 Back Nut Welding Male and Female Power Connector 380V 25A3 Pin
Item Type: Aviation Plug Socket
Material: PA66, PPS, Silicone, Red Copper
Application: Widely used in electronic equipment such as communication equipment, instruments, computers, program controlled machines, alarms, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220)
Contact Material: Copper (gold plated)
Connection Method: Soldering (if soldering paste is used, it must be cleaned with ethanol)
Connection Method: Threaded connection

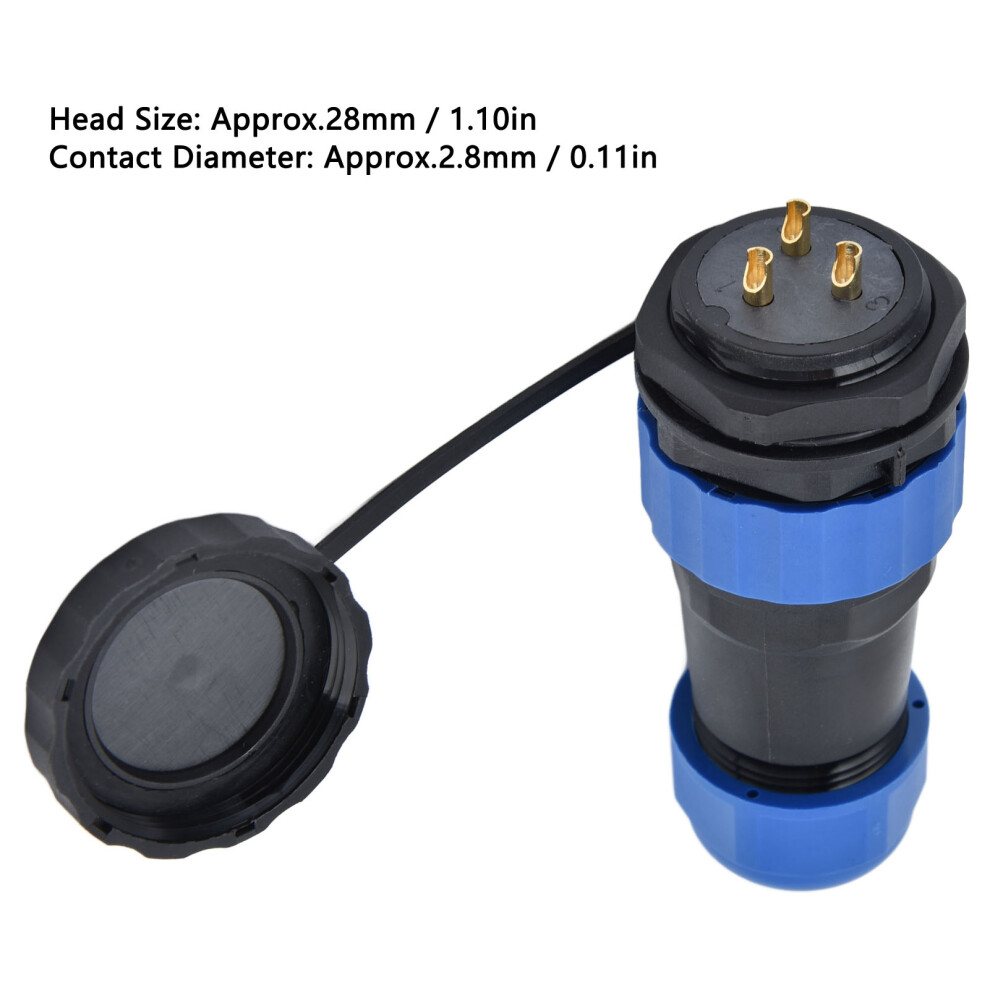

Head Size: Approx.28mm / 1.10in
Thread Specification: M28x1.5mm
Insulation Resistance: 2000MΩ
Contact Diameter: Approx.2.8mm / 0.11in
Rated Current: 25A
Working Voltage (AC.V): 380V
Withstand Voltage: 1500V
Contact Wire Gauge (mm²/AWG): 4/12
Applicable Cables for Shell: Φ12~14.5mm²
Mating Times: More than 500 times
Operating Temperature Range: -25 to 85
Sealing: Meet IP68
