IPC 9800 Plus 7" IP CCTV Tester HD IP Analog Function

IPC 9800 Plus 7" IP CCTV Tester HD IP Analog Function Description

IPC 9800 Plus 7" IP CCTV Tester HD IP Analog Function

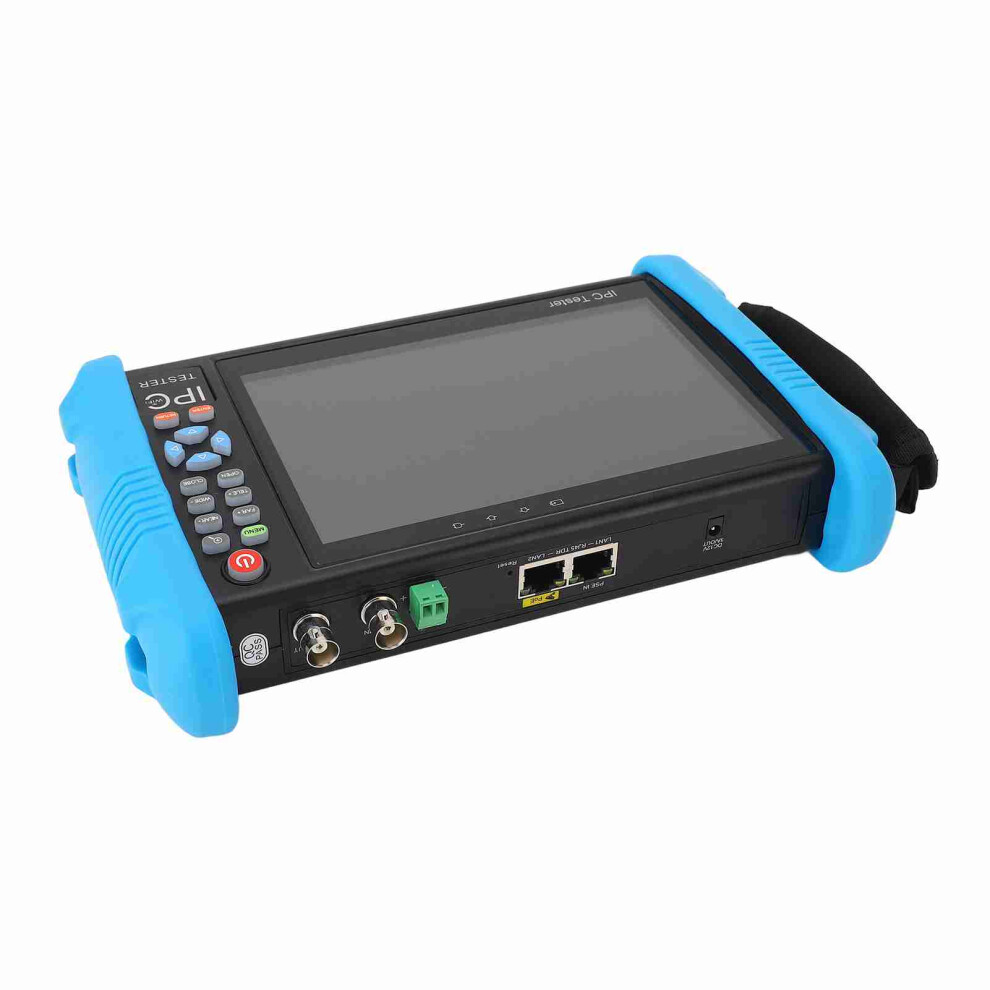

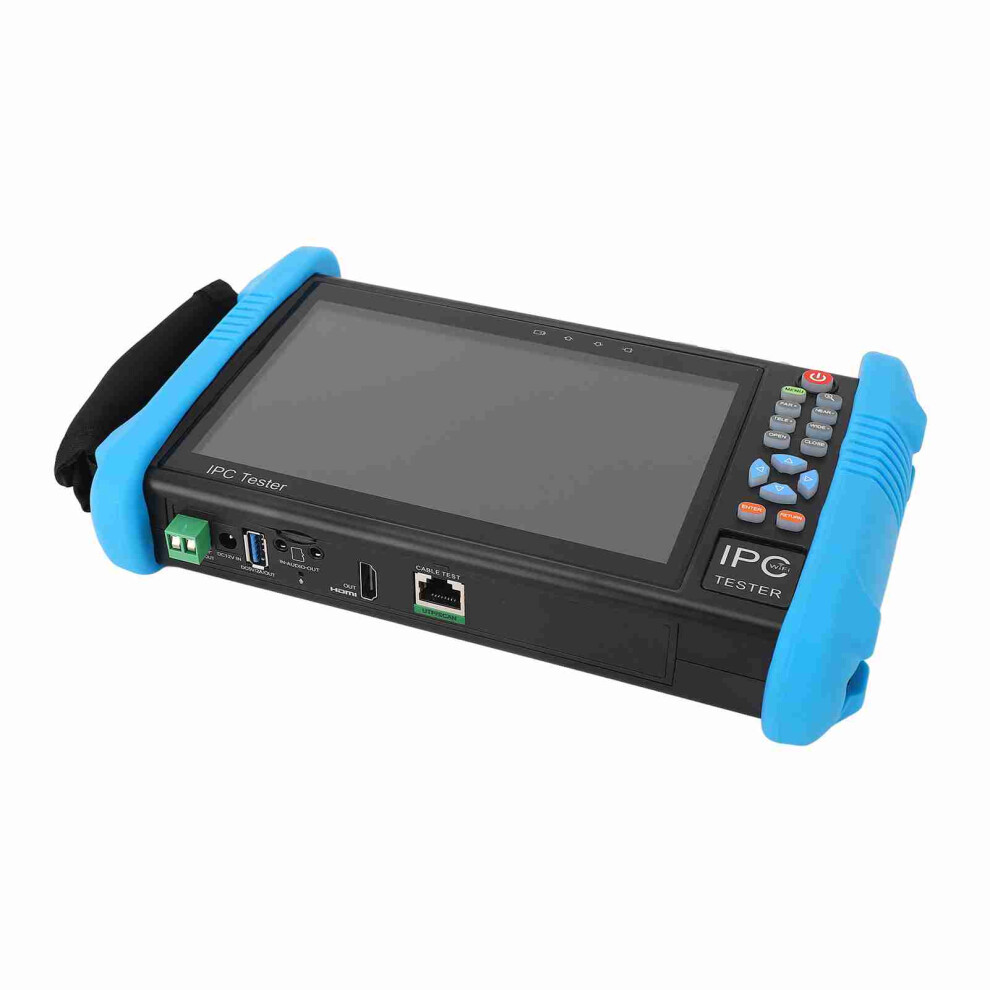

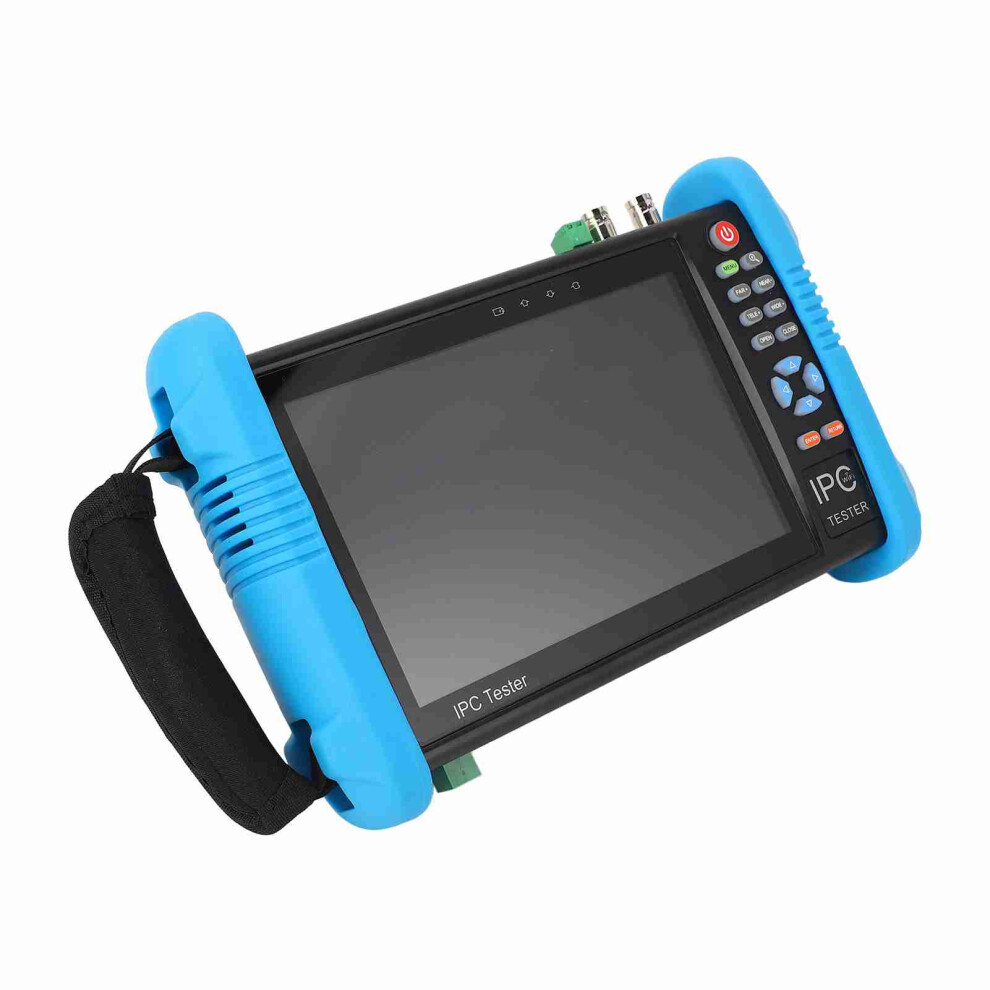

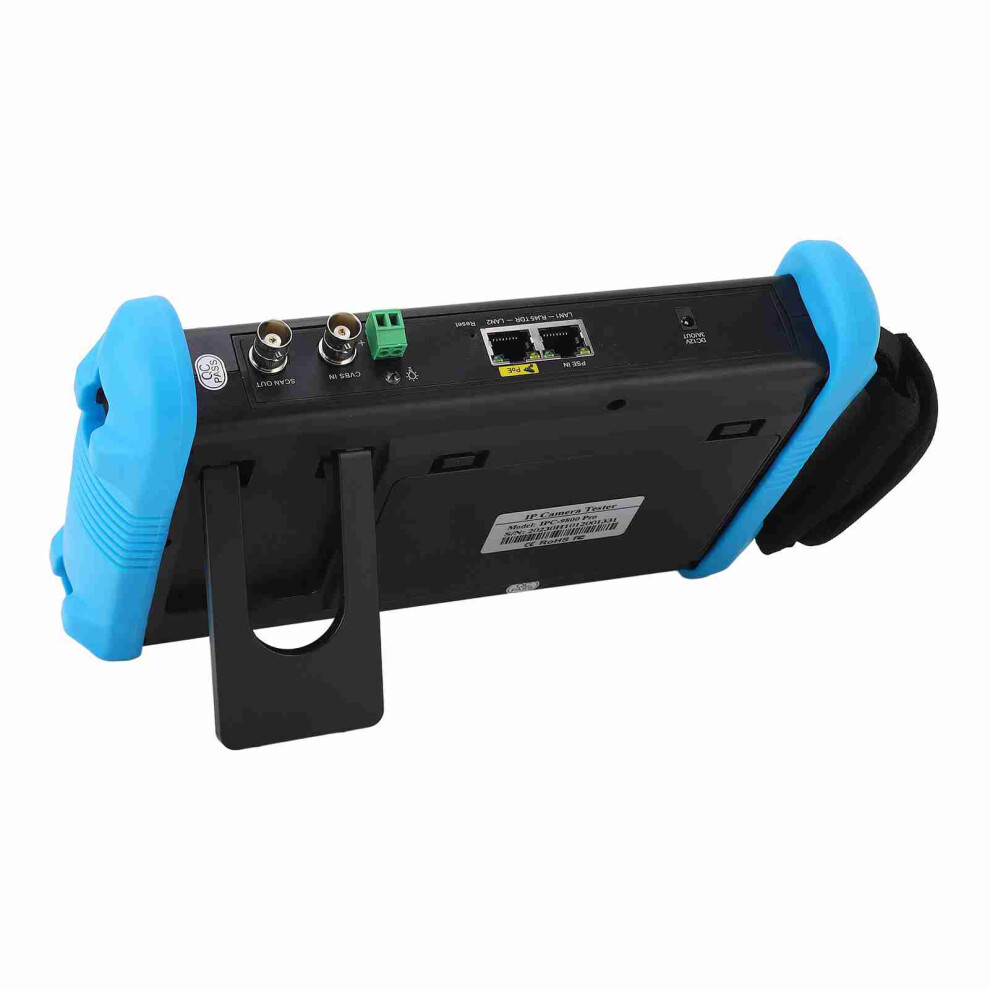

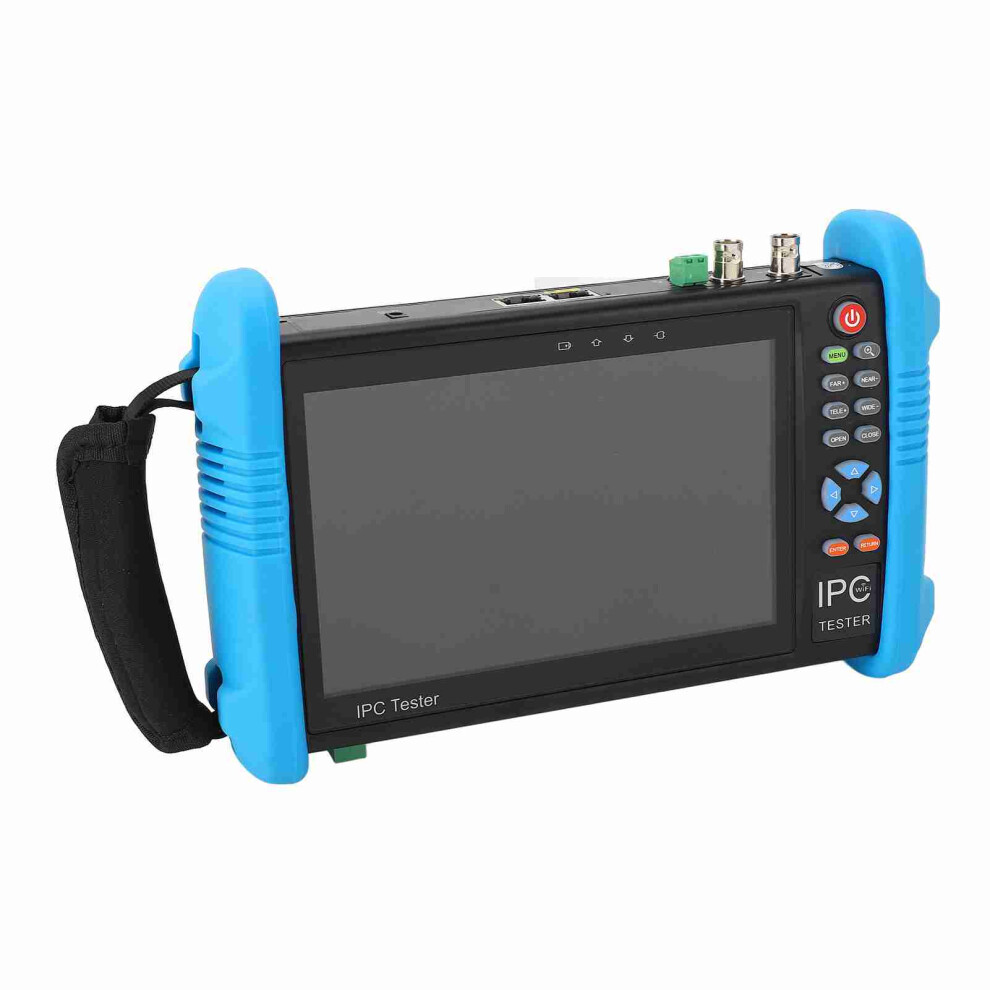

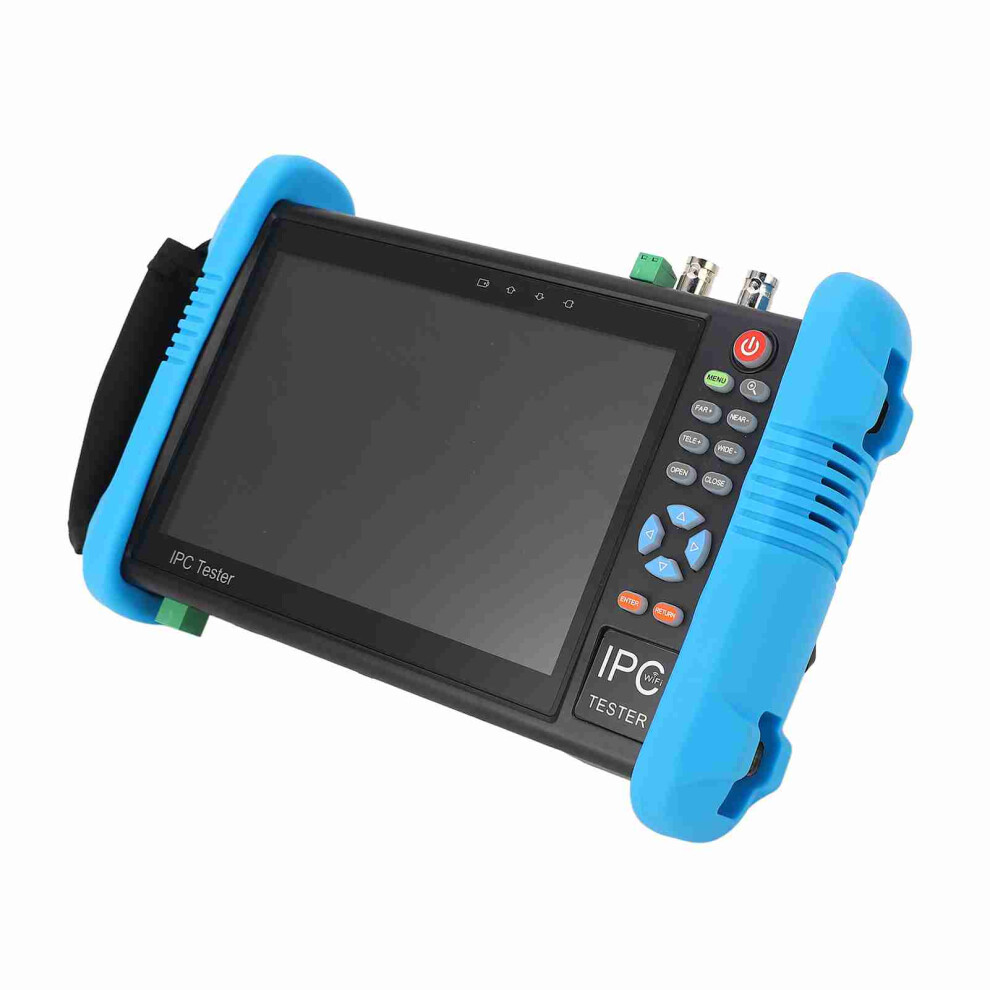

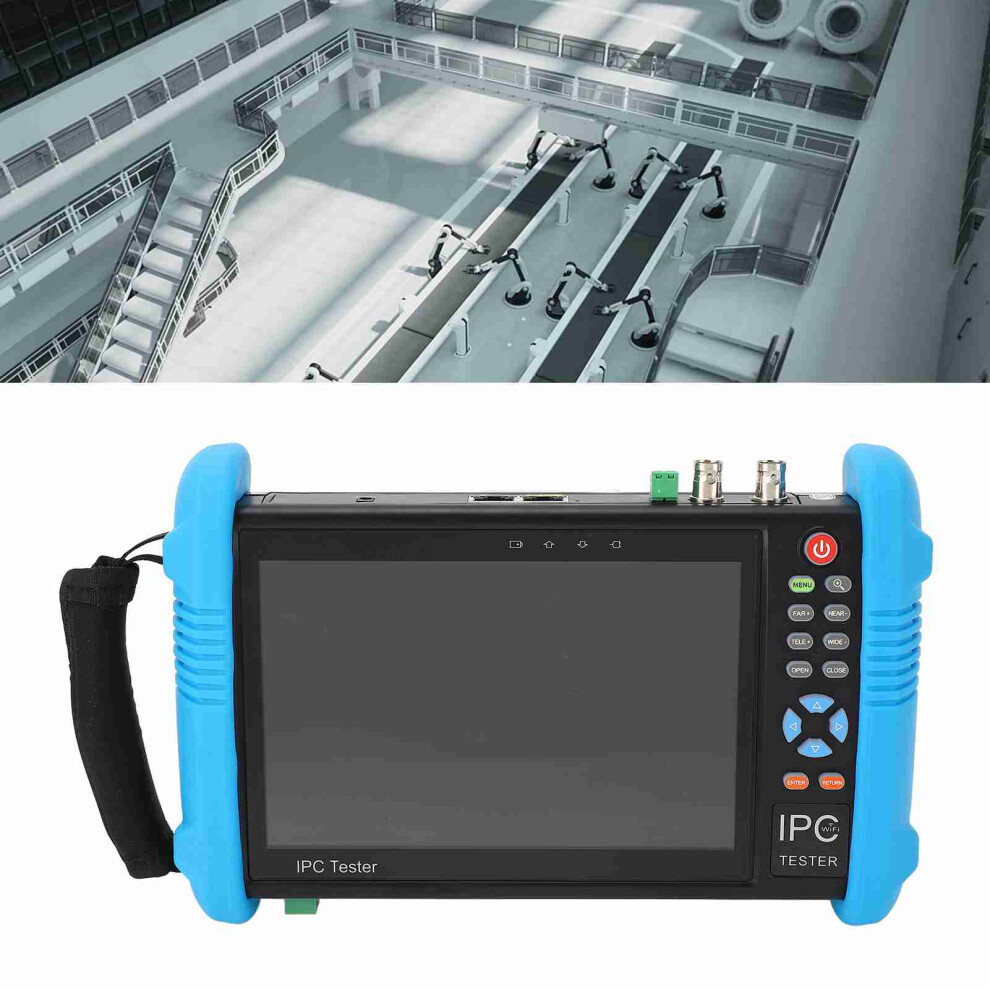

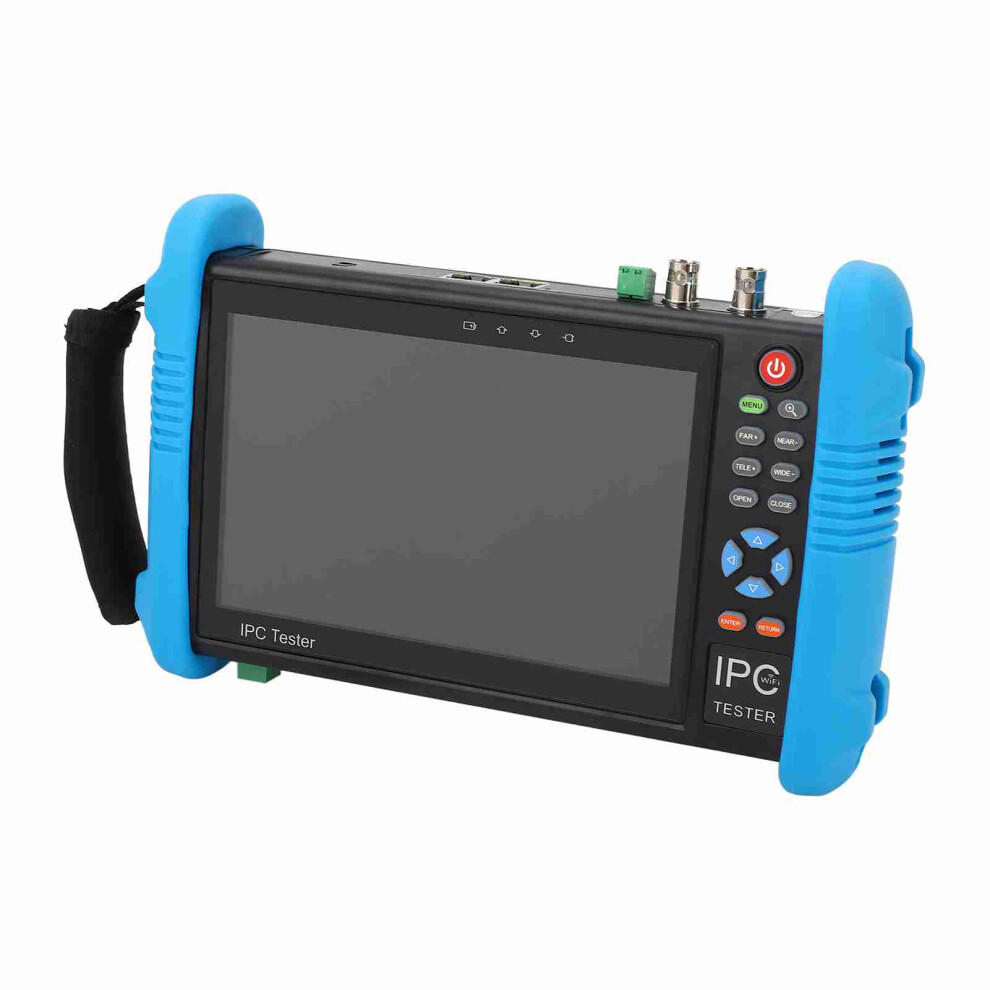

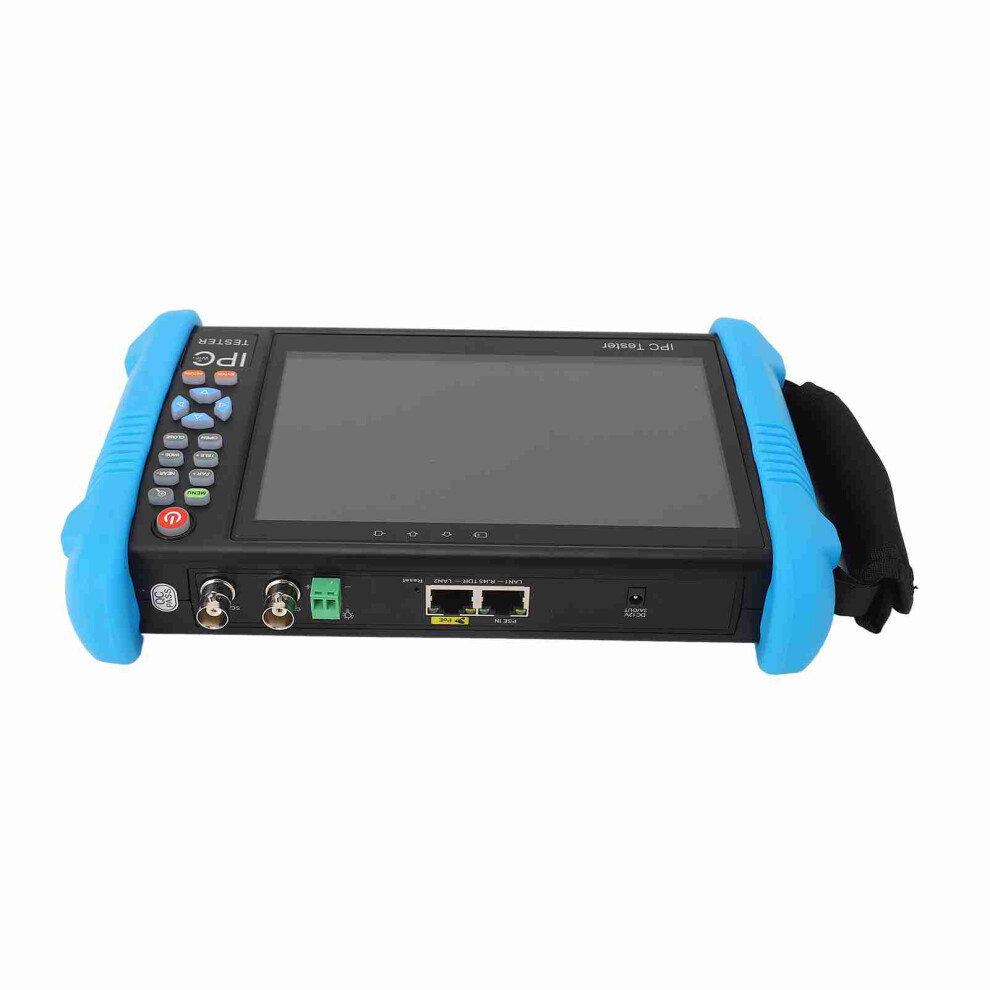

The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

Features:
1. New -7 inch IPS touch screen,1280*800 resolution
2. New-H.264 and H.265,4K video display via mainstream
3. IP & CVBS camera test, PTZ controller
4. New-Rapid video, just by one key to detect all network cameras and auto display
5. Auto log in and display image from the camera, activate camera, and also can create testing report
6. New-IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS

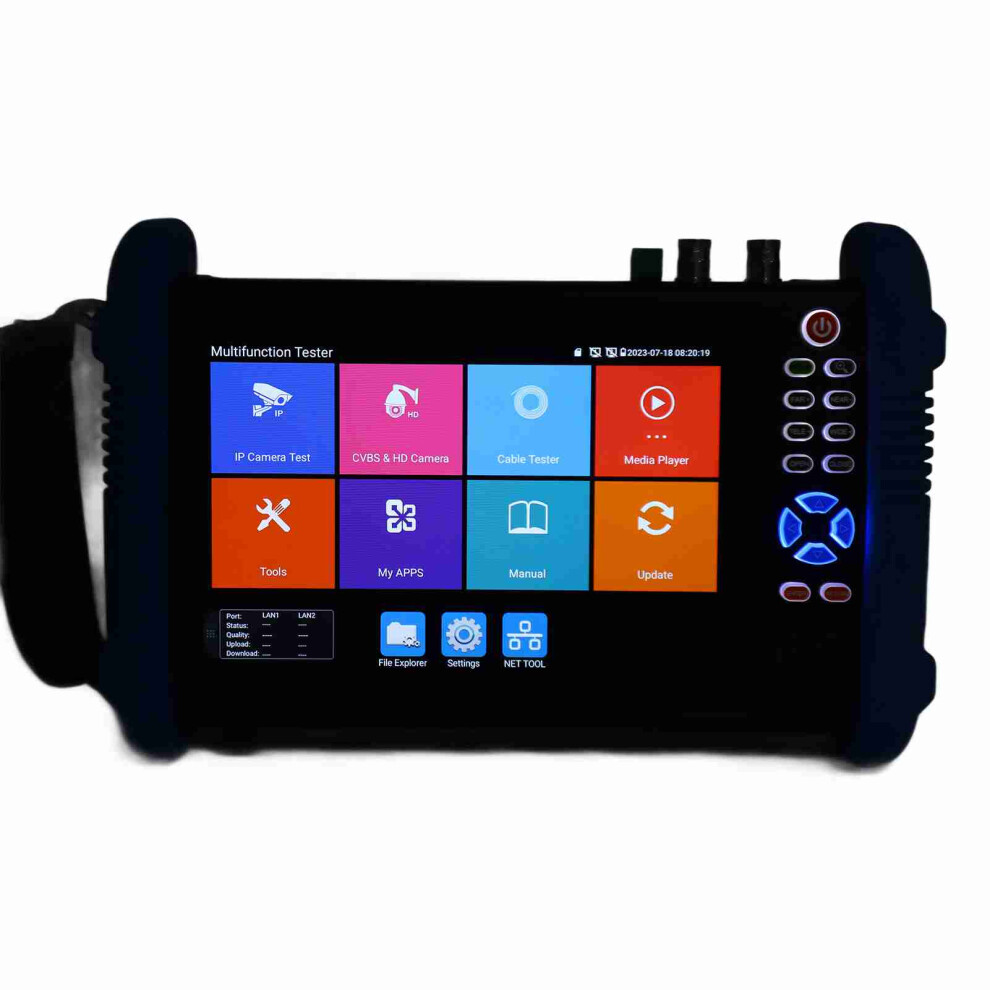

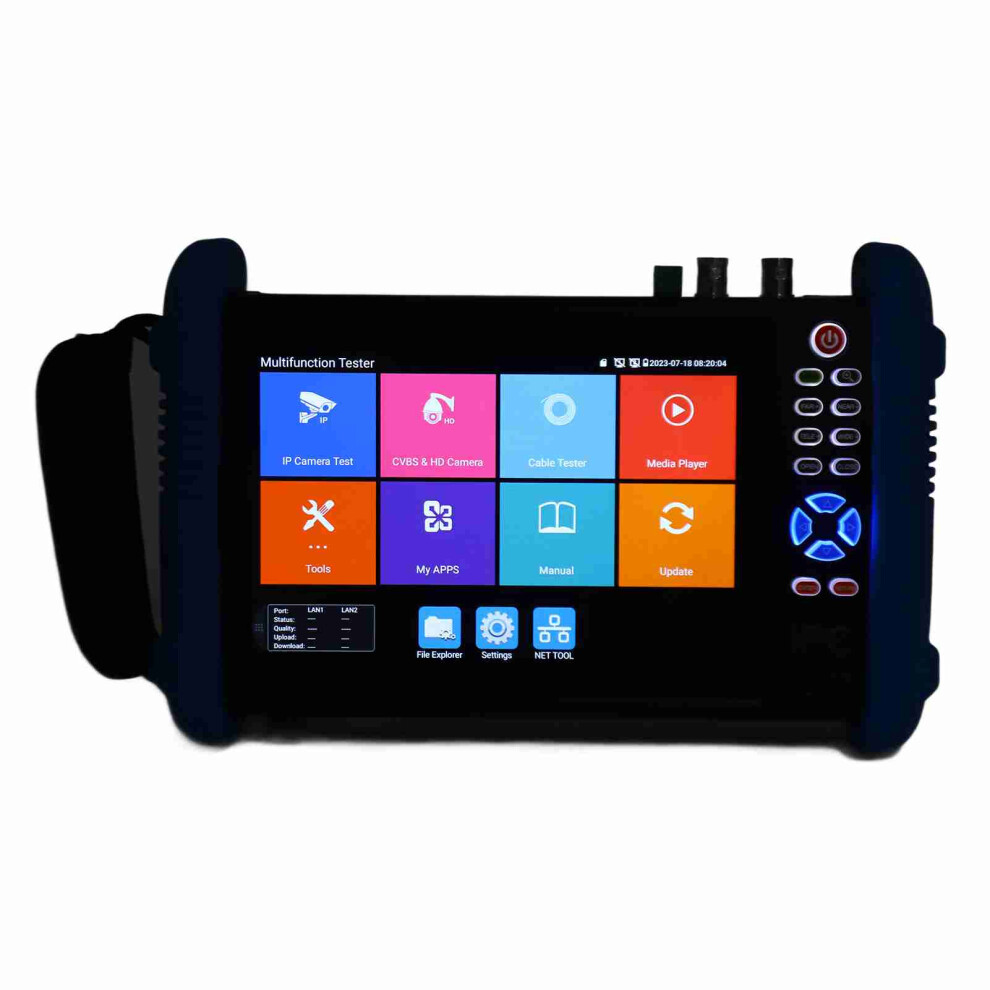

7. New-Screen management, change function's icons order, create new directory
8. New-Testerplay (screen projection):tester, for android version mobile phone and PC display at the same time
9. New-Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, High Definition Multimedia Interface IN functions etc in any interface
10. Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
11. New-RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance,skew etc
13. High Definition Multimedia Interface output ,support 1080P
14. New-CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
15. New-Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
16. New-Customers self update software, you can install apps with for android version
17. Support 2592*1520, Network PTZ controller
18. Built in Wi-Fi, display image from the wireless camera ,create WIFI hotspot
19. New-4K video files and MKV/MP4 media files play
20. PoE DC48V power output, maximum power 24W, 12V/2A power output/5V 2A power output, as a power bank
21. IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address
22. Display its genuine resolution of the IP camera images
23. Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
25. Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
26. 7.4 V /7800mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours

Specification:
Note:
IPC-9800 Plus (Basic Model): HD IP+Analog
IPC-9800ADHS Plus: HD IP+Analog+CVI+AHD+TVI+SDI+High Definition Multimedia Interface
IPC-9800MOVTADHS Plus: HD IP+Analog+CVI+AHD+TVI+SDI+High Definition Multimedia Interface+Multimeter+Optical+TDR (All Functions)





LCD




Item series




                                  IPC-9800 Plus








Display




New 7 inch IPS touch screen ,1280*800 resolution








  Video Mode




     CVBS











Analog video level meter,peak video signal level, SYNC signal level, Color bar chroma level measurement











PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as for PELCO-D/P etc











CVBS loop test




the tester send and receive color bar generator signal , check BNC cable











IP camera test




IPC test /IPC viewer /Rapid Video/RTSP










Rapid Video




Auto view the video, create testing report











Hik test tool




pressing just one key to activate camera , Image test, can modify the user name, password and IP parameters











Dahuatesttool



camera test, modify the user name, password and IP parameters











IP& CVBS test




IP& CVBS test at the same time ,converter test from analog to digital with dual test window











High Definition Multimedia Interface output




1 channel High Definition Multimedia Interface output, support 1080P











Zoom Image




4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back











Analog Video out




color bar generator




Output one channel PAL/NTSC color bar video signal for testing monitor or video cable











High Definition Multimedia Interface output




1 channel High Definition Multimedia Interface output, support 1920*1080P
















12V/2A power output




Output DC12V/2A power out ,supply temporarily power for the camera











Power output







PoE power output




48V PoE power output, maximum power 24W











5V/2A power output




USB 5V 2A power output, as a power bank











 Cable test




TDR cable test




BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM











UTP cable test




Test UTP cable connection status and display on the screen. Read the number on the screen











RJ45 cable TDR test




test cable pair status, length, attenuation, reflectivity, impedance,skew etc











TesterPlay




screen projection: tester, mobile phone and PC display at the same time (For android version mobile phone)











Network test




Trace route, Link monitor , DHCP server, port flashing , Ping test











Wi-Fi




Built in WIFI, speeds150M,display wireless camera image








Audio test











Data monitor




Captures and analyzes the command data from controlling device, also can send hexadecimal








PoE test











Drop-down menu




You can select PoE power switch ,IP setting, WLAN switch , High Definition Multimedia Interface IN functions etc in any interface








External power supply




DC 12V 2A








Battery




Built-in 7.4V Lithium polymer battery ,7800mAh








Rechargeable




After charging 5-6 hours, normal working time 10 hours








Operation setting




OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc








Auto off




5-30 (mins)








Working Temperature




-10---+50








Working Humidity




30%-90%







Package list:




IPC-9800-Plus


IPC-9800ADHS Plus


IPC-9800MOVTADHS-Plus




1 * Tester
1 * Backpack Cord
2 * Lanyards
1 * BNC connector
1 * Video Cable
1 * Crocodile Clip
1 * RS485 Control Wire
1 * Network Adapter

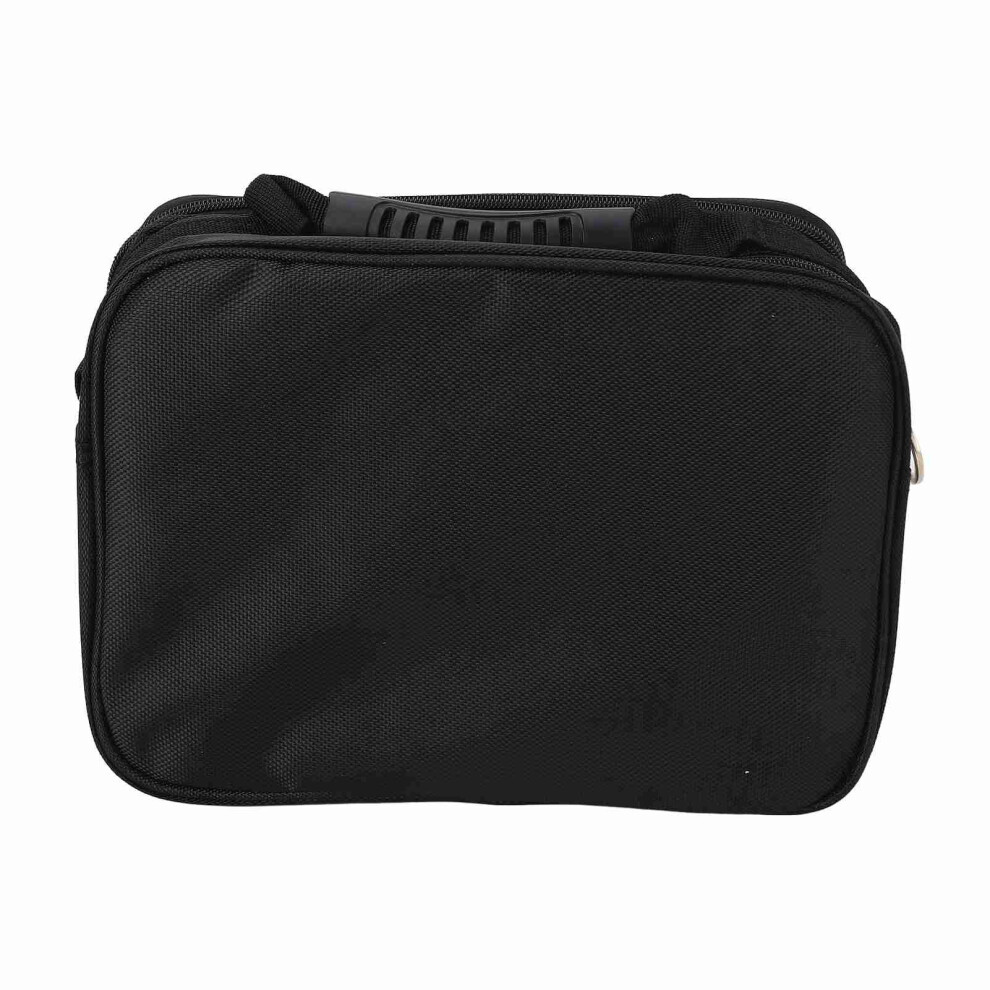

1 * ToolBag
1 * Tester
1 * Lanyard

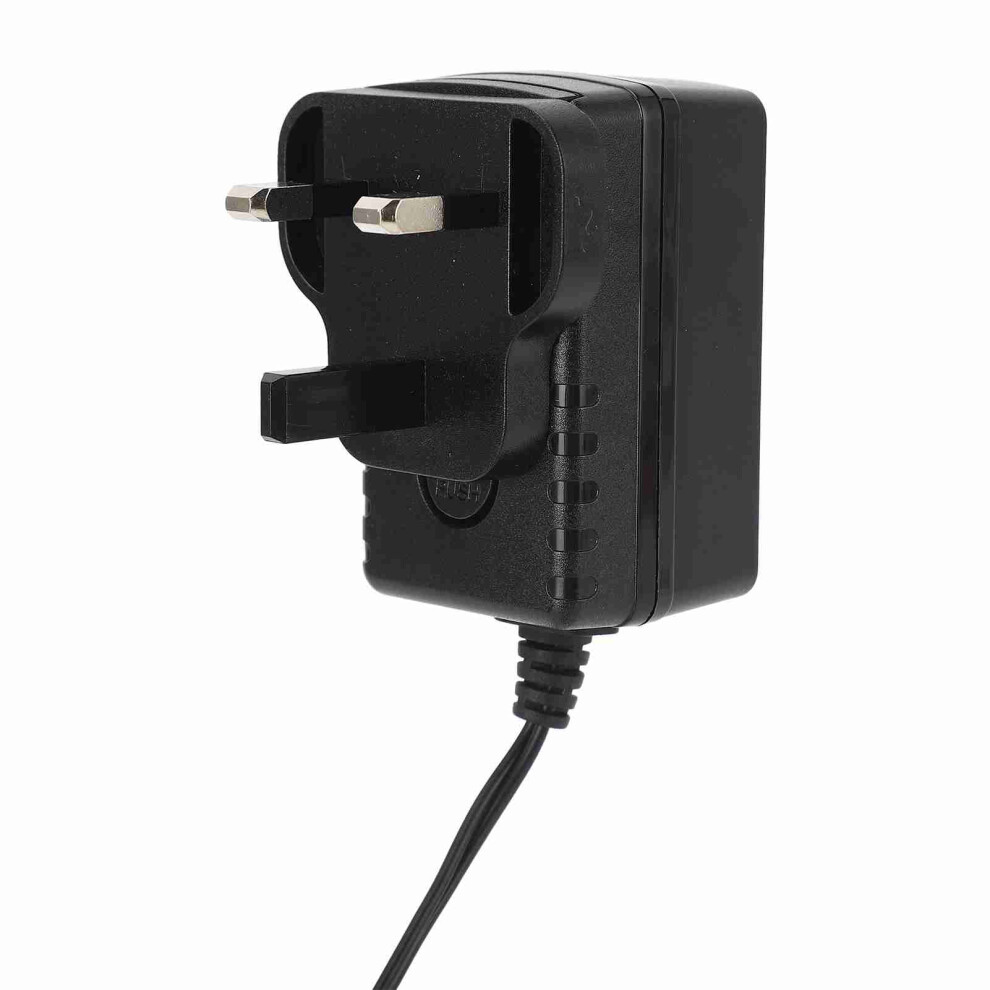

1 * Charger
1 * Power Output Converter
1 * RS485 Control Cable
1 * Audio Test Cable
1 * BNC Video Cable


1 * ToolBag
1 * Tester
1 * Lanyard
1 * Charger
1 * TDR Power-off Crocodile Clip
1 * Multimeter Test Probe
1 * Optical Fiber Test Head
1 * Cable Tracker
1 * Power Output Converter
1 * RS485 Control Cable
1 * Audio Test Cable
1 * BNC Video Cable





Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
